INTEL Part #/MPN: SSDPE2KE032T8T
DiscTech Item #: INT-SSDPE2KE032T8T-BN-OE-DEL
Speed: Solid State Memory
Interface Types: NVMe U.2, PCIe
Form Factor: 2.5inx15mm SFF Server Drive
Sector Size: 512 / 512e
Sustained Throughput: 3200/3050
Average Seek Time: 95 µs/20 µs
Electrical Interface: PCIe - v3.1 -16GBps
SSD Type: TLC
SSD Endurance DWPD: Enterprise Mixed Use

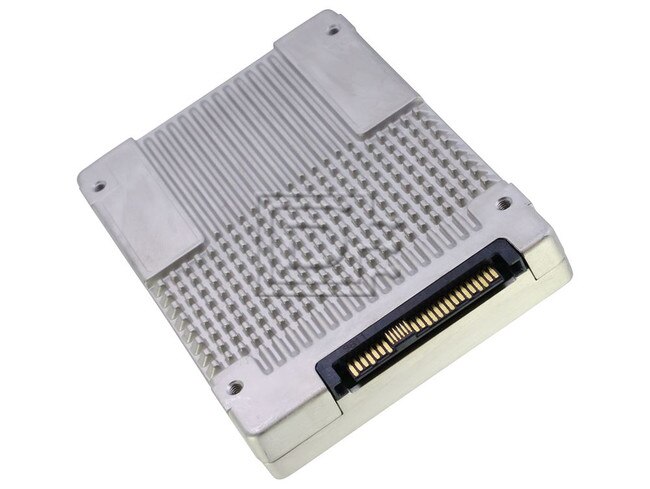

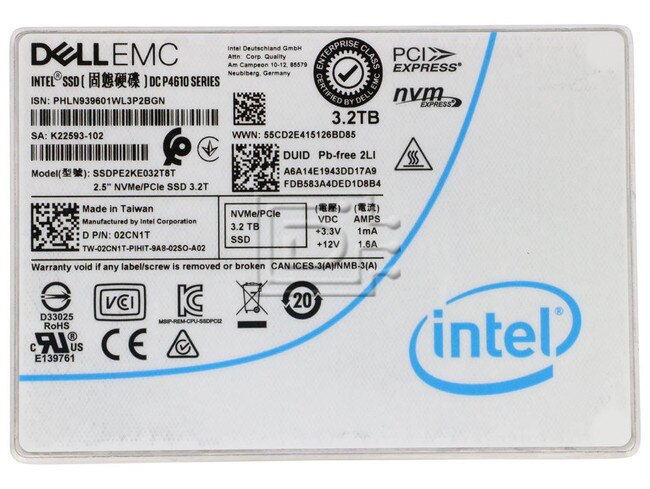

Dell 2CN1T / Intel DC P4610 SSDPE2KE032T8T 3.2TB 2.5" PCIe 3.1 NVMe U.2 MU SED SSD - Brand New
Dell 2CN1T / Intel DC P4610 SSDPE2KE032T8T 3.2TB / 3200GB TLC / Triple-Level Cell 2.5" x 15mm PCIe 3.1 NVMe U.2 MU / Mixed Use / 3.741-DWPD SED / AES 256-bi8t Encryption SSD / Solid State Drive - Brand New
Intel® 3D NAND SSD DC P4610 Series Data Center (DC), PCI Express* (P)
Cloud Inspired. Caching Optimized.
Designed for modern cloud storage solutions such as software-defined and converged infrastructures.
Pairing a new Intel developed controller, unique firmware innovations, and industry-leading 3D NAND density, the Intel® SSD Data Center P4600 Series—a member of the 2nd Gen Intel® 3D NAND SSD family—delivers an all new design to support the data caching needs of cloud storage and software defined infrastructures. The Intel SSD DC P4600 Series is stacked with a combination of performance, capacity, manageability, and reliability to help data centers fast-track their business and meet the overall demands of their digital business.
An SSD Optimized for Cloud Storage Architectures
The cloud continues to drive innovation, new services, and agility for businesses which are seeing the need to deploy services faster, scale effectively, and reduce the human costs of managing assets. Multi-cloud has become a core element for any enterprise strategy, with top cloud providers openly embracing PCIe/NVMe-based SSDs because of the scalable performance, low latency, and continued innovation.
Within the shift to the cloud is an increased adoption of software-defined and converged infrastructures. This fast adoption is being driven by the need to increase efficiency, refresh existing hardware, deploy new workloads, and reduce operational expenditures. The DC P4600 significantly increases server agility and utilization, while also accelerating applications, across a wide range of cloud workloads.
Optimized for Caching Across a Range of Workloads
This cloud-inspired SSD is built with an entirely new NVMe controller that is optimized for mixed workloads commonly found in data caching and is architected to maximize CPU utilization.
With controller support for up to 128 queues, the DC P4600 helps minimize the risk of idle CPU cores and performs most effectively on Intel platforms with Intel® Xeon® processors. The queue pair-to-CPU core mapping supports high drive count and also supports multiple SSDs scaling on Intel platforms.
With the DC P4600, data centers can accelerate caching to enable more users, add more services, and perform more workloads per server. Now you can cache faster and respond faster.
Manageability to Maximize IT Efficiency
The DC P4600 is built for software-defined cloud infrastructures across the multi-cloud environment to enable greater efficiency within existing server footprints.
New firmware manageability features help reduce server downtime through improved update processes and expanded monitoring capabilities.
SMART management and Intel custom log pages provide advanced drive telemetry to manage thermals, monitor endurance, and track drive health status. Management coverage is now expanded across a wider range of drive states with support for the NVMe-Management Interface (NVMe-MI) specification, an industry standard way to manage the SSD out-of-band.
Industry-leading Reliability and Security
As capacity per server continues to scale, the risk of data corruption and errors increases. With an eye toward this risk, Intel has built industry-leading end-to-end data protection into the DC P4600.1 This includes protection from silent data corruption which can cause catastrophic downtime and errors in major businesses.
Power Loss Imminent (PLI) provides protection from unplanned power loss, and is obtained through a propriety combination of power management chips, capacitors, firmware algorithms, and a built-in PLI self-test. Intel’s PLI feature provides data centers with high confidence of preventing data loss during unplanned power interrupts.
Designed for Today’s Modern Data Centers
The DC P4600 is Intel’s new 3D NAND SSD for mixed workloads that are common to the data caching needs of cloud-driven data centers. The mix of performance, capacity, endurance, manageability, and reliability make it the ideal solution for data caching in software-defined and converged infrastructures.
This drive is compatible with any server that accepts 2.5"x15mm (SFF Hard Drive) PCIe drives.
|Intel® SSD DC P4610 Series|
|Capacity||3.2TB / 3200GB|
|Lithography Type||64-Layer TLC 3D NAND|
|Sequential Read||(up to) 3200 MB/s|
|Sequential Write||(up to) 3050 MB/s|
|Random Read||(100% Span) 638000 IOPS|
|Random Write||(100% Span) 222000 IOPS|
|Latency||Read 95 µs|
|Latency||Write 20 µs|
|Power||Active Sequential Avg. 14W (Write), 5W (Read)|
|Power||Idle <5 W|
|Vibration||Operating 2.17 GRMS|
|Vibration||Non-Operating 3.13 GRMS|
|Shock (Operating and Non-Operating||1000 G/0.5 msec|
|Operating Temperature Range||0°C to 55°C|
|Endurance Rating (Lifetime Writes)||21,850 TBW|
|Mean Time Between Failures (MTBF)||2 million hours|
|Uncorrectable Bit Error Rate (UBER)||<1 sector per 10^17 bits read|
|Form Factor||U.2 15mm|
|Interface||PCIe 3.1 x4, NVMe|
|Enhanced Power Loss Data Protection||Yes|
|Hardware Encryption||AES 256 bit|
|High Endurance Technology (HET)||Yes|
|Temperature Monitoring and Logging||Yes|
|End-to-End Data Protection||Yes|
|Intel® Smart Response Technology||No|
|Intel® Rapid Start Technology||No|
|Intel® Remote Secure Erase||No|
Click here to view the manufacturer's item description/brochure
Alternate MPNs: 2CN1T 02CN1T
Weight: 0.5 lb
Warranty: 1 Year DiscTech
The product is brand new.
1 Year DiscTech Warranty
The product has a DiscTech warranty for the time period specified. View our limited warranty
