Dell 2K1YV SFP-10G-T SFP+ 10Gbps 30m(Cate 6A/7) RJ45 Transceiver

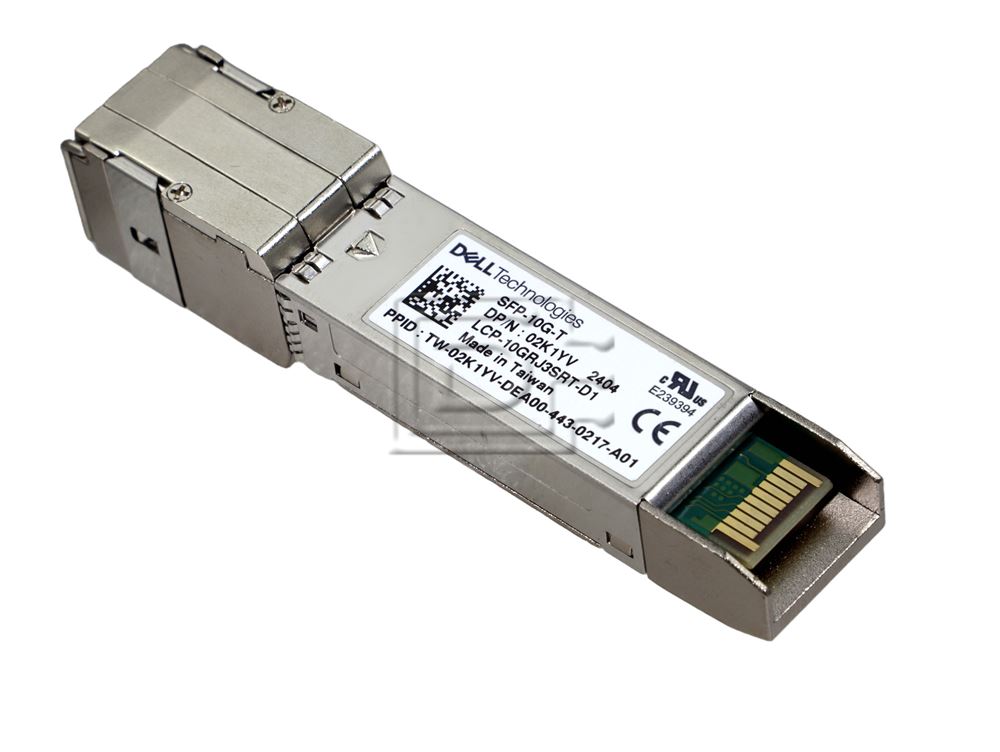

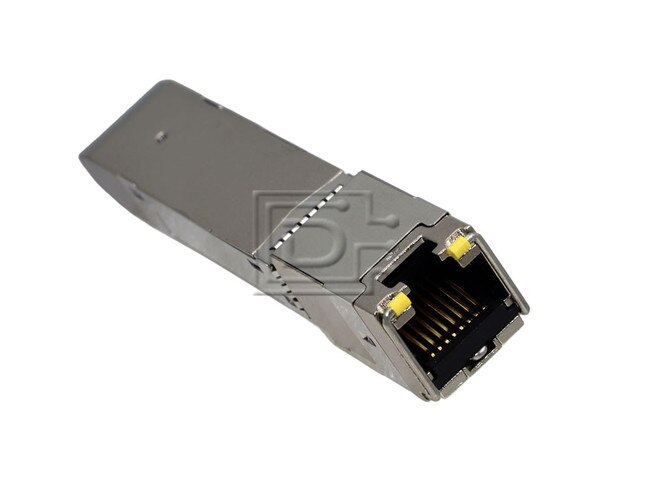

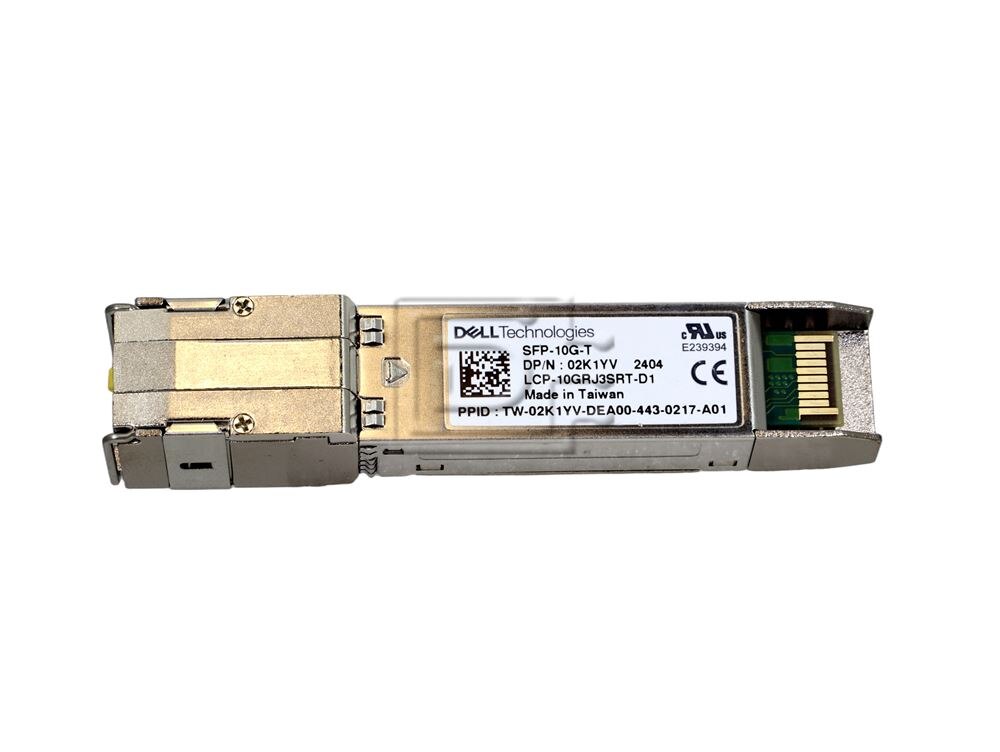

Dell 2K1YV SFP-10G-T 02K1YV SFP 10Gbps Rj45 Transceiver Module Image 1 imageDell 2K1YV SFP-10G-T 02K1YV SFP 10Gbps Rj45 Transceiver Module Image 2 imageDell 2K1YV SFP-10G-T 02K1YV SFP 10Gbps Rj45 Transceiver Module Image 3 image
  • Low Stock:Call for ETA
  • 1 Year DiscTechWarranty
$129.00

Interface Types:SFP
Electrical Interface:Ethernet 10Gigabit - 10Gbps
Voltage:3.3V

Description

Dell 2K1YV SFP-10G-T SFP+ 10Gbps 30m(Cate 6A/7) RJ45 Transceiver - Brand New

Dell 2K1YV SFP-10G-T SFP+ 10Gbps 30m(Cate 6A/7) RJ45 Transceiver - Brand New

Product Features

  • Hot-pluggable SFP+ footprint: Compatible with SFP+ MSA-compliant ports for easy installation and removal.
  • Supports 10 Gbps bit rates: Designed for 10GBASE-T Ethernet, compliant with IEEE 802.3an.
  • Power dissipation < 2.5W: Typical for 10GBASE-T copper transceivers (higher than optical modules due to copper signaling).
  • RoHS-6 compliant (lead-free): Environmentally friendly, adhering to RoHS standards.
  • Commercial temperature range 0°C to 70°C: Suitable for standard data center and enterprise environments.
  • Single 3.3V power supply: Standard for SFP+ modules, ensuring compatibility with most networking equipment.
  • Maximum link length of 30m on Cat 6A/7 cabling: Supports high-speed 10 Gbps Ethernet over twisted-pair copper (Category 6A or 7).
  • RJ45 connector: Uses standard Ethernet copper cabling for connectivity, no optical components.
  • Built-in digital diagnostic functions (DDM): Supports real-time monitoring of parameters like temperature, voltage, and signal integrity (per SFF-8472 standard).
  • Operating temperature range: 0°C to 70°C: Consistent with commercial-grade transceivers for reliable performance.

Compatibility

Compatible with Dell PowerEdge Servers equipped with 10GbE SFP+ network adapters or mezzanine cards, Dell Networking/Force10 switches, and Dell Compellent, EqualLogic, Unity, and Isilon storage systems that support 10GbE SFP+ uplinks.

Specifications

10Gb/s 10GBASE-T Copper SFP+ Transceiver
ABSOLUTE MAXIMUM RATINGS
RECOMMENDED OPERATING CONDITIONS
ELECTRICAL CHARACTERISTICS
GENERAL SPECIFICATIONS
DIGITAL DIAGNOSTIC FUNCTIONS
Model Number SFP-10G-T (Dell 2K1YV)
Maximum Supply Voltage
  • Symbol: Vcc
  • Min: -0.5
  • Max: 4.0
  • Unit: V
Storage Temperature
  • Symbol: Tsto
  • Min: -40
  • Max: 85
  • Unit: °C
Case Operating Temperature
  • Symbol: Top
  • Min: 0
  • Max: 70
  • Unit: °C
Relative Humidity
  • Symbol: RH
  • Min: 5
  • Max: 95
  • Unit: %
  • Ref: Non-condensing
Supply Voltage
  • Symbol: Vcc
  • Min: 3.13
  • Typ: 3.3
  • Max: 3.47
  • Unit: V
Supply Current
  • Symbol: Is
  • Max: 900
  • Unit: mA
Power Dissipation
  • Symbol: Pd
  • Typ: 2.3
  • Max: 2.5
  • Unit: W
Tx Output Impedance
  • Symbol: Zout,TX
  • Typ: 100
  • Unit: Ohm
  • Ref: Differential
Rx Input Impedance
  • Symbol: Zin,RX
  • Typ: 100
  • Unit: Ohm
  • Ref: Differential
Single Ended Data Input Swing
  • Symbol: Vinsing
  • Min: 250
  • Max: 1200
  • Unit: mV
Single Ended Data Output Swing
  • Symbol: Voutsing
  • Min: 350
  • Max: 800
  • Unit: mV
Rise/Fall Time
  • Symbol: Tr/Tf
  • Typ: 175
  • Unit: ps
  • Ref: 20%-80%
Bit Rate
  • Symbol: BR
  • Min: 0.1
  • Typ: 10
  • Max: 10.3
  • Unit: Gb/s
  • Ref: Supports 100M/1G/2.5G/5G/10G
Maximum Supported Distances
  • CAT6A/CAT7: 30m at 10G
  • CAT5e: 100m at 1G
  • Ref: IEEE 802.3an
Internally Measured Transceiver Temperature
  • Symbol: DDTemperature
  • Accuracy: ±3
  • Unit: °C
Internally Measured Transceiver Supply Voltage
  • Symbol: DDVoltage
  • Accuracy: ±0.1
  • Unit: V

ROHS Compliant

Alternate MPNs: SFP-10G-T 02K1YV

Weight: 0.5 lb

Warranty: 1 Year DiscTech
