Dell 310-8285 SAS 5/E 8 Port SAS / Serial Attached SCSI non-RAID Controllers

Dell Part #/MPN: 310-8285

DiscTech Item #: DEL-310-8285-NP-OE


Interface Types: SAS Serial Attached SCSI, SATA, PCIe, SFF-8470

Electrical Interface: SAS-1 Serial Attached SCSI - 3.0Gbps

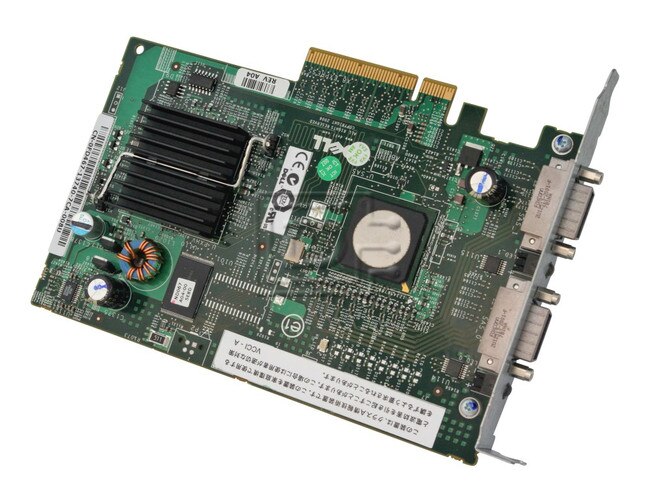

Dell SAS 5/E 8 Port SAS / Serial Attached SCSI non-RAID Controller, PCI Express 310-8285 / CG782 / FG210 / FD467 / M778G / P455G 2x SFF-8470 - New Pull

Dell SAS 5/E 8 Port SAS / Serial Attached SCSI non-RAID Controller, PCI Express 310-8285 / CG782 / FG210 / FD467 / M778G / P455G - New Pull

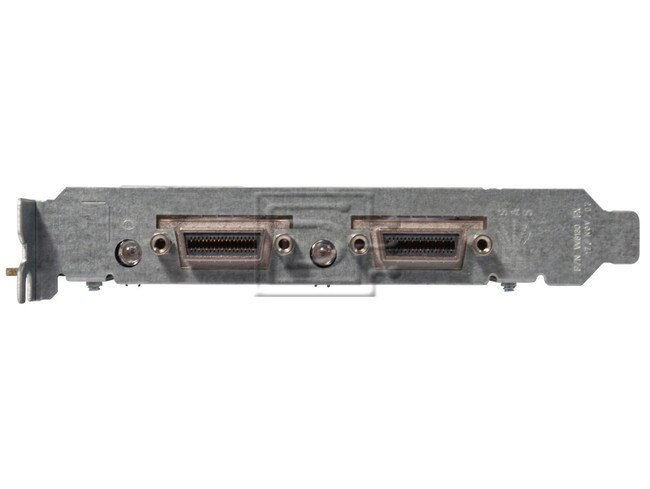

This controller has two SFF-8470 external connector.

DPNs: CG782 FG210 FD467 M778G P455G

Compatibility: The 310-8285 supports all SAS / Serial Attached devices including hard disk drives and tape drives.

The SAS 5/E Adapter from Dell are non-RAID adapters that can communicate to Dell compliant SAS and SATA II drives. The SAS 5/E Adapter is intended to communicate to future direct attached storage array products such as the MD3000 (Pitbull) via 2 x4 external connectors. It utilizes high performance SAS 3 Gbps technology to connect to the hard drives, and the next generation of host interface technology, PCI Express (PCI-E). In the SAS5E HBA controller the LSI SAS 1068 is a 2 x 4 port SAS/SATA controller, with each of the 8 PHYs capable of 3.0 and 1.5 Gbps SAS/SATA link rates. Each port on the LSISAS1068 supports SAS and SATA devices using the SAS Serial SCSI Protocol (SSP), Serial Management Protocol (SMP), Serial Tunneling Protocol (STP), and SATA. It has a 1 MB flash memory that stores the firmware image, key configuration data and, limited error logging information and it supports pre-failure notifications sent by the hard drives SMART events. It is is RoHS and SAS 1.1 compliant, and offers data transfer rate up to 300 MBps per link in each direction. This product has been tested and validated on Dell Systems. It is supported by Dell Technical Support when used with a Dell system.

Manufacturer Part# : FG210
Dell Part# : 310-8285

Click here to view the manufacturer's item description/brochure

Alternate MPNs: CG782 FG210 FD467 M778G P455G

Weight: 1 lb

Warranty: 1 Year DiscTech

New Pull

Condition Levels Explained

The product has been mounted in a brand new system (e.g. server), then removed from the system, before entering service. These products may have some hours of usage due to system build time / burn-in / testing etc. New Pulls are guaranteed to have at least 95% (often 99%) of their service life remaining , they may show signs of being physically mounted and dismounted. All handling is performed by trained technicians, taking full ESD precautions.

1 Year DiscTech Warranty

Product Warranties Explained

The product has a DiscTech warranty for the time period specified. View our limited warranty
