Dell Part #/MPN: 330-4533
DiscTech Item #: DEL-330-4533-NP-OE
- New PullCondition Levels Explained
The product has been mounted in a brand new system (e.g. server), then removed from the system, before entering service. These products may have some hours of usage due to system build time / burn-in / testing etc. New Pulls are guaranteed to have at least 95% (often 99%) of their service life remaining , they may show signs of being physically mounted and dismounted. All handling is performed by trained technicians, taking full ESD precautions.
- Warranty:1 Year DiscTechProduct Warranties Explained
The product has a DiscTech warranty for the time period specified. View our limited warranty
- In Stock:6Need more?Stock Levels
This stock level is real time and accurate. This quantity is available for same-day shipment. Larger quantities can take up to a week to ship. Call us for larger quantities that you need urgently.
Enterprise Grade
Interface Types: SAS Serial Attached SCSI, SATA
Encryption/SED Supported

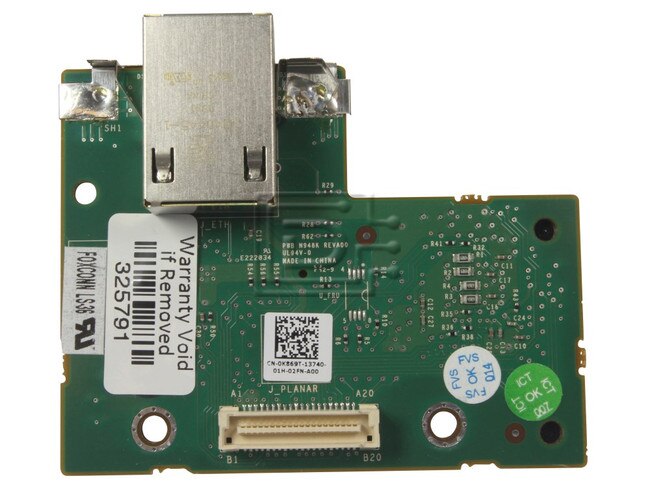

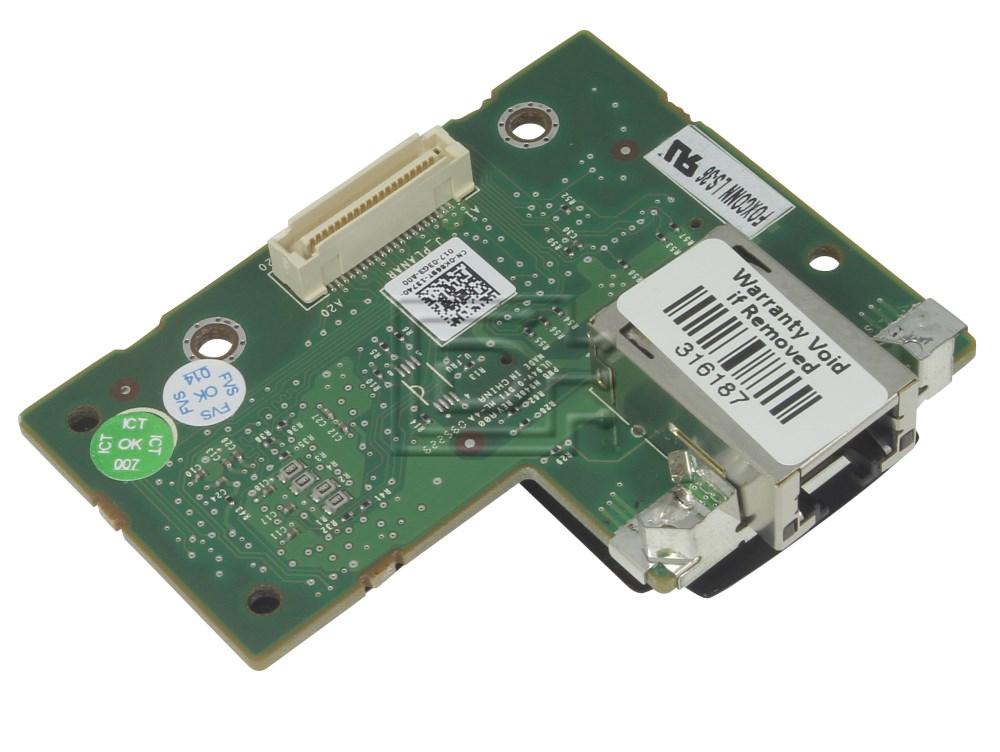

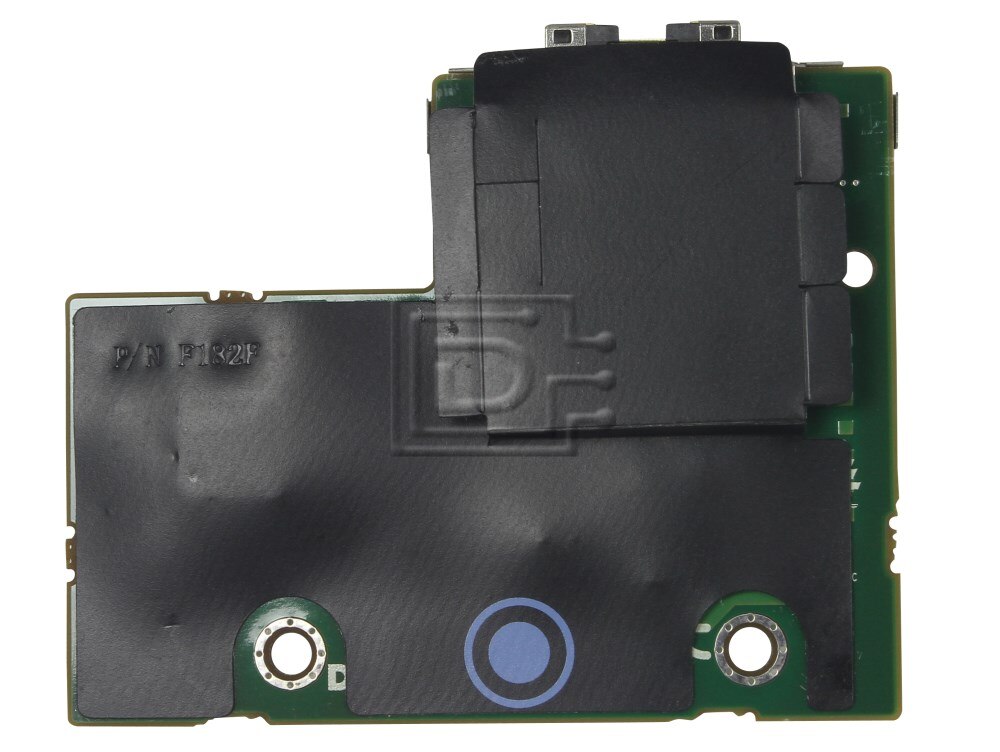

Dell 330-4533 / K869T / M070R iDRAC 6 Enterprise Remote Access Controller - New Pull
Compatible with PowerEdge R610 R710 R715 R810 R815 R910 Series Servers and NX200 NX300 NX3000 NX3100 PowerVaults
Also compatible with the following servers only if you have the iDRAC6 express installed: R210 R310 T310 R410 T410 R415 R510 R515
DPN: K869T / 0K869T M070R / 0M070R / J675T / 0J675T
- Provides remote power management functions, such as shutdown and reset, from a management console
- Alerts you to potential managed node issues through an e-mail message or SNMP trap
- Features password-level security management to prevent unauthorized access to a remote system
- Offers role-based authority to provides assignable permissions for different systems management tasks
- Supports Intelligent Platform Management Interface (IPMI)
The Integrated Dell™ Remote Access Controller6 (iDRAC6) Enterprise is a systems management hardware and software solution that provides remote management capabilities, crashed system recovery and power control functions. It features integrated System-on-Chip microprocessor for the remote monitor/control system using a web interface and the SM-CLP command line over a serial, Telnet/SSH connection. With integrated Dell OpenManage™ software it enables you to launch the iDRAC6 web interface from Dell OpenManage Server Administrator or IT Assistant. Additionally, you can configure the iDRAC6 to send you an e-mail or Simple Network Management Protocol (SNMP) trap alert for warnings or errors. To help you diagnose the probable cause of a system crash, iDRAC6 can log event data and capture an image of the screen when it detects that the system has crashed. Support for Microsoft Active Directory® authentication, it centralizes iDRAC6 user IDs and passwords in Active Directory using the standard schema or an extended schema. This product has been tested and validated on Dell systems. It is supported by Dell Technical Support when used with a Dell system.
DPN: K869T / 0K869T M070R / 0M070R / J675T / 0J675T
Compatibility:
Compatible with PowerEdge R610 R710 R715 R810 R815 R910 Series Servers and NX200 NX300 NX3000 NX3100 PowerVaults
Also compatible with the following servers only if you have the iDRAC6 express installed: R210 R310 T310 R410 T410 R415 R510 R515
| Feature | iDRAC6 Express | iDRAC6 Enterprise |
| Interface & Standards Support | ||
| IPMI 2.0 | Yes | Yes |
| Web-based GUI | Yes | Yes |
| SNMP & IPMI Discovery | Yes | Yes |
| WSMAN | Yes | Yes |
| SMASH-CLP (SSH) | Yes | Yes |
| RACADM command-line (SSH & local) | Yes | Yes |
| RACADM command-line (remote) | No | Yes |
| Connectivity | ||
| Shared/failover network modes | Yes | Yes |
| IPv4 | Yes | Yes |
| VLAN tagging | Yes | Yes |
| IPv6 | Yes | Yes |
| Dynamic DNS | Yes | Yes |
| Dedicated NIC | No | Yes |
| Security & Authentication | ||
| Role-based authority | Yes | Yes |
| Local users | Yes | Yes |
| SSL Encryption | Yes | Yes |
| Active Directory | Yes | Yes |
| “Generic” LDAP support | Yes | Yes |
| Two-factor authentication | Yes | Yes |
| Single sign-on | Yes | Yes |
| PK Authentication (for SSH) | No | Yes |
| Remote Management & Remediation | ||
| Remote firmware update | Yes | Yes |
| Server power control | Yes | Yes |
| Serial-over-LAN (with proxy) | Yes | Yes |
| Serial-over-LAN (no proxy) | Yes | Yes |
| Power budgeting | Yes | Yes |
| Last crash screen capture | Yes | Yes |
| Boot capture | Yes | Yes |
| Virtual Media | No | Yes |
| Virtual Console | No | Yes |
| Virtual Console sharing | No | Yes |
| Remote Virtual Console Launch | No | Yes |
| Remote File Share | No | Yes |
| Virtual Flash | No | No |
| Monitoring | ||
| Sensor monitoring & alerting | Yes | Yes |
| Real-time power monitoring | Yes | Yes |
| Real-time power graphing | Yes | Yes |
| Historical power counters | Yes | Yes |
Click here to view the manufacturer's item description/brochure
Alternate MPNs: K869T M070R J675T 0K869T 0M070R 0J675T
Weight: 1 lb
