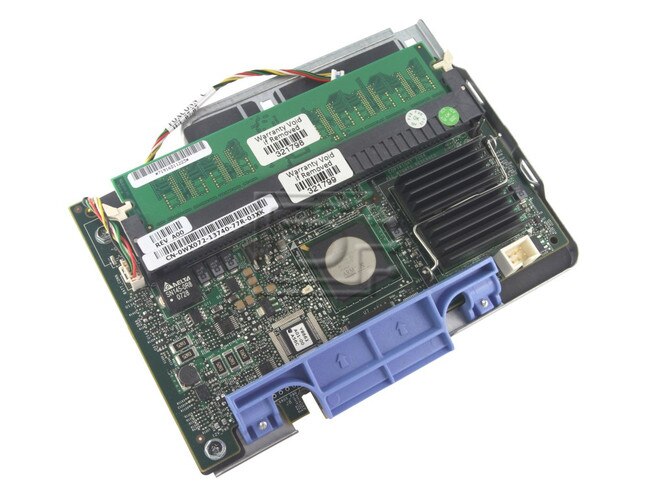

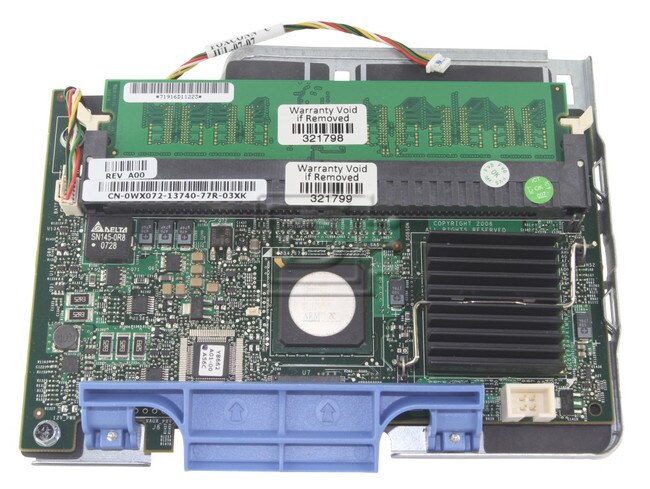

Dell 341-4366 PERC 5i 5/i Integrated SAS / Serial Attached SCSI RAID Controller

Dell Part #/MPN: 341-4366

DiscTech Item #: DEL-341-4366-RF-OE


Interface Types: SAS Serial Attached SCSI, PCIe, SFF-8484

Electrical Interface: SAS-2 Serial Attached SCSI v2 - 6.0Gbps

On-Board Cache: 256MB

Dell 341-4366 PERC 5i 5/i Integrated Four Channel SAS / Serial Attached SCSI RAID Controller, PCI Express MY459 / XM771 / YF437 / UF963 / FT781 / RP272 / GR155 / XF667 / TU005 / WX072 - 2x SFF-8484 - Refurbished

The PERC 5i PCI Express Integrated RAID Adapter from Dell is used to connect internal hard drives in PowerEdge Servers. PERC 5i utilizes high performance SAS 3 Gb/s technology to connect to the hard drives, and the latest generation of host interface technology, PCI Express (PCI-E). The PERC 5i supports only internal disks and provides integrated capability for RAID levels 0, 1, 5, 10 and 50. The PERC 5i is managed by two different management utilities, depending on host platform. This product has been tested and validated on Dell systems. It is supported by Dell Technical Support when used with a Dell system.

This controller has two SFF-8484 internal connectors, 256MB RAM & a Battery Backup (BBU).

Other Dell PN: MY459 / XM771 / YF437 / UF963 / FT781 / RP272 / GR155 / XF667 / TU005 / WX072


Dell PowerEdge 1900, 1950, 2900, 2950 servers.

This controller mounts in the Poweredge PCI-e RAID slot and secures to the slot with a blue clip.

Cache / Buffer Size>256 MB
Interface Typex8 PCI Express
ProcessorIntel® IOP333
Channel Qty8
Device TypeSerial Attached SCSI Raid Controller Card
Port(s) Total (Free) / Connector Type2x SFF8484
RAID LevelRAID 0, RAID 1, RAID 5, RAID 10, RAID 50

Click here to view the manufacturer's item description/brochure

Alternate MPNs: MY459 XM771 YF437 UF963 FT781 RP272 GR155 XF667 TU005 WX072

Weight: 2 lb

Warranty: 1 Year DiscTech
