Dell 341-5898 F989F PR174 PERC 6e 6/E SAS / Serial Attached SCSI RAID Controller

Dell Part #/MPN: 341-5898

DiscTech Item #: DEL-341-5898-RF-OE


Interface Types: SAS Serial Attached SCSI, SATA, PCIe, SFF-8470

Encryption/SED Supported

Electrical Interface: SAS-1 Serial Attached SCSI - 3.0Gbps

On-Board Cache: 256MB

Bays/Ports/Slots: 8

Dell PERC 6e 6/E Dual Channel SAS / Serial Attached SCSI RAID Controller, BBU, 256MB Cache PCI Express 341-5898 - Refurbished OEM

Alt Part Numbers F989F 0F989F PR174 0PR174

Dell PERC 6e 6/E Dual Channel SAS / Serial Attached SCSI RAID Controller, BBU, 256MB Cache PCI Express 2x SFF-8470 341-5898 -  New Pull OEM

Each PERC 6 controller offers a 256 MB double data rate 2 (DDR2) cache memory, with the PERC 6/E supporting upgrades to 512 MB to allow quick access to additional data and help increase performance. PERC 6 controllers also include a battery backup unit to protect data in the controller cache during a system power and/or controller failure. PERC 6 controllers support RAID levels 0, 1, 5, 6, 10, 50, and 60.


  • 3 Gb/s (Gigabit per second) half-duplex max speed for each port. 6 Gb/s full-duplex max speed.

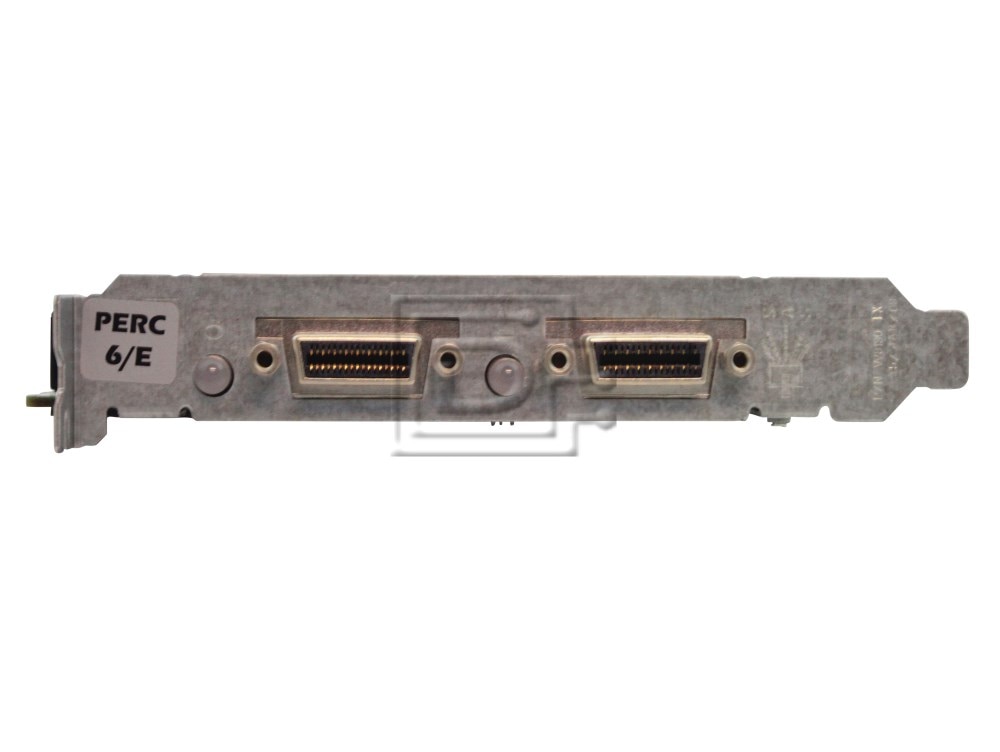

  • Two external x4 (“by four”) SAS connectors, each containing 4 ports for a total bandwidth per connector of 12 Gb/s.
  • x8 PCI-Express host interface for a total bandwidth of 4 GB/s.
  • 256MB of Error Correcting Code (ECC), transportable, battery-backed, cache for base model with an option for a card that has 512MB.
  • LSI 1078 SAS/SATA RAID-on-Chip device


Condition Levels Explained

These products have had NO problems or failures, they merely have some usage. The product has been professionally returned to excellent condition. These items have been fully tested, formatted (if appropriate) &repackaged. Hard drives are fully vetted for surface defects and wear, only healthy disks are approved for resale to our customers. Please see our refurbishing process for more details. Watch a video about our refurbishing process

1 Year DiscTech Warranty

Product Warranties Explained

The product has a DiscTech warranty for the time period specified. View our limited warranty
