Dell 341-8972 SFF Serial Attached SCSI Internal Hard Drive Kit
- Brand NewCondition Levels Explained
The product is brand new.
- In StockStock Levels
We don’t track exact quantities on this item, but it is usually in stock (95% of the time).
- 1 Year DiscTechWarrantyProduct Warranties Explained
The product has a DiscTech warranty for the time period specified. View our limited warranty
| Capacity: | 146GB |
| Speed: | 15K RPM |
| Interface Types: | SAS |
| Form Factor: | 2.5" SFF Server Drive |
| Electrical Interface: | SAS-2 6Gbps |
| RAM: | 16MB |
Description
Dell 341-8972 146GB 15K 6.0Gbps 2.5" SFF SAS / Serial Attached SCSI Hard Drive G176J Kit - Brand New

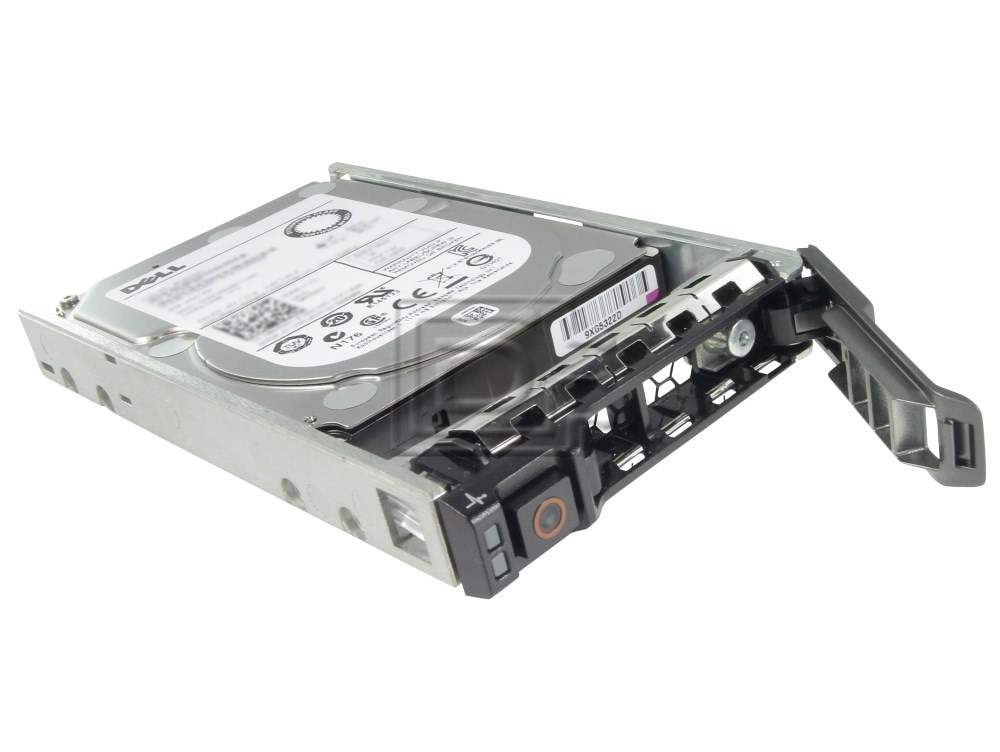

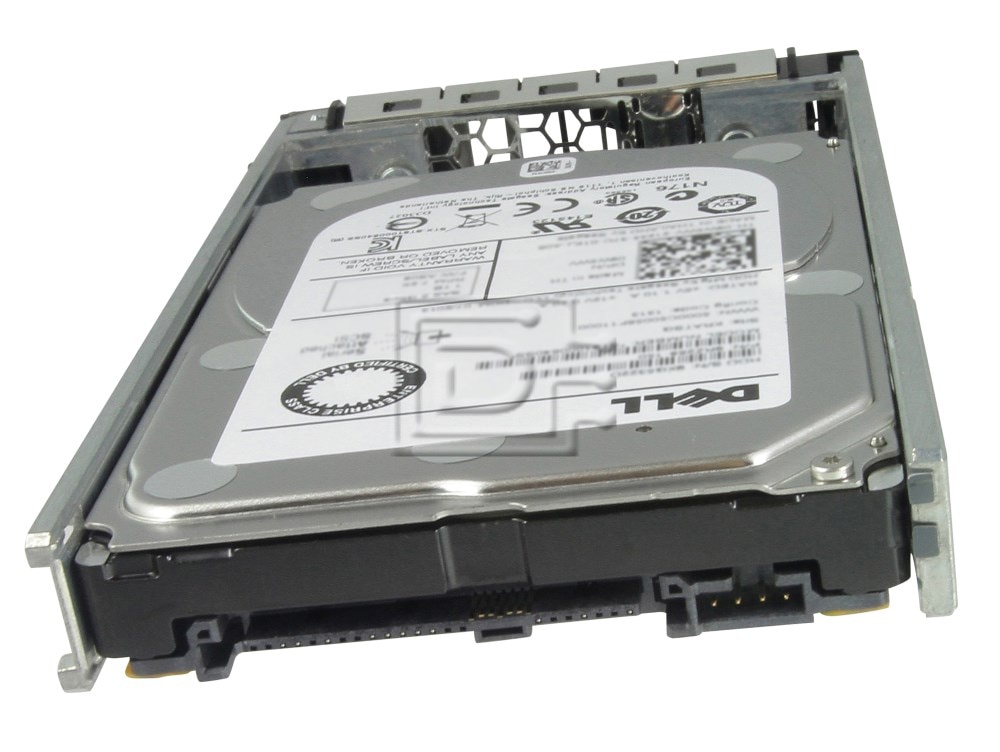

This kit contains one 146GB 15K 6.0Gbps SFF SAS / Serial Attached SCSI Hard Drive and one Dell G176J tray.
This kit contains one Small Form Factor 2.5 inch 149GB 6Gbps SFF SAS / Serial Attached SCSI Hard Drive and one Dell G176J tray and is fully compatible with Dell Poweredge T310, R310, R415, T410, R510, R515, R610, T610, R710, T710, M600, M605, M610, M610x, M710, M710HD, R715, R810, R815, M805, M905, M910, R910, M915, M1000e
Dell Powervault: MD1120, MD1220, MD3220i, MD3620i, MD3620f storage arrays with new style angular facia
Highlights
- Offers 146 GB storage capacity for server and enterprise storage applications
- 15,000 RPM spindle speed ensures excellent performance
- Serial Attached SCSI interface delivers optimum data transfer speeds
Overview
Increase the storage capacity of your system with the 146 GB Hot Plug Hard Drive from Dell™. Featuring a Serial Attached SCSI Interface, this hard drive delivers enhanced data transfer speeds. It also offers a maximum rotational speed of up to 15,000 RPM for fast disk access. It enables simple internal server storage solutions to maintain business sustainability. This product has been tested and validated on Dell systems.
Manufacturer Part# : U716N
Compatibility:
| PowerEdge R210 | PowerEdge R310 | PowerEdge R320 | PowerEdge R410 |
| PowerEdge R415 | PowerEdge R420 | PowerEdge R510 | PowerEdge R515 |
| PowerEdge R520 | PowerEdge R610 | PowerEdge R620 | PowerEdge R630 |
| PowerEdge R715 | PowerEdge R710 | PowerEdge R720 | PowerEdge R730 |
| PowerEdge R720xd | PowerEdge R730xd | PowerEdge R810 | PowerEdge R815 |
| PowerEdge R820 | PowerEdge R910 | PowerEdge T310 | PowerEdge T320 |
| PowerEdge T410 | PowerEdge T420 | PowerEdge T610 | PowerEdge T620 |
| PowerEdge T710 | PowerEdge M600 | PowerEdge M605 | PowerEdge M610 |
| PowerEdge M610X | PowerEdge M710 | PowerEdge M710HD | PowerEdge M805 |
| PowerEdge M905 | PowerEdge M910 | PowerEdge M915 |
Specifications
This complete drive kit contains:
(1) 146GB 15K 6.0Gbps SFF SAS / Serial Attached SCSI Hard Drive
(1) Dell G176J drive tray
(4) Screws
| Specifications | |
|---|---|
| Model number | 341-8972 |
| Formatted Capacity | 146 Gbytes |
| Rotational Speed | 15,000 rpm |
| Default Buffer (cache) Size | 16 Mbytes |
| Performance | |
| External (I/O) Transfer Rate (max) | SAS 2.0 6.0Gb/s |
| Average Seek Time, Read | 3.2 msec typical |
| Average Seek Time, Write | 3.5 msec typical |
| Average Latency | 2 msec |
| Physical | |
| Form Factor | SFF |
| Height | 14.5 mm |
| Width | 70.1 mm |
| Length | 100.5 mm |
| Weight | 201 grams |
| Electrical | |
| Startup Current (12VDC +/- 5%) | 1.12 amps |
| Startup Current (5VDC +/- 5%) | .45 amps |
| Reliability | |
| MTBF (Hours) | 1,600,000 hours |
| Supports S.M.A.R.T. | Yes |
ROHS Compliant
Alternate MPNs: U716N 0U716N
Weight: 1.5 lb
Warranty: 1 Year DiscTech
Condition
Brand New
Warranty
1 Year DiscTech Warranty
