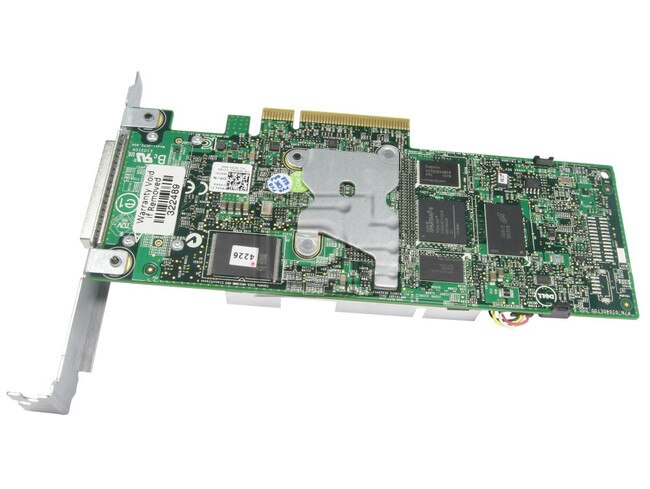

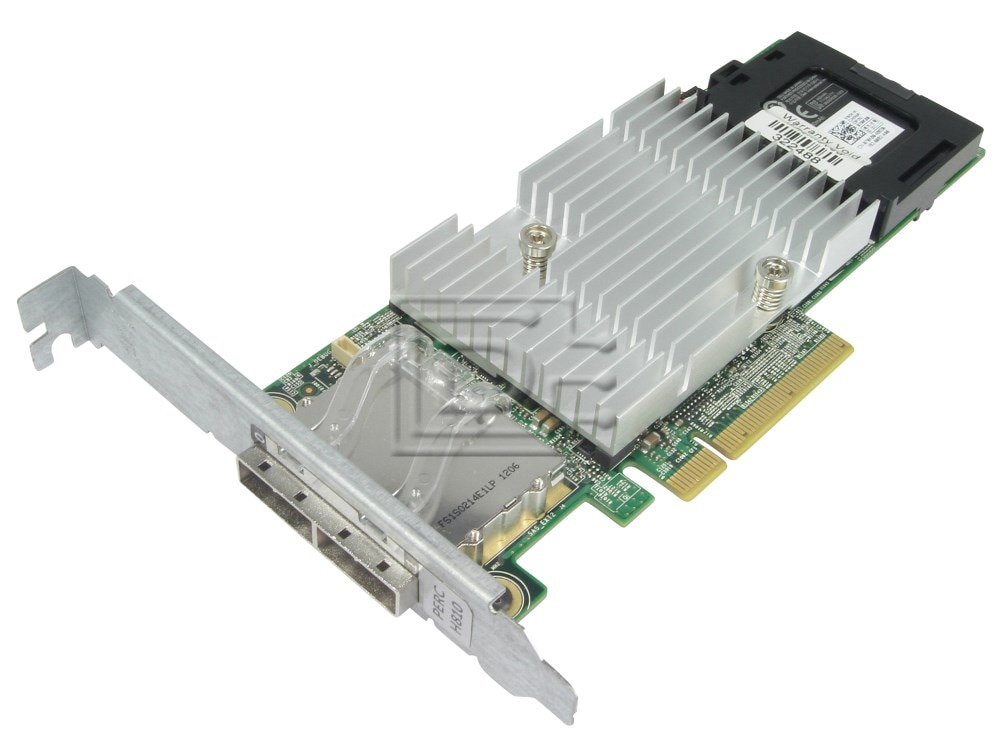

Dell 342-3537 / YCFJ3 PERC H810 SAS RAID Controller

Dell Part #/MPN: 342-3537

DiscTech Item #: DEL-342-3537-NP-OE

  • Low Stock:Call for ETA
    Stock Levels

    This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.


Interface Types: SAS Serial Attached SCSI, SATA, PCIe, SFF-8088

Electrical Interface: SAS-2 Serial Attached SCSI v2 - 6.0Gbps

On-Board Cache: 1GB

Bays/Ports/Slots: 8

Dell 342-3537 / YCFJ3 / KKFKC / NDD93 PERC H810 External 6.0Gb/s SAS RAID Controller 1GB cache - New Pull


The PERC H810, Premium External RAID controller from DellTM, is based on LSI´s Thunderbolt (2208) ROC, which offers dual PPC 800 MHz cores, along with 6Gb/s SAS, 1333 DDR3 cache and PCIe 2.0 interface support. The PERC H810 operates on PERC 8.0 FW Stack and supports RAID Levels 0, 1, 10, 5, 50, 6, and 60.

The PERC H810 is available in either Low profile or Full Height Adapter form.  Interface type is PCI-E x8. The PERC H810 only supports External Storage and is targeted at Premium Enterprise customers. This product has been tested and validated on Dell systems. It is supported by Dell Technical Support when used with a Dell system.

Manufacturer Part# : YCFJ3 KKFKC NDD93 0YCFJ3  0KKFKC 0NDD93

Dell Part# : 342-3537

Cache / Buffer Size1 GB
Dell Series 7Perc H810
Interface Type / SpeedSAS 6.0Gb/s
BusPCI-E x8
Device TypeSerial Attached SCSI Raid Controller Card
Port(s) Total (Free) / Connector Type2 x External SFF-8088 Connectors
RAID LevelRAID 0, RAID 1, RAID 5, RAID 6, RAID 10, RAID 50, RAID 60

ROHS Compliant

Alternate MPNs: YCFJ3 0YCFJ3 KKFKC 0KKFKC NDD93 0NDD93 VV648 0VV648

Weight: 2 lb

Warranty: 1 Year DiscTech

New Pull

Condition Levels Explained

The product has been mounted in a brand new system (e.g. server), then removed from the system, before entering service. These products may have some hours of usage due to system build time / burn-in / testing etc. New Pulls are guaranteed to have at least 95% (often 99%) of their service life remaining , they may show signs of being physically mounted and dismounted. All handling is performed by trained technicians, taking full ESD precautions.

1 Year DiscTech Warranty

Product Warranties Explained

The product has a DiscTech warranty for the time period specified. View our limited warranty
