DELL 39XRY 16TB SATA 6Gbps 7.2K 3.5in 512e HDD 039XRY ST16000NM005G
- In Stock:128Need more?Stock Levels
This stock level is real time and accurate. This quantity is available for same-day shipment. Larger quantities can take up to a week to ship. Call us for larger quantities that you need urgently.
- 1 Year DiscTechWarrantyProduct Warranties Explained
The product has a DiscTech warranty for the time period specified. View our limited warranty
| Capacity: | 16TB |
| Speed: | 7.2K RPM |
| Interface Types: | SATA |
| Form Factor: | 3.5" LFF Hard Drive |
| Electrical Interface: | SATA 600 - 6Gbps |
| RAM: | 256MB |
Description

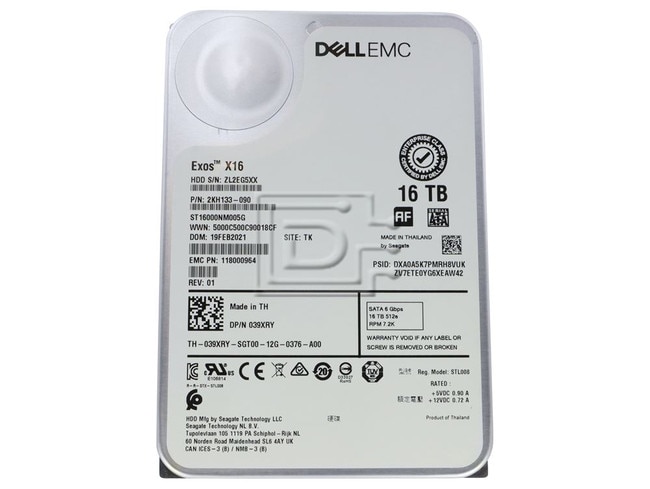

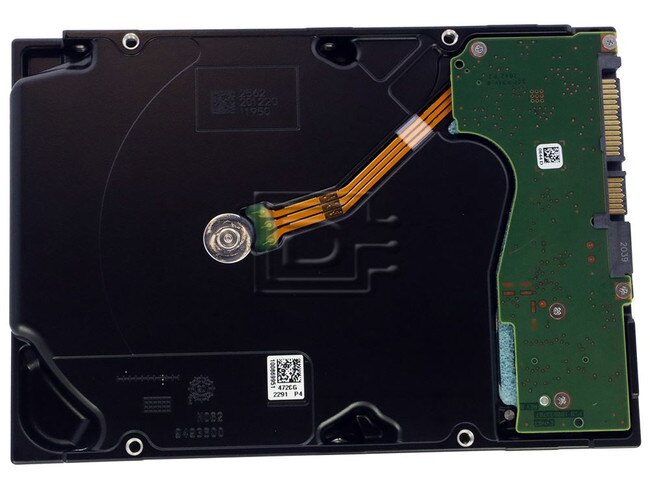

Dell 39XRY / Seagate Exos X16 ST16000NM005G 16TB 6Gbps 7.2K ISE FastFormat 512e Enterprise SATA HDD - New Pull
Dell 39XRY / Seagate Exos X16 ST16000NM005G 16TB 6.0Gb/s 7200 RPM SED-ISE FastFormat 512e Enterprise 3.5" / LFF SATA / Serial ATA HDD / Hard Disk Drive - New Pull
EXOS X16
Seagate manufactures hard drives that specifically address the needs of the hyperscale storage market. As the flagship of the Seagate® X class, the Exos® X16 enterprise hard drives are the highest-capacity hard drives in the fleet.
Best-Fit Applications
- Hyperscale applications/cloud data centers
- Massive scale-out data centers
- Big data applications
- High-capacity density RAID storage
- Mainstream enterprise external storage arrays
- Distributed file systems, including Hadoop and Ceph Enterprise backup and restore— D2D, virtual tape
- Centralized surveillance
• All 4Kn/512e drives ship in 512-byte emulation mode but can be easily reformatted to 4Kn (and vice versa) with the FastFormat feature.
• FastFormat only works with 512e and 4Kn. You can’t use FastFormat with 512-byte native drives.
• FastFormat reformats the drive, so all data on the drive will be lost once you issue the command. Don’t forget to back up your data before issuing FastFormat!
• T10 fast format conversion between 4K and 512E configurations is possible only if sector sizes are exact multiples of 8.
• The new sector size will take effect only after a fast format.
Compatibility
Compatible with systems that support 16TB 3.5" SATA HDDS
Specifications
| Exos Enterprise X16 | |
|---|---|
| SED-ISE FastFormat (512e/4Kn) | ST16000NM005G |
| Interface | 6Gb/s SATA III |
| Capacity | 16TB / 16000GB |
| Features | |
| Helium Sealed-Drive Design | Yes |
| Protection Information (T10 DIF) | --- |
| SuperParity | Yes |
| Low Halogen | Yes |
| PowerChoice Technology | Yes |
| PowerBalance Technology | Yes |
| Hot-Plug Support | Yes |
| Cache, Multisegmented (MB) | 256 |
| Organic Solderability Preservative | Yes |
| RSA 2048 Firmware Verification | Yes |
| Reliability/Data Integrity | |
| Mean Time Between Failures (MTBF, hours) | 2,500,000 |
| Reliability Rating @ Full 24×7 Operation (AFR) | 0.35% |
| Nonrecoverable Read Errors per Bits Read | 1 Sector per 1015 |
| Power-On Hours per Year (24×7) | 8760 |
| 512e Sector Size (Bytes per Sector) | 512 |
| 4Kn Sector Size (Bytes per Sector) | 4096 |
| Performance | |
| Spindle Speed (RPM) | 7200 |
| Interface Access Speed (Gb/s) | 6.0, 3.0 |
| Max Sustainable Transfer Rate | 261, 249 |
| Random Rewad/Write 4K QD03 WCD (IOPS) | 170/440 |
| Average Latency (ms) | 4.16 |
| Interface Ports | Single |
| Rotational Vibration @ 20-1500Hz (rad/sec) | 12.5 |
| Power Consumption | |
| Idle A (W) Average | 5.00W |
| Max Operating, Random Read/Write 4K/16Q (W) | 10.0, 6.3 |
| Power Supply Requirements | +12 V and +5 V |
| Evrironmental/Temperature | |
| Temperature, Operating (°C) | 5°C - 60°C |
| Vibration, Nonoperating: 2 to 500Hz (Grms) | 2.27 |
| Shock, Operating Read/Write (Gs) | 50 |
| Shock, Nonoperating, 1ms/2ms (Gs) | 250 |
| Physical | |
| Height (in/mm, max) | 1.028in/26.11mm |
| Weight (in/mm, max) | 4.01in/101.85mm |
| Depth (in/mm, max) | 5.787in/147mm |
| Weigt (g/lb) | 690g/1.521lb |
Click here to view the manufacturer's item description/brochure
Alternate MPNs: 39XRY 039XRY
Weight: 1.8 lb
Warranty: 1 Year DiscTech
Condition
The product has been mounted in a brand new system (e.g. server), then removed from the system, before entering service. These products may have some hours of usage due to system build time / burn-in / testing etc. New Pulls are guaranteed to have at least 95% (often 99%) of their service life remaining , they may show signs of being physically mounted and dismounted. All handling is performed by trained technicians, taking full ESD precautions.
Warranty
1 Year DiscTech Warranty
