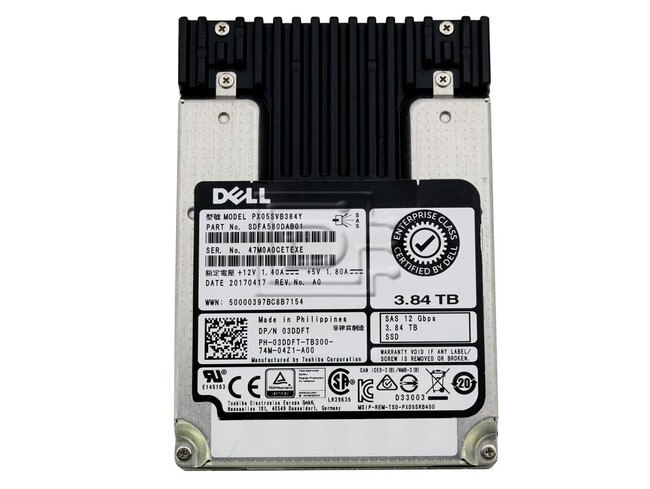

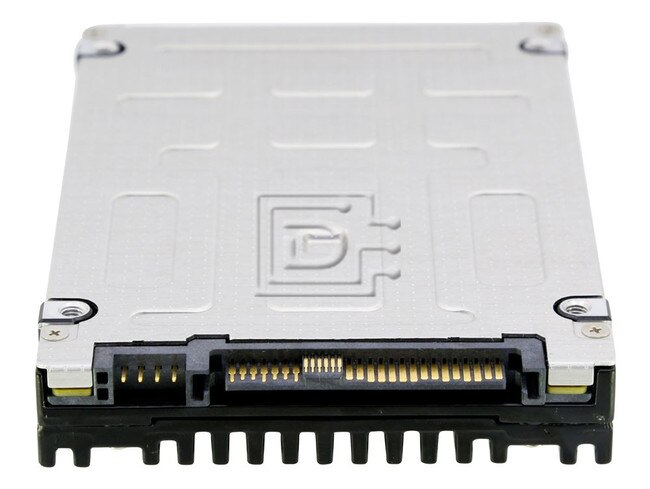

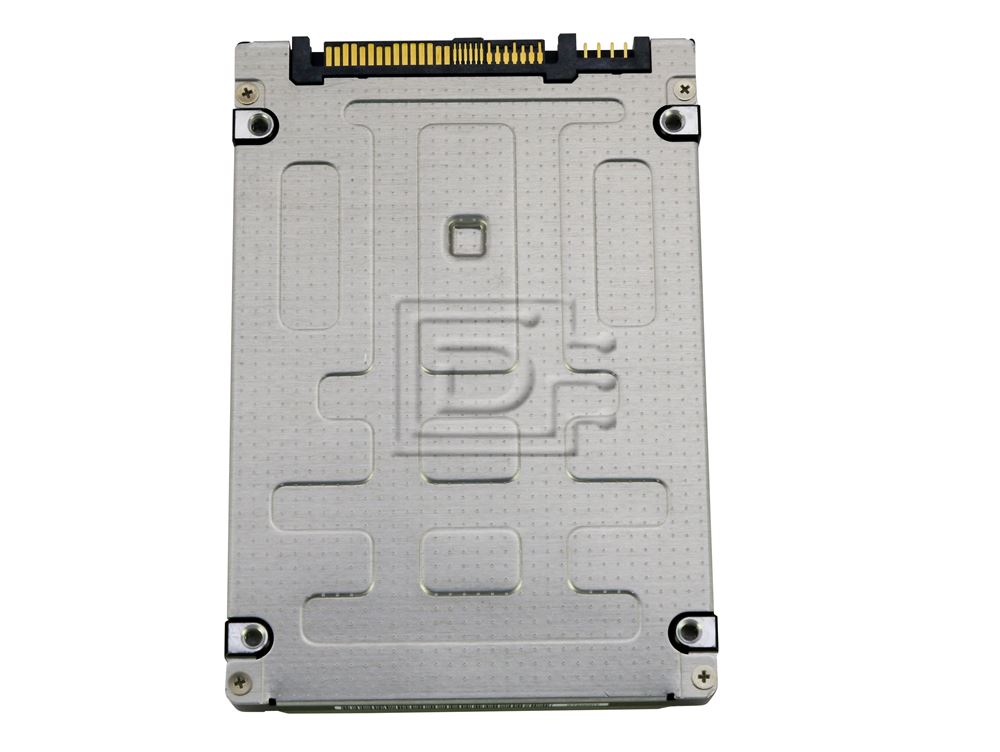

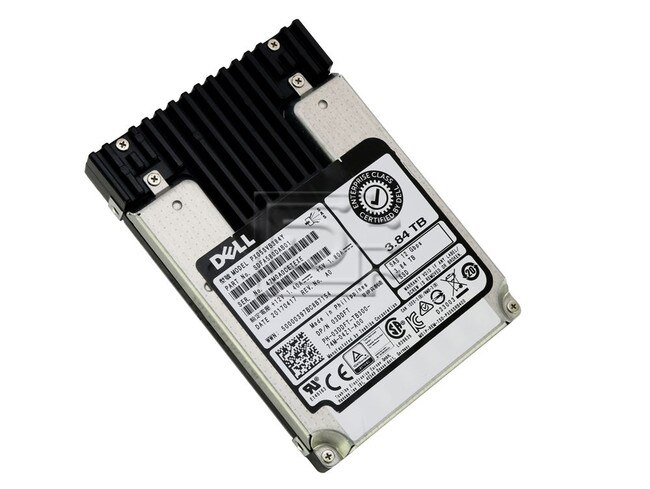

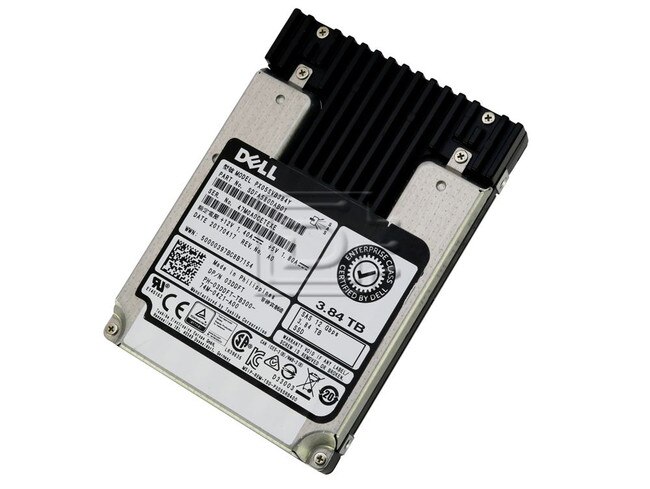

Dell 3DDFT / Toshiba PX05SVB384Y PX05SV Series 3.84TB 2.5" SFF 12Gbps SAS MLC Mixed Use SSD
| Capacity: | 3.84TB |
| Speed: | Solid State |
| Interface Types: | SAS |
| Form Factor: | 2.5" SFF Server Drive |
| SSD Endurance DWPD: | Enterprise Mixed Use / MU |
| Electrical Interface: | SAS-3 12Gbps |
Description
Dell 3DDFT / Toshiba PX05SVB384Y PX05SV Series 3.84TB 2.5" SFF 12Gbps SAS MLC Mixed Use Solid State Drive - Brand New OEM
Dell 3DDFT / Toshiba PX05SVB384Y PX05SV Series 3.84TB 2.5" SFF 12Gbps SAS MLC Mixed Use Solid State Drive - 3-DWPD SAS / Serial Attached SCSI MU SSD / Solid State Disk Drive - Brand New OEM
Enterprise Mixed Use SSD
The PX05S Series is our 4th generation enterprise SAS SSD leveraging the highly successful PX04S Series. The PX05SV Series is optimized for web server, SQL server and read- intensive storage applications, requiring a balance of reliability, capacity and endurance. With 270k IOPS random read performance, these SSD models deliver sustained, low latency performance to maximize performance.
Further features include power-loss protection and full data path protection. Each model is available as a self-encrypting drive with instant secure erase and supports pin-3 power disable for improved enclosure services control over storage media.
The Enterprise Mixed Use PX05SV supports 3 DWPD (Drive Writes Per Day) and is designed to deliver high-levels of performance, quality and reliability for read-intensive and mixed-use applications such as media streaming, data warehousing and web servers.
Key Features
- Up to 3.84TB Storage Capacity with Dual-Port 12.0 Gbit/s SAS Interface
- 270K IOPS random read (4K) performance
- 2.5-type Form-Factor, 15mm Z-Height
- 3 DWPD with 100% Random Write Workload
- Power-Loss-Protection and End-to-End Data Protection including T10 DIF
- Pin-3 Power Disable Support
- Sanitize Instant Erase (SIE)* Option
- Self-Encrypting (SED)* Option
- Self-Encrypting (SED), FIPS Certified * Option
Key Applications
- Media Streaming
- Data Warehousing
- Web Servers
DPN: 3DDFT / 03DDFT
* SIE: Sanitize Device Feature set is the standard prescribed by T10 (SAS) committee of American National Standards Association(ANSI), which makes it possible to invalidate the data recorded on the NAND flash memory at a blink.
Compatibility:
This drive is compatible with servers and storage arrays that accept large capacity (>2TB) 2.5" x 15mm SFF 12Gb/s SAS drives.
Specifications
| Toshiba Enterprise Mixed Use SSD | |
|---|---|
| Model Number | PX05SVB384Y |
| Capacity | 3.84TB / 3840 GB |
| Interface | SAS-3.0 |
| Interface Speed | 12.0 Gbit/s , 6.0 Gbit/s , 3.0 Gbit/s , 1.5 Gbit/s |
| Memory Type | MLC |
| Sustained 64KiB Sequential Read | 1,900 MiB/s |
| Sustained 64KiB Sequential Write | 1100 MiB/s |
| Sustained 4KiB Random Read | 270,000 IOPS |
| Sustained 4KiB Random Write | 80,000 IOPS |
| MTTF | 2,000,000 hours |
| DWPD | 3 |
| Supply Voltage | 5 V ±7 % , 12 V ±7 % |
| Power Consumption (Ready) | 3.2 W Typ. |
| Height | 15.0 mm +0 , -0.5 mm |
| Width | 69.85 ±0.25 mm |
| Length | 100.45 mm Max. |
| Weight | 150 g Max. |
| Temperature ( Operating ) | 0 to 55 °C |
| Relative Humidity ( Operating ) | 5 to 95 % R.H. |
| Vibration ( Operating ) | 21.27 m/s { 2.17 Grms } ( 5 to 800 Hz ) |
| Shock ( Operating ) | 9,800 m/s { 1,000 G } ( 0.5 ms duration ) |
Click here to view the manufacturer's item description/brochure
ROHS Compliant
Alternate MPNs: 3DDFT 03DDFT
Weight: 0.5 lb
Warranty: 1 Year DiscTech
Condition
Brand New
Warranty
1 Year DiscTech Warranty
