Dell 400-AUVR 2.4TB SAS Hybrid Hard Drive Kit KG1CH / Y004G

Dell Part #/MPN: 400-AUVR

DiscTech Item #: DEL-400-AUVR-BN-OE

  • In Stock
    Stock Levels

    We don’t track exact quantities on this item, but it is usually in stock (95% of the time).


Enterprise Grade

Capacity: 2.4TB

Speed: 10,000RPM

Interface Types: SAS Serial Attached SCSI

Form Factor: 3.5inx1.0in LFF Hard Drive

Sector Size: 512 / 512e

Electrical Interface: SAS-3 Serial Attached SCSI v3 - 12.0Gbps

Compatible Systems: Dell 13th Gen. R730/T630, Dell 12th Gen. R720/T620, Dell 11th Gen. R710/T610

Dell 400-AUVR / 51VK0 2.4TB 3.5-Inch LFF 12Gbps 10K RPM HS 512e SAS Hybrid Hard Drive Kit KG1CH / Y004G - Brand New

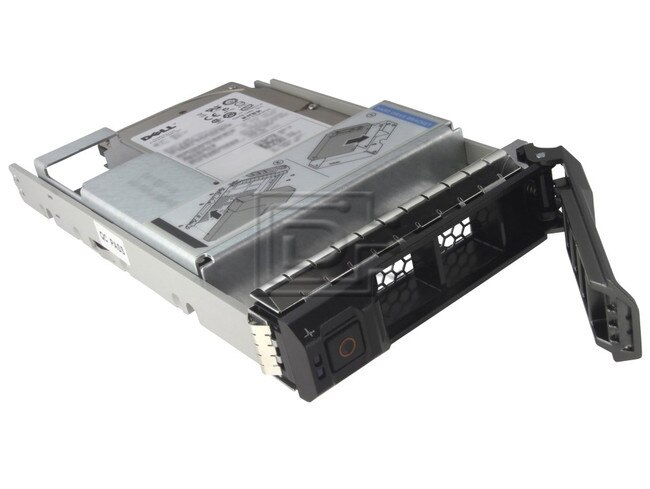

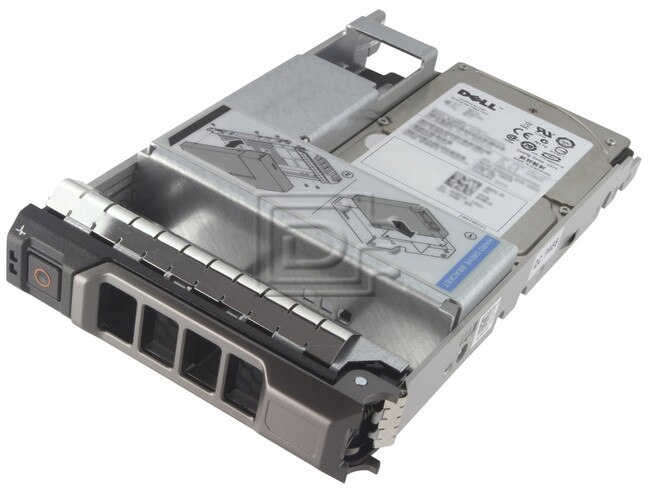

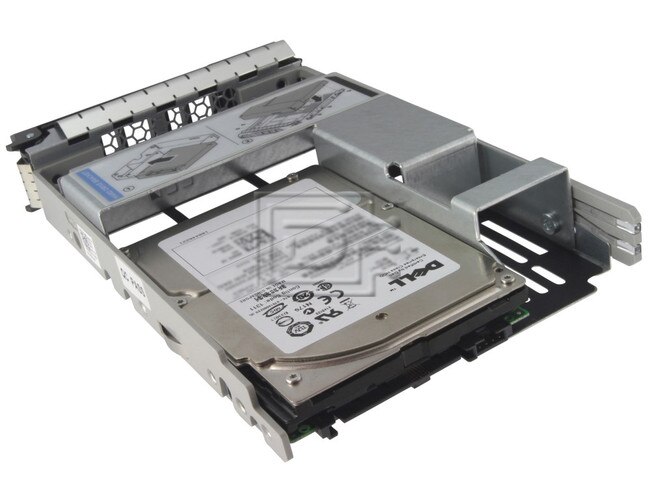

This kit contains one 2.4TB 12Gbps 2.5in SAS hard drive and one Dell Hybrid KG1CH / Y004G tray for use in Dell systems with 3.5" backplane.

Dell 400-AUVR / 51VK0 2.4TB 3.5" LFF 12Gbps 10K RPM HS 512e SAS Hybrid Hard Drive Kit KG1CH / Y004G - Brand New


  • Offers - 2.4 TB capacity to store large amount of data
  • SAS interface delivers high data transfer speeds
  • 10,000 RPM spindle speed ensures excellent performance

Increase the storage capacity of your system with the 2.4 TB Hard Drive from Dell. Offering a rotational speed of 10,000 RPM, this drive provides fast disk access. Featuring SAS interface, this hard drive delivers enhanced data transfer speeds.

Please note the following restrictions: VMware does not support 512e or 4Kn hard drives. 4Kn hard drives are only supported on Win 2012 and UEFI boot and some Linux. 512e hard drives are only supported with Win2008R2 or greater and some Linux.

Manufacturer Part# : 51VK0, 051VK0
Dell Part# : 400-AUVR

This kit contains one 2.5in Small Form Factor 2.4TB 12Gbps SAS hard drive and one Dell 3.5in KG1CH tray with Y004G bracket, for use in Dell systems with 3.5" backplane

This Dell original hard drive kit is fully compatible with: Dell Poweredge R310, T310, R320, R410, R415, T410, R510, R515, T610, T620, R710, T710, R720, NX3000 and PowerVault MD1200, MD3200 with new style angular facia.


Kit is fully compatible with Dell PowerEdge Servers and Storage arrays that support SATA or SAS 3.5" LFF hard drives including:

PowerEdge R230PowerEdge R330PowerEdge R430PowerEdge R530
PowerEdge R630PowerEdge R730xdPowerEdge R730PowerEdge R930
PowerEdge T330PowerEdge T430PowerEdge T630
PowerVault MD1220PowerVault MD1420PowerVault MD3420

This kit is also backwards compatible with Gen 11 and 12 PowerEdge and PowerVault Servers/Arrays

This kit includes:

  • 1x 2.5in 2.4B 12Gbps SAS hard drive
  • 1x 3.5in Dell KG1CH tray / caddy
  • 1x Dell Y004G adapter / bracket
  • 4x mounting screws
Dell Hard Drive
Dell Part#400-AUVR
MFG Part#51VK0
Device TypeHard drive - hot-swap
InterfaceSAS 12Gb/s
Form Factor2.5" or 3.5" (with included bay adapter)
FeaturesAdvanced format 512e
Data Transfer Rate1.2 GBps (external)
Spindle Speed10000 RPM
Included AccessoriesHybrid Carrier

Click here to view the manufacturer's item description/brochure

ROHS Compliant

Alternate MPNs: 51VK0

Weight: 2.5 lb
