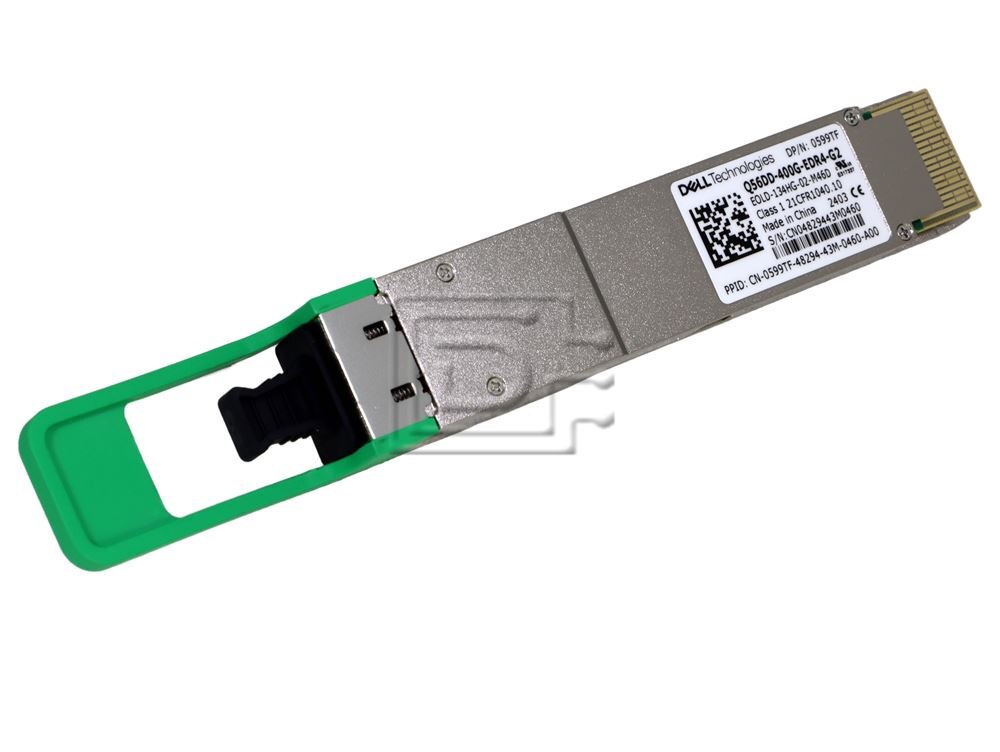

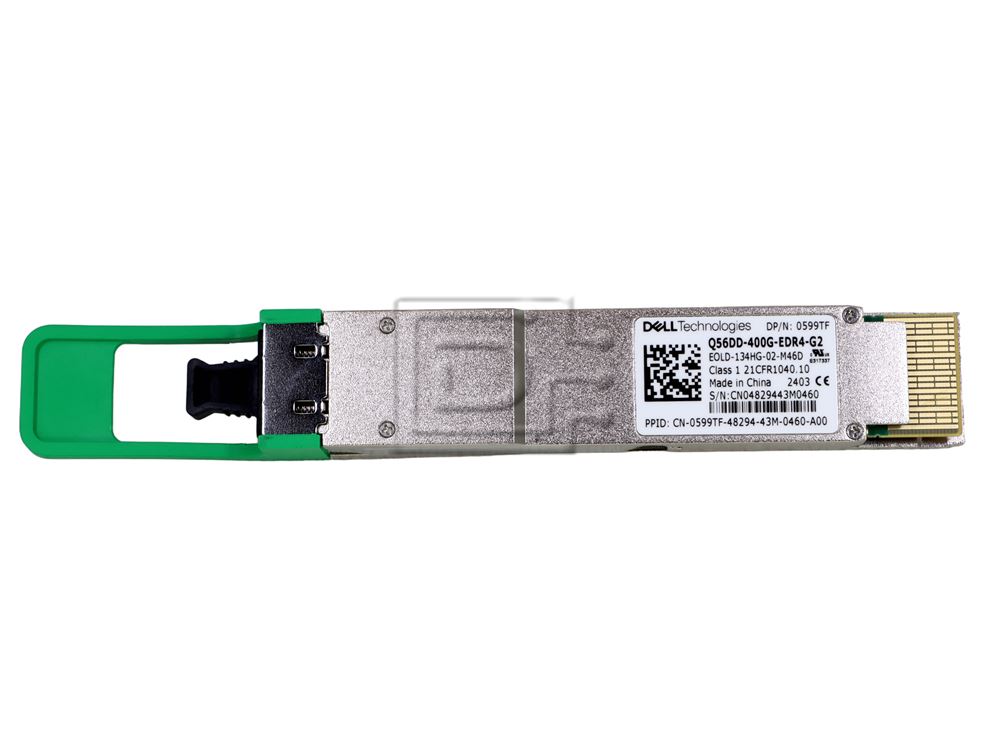

Q56DD-400G-EDR4 Dell 0599TF 400GbE QSFP56-DD Optical Transceiver Module 1310nm 2km
- In Stock:998Need more?Stock Levels
This stock level is real time and accurate. This quantity is available for same-day shipment. Larger quantities can take up to a week to ship. Call us for larger quantities that you need urgently.
- 1 Year DiscTechWarrantyProduct Warranties Explained
The product has a DiscTech warranty for the time period specified. View our limited warranty
| Interface Types: | QSFP |
| Voltage: | 3.3V |
Description
Dell Q56DD-400G-EDR4 / 0599TF 400GbE QSFP56-DD Optical Transceiver Module 1310nm 2km FEC SMF MTP/MPO-12 - Brand New
Dell's newest family of optical transceivers are 400GbE QSFP56-DD. These transceivers may be short-reach (SR4.2-ON, SR8, and VR4) over multimode fiber or intermediate-reach (FR4, EDR4, LR4, LDR4, and Open ZR+) over single mode fiber.
400GbE (8 × 50G PAM4) ports on one switch may be connected to 100GbE QSFP28 (4 × 25G NRZ) by taking advantage of the gearboxes embedded in the pluggable modules. As a result, a 400GbE QSFP56- DD EDR4 module may be broken out over single-mode fiber to feed four 100GbE QSFP28 FR modules
Product Features
- Hot-swappable for simplified maintenance (no power-down required for installation or replacement)
- Can interop with 200GSR4 in 2x200G mode
Can support 1x400G & 4x100G
- Smallest and lowest power 400GbE optical form factors in the industry
- Dell product specification encoding feature allows Dell Networking platforms to recognize certified and supported transceivers
Guaranteed to work with Dell Networking platforms over
temperature and process variations with optimal performance
Alternate Part #'s
0599TF
Compatibility
This product is compatible with the following systems:
PowerSwitch S5448F-ON
PowerSwitch Z9332F-ON
PowerSwitch Z9432F-ON
PowerSwitch Z9664F-ON
Specifications
| 400Gb/s 1310nm Single Mode QSFP56 Transceiver | |
|---|---|
| Model Number | Q56DD-400G-EDR4-G2 / 0599TF |
| Connection Type | MPO-12 |
| Wavelength(nm) | 1310nm |
| Transmission Medium | SMF |
| Distance(max.) | 2km |
| Transmitter Power(dBm) | -2.4 to +4.0 /lane |
| Reciever Power(dBm) | -6.4 to +4.5 /lane |
| Power Dissipation(max.;W) | 10.0 |
| Note: | Compatible with Q28-100G-FR for 1x4 breakout |
Click here to view the manufacturer's item description/brochure
ROHS Compliant
Alternate MPNs: 407-BCID Q56DD-400G-EDR4 0599TF 599TF 1YNC0 01YNC0 6MGDY 06MGDY EOLD-134HG-02-M46D
Weight: 0.5 lb
Warranty: 1 Year DiscTech
Condition
The product is brand new.
Warranty
1 Year DiscTech Warranty
