Dell 405-AADW RAID Controller

Dell Part #/MPN: 405-AADW

DiscTech Item #: DEL-405-AADW-BN-OE


Interface Types: SAS Serial Attached SCSI, SATA, PCIe, SFF-8643

Form Factor: Half-Height/Half-Length

Electrical Interface: PCIe - v3.0 - 16GBps

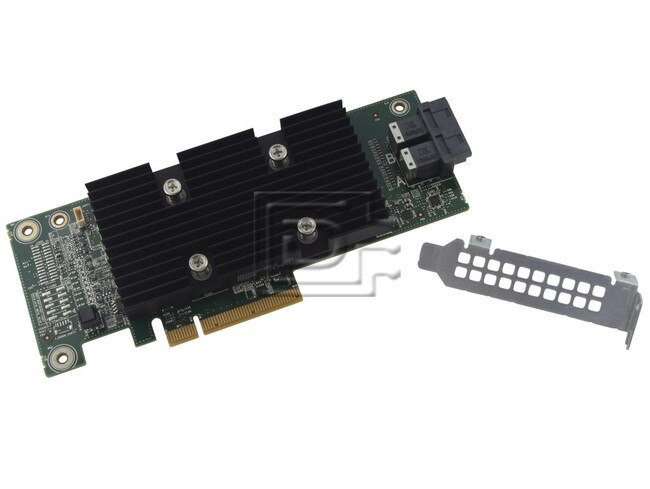

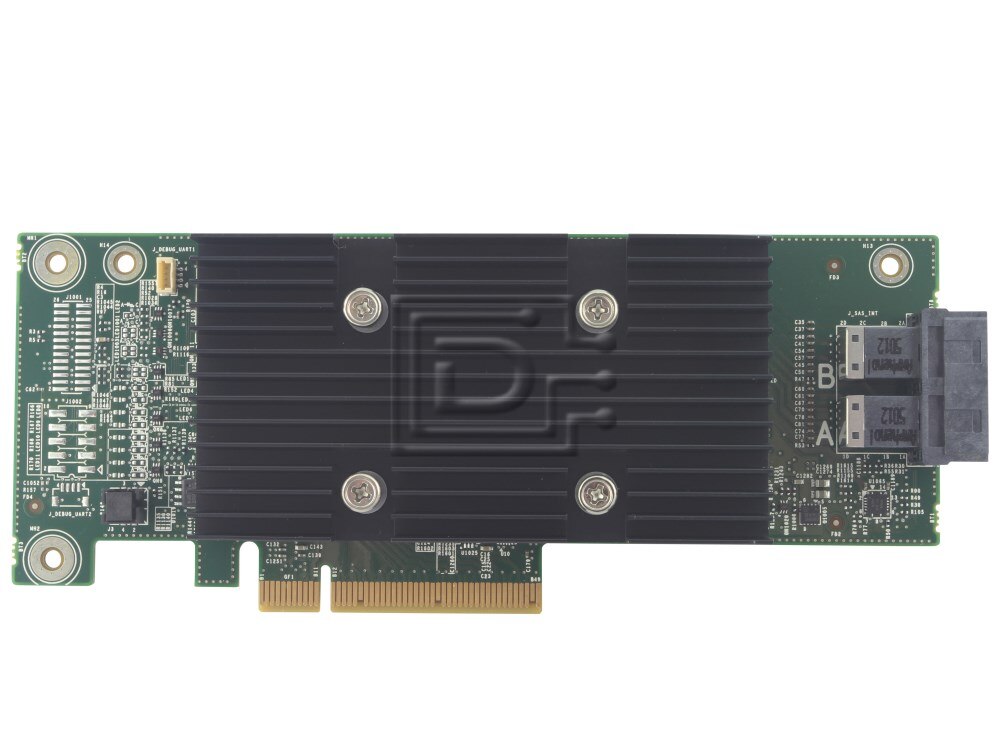

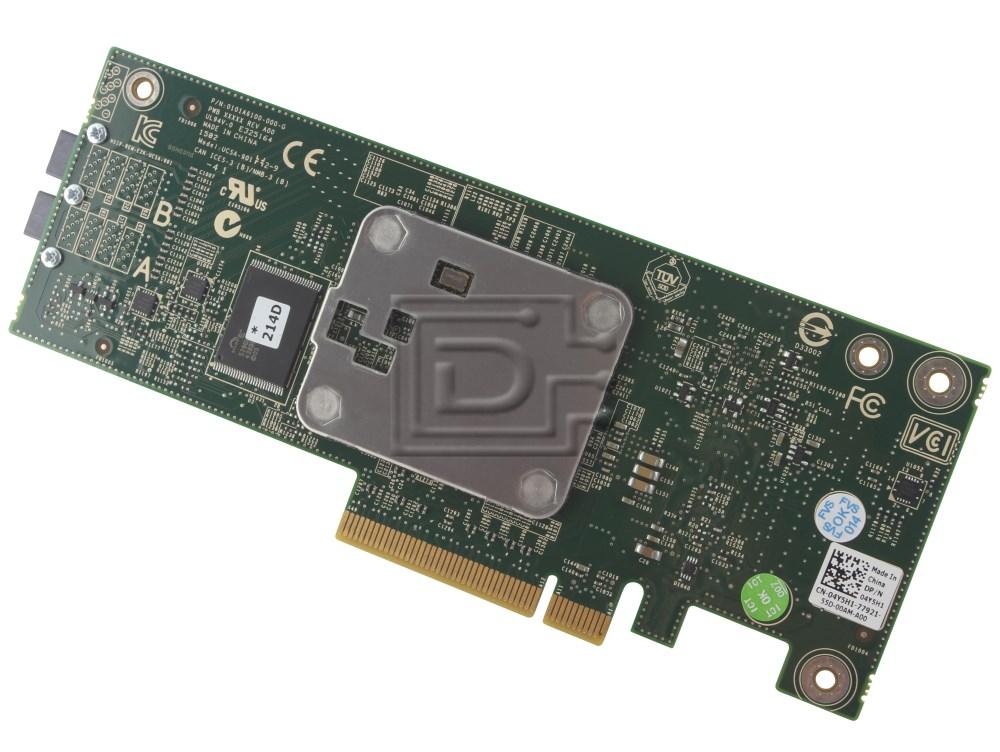

Dell 405-AADW / WDJRW PERC H330 SATA/SAS PCIe 3.0 x8 RAID Controller w/ Bracket - Brand New

Dell 405-AADW / WDJRW PERC H330 SATA/SAS PCIe 3.0 x8 RAID Controller w/ Bracket - Brand New

Alt Part Number: WDJRW

Small to medium business owners can enjoy the latest RAID technology at affordable prices and low power consumption with the Dell PowerEdge RAID Controller (PERC) H330. Ideal for file, web, database and email servers, the PERC H330 delivers trusted Dell PERC reliability with minimal maintenance effort.

The PERC H330 entry-level controller card offers a straightforward solution that includes essential RAID levels and support for non-RAID (passthrough) configuration options. In addition, the card connects to SATA and SAS hard disk drives, and solid state drives, allowing for tiered storage that optimizes cost and performance. Physical disk power management (Dimmer Switch™) technology provides additional cost savings by managing power consumption for idle, unconfigured and configured drives. Dell’s entry-level RAID controllers cover the spectrum of tiered storage requirements for cost-sensitive applications that require robust data protection.

Dell PN: WDJRW 4Y5H1

Compatibility: This Low Porfile PCIe RAID Controller is compatible with any Servers that have a PCIe x8 slot.

PowerEdge R630PowerEdge T430PowerEdge T630
PowerEdge R230PowerEdge R930PowerEdge T130
PowerEdge T330PowerEdge R730PowerEdge R530

Model Number405-AADW
Alt Model NumberWDJRW
Device TypeStorage Controller (RAID)
Plug-In Card
Low Profile
Bus TypePCIe 3.0x8
InterfaceSATA 6Gb/s
SAS 12Gb/s
Data Transfer Rate1.2 GBps
Buffer Size n/a
Supported DevicesHard Drive
Disk Array (RAID)
Channel Qty8
Max Storage Devices Qty128
System Requirements
  • Microsoft Windows Server 2008 R2 SP1
  • SuSE Linux Enterprise Server 10 SP4
  • Microsoft Windows Server 2012
  • Red Hat Enterprise Linux 5.8
  • Microsoft Windows Server 2012 R2
  • SuSE Linux Enterprise Server 11 SP3
  • Red Hat Enterprise Linux 6.5
  • Depth16.76 cm
    Height6.44 cm
    Interfaces2 x SATA 6Gb/s36 pin 4x Mini SAS HD
    (SFF-8643) (Internal)
    Included AccessoriesBracket
    FeaturesOnline Capacity Expansion (OCE)
    Online RAID Level Migration (RLM)
    Min Operating Temperature0°C
    Max Operating Temperature65°C
    Humidity Range Operating5 - 90%

    Click here to view the manufacturer's item description/brochure

    ROHS Compliant

    Alternate MPNs: WDJRW 4Y5H1 04Y5H1

    Weight: 2.5 lb

    Warranty: 1 Year DiscTech

    Brand New
