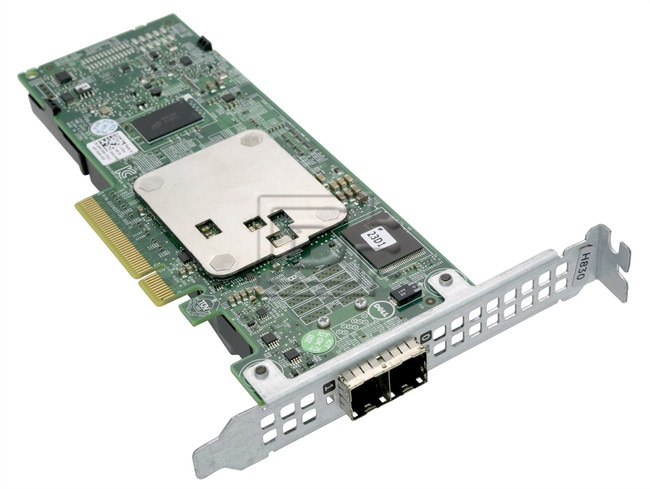

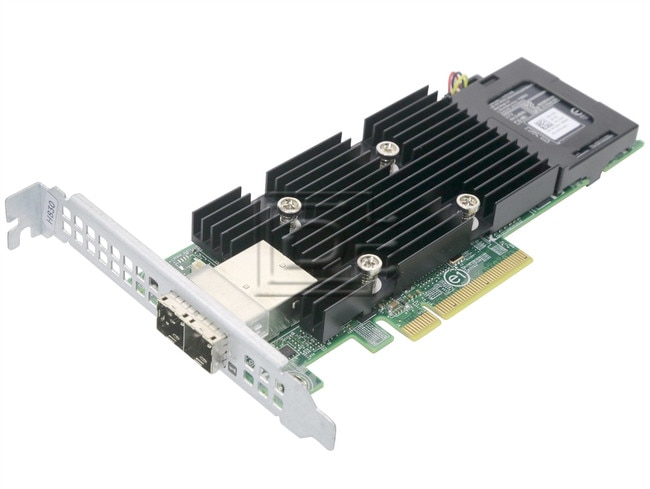

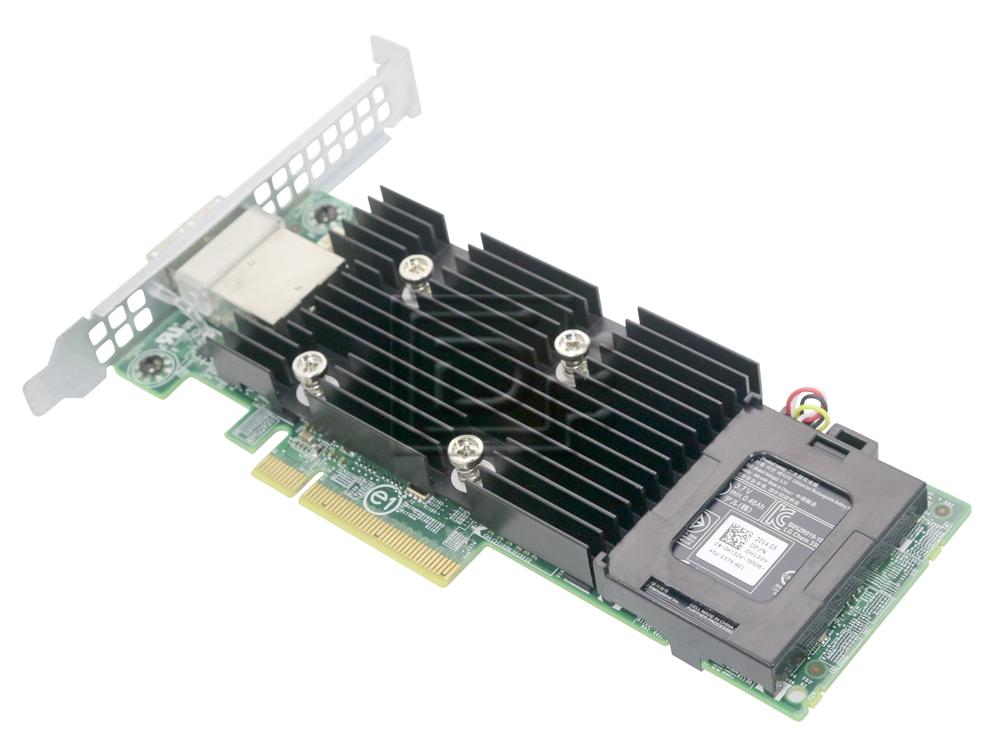

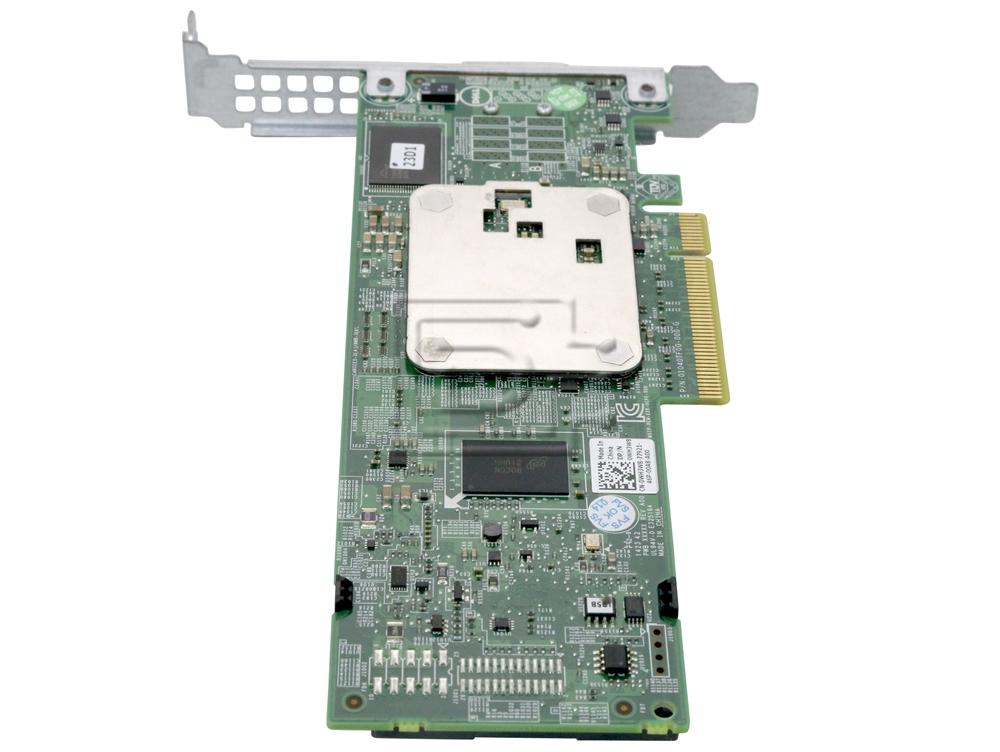

Dell 405-AADY PERC H830 Internal Full Height PCIe Adapter SAS Raid Controller

Dell Part #/MPN: 405-AADY

DiscTech Item #: DEL-405-AADY-BN-OE


$295.00
  • Low Stock:Call for ETA
    Stock Levels

    This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.

$295.00

Interface Types: SAS Serial Attached SCSI, PCIe, SFF-8643

Form Factor: Full-Height/Half-Length

Electrical Interface: SAS-3 Serial Attached SCSI v3 - 12.0Gbps

On-Board Cache: 2GB

Compatible Systems: Dell 13th Gen. R730/T630

Dell 405-AADY / JPFXR / WH3W8 PERC H830 Internal PCIe Full Height SAS Raid Adapter Controller with 2GB Cache - Brand New

Dell 405-AADY / NR5PC / JPFXR / WH3W8 PERC H830 Internal PCIe Full Height SAS Raid Adapter Controller with 2GB Cache - Brand New

Highlights

  • Enterprise data protection
  • Sophisticated DAS topologies
  • Unsurpassed performance and high reliability

Overview
The PERC H830 RAID Adapter from Dell offers reliability and performance in addition to providing management with the tolerant disk subsystem failures. This RAID controller offers expandable 2 GB storage capacity to improve the performance of your server systems. The double module channel provides high-speed connectivity. This product has been tested and validated on Dell systems to ensure compatibility with your computer. It is supported by Dell Technical Support when used with a Dell system.

Manufacturer Part#: JPFXR, 0JPFXR, WH3W8, 0WH3W8
Dell Part#: 405-AADY

This product is compatible with the following systems:*
PowerEdge R430, R530, R730, R730XD, R930, T130, T330, T430, T630, VRTX

*Available Full Height PCIe Slot Required


Compatibility:

Kit is fully compatible with the following systems:

PowerEdge R430PowerEdge R530PowerEdge R730PowerEdge R730XD
PowerEdge R930PowerEdge T130PowerEdge T330PowerEdge T430
PowerEdge T630PowerEdge VRTX0

Dell
Manufacturer Part# :JPFXR
0JPFXR
WH3W8
0WH3W8
Dell Part# :405-AADY
GeneralSpecifications
Device TypeStorage controller (RAID) - plug-in card - Low Profile Card with Full Height Bracket
Host BusPCIe 3.0 x8
Storage Controller
InterfaceSAS 12Gb/s
Data Transfer Rate1.2 GBps
Slot typePCIe Full Height
Supported Devices
  • Hard drive
  • Disk array (RAID)
  • Channel Qty8
    Max Storage Devices Qty255
    RAID Level
  • RAID 0
  • RAID 1
  • RAID 5
  • RAID 6
  • RAID 10
  • RAID 50
  • JBOD
  • RAID 60
  • ProcessorLSI LSISAS3108
    Expansion / Connectivity
    Interfaces2 x SAS 12Gb/s - 36 pin 4x Mini SAS HD (SFF-8643) (internal)
    Miscellaneous
    Features
  • Load Balancing
  • Online Capacity Expansion (OCE)
  • Online RAID Level Migration (RLM)
  • Non-Volatile Cache
  • Dimmer Switch technology
  • Compliant StandardsCEM
    Software / System Requirements
    OS Required
  • Microsoft Windows Server 2008 R2 SP1
  • SuSE Linux Enterprise Server 10 SP4
  • Microsoft Windows Server 2012
  • Red Hat Enterprise Linux 5.8
  • Microsoft Windows Server 2012 R2
  • SuSE Linux Enterprise Server 11 SP3
  • Red Hat Enterprise Linux 6.5
  • Dimensions & Weight
    Depth6.6 in
    Height2.5 in
    Environmental Parameters
    Max Operating Temperature140 °F
    Compatibility Information
    Designed For
    (Available Full Height PCIe Slot Required)
    • Dell PowerEdge
      • R430
      • R530
      • R630
      • R730
      • R930
      • T130
      • T330
      • T430
      • T630
    • Dell PowerVault
      • MD1400

    Click here to view the manufacturer's item description/brochure

    Alternate MPNs: JPFXR 0JPFXR WH3W8 NR5PC 0NR5PC

    Weight: 2 lb

    Warranty: 1 Year DiscTech

    Brand New

    Condition Levels Explained

    The product is brand new.

    1 Year DiscTech Warranty

    Product Warranties Explained

    The product has a DiscTech warranty for the time period specified. View our limited warranty
