Dell Part #/MPN: 405-AAER
DiscTech Item #: DEL-405-AAER-BN-OE
- Brand NewCondition Levels Explained
The product is brand new.
- Warranty:1 Year DiscTechProduct Warranties Explained
The product has a DiscTech warranty for the time period specified. View our limited warranty
- Low Stock:Call for ETAStock Levels
This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.
Interface Types: SAS Serial Attached SCSI, PCIe, SFF-8643
Electrical Interface: SAS-3 Serial Attached SCSI v3 - 12.0Gbps
On-Board Cache: 2GB
Bays/Ports/Slots: 8

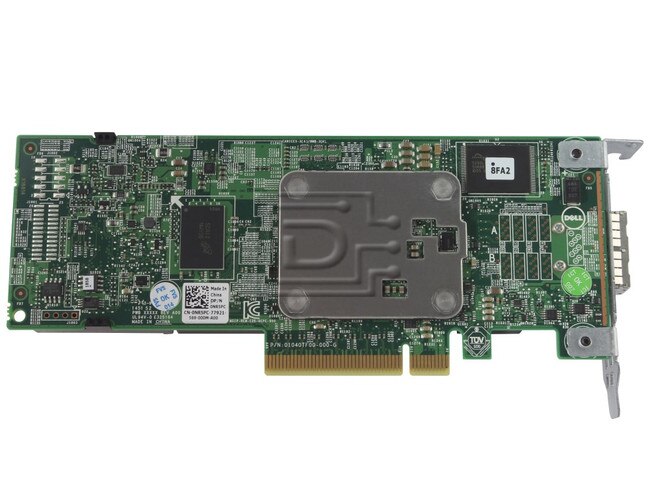

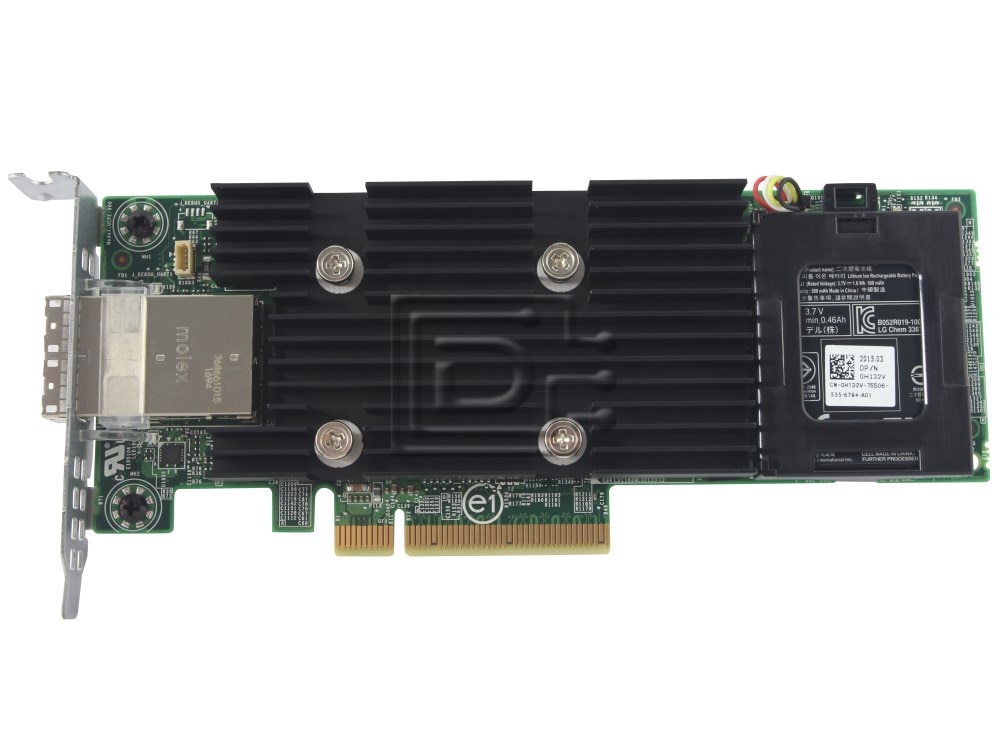

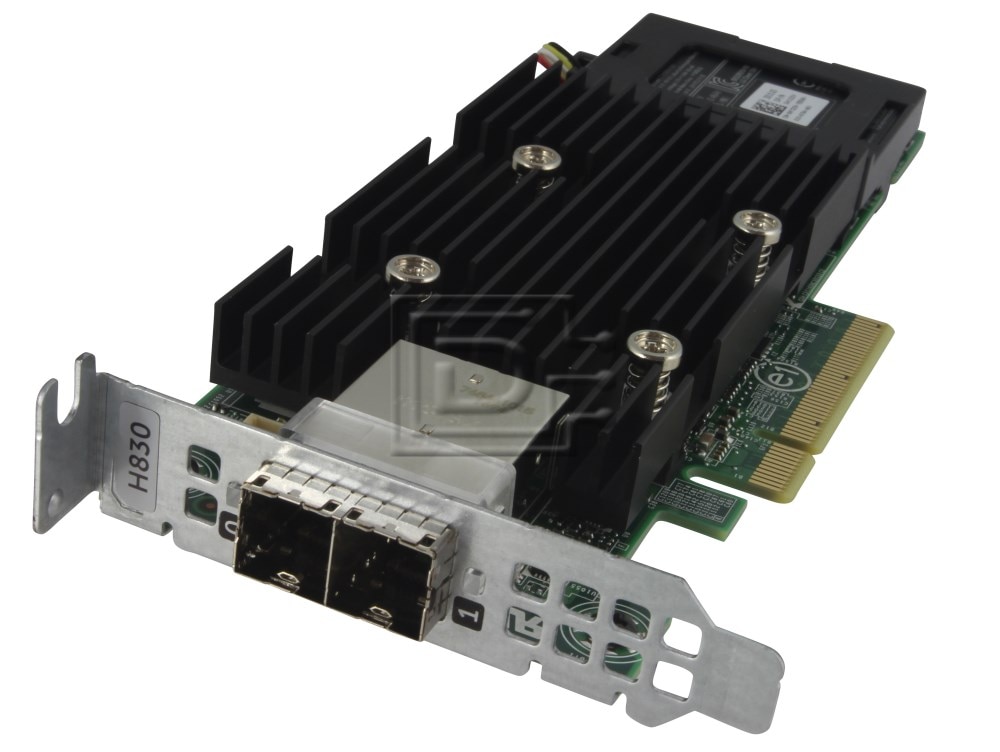

Dell 405-AAER / 25CKG / NR5PC / 463-0705 2GB 8 Port PERC H830 PCIe SAS RAID Controller - Brand New
Dell 405-AAER / 25CKG / NR5PC / 463-0705 2GB 8 Port PERC H830 PCIe SAS RAID Low Profile Controller - Brand New
Alt MPN: 25CKG 025CKG NR5PC 0NR5PC 463-0705
Highlights
- Designed for enhanced performance, increased reliability and fault tolerance
- Create a robust infrastructure and help maximize server uptime
- Offer unmatched I/O performance for database applications
- Low Profile Bracket
Overview
The Dell PERC (PowerEdge RAID Controller) family of enterprise-class controllers is designed for enhanced performance, increased reliability and fault tolerance, and simplified management - providing a powerful, easy-to-manage way to create a robust infrastructure and help maximize server uptime.
As storage demands expand and processing loads grow, it becomes increasingly more difficult for administrators to achieve maximum performance from their applications. The line of Dell PowerEdge RAID Controller (PERC) cards offer unmatched I/O performance for database applications, streaming digital media environments and storage intensive applications.
Compatibility:
This controller card is compatible with any server that includes PCI-E 3.0 Low Profile slots.
| SPECIFICATIONS | |
|---|---|
| Model Number | 405-AAER |
| Alt Model Number | 25CKG NR5PC 463-0705 |
| Device Type | Storage Controller (RAID) - Plug-In-Card |
| Bus Type | PCIe 3.0 x 8 |
| Interface | SAS 12Gb/s |
| Data Transfer Rate | 1200 MBps |
| Buffer Size | Hard Drive, Disk Array (RAID) |
| Channel Qty | 8 |
| RAID Level | RAID 0, RAID 1, RAID 5, RAID 6, RAID 10, RAID 50, RAID 60 |
| System Requirements | Microsoft Windows Server 2008 R2, Microsoft Windows Server 2008 R2 SP1, Microsoft Windows Server 2012, Microsoft Windows Server 2012 R2, Red Hat Enterprise Linux 6.5, VMware ESXi 5.1 update 2, SuSE Linux Enterprise Server 11 SP3 x64 Edition, VMware ESXi 5.5 update 2 |
| Dimensions | 6.6 in x 2.5 in / Low Profile Bracket |
| Processor | LSI LSISAS3108 |
| Interfaces | 2 x SAS 12 Gb/s - 36 pin 4x Mini SAS HD (SFF-8643) (Internal) |
Click here to view the manufacturer's item description/brochure
Alternate MPNs: 25CKG 025CKG NR5PC 0NR5PC 463-0705
Weight: 4.2 lb
Warranty: 1 Year DiscTech
Brand New
The product is brand new.
1 Year DiscTech Warranty
The product has a DiscTech warranty for the time period specified. View our limited warranty
