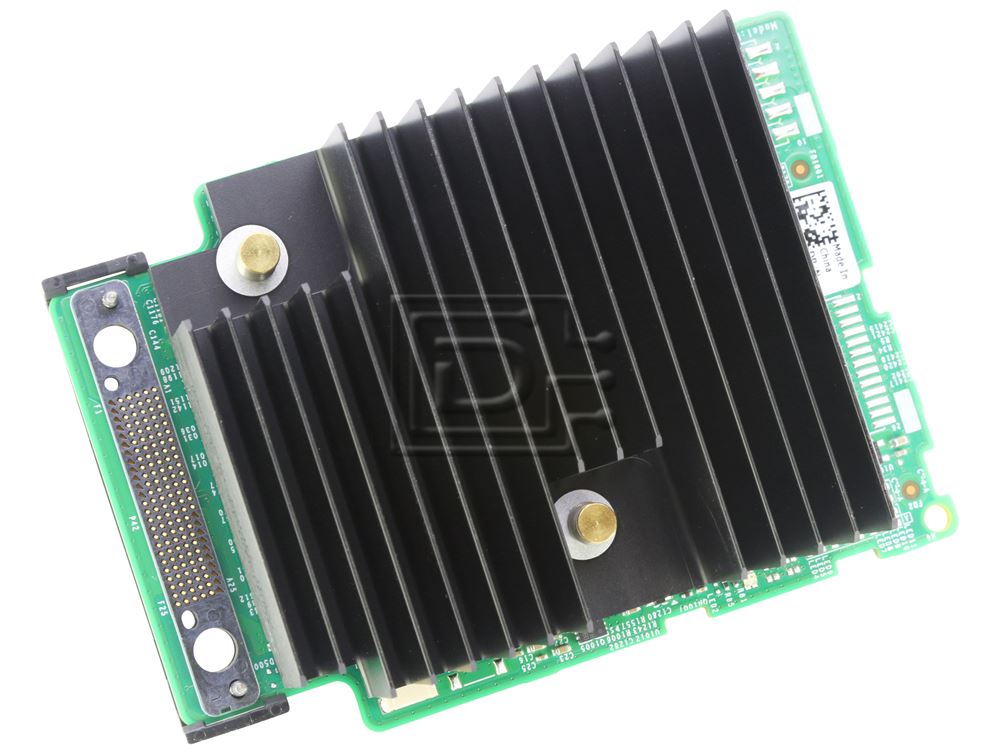

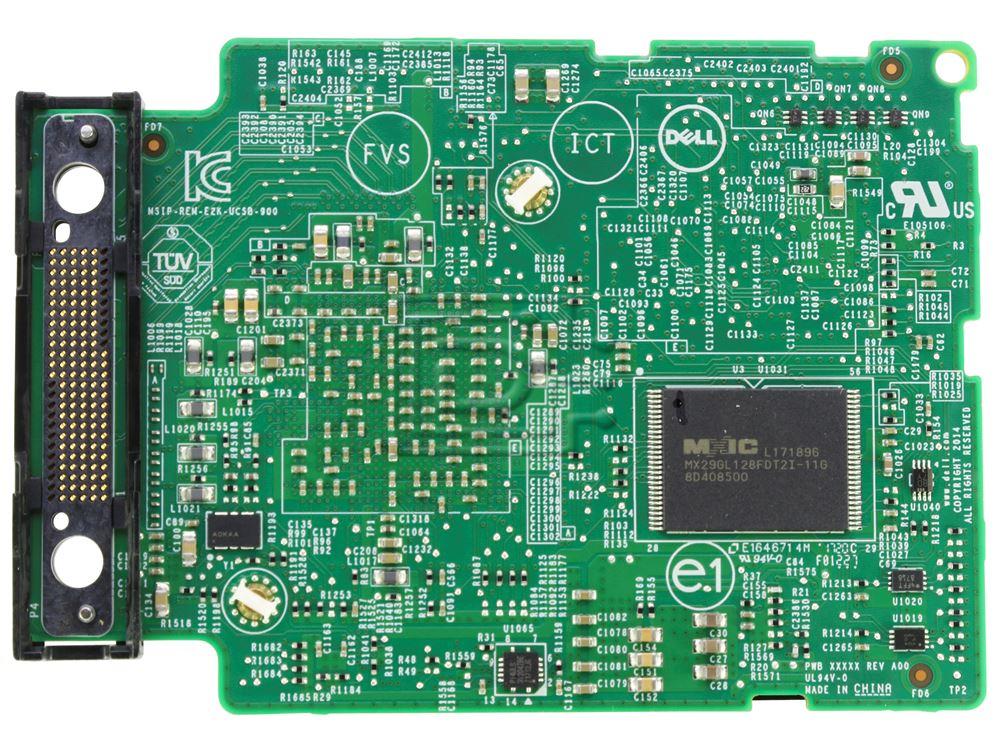

Dell 405-AAJW / THN56 / P2R3R HBA330 Integrated Mini Mono 12Gbps SAS NON-RAID Controller

Dell Part #/MPN: 405-AAJW

DiscTech Item #: DEL-405-AAJW-BN-OE


$189.00
$189.00

Interface Types: SAS Serial Attached SCSI, SATA, PCIe, SFF-8643

Form Factor: Half-Height/Half-Length

Electrical Interface: PCIe - v3.0 - 16GBps

On-Board Cache: 2GB

Voltage: 3.3V

Compatible Systems: Dell 14th Gen. R640/R740, Dell 13th Gen. R730/T630

Dell 405-AAJW / THN56 / P2R3R HBA330 Integrated Mini Mono 12Gbps SAS NON-RAID Controller - Brand New

Dell 405-AAJW / THN56 / P2R3R HBA330 Integrated Mini Mono 12Gbps SAS NON-RAID Controller - Brand New

The HBA330 12Gbps SAS Controller from Dell offers reliability and performance in addition to providing management with the tolerant disk subsystem failures. This controller offers expandable 12GB storage capacity to improve the performance of your server systems. The double module channel provides high-speed connectivity. This product has been tested and validated on Dell systems to ensure compatibility with your computer. It is supported by Dell Technical Support when used with a Dell system.

Tech Specs

Device Type - Storage controller - plug-in card

Bus Type - PCIe 3.0 Mini Card

Interface - SAS 12Gb/s

Data Transfer Rate - 12 Gbit/s

Supported Devices

Hard drive, solid state drive

Max Storage Devices

Qty

8

System Requirements

Microsoft Windows Server 2008 R2 SP2, Microsoft Windows Server 2012, Microsoft Windows Server 2012 R2, VMware ESXi 5.5, Red Hat Enterprise Linux 7.1, Red Hat Enterprise Linux 6.7, SuSE Linux Enterprise Server 11 SP4, VMware ESXi 6.0, SuSE Linux Enterprise Server 12 SP3

Designed For

EMC PowerEdge R640, R6415, R740, R740xd, R7415; PowerEdge R530, R630, R730, R730xd, R830

DPN: THN56, 0THN56, P2R3R, 0P2R3R


Compatibility:

This product is compatible with the following systems:

PowerEdge R7515PowerEdge R6515PowerEdge R940PowerEdge R740
PowerEdge R740XDPowerEdge R7415PowerEdge R6415PowerEdge R640
PowerEdge R830PowerEdge R730PowerEdge R730XDPowerEdge R730XD XL
PowerEdge R630PowerEdge R530PowerEdge R430

SPECIFICATIONS
Part Number405-AAJW
Device TypeStorage Controller,
plug-in card
Bus TypePCIe 3.0 Mini Card
InterfaceSAS 12 Gbps
Date Transfer Rate12 Gbps
Max Storage Device Qty8
Supported DevicesHard drive, SSD

Click here to view the manufacturer's item description/brochure

Alternate MPNs: THN56 0THN56 P2R3R 0P2R3R 71H1J 071H1J

Weight: 4.2 lb

Warranty: 1 Year DiscTech

Brand New

Condition Levels Explained

The product is brand new.

1 Year DiscTech Warranty

Product Warranties Explained

The product has a DiscTech warranty for the time period specified. View our limited warranty
