Dell Part #/MPN: 405-ABCE
DiscTech Item #: DEL-405-ABCE-BN-OE
- Brand NewCondition Levels Explained
The product is brand new.
- Warranty:1 Year DiscTechProduct Warranties Explained
The product has a DiscTech warranty for the time period specified. View our limited warranty
- In Stock:7Need more?Stock Levels
This stock level is real time and accurate. This quantity is available for same-day shipment. Larger quantities can take up to a week to ship. Call us for larger quantities that you need urgently.
Interface Types: SAS Serial Attached SCSI, SATA, PCIe, SFF-8643
Electrical Interface: PCIe - v4.0 - 32GBps
On-Board Cache: 8GB
Bays/Ports/Slots: 8

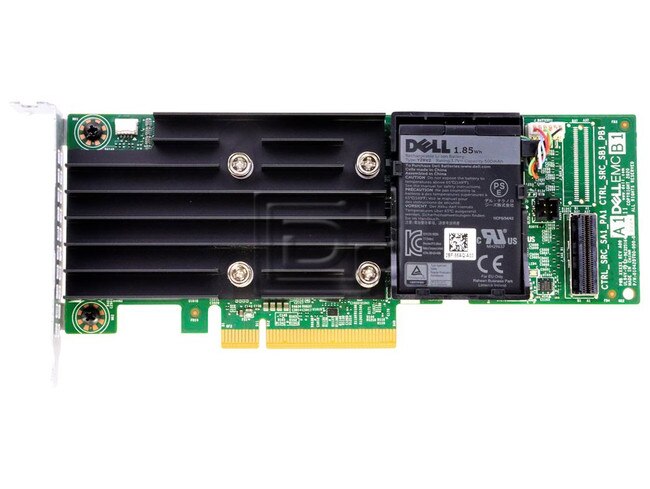

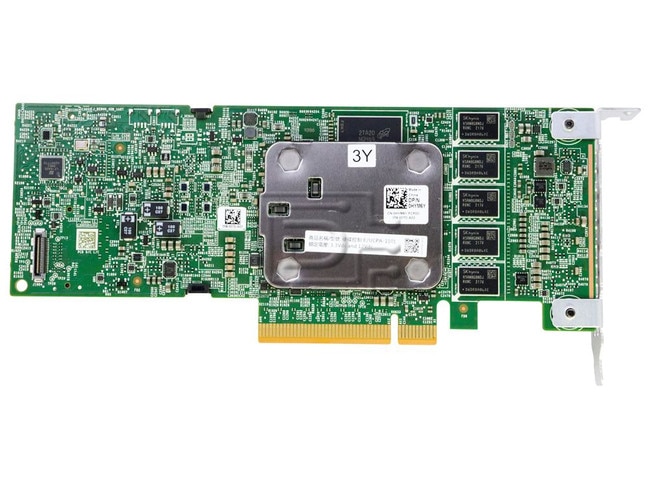

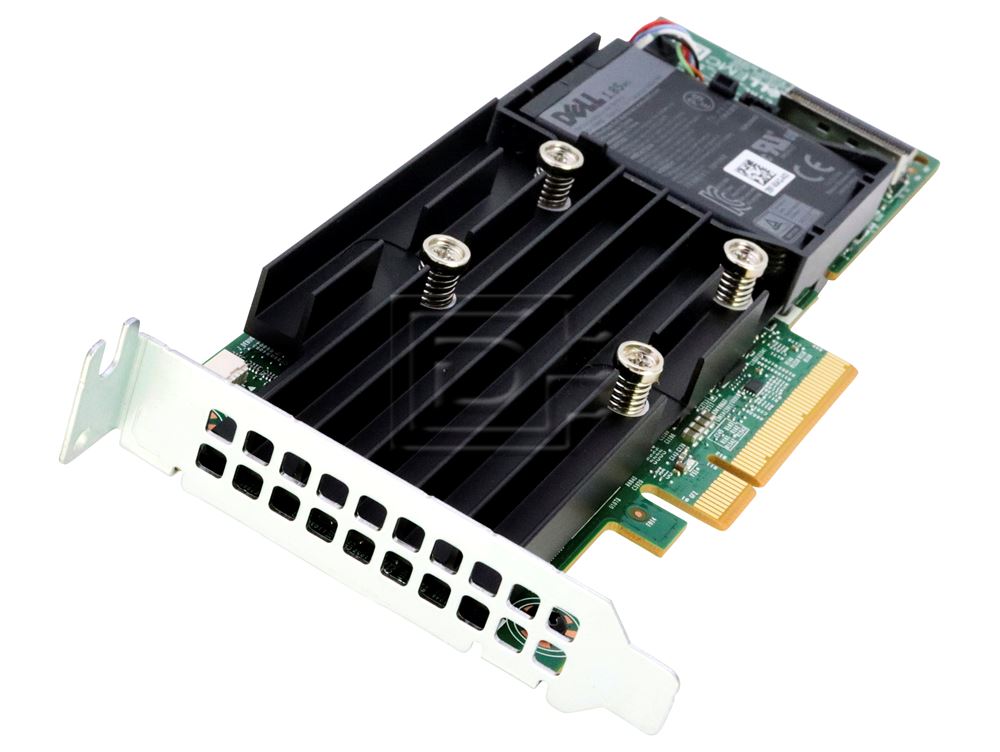

Dell 405-ABCE / WRN2M PERC H750 Low Profile / Full Ht. PCIe Gen4 x8 8GB Cache SAS / SATA RAID Controller - Brand New
The PERC H750 RAID Controller Card from Dell offers reliability and performance in addition to providing management with the tolerant disk subsystem failures. This RAID controller Card offers expandable 8 GB storage capacity to improve the performance of your server systems. The double module channel provides high-speed connectivity. This product has been tested and validated on Dell systems to ensure compatibility with your computer. It is supported by Dell Technical Support when used with a Dell system.
Manufacturer Part WRN2M / 0WRN2M / HYM6Y
Dell Part 405-ABCE / 405-ABCC
Compatibility:
This product is compatible with the following systems:
| PowerEdge R440 | PowerEdge R540 | PowerEdge R740 | PowerEdge R740xd |
| PowerEdge R940 | PowerEdge T440 | PowerEdge T640 | Power Edge R640 |
| PowerEdge R840 | PowerEdge R940XA | PowerEdge C6525 |
System Requirements:
- Microsoft Windows Server 2012
- Microsoft Windows Server 2012 R2
- Microsoft Windows Server 2016
- Microsoft Windows Server 2019
- Windows Server 2019 LTSC
- Windows Server 2022 LTSC
- SuSE Linux Enterprise Server 12
- Red Hat Enterprise Linux 7.0 or later
- Red Hat Enterprise Linux 9
- Red Hat® Enterprise Linux 7
- Red Hat® Enterprise Linux 8
- SuSE Linux ES 15
- Ubuntu Server 20.04 LTS
- Ubuntu Server 22.04 LTS
- VMware ESXi 6.7
- VMware ESXi 7.0
- VMware ESXi 8.0
| Dell PERC H750 RAID Controller | |
|---|---|
| DELL PART# | 405-ABCE / 405-ABCC |
| MANUFACTURER PART# | WRN2M / 0WRN2M / HYM6Y / 0HYM6Y |
| TECH SPECS | |
| DEVICE TYPE | Storage Controller (RAID) - Plug-in Card PCIe Ver4 |
| DATA TRANSFER RATE | 6Gb/s 12Gb/s |
| BUFFER SIZE | 8 GB |
| SUPPORTED DEVICES |
|
| Hot Swap Devices Supported | Yes |
| MAX # Disk Groups | 240 |
| RAID LEVEL |
|
| HOST BUS | PCIe Gen4 |
| INTERFACE | SATA 6Gb/s SAS 12Gb/s |
| PROCESSOR | Broadcom RAID-on-chip, SAS3916 chipset |
| FEATURES |
|
| OS REQUIRED |
|
| MAX no of VDs in RAID modeE | 240 |
| DESIGNED FOR |
|
Click here to view the manufacturer's item description/brochure
ROHS Compliant
Alternate MPNs: WRN2M 0WRN2M 0HYM6Y HYM6Y 405-ABCC
Weight: 5 lb
Warranty: 1 Year DiscTech
Brand New
The product is brand new.
1 Year DiscTech Warranty
The product has a DiscTech warranty for the time period specified. View our limited warranty
