Dell 407-BBRC N6KM9 QSFP+ 40GbE LM4 Transceiver, LC, 150m MMF / 1km SMF FTL4C3QE1C-FC

Dell 407-BBRC N6KM9 0N6KM9 FTL4C3QE1C-FC QSFP+ 40GBASE‑LM4 Transceiver, Duplex LC Image 1 imageDell 407-BBRC N6KM9 0N6KM9 FTL4C3QE1C-FC QSFP+ 40GBASE‑LM4 Transceiver, Duplex LC Image 2 imageDell 407-BBRC N6KM9 0N6KM9 FTL4C3QE1C-FC QSFP+ 40GBASE‑LM4 Transceiver, Duplex LC Image 3 imageDell 407-BBRC N6KM9 0N6KM9 FTL4C3QE1C-FC QSFP+ 40GBASE‑LM4 Transceiver, Duplex LC Image 4 image
  • In Stock:15
    Need more?
  • 1 Year DiscTechWarranty
$289.00

Interface Types:SFP
Electrical Interface:Ethernet 10Gigabit - 10Gbps
Voltage:3.3V

Description

Dell 407‑BBRC N6KM9 QSFP+ 40GBASE‑LM4 Transceiver, Duplex LC, 1310nm, up to 160m on OM4 MMF, 1km on SMF, CWDM4 Optics FTL4C3QE1C-FC - Brand New

Dell 407‑BBRC N6KM9 QSFP+ 40GBASE‑LM4 Transceiver, Duplex LC, 1310nm, up to 160m on OM4 MMF, 1km on SMF, CWDM4 Optics FTL4C3QE1C-FC - Brand New

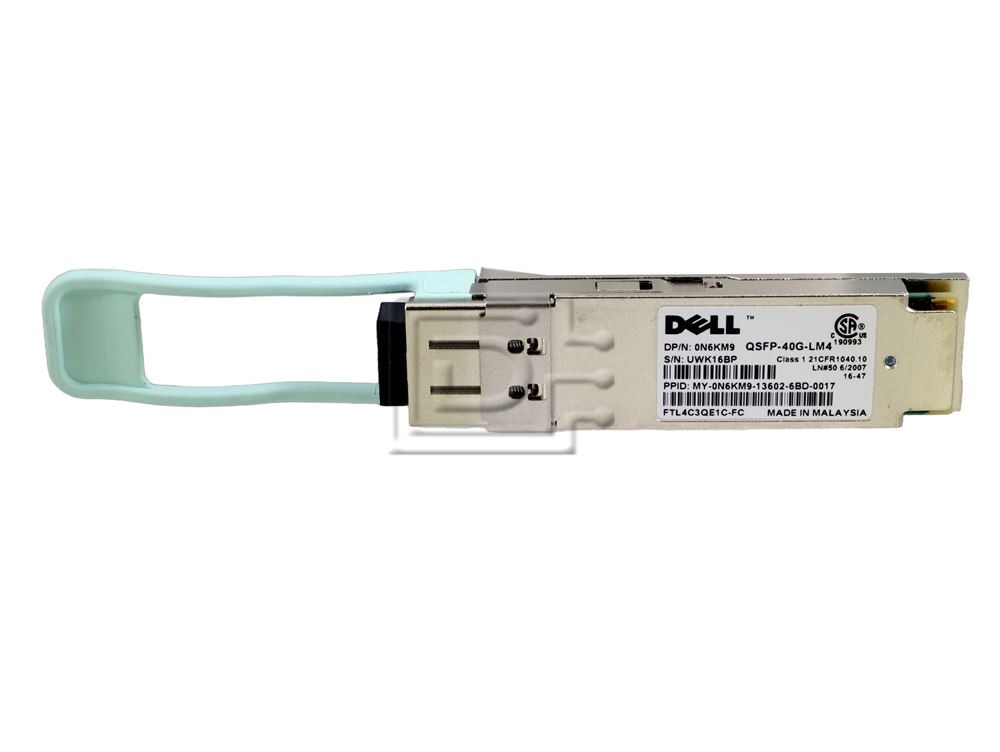

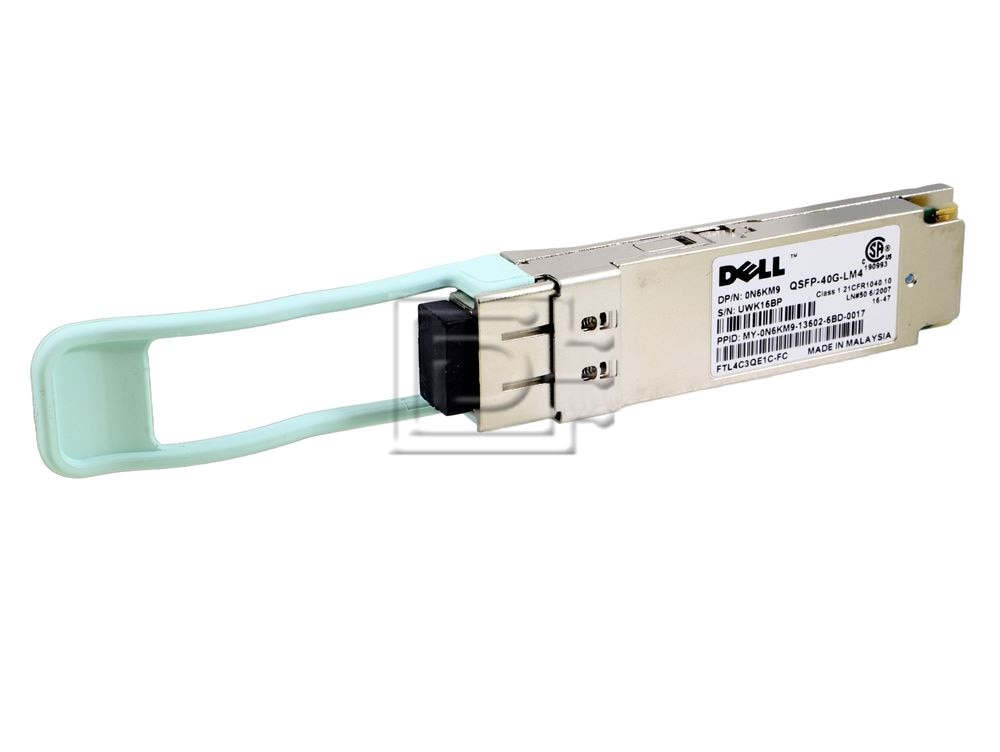

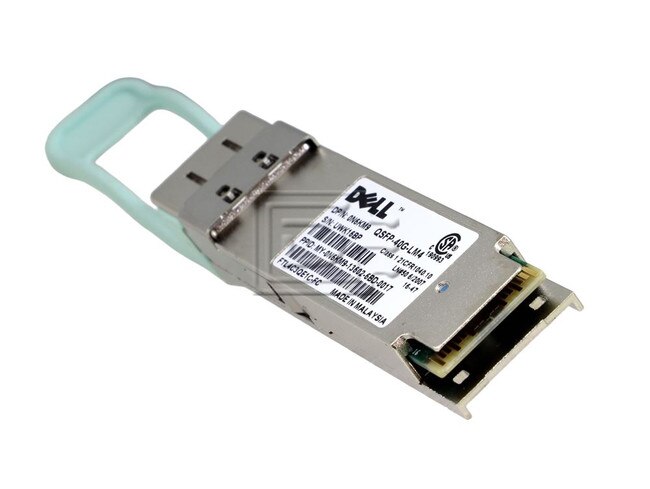

Dell 407-BBRC N6KM9 QSFP+ 40GBASE-LM4 Transceiver

The Dell™ 407-BBRC QSFP+ transceiver delivers high-speed fiber connectivity to extend the range of your network. This hot-pluggable transceiver with a QSFP+ (Quad Small Form-factor Pluggable Plus) footprint features a Duplex LC connector. The Dell networking 40GBASE-LM4 transceiver provides 40 Gigabit Ethernet (40GbE) connectivity, supporting up to 150m on OM3 multimode fiber (MMF), 160m on OM4 MMF, or 1km (up to 2km with host FEC) on single-mode fiber (SMF).

Additionally, it provides an enhanced digital diagnostic monitoring (DDM) interface via I2C, allowing real-time access to device operating parameters such as transceiver temperature, laser bias current, transmitted optical power, received optical power, and transceiver supply voltage.

Product Features

  • Hot-pluggable QSFP+ footprint: Enables easy installation without powering down the device.
  • Supports 41.2 Gb/s aggregate bit rate: Provides 40GbE connectivity with four channels at ~10.3 Gb/s each.
  • CWDM4 Optics: Uses four wavelengths (1271nm, 1291nm, 1311nm, 1331nm) centered around 1310nm for efficient data transmission.
  • Maximum link length:
    • 150m on OM3 multimode fiber (MMF).
    • 160m on OM4 multimode fiber (MMF).
    • 1km on single-mode fiber (SMF), extendable to 2km with Forward Error Correction (FEC).

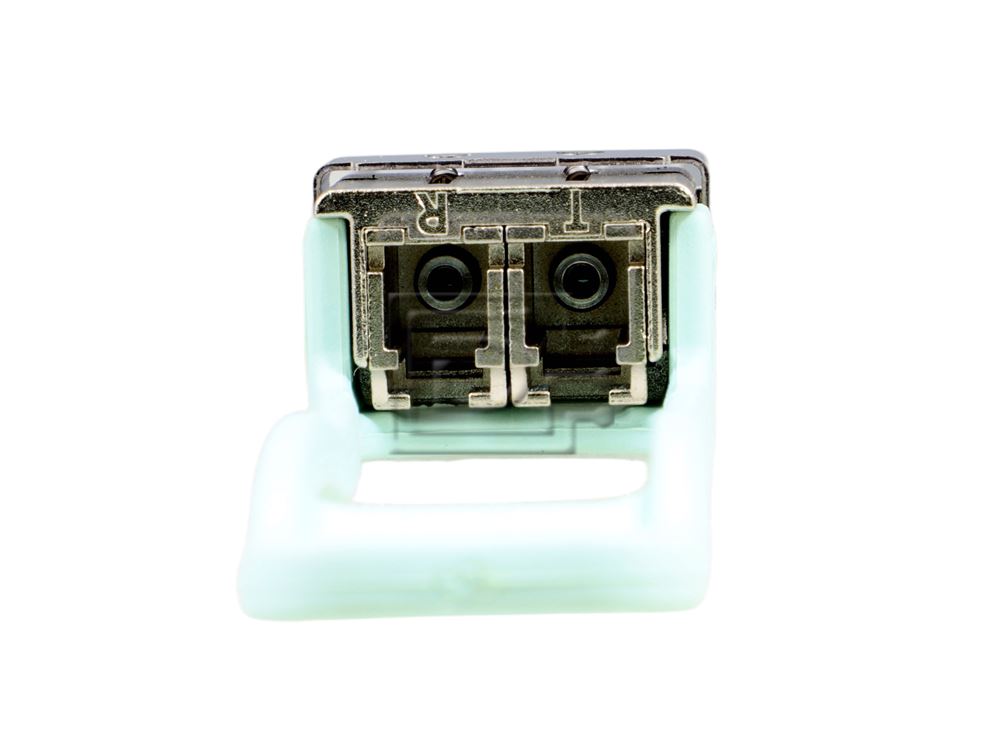

  • Duplex LC connector: Standard for high-speed fiber optic connections.
  • Transmitter: CWDM4 DFB (Distributed Feedback Laser).
  • Receiver: PIN photodiode.
  • TX Power:
    • MMF: -7 to 4.3 dBm.
    • SMF: -10 to 2.3 dBm.
  • Receiver Sensitivity:
    • MMF: < -10 dBm.
    • SMF: < -13.7 dBm.
  • Power dissipation: ≤ 3.5W, energy-efficient for data center use.
  • Extinction Ratio: > 3.5 dB for clear signal transmission.
  • Bit Error Ratio (BER): 1E-12 for high reliability.
  • Digital Diagnostic Monitoring (DDM): Real-time monitoring of key parameters.
  • RoHS-6 compliant: Lead-free and environmentally friendly.
  • Operating temperature range: 0°C to 70°C (32°F to 158°F).
  • Compliance: QSFP+ MSA, IEEE 802.3ba 40GBASE-LM4 standard.

Applications

  • 40GBASE-LM4 40G Ethernet: High-speed connectivity for data centers, enterprise networks, and high-performance computing.
  • Data Center Interconnects: Reliable connections between servers and switches.
  • Enterprise Core and Distribution Layers: Supports high-bandwidth applications like cloud computing and video streaming.

Alt Pt# FTL4C3QE1C-FC
DPN: N6KM9

Compatibility

Compatible with QSFP+ MSA (SFF‑8436) and IEEE 802.3ba 40GBASE‑LM4 standard
Designed for networking switches, routers and PowerEdge servers with QSFP+ sockets

PowerEdge (Gen 14 systems):
C4140, FC630, M820;
C6420, C6525, FC640, M640;
R240, R340, R440, R540, R640, R6415, R6515, R6525;
R730, R730xd, R740, R740xd, R740xd2, R7415, R7425, R840, R940;
T140, T340, T440, T640; XR2

PowerVault Storage: ME4012, ME4024, ME4084

Specifications

40Gb/s 1310nm CWDM4 QSFP+ Transceiver
Specs
Model Number407-BBRC / N6KM9 / FTL4C3QE1C-FC
Maximum Supply Voltage
  • Symbol: Vcc
  • Min: -0.5
  • Max: 3.6
  • Unit: V
Storage Temperature
  • Symbol: Tsto
  • Min: -40
  • Max: 85
  • Unit: °C
Case Operating Temperature
  • Symbol: Top
  • Min: 0
  • Max: 70
  • Unit: °C
Relative Humidity
  • Symbol: RH
  • Min: 5
  • Max: 85
  • Unit: %
  • Ref: Non-condensing
Supply Voltage
  • Symbol: Vcc
  • Min: 3.13
  • Typ: 3.3
  • Max: 3.47
  • Unit: V
Supply Current
  • Symbol: Icc
  • Max: 1060
  • Unit: mA
  • Ref: Based on ≤3.5W power consumption
Input Differential Impedance
  • Symbol: Rin
  • Typ: 100
  • Unit: Ω
  • Ref: Per QSFP+ MSA
Differential Data Input Swing
  • Symbol: Vin,pp
  • Min: 150
  • Max: 1200
  • Unit: mV
  • Ref: Per QSFP+ MSA
Transmit Disable Voltage
  • Symbol: VD
  • Min: 2.0
  • Max: Vcc
  • Unit: V
  • Ref: Per QSFP+ MSA
Transmit Enable Voltage
  • Symbol: Ven
  • Min: Vee
  • Max: Vee+0.8
  • Unit: V
  • Ref: Per QSFP+ MSA
Differential Data Output Swing
  • Symbol: Vout,pp
  • Min: 300
  • Max: 1000
  • Unit: mV
  • Ref: Per QSFP+ MSA
Data Output Rise Time, Fall Time
  • Symbol: tr/tf
  • Max: 35
  • Unit: ps
  • Ref: Per QSFP+ MSA
LOS Fault
  • Symbol: VLOS fault
  • Min: 2.0
  • Max: VccHOST
  • Unit: V
  • Ref: Per QSFP+ MSA
LOS Normal
  • Symbol: VLOS norm
  • Min: Vee
  • Max: Vee+0.8
  • Unit: V
  • Ref: Per QSFP+ MSA
Power Supply Noise Tolerance
  • Symbol: VccT/VccR
  • Min, Typ, Max: Per QSFP+ MSA
  • Unit: mVpp
Optical Modulation Amplitude (OMA) per Lane
  • Symbol: POMA
  • Min: -4
  • Unit: dBm
  • Ref: Per IEEE 802.3ba
Average Launch Power per Lane
  • Symbol: PAVE
  • Min: -7 (MMF), -10 (SMF)
  • Max: 4.3 (MMF), 2.3 (SMF)
  • Unit: dBm
Optical Wavelength
  • Symbol: λ
  • Min: 1264.5, 1284.5, 1304.5, 1324.5
  • Typ: 1271, 1291, 1311, 1331
  • Max: 1277.5, 1297.5, 1317.5, 1337.5
  • Unit: nm
RMS Spectral Width
  • Symbol: Δλrms
  • Max: 1
  • Unit: nm
  • Ref: Per IEEE 802.3ba
Optical Extinction Ratio
  • Symbol: ER
  • Min: 3.5
  • Unit: dB
Transmitter and Dispersion Penalty
  • Symbol: TDP
  • Max: 2.9 (MMF), 3.0 (SMF)
  • Unit: dB
  • Ref: Per IEEE 802.3ba
Average Launch Power of OFF Transmitter
  • Symbol: POFF
  • Max: -30
  • Unit: dBm
Transmitter Jitter
  • Symbol: Txj
  • Min, Typ, Max: Per IEEE 802.3ba
Relative Intensity Noise
  • Symbol: RIN
  • Max: -128
  • Unit: dB/Hz
Receiver Sensitivity (OMA) per Lane
  • Symbol: RxSENS
  • Max: -10 (MMF), -11.5 (SMF)
  • Unit: dBm
  • Ref: Per IEEE 802.3ba
Stressed Receiver Sensitivity (OMA) per Lane
  • Symbol: RxSENS2
  • Max: -7.5 (MMF), -8.0 (SMF)
  • Unit: dBm
  • Ref: Per IEEE 802.3ba
Maximum Input Power per Lane
  • Symbol: PMAX
  • Max: 4.3 (MMF), 2.3 (SMF)
  • Unit: dBm
Wavelength Range
  • Symbol: λC
  • Min: 1264.5
  • Max: 1337.5
  • Unit: nm
Receiver Reflectance
  • Symbol: Rrx
  • Max: -12
  • Unit: dB
LOS De-Assert
  • Symbol: LOSD
  • Max: -13
  • Unit: dBm
LOS Assert
  • Symbol: LOSA
  • Min: -30
  • Typ: -23
  • Unit: dBm
LOS Hysteresis
  • Symbol: LOSH
  • Min: 0.5
  • Unit: dB
Bit Rate
  • Symbol: BR
  • Typ: 41.2
  • Unit: Gb/s
  • Ref: 4x 10.3 Gb/s per lane
Bit Error Ratio
  • Symbol: BER
  • Max: 10^-12
  • Ref: With FEC for SMF 2km
Fiber Type
  • MMF: OM3, OM4; SMF
Maximum Supported Distances
  • OM3 MMF: 150m
  • OM4 MMF: 160m
  • SMF: 1km (2km with FEC)
  • Unit: m
Case Operating Temperature
  • Symbol: Top
  • Min: 0
  • Max: 70
  • Unit: °C
Storage Temperature
  • Symbol: Tsto
  • Min: -40
  • Max: 85
  • Unit: °C
Internally Measured Transceiver Temperature
  • Symbol: DDTemperature
  • Min: -3
  • Max: 3
  • Unit: °C
Internally Measured Transceiver Supply Voltage
  • Symbol: DDVoltage
  • Min: -100
  • Max: 100
  • Unit: mV
Measured TX Bias Current
  • Symbol: DDBias
  • Min: -10
  • Max: 10
  • Unit: %
Measured TX Output Power
  • Symbol: DDTx-Power
  • Min: -2
  • Max: 2
  • Unit: dB
Measured RX Received Average Optical Power
  • Symbol: DDRx-Power
  • Min: -2
  • Max: 2
  • Unit: dB
Internally Measured Transceiver Temperature
  • Symbol: DDTemperature
  • Min: 0
  • Max: 70
  • Unit: °C
Internally Measured Transceiver Supply Voltage
  • Symbol: DDVoltage
  • Min: 3.13
  • Max: 3.47
  • Unit: V
Measured TX Bias Current
  • Symbol: DDBias
  • Min: 0
  • Max: 100
  • Unit: mA
Measured TX Output Power
  • Symbol: DDTx-Power
  • Min: -10
  • Max: 4.3
  • Unit: dBm
Measured RX Received Average Optical Power
  • Symbol: DDRx-Power
  • Min: -13.7
  • Max: 4.3
  • Unit: dBm
Internally Measured Transceiver Temperature
  • Symbol: DDTemperature
  • Min: -40
  • Max: 125
  • Unit: °C
Internally Measured Transceiver Supply Voltage
  • Symbol: DDVoltage
  • Min: 2.8
  • Max: 3.6
  • Unit: V
Measured TX Bias Current
  • Symbol: DDBias
  • Min: 0
  • Max: 100
  • Unit: mA
Measured TX Output Power
  • Symbol: DDTx-Power
  • Min: -10
  • Max: 4.3
  • Unit: dBm
Measured RX Received Average Optical Power
  • Symbol: DDRx-Power
  • Min: -20
  • Max: 4.3
  • Unit: dBm

ROHS Compliant

Alternate MPNs: N6KM9 0N6KM9 FTL4C3QE1C-FC

Weight: 0.5 lb

Warranty: 1 Year DiscTech

Condition

  • Brand New

    • Warranty

    1 Year DiscTech Warranty
