Dell 407-BCBE / 407-BCBH / 407-BCIU / D4J5V / C5RNH 10Gb/s 850nm SR optic SFP+ Transceiver

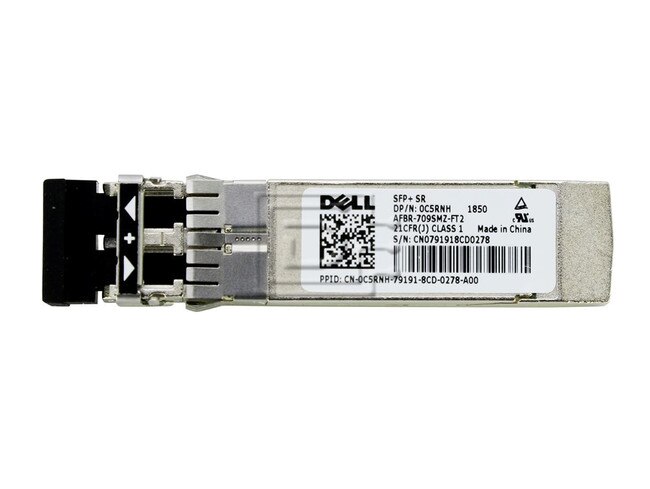

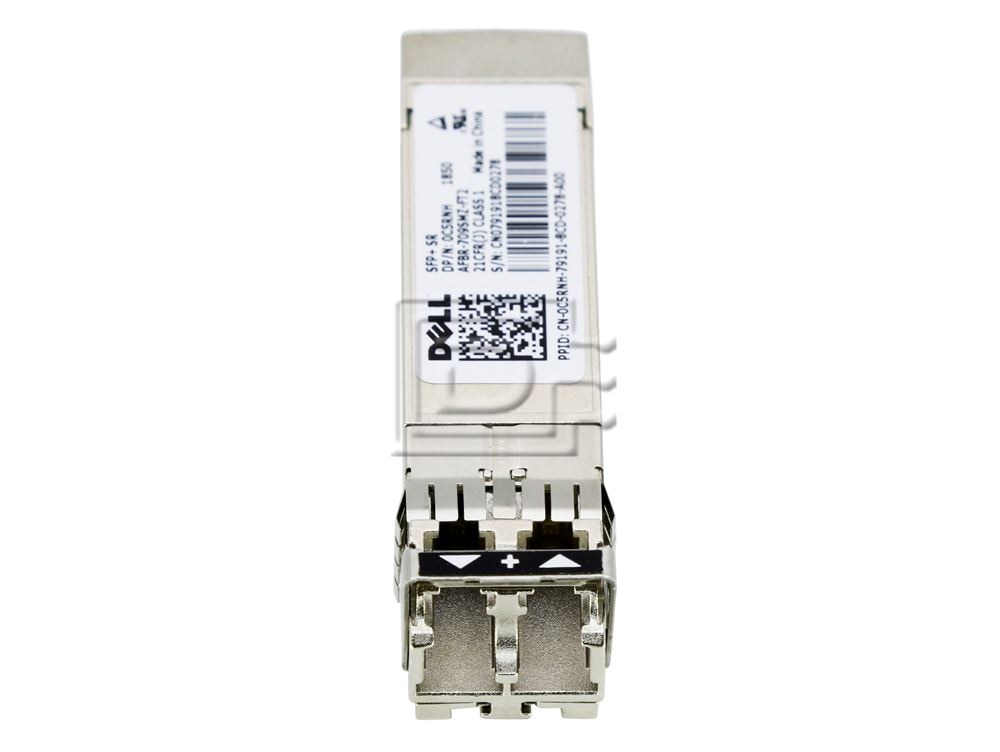

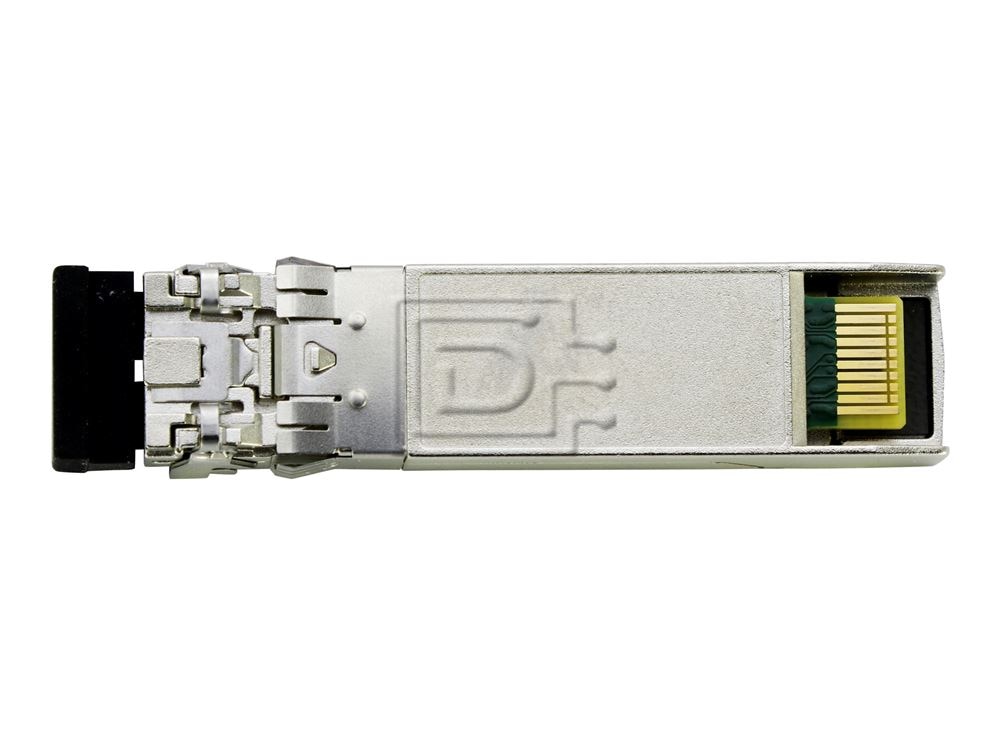

Dell 407-BCBE 407-BCBH 407-BCIU D4J5V 0D4J5V C5RNH 0C5RNH Fibre Channel Transceiver Module Image 1 imageDell 407-BCBE 407-BCBH 407-BCIU D4J5V 0D4J5V C5RNH 0C5RNH Fibre Channel Transceiver Module Image 2 imageDell 407-BCBE 407-BCBH 407-BCIU D4J5V 0D4J5V C5RNH 0C5RNH Fibre Channel Transceiver Module Image 3 image
  • Low Stock:Call for ETA
    Stock Levels

    This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.

  • 1 Year DiscTechWarranty
    Product Warranties Explained

    The product has a DiscTech warranty for the time period specified. View our limited warranty

$60.00

Interface Types:SFP
Electrical Interface:Ethernet 10Gigabit - 10Gbps
Voltage:3.3V

Description

Dell 407-BCBE / 407-BCBH / 407-BCIU / D4J5V / C5RNH 10Gb/s 850nm SR optic SFP+ Transceiver High Temperature, Intel - Brand New

Dell 407-BCBE / 407-BCBH / D4J5V / C5RNH 10Gb/s 850nm SR optic SFP+ Transceiver High Temperature, Intel - Brand New

Dell Part 10GbE SFP+ High Temperature Transceiver:

The Dell™ SFP+ SR transceiver delivers fiber connectivity to extend the range of your network. This hot-pluggable transceiver with SFP (Small Form Factor Pluggable) footprint features a duplex LC connector. The Dell networking SFP+ SR transceiver provides 10 GbE-1 GbE connectivity.

The Dell™ SFP+ SR transceiver delivers fiber connectivity to extend the range of your network. This hot-pluggable transceiver with SFP (Small Form Factor Pluggable) footprint features a duplex LC connector. The Dell networking SFP+ SR transceiver provides 10 GbE-1 GbE connectivity.

Additionally, it provides a unique enhanced digital diagnostic monitoring interface, which allows real-time access to device operating parameters such as transceiver temperature, laser bias current, transmitted optical power, received optical power, and transceiver supply voltage.

The Dell™ SFP+ SR transceiver delivers fiber connectivity to extend the range of your network. This hot-pluggable transceiver with SFP (Small Form Factor Pluggable) footprint features a duplex LC connector. The Dell networking SFP+ SR transceiver provides 10GbE-1GbE connectivity.

Additionally, it provides a unique enhanced digital diagnostic monitoring interface, which allows real-time access to device operating parameters such as transceiver temperature, laser bias current, transmitted optical power, received optical power, and transceiver supply voltage.

Product Features

  • Hot-pluggable SFP+ footprint
  •
  • Supports 9.95 to 10.5 Gb/s bit rates
  • Power dissipation < 1W
  • RoHS-6 compliant (lead-free)
  • Commercial temperature range 0°C to 70°C
  • Single 3.3Vpower supply
  • Maximum link length of 300m on 2000 MHZ-km MMF
  • Uncooled 850nm VCSEL laser
  • Receiver limiting electrical interface
  • Duplex LC connector
  • Built-in digital diagnostic functions
  • Operating temperature range: 0°C to 70°C



Applications

  • 10GBASE-SR/SW 10G Ethernet
  • 1200-Mx-SN-I 10G Fibre Channel

Alternate Part #'s
407-BCBH, 407-BCIU, D4J5V, 0D4J5V, C5RNH, 0C5RNH




Compatibility

Compatible with SFF-8432 and applicable portions of SFF-8431

Designed For

PowerEdge 2970, R420, R620, R715, T430, T710; PowerEdge FC640, M640, R430, R440, R530, R540, R630, R640, R6415, R730, R740, R740xd, R7415, R7425, R940, T440, T640

Specifications

10Gb/s 850nm Multimode Datacom SFP+ Transceiver
Model Number407-BCBE / 407-BCBH / 407-BCIU
PARAMETER
Maximum Supply Voltage
  • Symbol: Vcc
  • Min: -0.5
  • Max: 4.0
  • Unit: V
Storage Temperature
  • Symbol: Ts
  • Min: -40
  • Max: 85
  • Unit: °C
Case Temperature
  • Symbol: TA
  • Min: 0
  • Max: 70
  • Unit: °C
Relative Humidity
  • Symbol: RH
  • Min: 0
  • Max: 85
  • Unit: %
  • Ref: 1
Supply Voltage
  • Symbol: Vcc
  • Min: 3.14
  • Max: 3.46
  • Unit: V
Supply Current
  • Symbol: Icc
  • Max: 250
  • Unit: V
ELECTRICAL TRANSMITTER
Input differential impedance
  • Symbol: Rin
  • Typ: 100
  • Unit: Ω
  • Ref: 1
Differential data input swing
  • Symbol: Vinn,pp
  • Min: 180
  • Max: 700
  • Unit: mV
Transmit Disable Voltage
  • Symbol: VD
  • Min: 2
  • Max: Vcc
  • Unit: V
Transmit Enable Voltage
  • Symbol: Ven
  • Min: Vee
  • Max: Vee+0.8
  • Unit: V
ELECTRICAL RECEIVER
Differential data output swing
  • Symbol: Vout,pp
  • Min: 300
  • Max: 850
  • Unit: mV
  • Ref: 2.6
Data output rise time, fall time
  • Symbol: tr
  • Min: 28
  • Unit : ps
  • Ref: 3
LOS Fault
  • Symbol: V LOS fault
  • Min: 2
  • Max: VccHOST
  • Unit: V
  • Ref: 4
LOS Normal
  • Symbol: V LOS norm
  • Min: Vee
  • Max: Vee+0.8
  • Unit: V
  • Ref: 4
Power Supply Noise Tolerance
  • Symbol: VccT/VccR
  • Min, Typ, Max: Per SFF-8431 Rev 3.0
  • Unit: mVpp
  • Ref: 5
OPTICAL TRANSMITTER
Optical Modulation Amplitude (OMA)
  •
  • Symbol: POMA
  • Typ: -1.5
  • Unit: dBm
  • Ref: 1
Average Launch Power
  • Symbol: PAVE
  • Min: -5
  • Max: -1
  • Unit: dBm
  • Ref: 2
Optical Wavelength
  • Symbol: λ
  • Min: 840
  • Typ: 850
  • Max: 860
  • Unit: nm
RMS Spectral Width
  • Symbol: Δλrms
  • Max: 0.45
  • Unit: dBm
Optical Extinction Ratio
  • Symbol: ER
  • Min: 3.
  • Max: 5.5
  • Unit: dB
Transmitter and Dispersion Penalty
  • Symbol: TDP
  • Max: 3.9
  • Unit: dB
Average Launch power of OFF transmitter
  • Symbol: POFF
  • Max: -30
  • Unit: dB
Tx Jitter
  • Symbol: Txj
  • Min, Typ, Max : Per IEEE 802.3ae requirements
Relative Intensity Noise
  • Symbol: RIN12OMA
  • Max: -128
  • Unit: dB/Hz
OPTICAL RECEIVER
Receiver Sensitivity (OMA) = 10.3 Gb/s
  • Symbol: RxSENS1
  • Max: -11.1
  • Unit: dBm
Stressed Receiver Sensitivity (OMA) = 10.3 Gb/s
  • Symbol: RxSENS2
  • Max: -7.5
  • Unit: dBm
Receiver OMA Sensitivity = 14.025 Gb/s
  • Symbol: RxSENS
  • Max: Vee+0.8
  • Unit: V
Maximum Input Power
  • Symbol: PMAX
  • Min: +0.5
  • Unit: dBm
Wavelength Range
  • Symbol: λC
  • Min: 840
  • Max: 860
  • Unit: nm
Receiver Reflectance
  • Symbol: Rrx
  • Max: 012
  • Unit: dB
LOS De-Assert
  • Symbol: LOSD
  • Max: -14
  • Unit: dBm
LOS Assert
  • Symbol: LOSA
  • Min: -30
  • Typ: -23
  • Unit: dBm
LOS Hysteresis
  • Min: 0.5
  • Unit: dB
GENERAL SPECIFICATION
Bit Rate
  • Symbol: BR
  • Min: 9.95
  • Max: 10.5
  • Unit: Gb/sec
  • Ref: 1
Bit Error Ratio
  • Symbol: BER
  • Max: 10^-12
  • Ref: 2
Fiber Type 850nm OFL Bandwidth
  •
Maximum support distances Fiber type 62.5µm 160 MHz-km
  • Symbol: Lmax
  • Max: 26
  • unit: m

    OM1 200 Mhz-km
  • Symbol: Lmax
  • Max 33
  • unit: m

Maximum support distances Fiber type 50 µm 400 MHz-km
  • Symbol: Lmax
  • Max: 66
  • unit: m

    • OM2 500 Mhz-km
  • Symbol: Lmax
  • Max 82
  • unit: m
  •
    • OM3 2000 Mhz-km
  • Symbol: Lmax
  • Max 82
  • unit: m
  •
ENVIROMENTAL SPECIFICATION
Case Operating Temperature
  • Symbol: Top
  • Min: 0
  • Max: 70
  • Unit: °C
Storage Temperature
  • Symbol: Tsto
  • Min: -40
  • Max: 85
  • Unit: °C
DIGITAL DIAGNOSTIC ACCURACY
Internally measured transceiver temperature
  • Symbol: DDTemperature
  • Min: -3
  • Max: 3
  • Unit: °C
Internally measured transceiver supply voltage
  • Symbol: DDVoltage
  • Min: -100
  • Max: 100
  • Unit: mV
Measured TX bias current
  • Symbol: DDBias
  • Min: -10
  • Max: 10
  • Unit: %
  • Ref: 1
Measured TX output power
  • Symbol: DDTx-Power
  • Min: -2
  • Max: 2
  • Unit: dB
Measured RX received average optical power
  • Symbol: DDRx-Power
  • Min: -2
  • Max: 2
  • Unit: dB
DIGITAL DIAGNOSTIC DYNAMIC RANGE FOR RATED ACCURACY
Internally measured transceiver temperature
  • Symbol: DDTemperature
  • Min: 0
  • Max: 70
  • Unit: °C
Internally measured transceiver supply voltage
  • Symbol: DDVoltage
  • Min: 3.14
  • Max: 3.46
  • Unit: V
Measured TX bias current
  • Symbol: DDBias
  • Min: 0
  • Max: 20
  • Unit: mA
Measured TX output power
  • Symbol: DDTx-Power
  • Min: -9
  • Max: -2.5
  • Unit: dBm
Measured RX received average optical power
  • Symbol: DDRx-Power
  • Min: -20
  • Max: 0
  • Unit: dBm
DIGITAL DIAGNOSTIC MAX REPORTING RANGE
Internally measured transceiver temperature
  • Symbol: DDTemperature
  • Min: -40
  • Max: 125
  • Unit: °C
Internally measured transceiver supply voltage
  • Symbol: DDVoltage
  • Min: 2.8
  • Max: 4.0
  • Unit: V
Measured TX bias current
  • Symbol: DDBias
  • Min: 0
  • Max: 20
  • Unit: mA
Measured TX output power
  • Symbol: DDTx-Power
  • Min: -10
  • Max: -3
  • Unit: dBm
Measured RX received average optical power
  • Symbol: DDRx-Power
  • Min: -22
  • Max: 0
  • Unit: dBm

ROHS Compliant

Alternate MPNs: 407-BCBH 407-BCIU D4J5V 0D4J5V C5RNH 0C5RNH

Weight: 0.5 lb

Warranty: 1 Year DiscTech

Condition

  • Brand New
    Condition Levels Explained

    The product is brand new.

    • Warranty

    1 Year DiscTech Warranty
