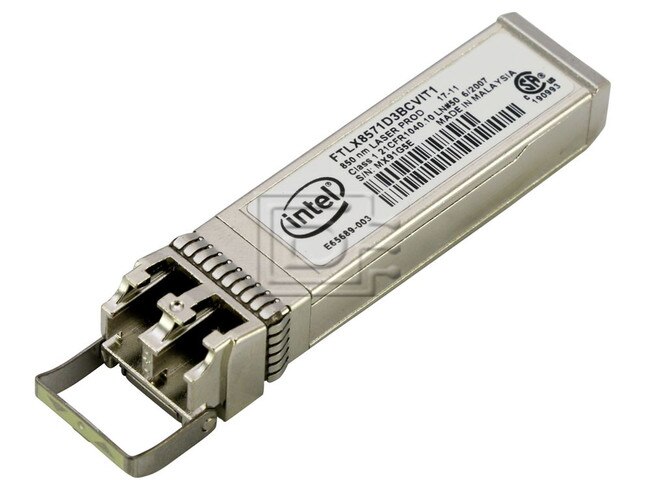

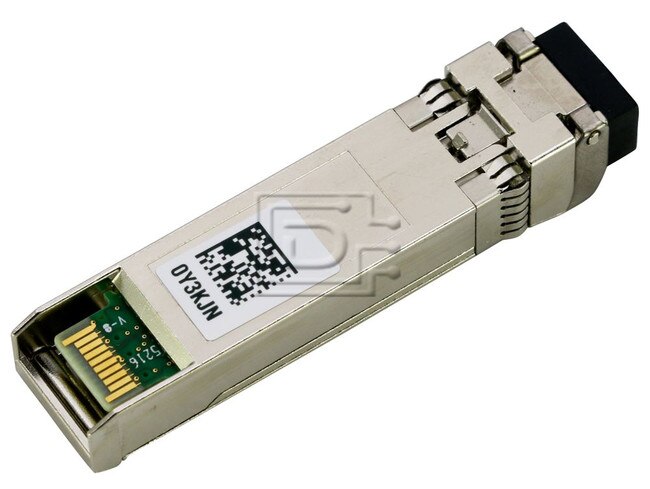

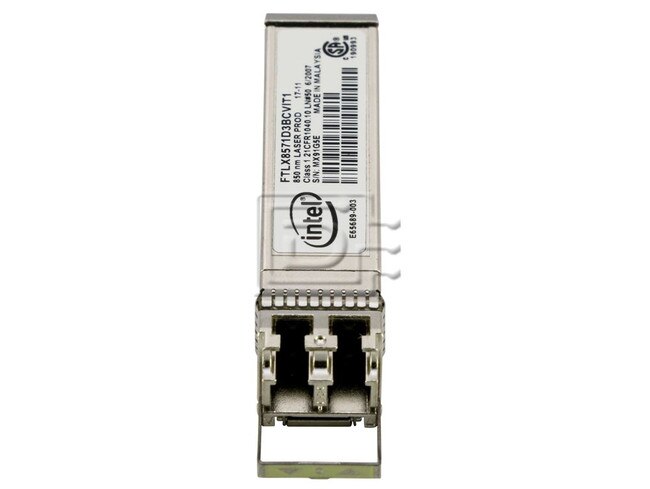

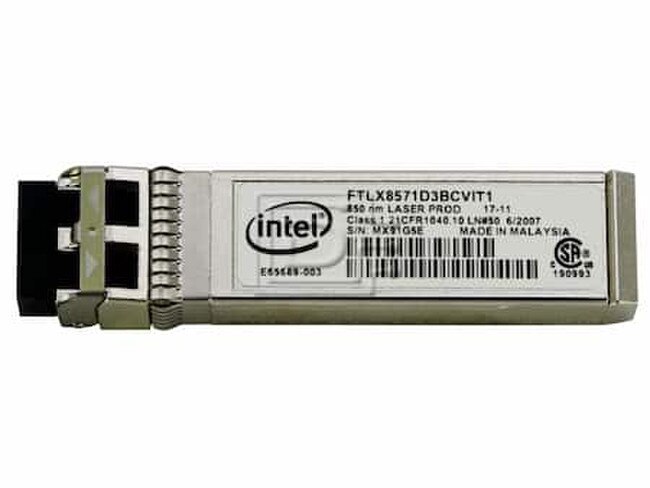

Dell 407-BCBN / 4Y8DN 10Gb/s 850nm SR optic SFP+ Transceiver

Dell Part #/MPN: 407-BCBN

DiscTech Item #: DEL-407-BCBN-RF-OE

$44.99

Refurbished
Condition Levels Explained
These products have had NO problems or failures, they merely have some usage. The product has been professionally returned to excellent condition. These items have been fully tested, formatted (if appropriate) &repackaged. Hard drives are fully vetted for surface defects and wear, only healthy disks are approved for resale to our customers. Please see our refurbishing process for more details. Watch a video about our refurbishing process
Warranty:1 Year DiscTech
Product Warranties Explained
The product has a DiscTech warranty for the time period specified. View our limited warranty
Low Stock:Call for ETA
Stock Levels
This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.

Back

$44.99

Interface Types: SFP

Electrical Interface: Ethernet 10Gigabit - 10Gbps

Voltage: 3.3V

Compatible Systems: Dell 14th Gen. R640/R740, Dell 13th Gen. R730/T630

Dell 407-BCBN / 4Y8DN 10Gb/s 850nm SR optic SFP+ Transceiver - Refurbished

Dell Part 407-BCBN 4Y8DN

The Dell™ SFP+ SR transceiver delivers fiber connectivity to extend the range of your network. This hot-pluggable transceiver with SFP (Small Form Factor Pluggable) footprint features a duplex LC connector. The Dell networking SFP+ SR transceiver provides 10 GbE-1 GbE connectivity.

Additionally, it provides a unique enhanced digital diagnostic monitoring interface, which allows real-time access to device operating parameters such as transceiver temperature, laser bias current, transmitted optical power, received optical power, and transceiver supply voltage.

Product Features

Hot-pluggable SFP+ footprint
Supports 9.95 to 10.5 Gb/s bit rates
Power dissipation < 1W
RoHS-6 compliant (lead-free)
Commercial temperature range 0°C to 70°C
Single 3.3Vpower supply
Maximum link length of 300m on 2000 MHZ-km MMF
Uncooled 850nm VCSEL laser
Receiver limiting electrical interface
Duplex LC connector
Built-in digital diagnostic functions
Operating temperature range: 0°C to 70°C

Applications

10GBASE-SR/SW 10G Ethernet
1200-Mx-SN-I 10G Fibre Channel

Alt Pt# FTLX8571D3BCVIT1
DPN: Y3KJN

Compatibility:

Compatible with SFF-8432 and applicable portions of SFF-8431

Designed For sERVERS AND san WITH SFP+ sockets

PowerEdge C4140, FC630, M820; PowerEdge C6420, C6525, FC640, M640, R240, R340, R440, R540, R640, R6415, R6515, R6525, R730, R730xd, R740, R740xd, R740xd2, R7415, R7425, R7515, R7525, R840, R940, T140, T340, T440, T640, XR2; PowerVault ME4012, ME4024, ME4084

10Gb/s 850nm Multimode Datacom SFP+ Transceiver
Model Number	407-BCBN / 4Y8DN
PARAMETER
Maximum Supply Voltage	Symbol: Vcc Min: -0.5 Max: 4.0 Unit: V
Storage Temperature	Symbol: Ts Min: -40 Max: 85 Unit: °C
Case Temperature	Symbol: TA Min: 0 Max: 70 Unit: °C
Relative Humidity	Symbol: RH Min: 0 Max: 85 Unit: % Ref: 1
Supply Voltage	Symbol: Vcc Min: 3.14 Max: 3.46 Unit: V
Supply Current	Symbol: Icc Max: 250 Unit: V
ELECTRICAL TRANSMITTER
Input differential impedance	Symbol: Rin Typ: 100 Unit: Ω Ref: 1
Differential data input swing	Symbol: Vinn,pp Min: 180 Max: 700 Unit: mV
Transmit Disable Voltage	Symbol: VD Min: 2 Max: Vcc Unit: V
Transmit Enable Voltage	Symbol: Ven Min: Vee Max: Vee+0.8 Unit: V
ELECTRICAL RECEIVER
Differential data output swing	Symbol: Vout,pp Min: 300 Max: 850 Unit: mV Ref: 2.6
Data output rise time, fall time	Symbol: tr Min: 28 Unit : ps Ref: 3
LOS Fault	Symbol: V LOS fault Min: 2 Max: VccHOST Unit: V Ref: 4
LOS Normal	Symbol: V LOS norm Min: Vee Max: Vee+0.8 Unit: V Ref: 4
Power Supply Noise Tolerance	Symbol: VccT/VccR Min, Typ, Max: Per SFF-8431 Rev 3.0 Unit: mVpp Ref: 5
OPTICAL TRANSMITTER
Optical Modulation Amplitude (OMA)	Symbol: POMA Typ: -1.5 Unit: dBm Ref: 1
Average Launch Power	Symbol: PAVE Min: -5 Max: -1 Unit: dBm Ref: 2
Optical Wavelength	Symbol: λ Min: 840 Typ: 850 Max: 860 Unit: nm
RMS Spectral Width	Symbol: Δλrms Max: 0.45 Unit: dBm
Optical Extinction Ratio	Symbol: ER Min: 3. Max: 5.5 Unit: dB
Transmitter and Dispersion Penalty	Symbol: TDP Max: 3.9 Unit: dB
Average Launch power of OFF transmitter	Symbol: POFF Max: -30 Unit: dB
Tx Jitter	Symbol: Txj Min, Typ, Max : Per IEEE 802.3ae requirements
Relative Intensity Noise	Symbol: RIN12OMA Max: -128 Unit: dB/Hz
OPTICAL RECEIVER
Receiver Sensitivity (OMA) = 10.3 Gb/s	Symbol: RxSENS1 Max: -11.1 Unit: dBm
Stressed Receiver Sensitivity (OMA) = 10.3 Gb/s	Symbol: RxSENS2 Max: -7.5 Unit: dBm
Receiver OMA Sensitivity = 14.025 Gb/s	Symbol: RxSENS Max: Vee+0.8 Unit: V
Maximum Input Power	Symbol: PMAX Min: +0.5 Unit: dBm
Wavelength Range	Symbol: λC Min: 840 Max: 860 Unit: nm
Receiver Reflectance	Symbol: Rrx Max: 012 Unit: dB
LOS De-Assert	Symbol: LOSD Max: -14 Unit: dBm
LOS Assert	Symbol: LOSA Min: -30 Typ: -23 Unit: dBm
LOS Hysteresis	Min: 0.5 Unit: dB
GENERAL SPECIFICATION
Bit Rate	Symbol: BR Min: 9.95 Max: 10.5 Unit: Gb/sec Ref: 1
Bit Error Ratio	Symbol: BER Max: 10^-12 Ref: 2
Fiber Type 850nm OFL Bandwidth
Maximum support distances Fiber type 62.5µm	160 MHz-km Symbol: Lmax Max: 26 unit: m OM1 200 Mhz-km Symbol: Lmax Max 33 unit: m
Maximum support distances Fiber type 50 µm	400 MHz-km Symbol: Lmax Max: 66 unit: m OM2 500 Mhz-km Symbol: Lmax Max 82 unit: m OM3 2000 Mhz-km Symbol: Lmax Max 82 unit: m
ENVIROMENTAL SPECIFICATION
Case Operating Temperature	Symbol: Top Min: 0 Max: 70 Unit: °C
Storage Temperature	Symbol: Tsto Min: -40 Max: 85 Unit: °C
DIGITAL DIAGNOSTIC ACCURACY
Internally measured transceiver temperature	Symbol: DDTemperature Min: -3 Max: 3 Unit: °C
Internally measured transceiver supply voltage	Symbol: DDVoltage Min: -100 Max: 100 Unit: mV
Measured TX bias current	Symbol: DDBias Min: -10 Max: 10 Unit: % Ref: 1
Measured TX output power	Symbol: DDTx-Power Min: -2 Max: 2 Unit: dB
Measured RX received average optical power	Symbol: DDRx-Power Min: -2 Max: 2 Unit: dB
DIGITAL DIAGNOSTIC DYNAMIC RANGE FOR RATED ACCURACY
Internally measured transceiver temperature	Symbol: DDTemperature Min: 0 Max: 70 Unit: °C
Internally measured transceiver supply voltage	Symbol: DDVoltage Min: 3.14 Max: 3.46 Unit: V
Measured TX bias current	Symbol: DDBias Min: 0 Max: 20 Unit: mA
Measured TX output power	Symbol: DDTx-Power Min: -9 Max: -2.5 Unit: dBm
Measured RX received average optical power	Symbol: DDRx-Power Min: -20 Max: 0 Unit: dBm
DIGITAL DIAGNOSTIC MAX REPORTING RANGE
Internally measured transceiver temperature	Symbol: DDTemperature Min: -40 Max: 125 Unit: °C
Internally measured transceiver supply voltage	Symbol: DDVoltage Min: 2.8 Max: 4.0 Unit: V
Measured TX bias current	Symbol: DDBias Min: 0 Max: 20 Unit: mA
Measured TX output power	Symbol: DDTx-Power Min: -10 Max: -3 Unit: dBm
Measured RX received average optical power	Symbol: DDRx-Power Min: -22 Max: 0 Unit: dBm

ROHS Compliant

Alternate MPNs: 4Y8DN 407-BBVJ HN12K 0Y3KJN Y3KJN FTLX8571D3BCVIT1

Weight: 0.5 lb

Warranty: 1 Year DiscTech
