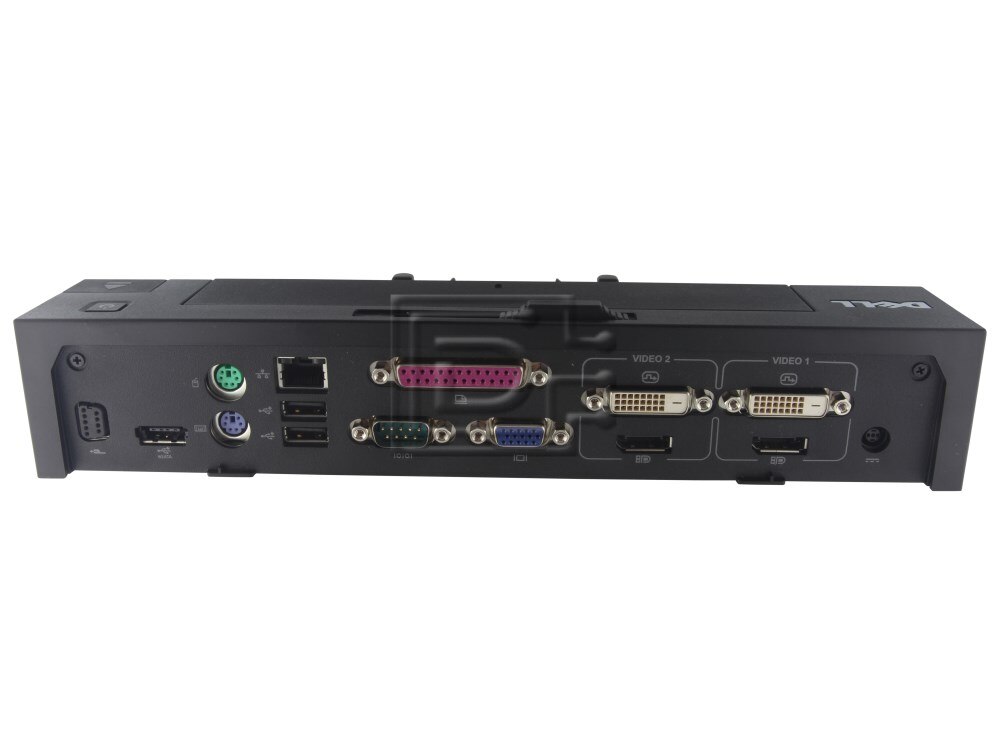

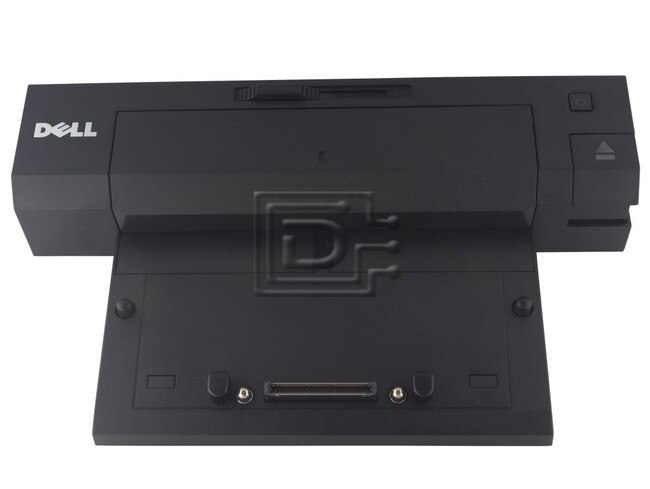

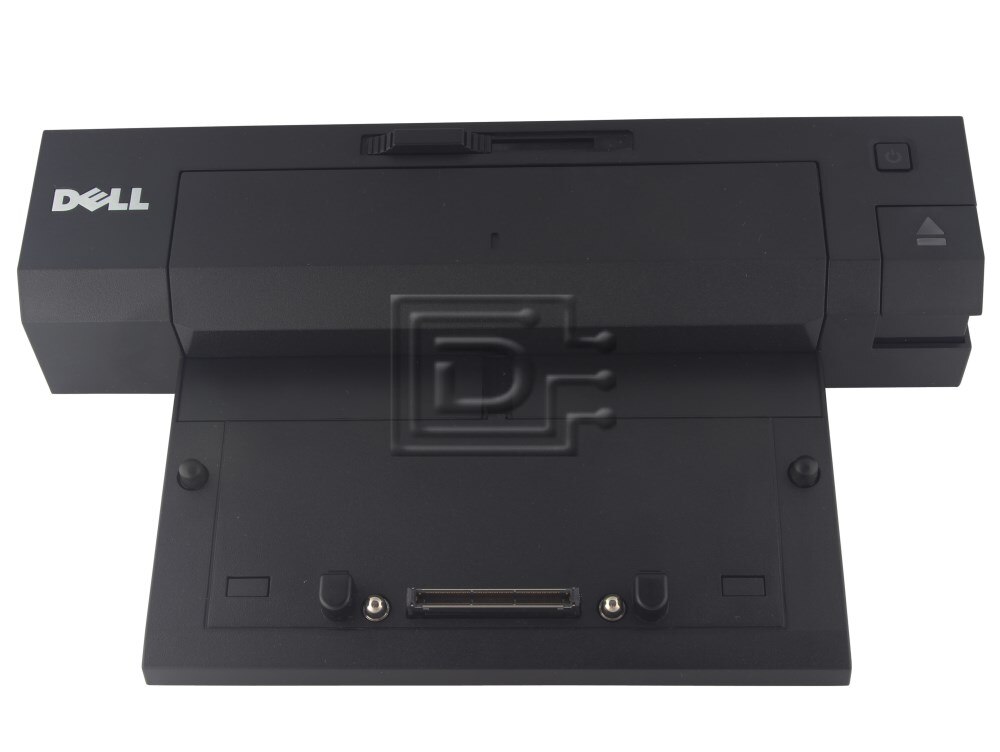

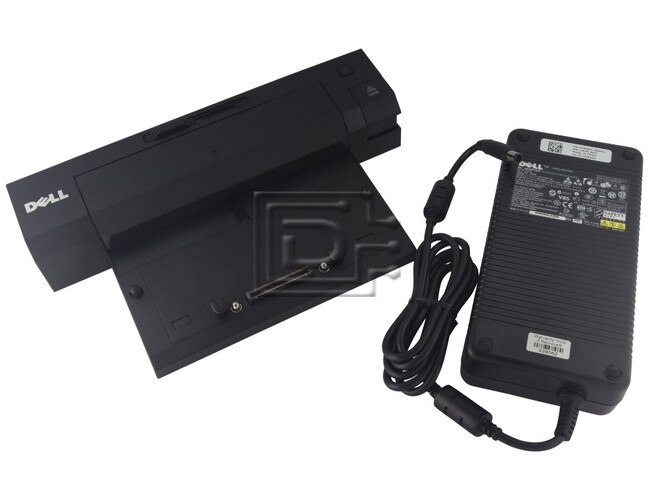

Dell 430-3312 E/Port Plus 210 Watt Port Replicator

Dell 430-3312 R300F Dell 330-4128 E/Port Plus 210 Watt Power Cord Image 1 image
  • Brand New
    Condition Levels Explained

    The product is brand new.

  • Low Stock:Call for ETA
    Stock Levels

    This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.

  • 1 Year DiscTechWarranty
    Product Warranties Explained

    The product has a DiscTech warranty for the time period specified. View our limited warranty

$152.00

Interface Types:DisplayPort
Voltage:110-240V Multi

Description

Dell 430-3312 E/Port Plus 210 Watt Port Replicator for Dell Latitude E5420 E5510 E5520 E6220 E6320 and Precision Mobile WorkStations M4400 M4500 M4600 M4700 M6400 M6500 M6600 M6700 - Brand New

Maximize your workspace with the Dell™ E-Port Replicator. This Simple E-Port Replicator gives you a comfortable work space where you can plug a keyboard, mouse and monitor to the port replicators and use your laptop like a desktop! Simplified connectivity facilitates a single interface to connect to your printer, monitor or other peripheral devices. This product is tested and validated with Dell Systems. It is supported by Dell Technical Support, when used with a Dell system.

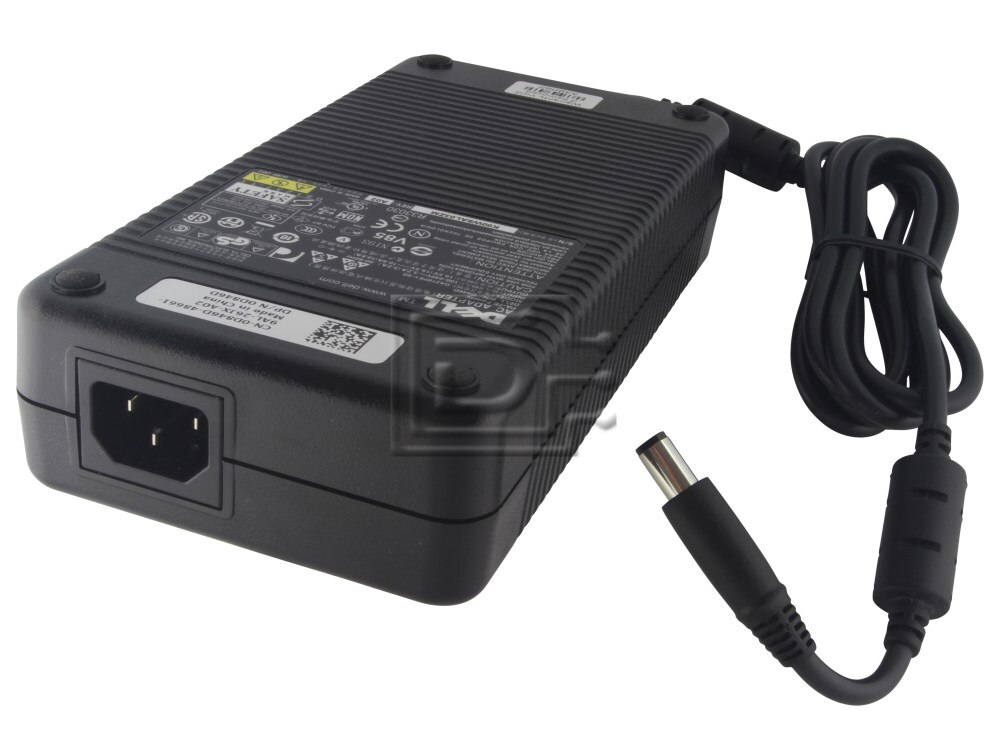

The product includes 210-Watt Power Adapter / Cord DPN: D846D / 0D846D

Features: 5 x USB - 4 pin USB Type A / 1 x eSATA/USB / 1 x network - RJ-45 / 1 x display/ video - 15 pin HD D-Sub (HD-15) / 1 x display/ video - 24 pin digital DVI / 1 x display/ video - 20 pin DisplayPort / VGA / Audio Ports DPN: PW380 / 0PW380

ALT DP/N: R418F / 0R418F / F159G

Compatibility:

The Dell 430-3312 E/Port Plus replicator is compatible with the following Dell Latitude and Precision Workstations
Latitude E5420Latitude E5510Latitude E5520Latitude E6220
Latitude E6320Precision M4400Precision M4500Precision M4600
Precision M4700Precision M6400Precision M6500Precision M6600
Precision M6700

Specifications

Highlights

  • 1 x serial - RS-232 - 9 pin D-Sub (DB-9)
  • 1 x parallel - 25 pin D-Sub (DB-25)
  • 1 x keyboard - generic - 6 pin mini-DIN (PS/2 style)
  • 2 x USB - 4 pin USB Type A
  • 1 x network - RJ-45
  • 1 x display / video - VGA - 15 pin HD D-Sub (HD-15)
  • 2 x display / video - DVI-Digital - 24 pin digital DVI
  • 2 x display / video - 20 pin DisplayPort
  • 1 x mouse - generic - 6 pin mini-DIN (PS/2 style)
  • Audio

Alternate MPNs: R300F

Weight: 8 lb

Warranty: 1 Year DiscTech

Condition

Brand New

Warranty

1 Year DiscTech Warranty
