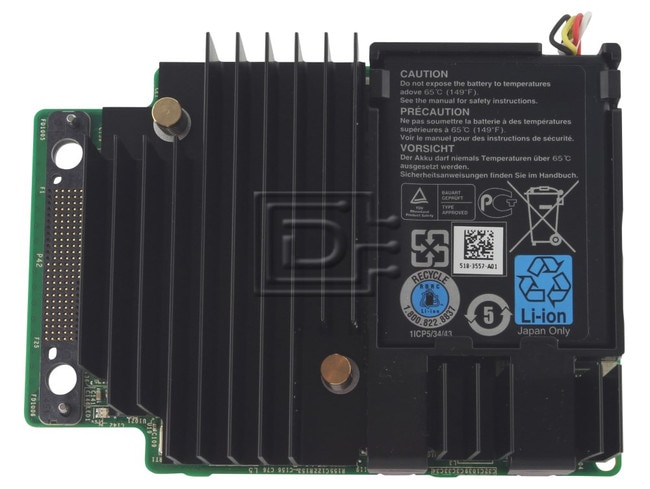

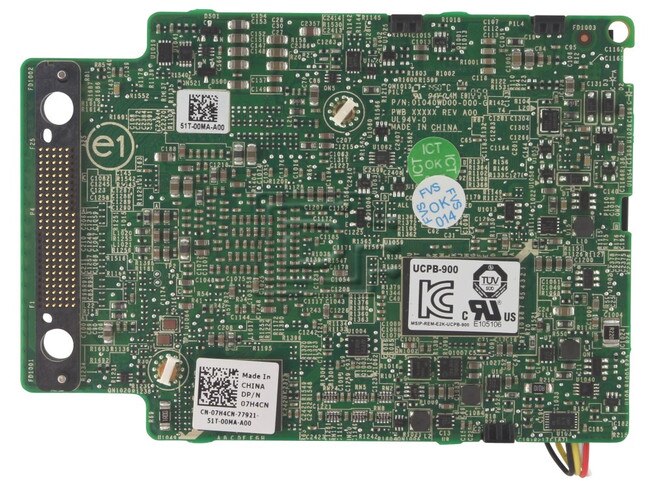

Dell 463-0704 PERC H730P Integrated Mini Mono / 7H4CN 2GB SAS/SATA RAID Controller

Dell Part #/MPN: 463-0704

DiscTech Item #: DEL-463-0704-BN-OE


Interface Types: SAS Serial Attached SCSI, SATA

Electrical Interface: SAS-3 Serial Attached SCSI v3 - 12.0Gbps

On-Board Cache: 2GB

Bays/Ports/Slots: 8

Compatible Systems: Dell 14th Gen. R640/R740, Dell 13th Gen. R730/T630

Dell 463-0704 PERC H730P / 7H4CN Mini Mono Integrated SAS/SATA 2GB RAID Controller - Brand New

Dell 463-0704 PERC H730P / 7H4CN Mini Mono Integrated SAS/SATA 2GB RAID Controller - Brand New

PowerEdge RAID Controller H730P

Dell’s high-performance, next-generation PowerEdge™ RAID Controller H730 brings a doubling of IOPs performance along with 12Gbps SAS support and enhanced options for managing and configuring storage.

As storage demands expand and processing loads grow, it becomes increasingly more difficult for administrators to achieve maximum performance from their applications. The newest line of PowerEdge RAID Controller (PERC) cards, built on the LSI SAS3108 dual-core PowerPC RAID-on-Chip (ROC), offer unmatched I/O performance for database applications and streaming digital media environments.

The PERC H730P, with eight internal ports, delivers two PowerPC processor cores and a 72-bit DDR3 interface that drives 2GB non-volatile cache memory. You can deploy the PERC H730P in hard-drive-based server environments for significant performance gains. If you are implementing hybrid server platforms based on solid-state storage, these next-generation PERCs exploit the potential of solid-state drives (SSDs) for unsurpassed performance and enterprise-class reliability.

Enterprise data protection - Standard support for the most popular RAID levels and accessories, including RAID 5, RAID 6, RAID 50, RAID 60 and NVCache, further strengthen the data protection capabilities of the PERC H730P. Dell’s NVCache technology backs up data to non-volatile memory in a power-loss event and can store it safely for a nearly unlimited period of time.

Intuitive RAID management - Managing the PERC H730P is easy with the integrated Dell Remote Access Controller 7 (iDRAC7) with Lifecycle Controller. Without having to deploy an agent, IT admins can configure, deploy, update, and monitor the PERC H730P, via the GUI or through Dell’s CLI known as RACADM. With the release of iDRAC7 firmware 1.50.50 and beyond, you have the ability to perform storage operations through the Racadm interface. This includes RAID controllers as well as physical disks in the PowerEdge system and external enclosures.

  • iDRAC will create jobs and automatically execute them for each storage configuration operation.
  • Offers you the option to reboot the host OS automatically to complete jobs or wait and do it at a later, more convenient time.
  • Supports real-time RAID monitoring and inventory of hardware RAID connected to the server.

iDRAC7 incorporates Dell OpenManage™ Storage Services, which provides essential tools to efficiently manage PERC products, whether deployed in an enterprise or small business. Dell offers a collection of applications and tools, including a pre-boot setup utility and a full spectrum of online RAID management utilities. This suite of applications allow admins to adjust SAS or SATA topology views from the system host, controller and disk enclosure down to the logical and physical drive level. Extending to enterprise deployments, these tools can scale to easily configure, monitor and manage RAID and JBOD volumes locally or over the LAN network.

Alt MPN'S: 405-AAEK 07H4CN 7H4CN 405-AAQX


This controller Module is compatible with the following servers that includes Dell's Modular Socket.

PowerEdge R740PowerEdge R740XDPowerEdge R730PowerEdge R730XDPowerEdge R630

Part Number463-0704
Interface SupportSAS 12Gb/s
SATA 6Gb/s
ConnectorIntegrated Modular
Cache Memory Size2GB NV
Write Back CacheFlash Backed Cache
RAID Levels0,1,5,6,10,50,60
Max Drive Support32
RAID SupportHardware RAID

Click here to view the manufacturer's item description/brochure

Alternate MPNs: 405-AAEK 7H4CN 07H4CN 405-AAQX

Weight: 2 lb

Warranty: 1 Year DiscTech

Brand New

Condition Levels Explained

The product is brand new.

1 Year DiscTech Warranty

Product Warranties Explained

The product has a DiscTech warranty for the time period specified. View our limited warranty
