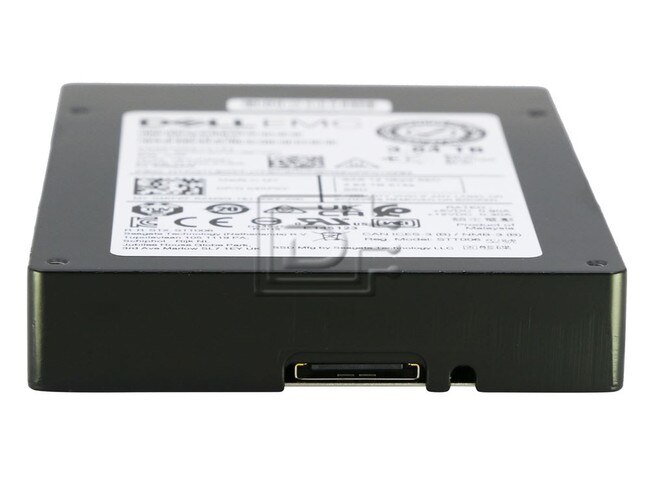

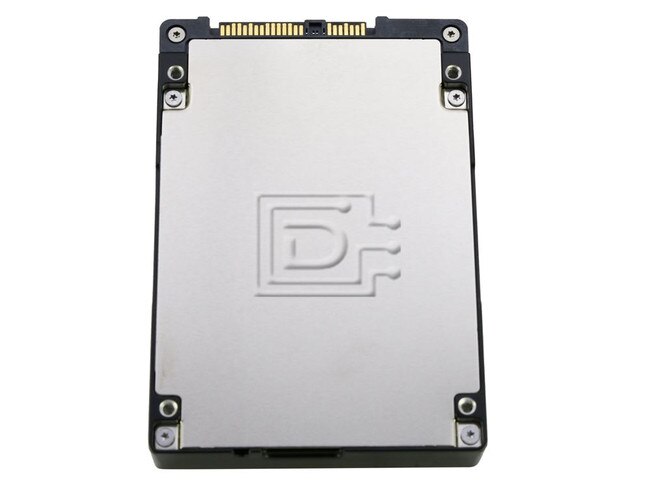

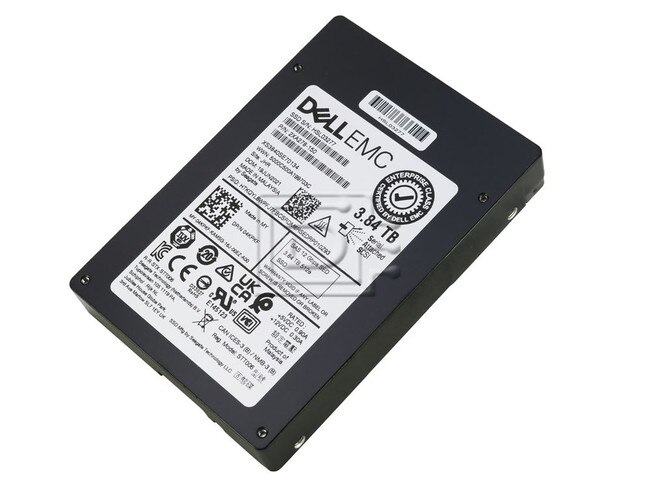

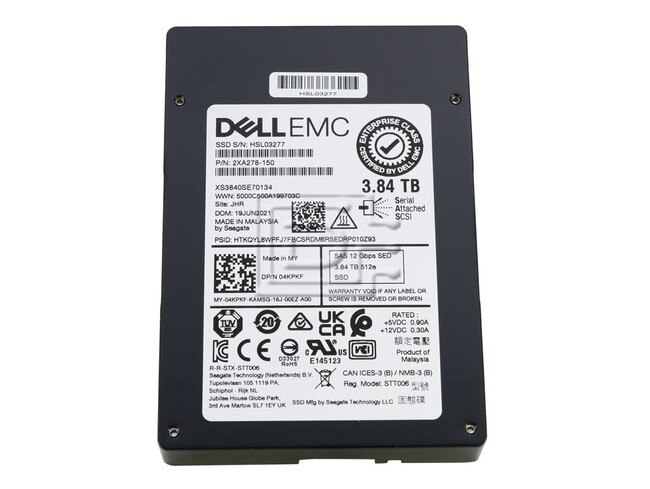

Dell 4KPKF / Seagate Nytro 2032 XS3840SE70134 3.84TB 2.5" SFF 12Gbps 3D eTLC SED SAS Solid State Drive

Seagate Part #/MPN: XS3840SE70134

DiscTech Item #: SGT-XS3840SE70134-BN-OE-DEL


$1,700.00
$1,700.00

Enterprise Grade

Capacity: 3.84TB

Speed: Solid State Memory

Interface Types: SAS Serial Attached SCSI

Form Factor: 2.5inx15mm SFF Server Drive

Encryption/SED Supported

Sector Size: 512 / 512e

Sustained Throughput: 1100/1000

Electrical Interface: SAS-3 Serial Attached SCSI v3 - 12.0Gbps

SSD Type: TLC

SSD Endurance DWPD: Enterprise Read Intensive

Dell 4KPKF / Seagate Nytro 2032 XS3840SE70134 3.84TB 2.5" RI SFF 12Gbps 3D eTLC SED SAS Solid State Drive - Brand New

Dell 4KPKF / Seagate Nytro 2032 XS3840SE70134 3.84TB / 3840GB 2.5" SFF / Small Form Factor 12.0 Gb/s Scaled Endurance / Read Intensive 1-DWPD / Drive Writes Per Day 3D Enterprise Triple Level Cell / eTLC SED / Self Encrypting Serial Attached SCSI / SAS Solid State Drive / SSD - Brand New

Nytro 2032 SAS SSD Series
Lightspeed. Solid. Impresive

The Seagate® Nytro® 2032 SAS SSD Series delivers high performance, industryleading security features, and a broad selection of capacity and endurance offerings optimized for demanding enterprise applications and improved TCO.

Enhanced Reliability, Data Protection, and Security
Seagate has decades of enterprise SAS expertise in mission-critical applications. The Nytro 2032 SSD Series helps deliver exceptional data protection and reliability with full internal and external data path protection (T10 DIF), advanced ECC algorithms, media lifecycle management, and other techniques for extending flash memory life. Advanced power-loss data protection helps maintain data integrity in the event of unexpected power interruptions. Advanced security levels to prevent unauthorized access to an SSD and safeguard stored data include Seagate Downloads & Diagnostics, TCG-compliant self-encrypting drive and government-grade FIPS/Common Criteria tamper-resistent drive.

Consistent Performance up to 2200MB/s
The Nytro 2032 SSD Series delivers ultra-fast, consistent, and easily scalable performance that saturates dual 12Gb/s SAS bandwidth, providing an effective 12Gb/s interface with dual-port dynamic configurations. By removing the storage bottleneck, overall system and application responsiveness is significantly improved.

High-Capacity Solution With Multiple Endurance Offerings
Enterprise applications have different storage workload requirements. Databases or virtualization with a typically mixed read/write workload require the highest random read/write IOPS, ultra-low latency, and high endurance. Content streaming applications demand high sequential read throughput and high storage density at the lowest cost per gigabyte. The Nytro 2032 SSD Series offers a range of capacities up to 15TB in a 2.5-inch form factor to increase enterprise storage density in data centers. It also enables lower TCO by offering endurance categories to match cost and performance requirements of all enterprise workloads.

Key Features and Benefits

  • Industry-leading hardware-based data encryption
  • Dual-port 12Gb/s SAS interface
  • Broad selection of endurance and capacity options including 15TB
  • Ultra-fast performance of up to 2200MB/s



Best-Fit Applications

  • Server virtualization
  • OLTP databases
  • Software-defined storage
  • All-flash arrays
  • Caching and tiering



ALT MPN: 4KPKF 04KPKF


Compatibility:

Ideal for Software-defined storage, tiering, all-flash arrays

Nytro 2032 SAS SSD Series
Seagate Secure SED ModelXS3840SE70134
InterfaceDual 12Gb/s SAS
Capacity3.84TB / 3840GB
NAND Flash Type3D eTLC
Form Factor2.5 in x 15mm
Performance—Single Port 12Gb/s
Sequential Read (MB/s) Sustained, 128KB1100
Sequential Write (MB/s) Sustained, 128KB1000
Random Read (IOPS) Sustained, 4KB180,000
Random Write (IOPS) Sustained, 4KB80,000
Random 30% Write (IOPS) Sustained, 4KB150,000
Performance—Dual Port 12Gb/s
Sequential Read (MB/s) Sustained, 128KB2200
Sequential Write (MB/s) Sustained, 128KB1550
Random Read (IOPS) Sustained, 4KB230,000
Random Write (IOPS) Sustained, 4KB80,000
Random 30% Write (IOPS) Sustained, 4KB160,000
Endurance/Reliability
Lifetime Endurance (Drive Writes per Day)1
Total Bytes Written (TB)6800
Nonrecoverable Read Errors per Bits Read1 per 1017
Annualized Failure Rate (AFR)0.35%
Power Management
+5/+12V Max Start Current (A)0.80/0.21
Average Idle Power (W)4.4
Physical
Height (in/mm, max)15.00mm/0.591in
Width (in/mm, max)70.10mm/2.760in
Depth (in/mm, max)100.45mm/3.955in
Weight (lb/g)165g/0.364lb

Click here to view the manufacturer's item description/brochure

ROHS Compliant

Alternate MPNs: 4KPKF 04KPKF

Weight: 1 lb

Warranty: 1 Year DiscTech

Brand New

Condition Levels Explained

The product is brand new.

1 Year DiscTech Warranty

Product Warranties Explained

The product has a DiscTech warranty for the time period specified. View our limited warranty
