Seagate Part #/MPN: ST4000NM0023
DiscTech Item #: SGT-ST4000NM0023-NP-OE-DEL
- New PullCondition Levels Explained
The product has been mounted in a brand new system (e.g. server), then removed from the system, before entering service. These products may have some hours of usage due to system build time / burn-in / testing etc. New Pulls are guaranteed to have at least 95% (often 99%) of their service life remaining , they may show signs of being physically mounted and dismounted. All handling is performed by trained technicians, taking full ESD precautions.
- Warranty:1 Year DiscTechProduct Warranties Explained
The product has a DiscTech warranty for the time period specified. View our limited warranty
- In Stock:2Need more?Stock Levels
This stock level is real time and accurate. This quantity is available for same-day shipment. Larger quantities can take up to a week to ship. Call us for larger quantities that you need urgently.
Enterprise Grade
Capacity: 4TB
Speed: 7,200RPM
Interface Types: SAS Serial Attached SCSI
Form Factor: 3.5inx1.0in LFF Hard Drive
Sector Size: 512 / 512e
Sustained Throughput: 182
Electrical Interface: SAS-2 Serial Attached SCSI v2 - 6.0Gbps
On-Board Cache: 32MB

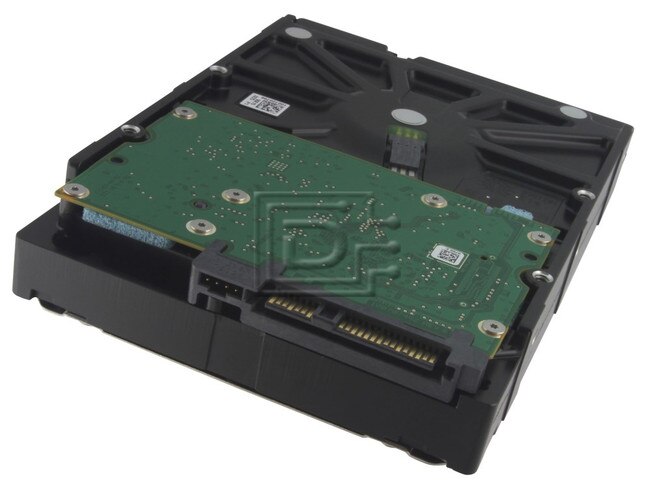

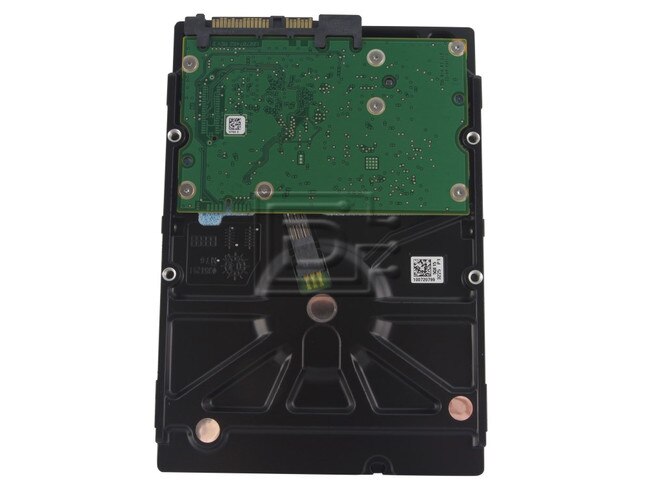

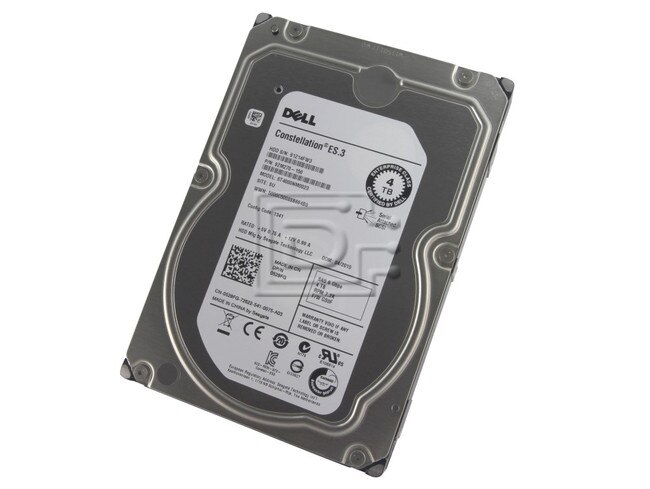

Dell 529FG Seagate Constellation ES.3 ST4000NM0023 / 529FG 4TB 7.2K 3.5" SAS Hard Drive - New Pull OEM
Alt MPN: 9ZM270-150 529FG 0529FG
This Constellation ES.3 SAS drive offers the world’s largest capacities in a 3.5-inch form factor. Build cost-effective maximum capacity storage solutions with enterprise-class, 7200-RPM drives in capacities up to 4TB, with a sixth-generation SAS interface for easy integration. Among 3.5-inch form factor drives, the Constellation ES.3 features the lowest operating power in the industry-less than 10.68W on average.
Additionally, Constellation ES.3 hard drives further power reductions with enhanced PowerChoice™ technology. Purpose-built for enterprise environments, the PowerChoice feature enables the T10-compliant power management standard, allowing organizations to tailor systems for optimal energy usage resulting in up to 90% more power savings. The Constellation ES.3 provides enhanced error correction, super-parity and end-to-end SAS-based data integrity for accurate data storage each and every time. With its robust 7200-RPM performance, ramp load technology and a humidity sensor for optimum performance, it’s the perfect solution for maximizing your enterprise system availability. Powered by our multi-drive firmware and enhanced rotational vibration tolerance, the Constellation ES.3 can help to ensure consistent and reliable performance. In addition, protect data where it lives-on the drive- with our Self-Encrypting Drive option with FIPS 140-2 and Seagate Instant Secure Erase.
Alt MPNs - 529FG, 0529FG
Compatibility:
This drive is compatible with any server that accepts 3.5"x1" (LFF) SAS hard drives.
Product Specifications | |
| Interface | SAS 6 Gb/s |
Performance Specifications | |
| Rotational Speed | 7,200 RPM (nominal) |
| Cache | 128 MB |
| Transfer Rate, Max Ext (MB/s) | 600 MB/s |
| Sustained Data Rate OD | 175MB/s |
| Average Latency (ms) | 4.16 |
Reliability/Data Integrity | |
| Nonrecoverable Read Errors per Bits Read | 1 in 1015 |
| Annualized Failure Rate (AFR) | 0.63% |
| Physical Dimensions | |
| English | |
| Height | 1.028 Inches |
| Length | 5.787 Inches |
| Width | 4.00 Inches |
| Weight | 1.543 Lbs |
| Metric | |
| Height | 26.1 mm |
| Depth | 147 mm |
| Width | 101.6 mm |
| Weight | 0.700 kg |
| Environmental Specifications | |
| Shock | |
| Operating Shock (Read) | 70/40 (2 ms) |
| Non-operating Shock | 300G (2 ms) |
| Acoustics (belssound power) | |
| Idle Mode | 2.8 |
| Seek Mode 0 | 3.0 |
| Temperature (English) | |
| Operating | 41° F to 131° F |
| Non-operating | -40° F to 158° F |
| Temperature (Metric) | |
| Operating | 5° C to 60° C |
| Non-operating | -40° C to 70° C |
| Electrical Specifications | |
| Current Requirements | |
| Power Dissipation: | |
| Read/Write | 11.27 Watts |
| Idle | 6.73 Watts |
Click here to view the manufacturer's item description/brochure
ROHS Compliant
Alternate MPNs: 0529FG 529FG 9ZM270-150
Weight: 1.8 lb
Warranty: 1 Year DiscTech
New Pull
The product has been mounted in a brand new system (e.g. server), then removed from the system, before entering service. These products may have some hours of usage due to system build time / burn-in / testing etc. New Pulls are guaranteed to have at least 95% (often 99%) of their service life remaining , they may show signs of being physically mounted and dismounted. All handling is performed by trained technicians, taking full ESD precautions.
1 Year DiscTech Warranty
The product has a DiscTech warranty for the time period specified. View our limited warranty
