Dell Part #/MPN: 540-BBDS
DiscTech Item #: DEL-540-BBDS-NP-OE
- New PullCondition Levels Explained
The product has been mounted in a brand new system (e.g. server), then removed from the system, before entering service. These products may have some hours of usage due to system build time / burn-in / testing etc. New Pulls are guaranteed to have at least 95% (often 99%) of their service life remaining , they may show signs of being physically mounted and dismounted. All handling is performed by trained technicians, taking full ESD precautions.
- Warranty:1 Year DiscTechProduct Warranties Explained
The product has a DiscTech warranty for the time period specified. View our limited warranty
- Low Stock:Call for ETAStock Levels
This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.
Interface Types: Ethernet RJ45, PCIe

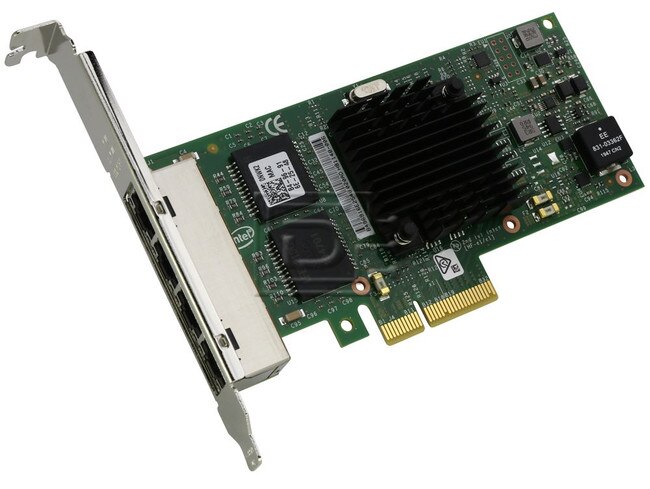

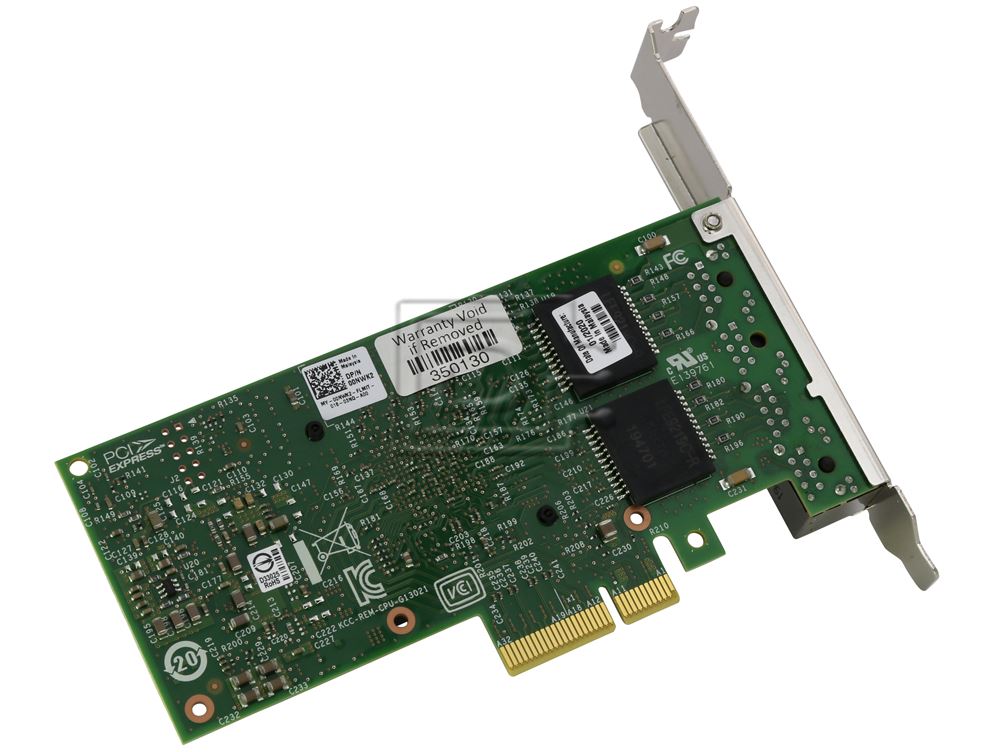

Dell 540-BBDS / 540-BBDD Intel I350 Quad-Port PCI-E 10/100/1000 1Gb Ethernet Server Adapter 0NKW2 / X8DHT / KM1M1 - New Pull
Overview
The new Intel® Ethernet Server Adapter I350 family builds on Intel’s history of excellence in Ethernet products. Intel continues its market leadership with this new generation of PCIe* GbE network adapters. Built with the bridgeless Intel® Ethernet Controller I350, these adapters represent the next step in the Gigabit Ethernet (GbE) networking evolution for the enterprise and data center by introducing new levels of performance through industry-leading enhancements for both virtualized and iSCSI Unified Networking environments. This new family of adapters also includes new power management technologies such as Energy Efficient Ethernet (EEE) and DMA Coalescing (DMAC).
Flexible I/O Virtualization
The Intel® Ethernet Server Adapter I350 family includes Intel® Virtualization Technology for connectivity (Intel® VT-c) to deliver I/O virtualization and Quality of Service (QoS) features designed directly into the controller on the adapter. I/O virtualization advances network connectivity models used in today’s servers to more efficient models by providing Flexible Port Partitioning (FPP), multiple Rx/Tx queues, and on-controller QoS functionality that can be used in both virtual and non-virtual server deployments. By taking advantage of the PCI-SIG SR-IOV specification, Intel® Ethernet products enable Flexible Port Partitioning (FPP). With FPP, virtual controllers can be used by the Linux* host directly and/or assigned to virtual machines. With this port partitioning, administrators can create up to eight dedicated connections on a single Ethernet port for use in bare-metal and virtualized server deployments. In a bare-metal Linux server, host processes can be assigned to dedicated network resources to provide traffic isolation and balanced bandwidth allocation.
Alternate Part Numbers: 540-BBDS /540-BBDD / 0X8DHT / X8DHT / 0KM1M1 / KM1M1 / 540-11358
Compatibility:
This Dell Intel network adapter is compatible with Dell and other servers with an available PCI-E expansion slot.
| General |
| Form factor Low profile 5.33" x 2.71" (13.54 cm x 6.89 cm) |
| Supported servers Dell PowerEdge 12G rack and tower servers. |
| Form Factor - Full ht bracket |
| Bus type x1 PCI Express 2.1 (5 GT/s) |
| Data transfer rate per port 10/100/1000 Mbps |
| Controller Processor - Intel I350 |
| Connector RJ-45 |
Click here to view the manufacturer's item description/brochure
Alternate MPNs: 540-BBDD 0X8DHT X8DHT 0KM1M1 KM1M1 00NWK2 0NKW2 540-11358
Weight: 2 lb
Warranty: 1 Year DiscTech
New Pull
The product has been mounted in a brand new system (e.g. server), then removed from the system, before entering service. These products may have some hours of usage due to system build time / burn-in / testing etc. New Pulls are guaranteed to have at least 95% (often 99%) of their service life remaining , they may show signs of being physically mounted and dismounted. All handling is performed by trained technicians, taking full ESD precautions.
1 Year DiscTech Warranty
The product has a DiscTech warranty for the time period specified. View our limited warranty
