Dell Part #/MPN: 540-BBGX
DiscTech Item #: DEL-540-BBGX-NP-OE
- Brand NewCondition Levels Explained
The product is brand new.
- Warranty:1 Year DiscTechProduct Warranties Explained
The product has a DiscTech warranty for the time period specified. View our limited warranty
- In Stock:1Need more?Stock Levels
This stock level is real time and accurate. This quantity is available for same-day shipment. Larger quantities can take up to a week to ship. Call us for larger quantities that you need urgently.
Interface Types: Ethernet RJ45
Form Factor: Full-Height/Half-Length
Electrical Interface: Ethernet 10Gigabit - 10Gbps
On-Board Cache: 1GB
Bays/Ports/Slots: 4

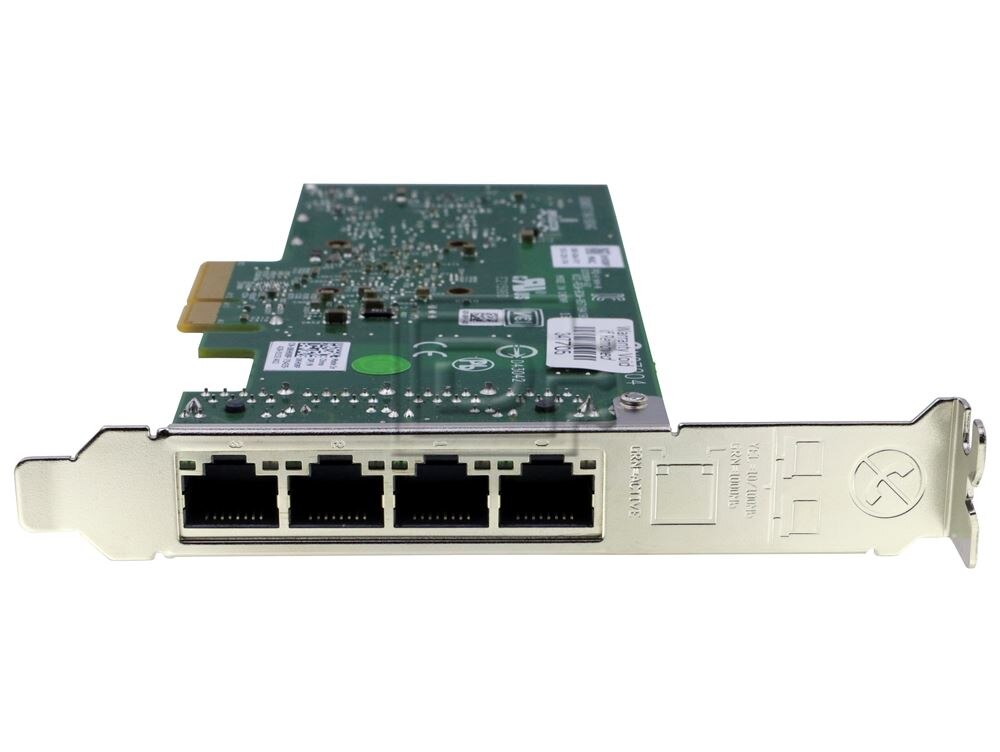

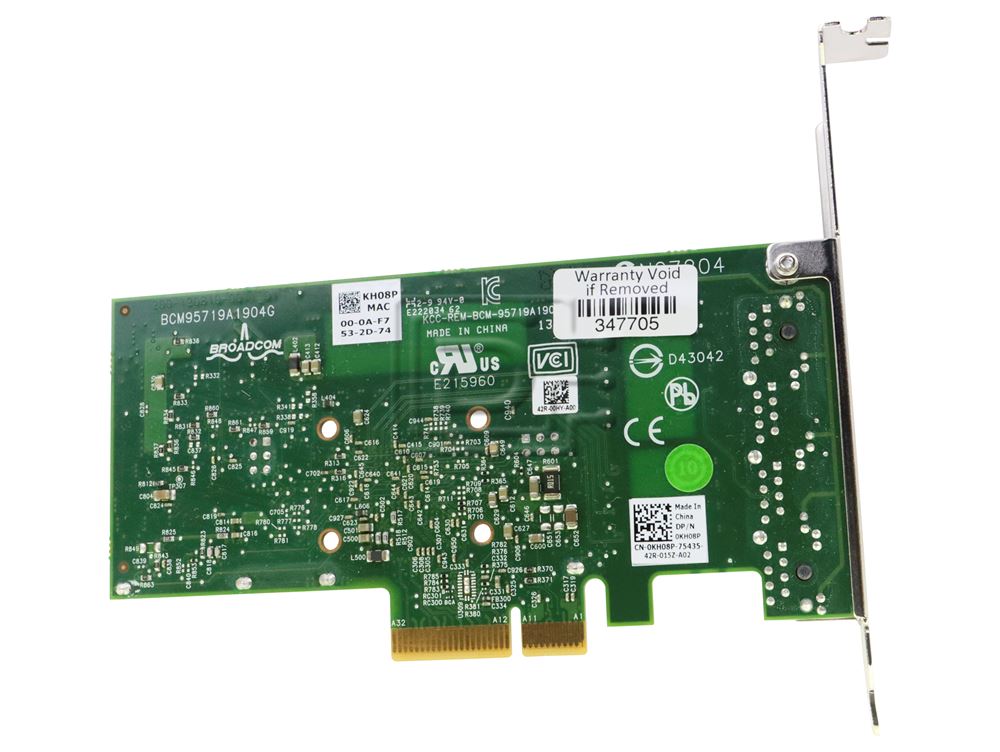

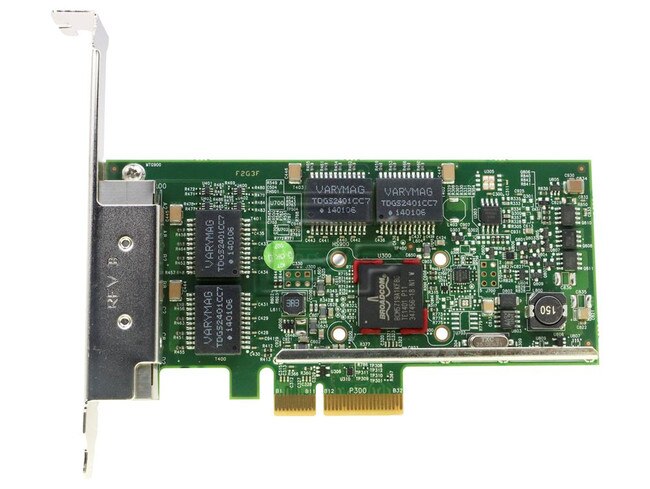

Dell 540-BBGX / 430-4416 / 430-4425 / XF9VF / KH08P Broadcom 5719 1GB Quad Port Copper Ethernet Network Adapter - New Pull
Dell 540-BBGX / 430-4416 / 430-4425 / XF9VF / KH08P Broadcom 5719 1GB Quad Port Ethernet Copper Network Adapter - New Pull
Alt Dell Parts #: 430-4416, 430-4425
Manufacturer Numbers: XF9VF, 0XF9VF, KH08P, 0KH08P
Highlights
- Features a compact design
- Ideal for high-performance network applications
Overview
The Broadcom 5719 Quad-Port Gigabit NIC from Dell™ features quad triple-speed IEEE 802.3-compliant Media Access Controllers (MACs) with quad 10/100/1000 Ethernet transceivers (PHYs), selectable individually per port, a Network Controller Sideband Interface (NC-SI), and on-chip memory buffer in a single device. It's based on the Broadcom BCM5719 Controller. This product has been tested and validated on Dell Systems. This product is supported by Dell Technical Support when used with a Dell system.
Compatibility
This product is compatible with the following systems: PowerEdge R220, R230, R320, R330, R420, R420XR, R430, R520, R530, R620, R630, R720, R720XD, R730, R730XD, R820, R920, R930, T130, T320, T330, T420, T430, T620, T630, VRTX
Compatibility:
This product is compatible with the following systems - PowerEdge R220, R230, R320, R330, R420, R420XR, R430, R520, R530, R620, R630, R720, R720XD, R730, R730XD, R820, R920, R930, T130, T320, T330, T420, T430, T620, T630, VRTX
| Broadcom 5719 Network Interface Card | |
|---|---|
| Dell Part # | 540-BBGX |
| Alt Dell Part # | 430-4416, 430-4425 |
| Manufacturer Part # | XF9VF, 0XF9VF, KH08P, 0KH08P |
| Tech Specs | |
| Device Type | Network adapter |
| Form Factor | Plug-in card |
| Ports | Gigabit Ethernet x 4 |
| Connectivityh | Wired |
| Data Link Protocol | 10Mb LAN, 100Mb LAN, GigE |
| Data Transfer Rate | 1 Gbps |
| Designed For | Dell PowerEdge R220, R230, R320, R330, R420, R520, R530, R620, R630, R720, R720xd, R730, R730xd, R820, R920, R930, T130, T320, T330, T420, T430, T620, T630, VRTX M520, VRTX M620 |
Click here to view the manufacturer's item description/brochure
ROHS Compliant
Alternate MPNs: XF9VF 0XF9VF 430-4416 KH08P 0KH08P 430-4425
Weight: 1 lb
Warranty: 1 Year DiscTech
Brand New
The product is brand new.
1 Year DiscTech Warranty
The product has a DiscTech warranty for the time period specified. View our limited warranty
