Dell Part #/MPN: 66JVW
DiscTech Item #: DEL-66JVW-UP-OE
- Used PullCondition Levels Explained
The product has been removed from a working system (e.g. server). These products vary in their usage due to age of system & type of service etc.. However, Used System Pulls are fully tested and all handling is performed by trained technicians, taking full ESD precautions.
- Warranty:1 Year DiscTechProduct Warranties Explained
The product has a DiscTech warranty for the time period specified. View our limited warranty
- In Stock:1Need more?Stock Levels
This stock level is real time and accurate. This quantity is available for same-day shipment. Larger quantities can take up to a week to ship. Call us for larger quantities that you need urgently.
Interface Types: SCSI 80pin SCA-2 Hot-Swap, SCSI 68pin HD68, PCI
On-Board Cache: 64MB

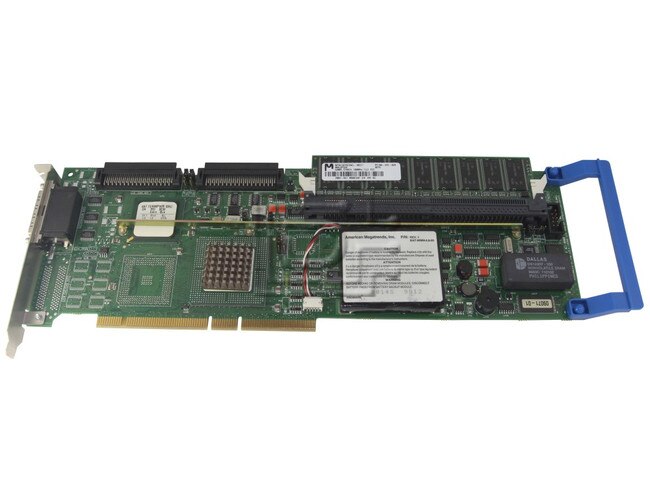

Dell 66JVW PERC 2/DC Dual Channel LVD SCSI RAID Controller, BBU, 64MB Cache 5V Only - Used Pull
The Dell™ PowerEdge™ Expandable RAID Controller Dual Channel PERC 2/DC (66JVW) PCI RAID controller is a high performance intelligent Peripheral Component Interconnect (PCI)-to-Small Computer System Interface (SCSI) host adapter with RAID control capabilities. The PERC 2/DC provides reliability, high performance, and fault-tolerant disk subsystem management. PERC 2/DC is an ideal RAID solution for the internal strorage of Dell's workgroup, departmental, and enterprise systems. PERC 2/DC offers a cost-effective way to implement RAID in a server. PERC 2/DC has two Wide Ultra2 Low Voltage Differential (LVD) SCSI channels supporting data transfer rates up to 80 Megabytes per second (MB/s) per channel.
Compatibility: Compatible with 32bit and 64 bit PCI slots with 5V only support. e.g. Dell PowerEdge 2300, 2350, 2400, 2450, 6300, 6350, 6400, 6450
Specification | Feature |
RAID Levels | 0, 1, 5, 10, and 50. |
SCSI Channels | 2 |
Maximum number of drives per channel | 15 |
Array interface to host | PCI 2.2 |
Drive interface | Fast and Wide Ultra/2 SE/ LVD |
Cache memory size | 64 MB and 128 MB SDRAM |
Cache Function | Write-back, Write-through, Adaptive Read Ahead, Non Read Ahead, Read Ahead |
Multiple logical drives/arrays per controller | Up to 8 logical drives per controller |
Maximum number of PERC 2/DC controllers per system | Consult your PowerEdge Server User's Guide or contact your Dell representative. |
Online capacity expansion | Yes |
Dedicated and pool hot spare | Yes |
Flashable firmware | Yes |
Hot swap devices supported | Yes |
Non-disk devices supported | No |
Mixed capacity hard disk drives | Yes |
Number of 16-bit internal connectors | 2 |
Cluster support | Yes |
Click here to view the manufacturer's item description/brochure
Weight: 2 lb
