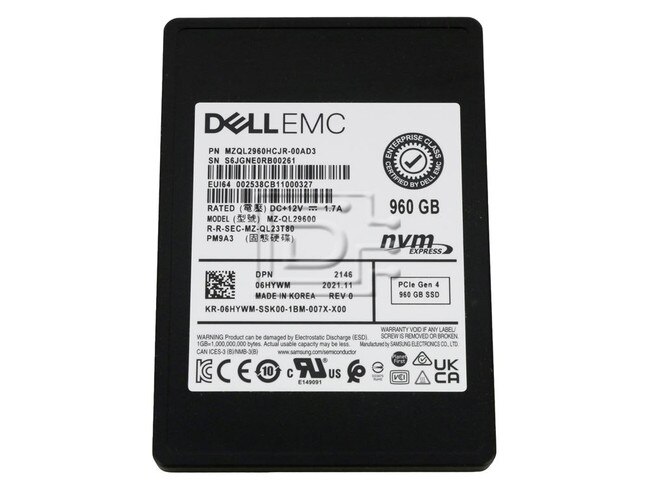

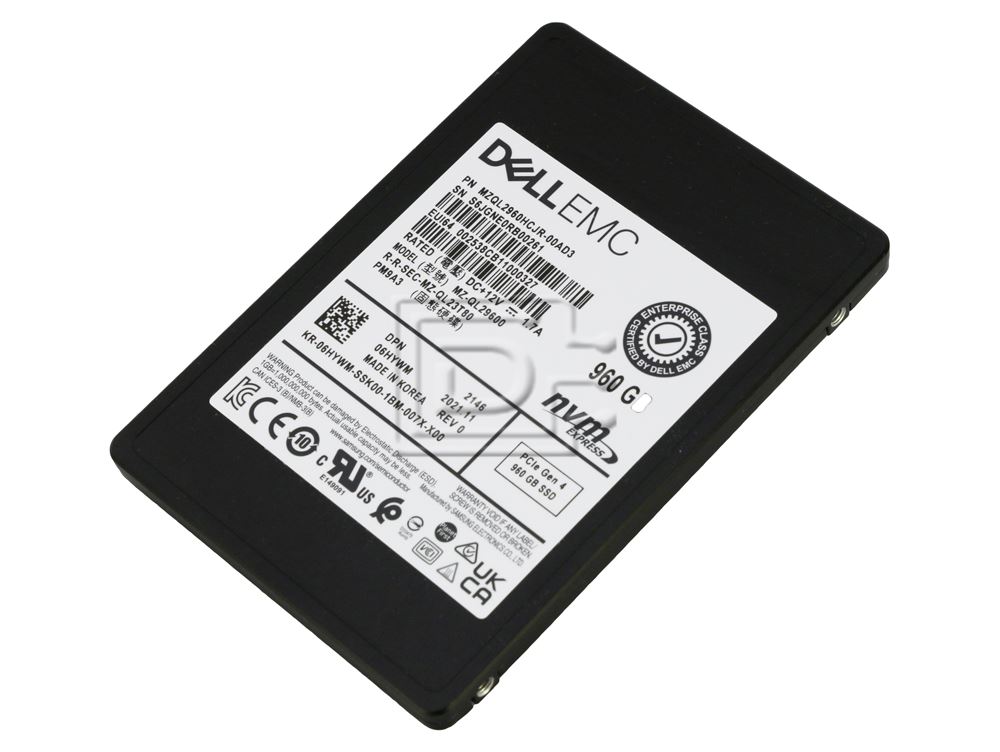

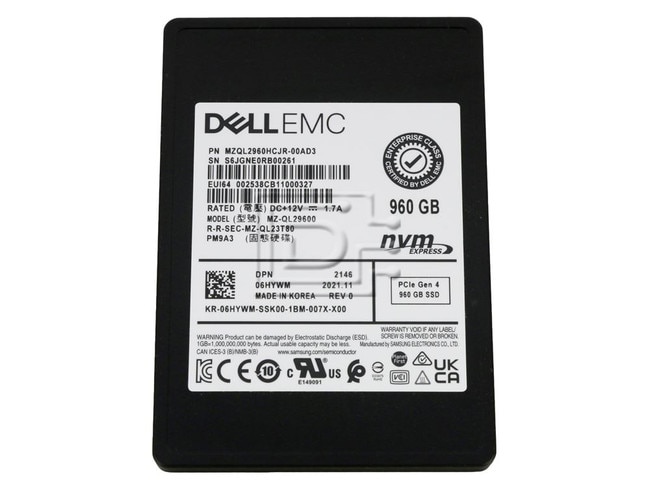

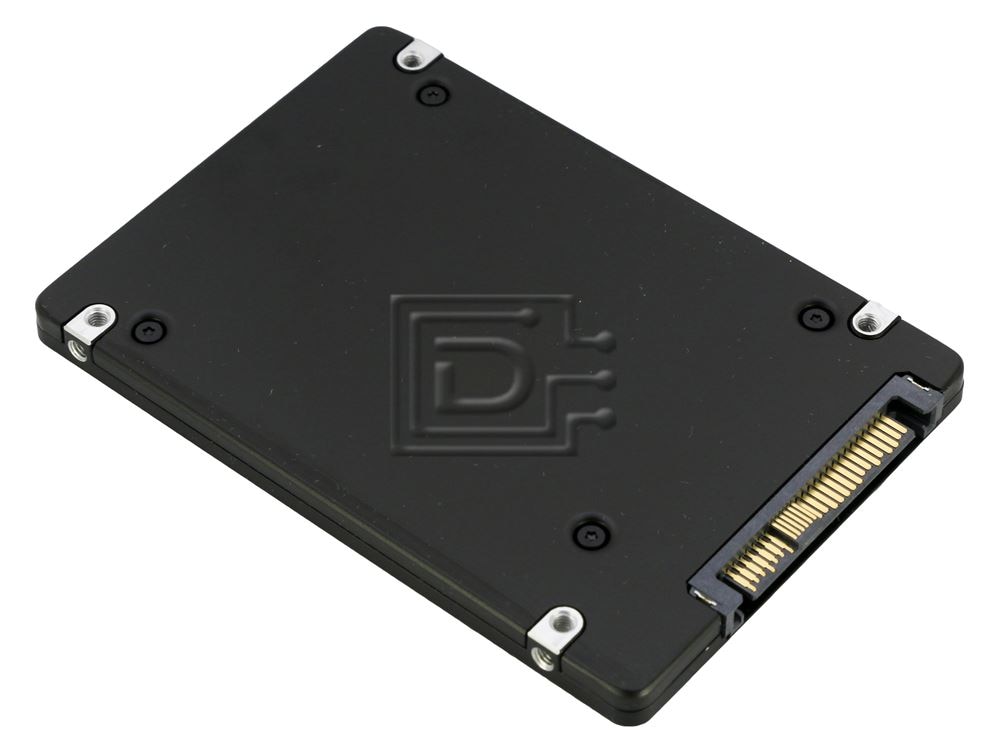

Dell 6HYWM / Samsung PM9A3 MZ-QL29600 / MZQL2960HCJR-00AD3 960GB PCIe 4.0x4 NVMe U.2 2.5" RI SED SSD

SAMSUNG Part #/MPN: MZ-QL29600

DiscTech Item #: SAM-MZ-QL29600-BN-OE-DEL

  • Low Stock:Call for ETA
    Stock Levels

    This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.


Enterprise Grade

Capacity: 960GB

Speed: Solid State Memory

Interface Types: NVMe U.2, PCIe

Form Factor: 2.5inx7mm Fits All laptops

Encryption/SED Supported

Sector Size: 512 / 512e

Sustained Throughput: 3500 / 3100

Electrical Interface: PCIe - v4.0 - 32GBps


SSD Endurance DWPD: Enterprise Read Intensive

Compatible Systems: Dell 14th Gen. R640/R740, Dell 13th Gen. R730/T630

Dell 6HYWM / Samsung PM9A3 MZ-QL29600 / MZQL2960HCJR-00AD3 960GB PCIe Gen4 x4, NVMe U.2 2.5" RI Enterprise SED SSD - Brand New Dell EMC 6HYWM / Samsung PM9A3 MZ-QL29600 / MZQL2960HCJR-00AD3 960GB PCIe Express Gen4 x4, NVMe 1.4 U.2 2.5" TLC Read Intensive Enterprise SED / AES 256-bit Encryption SSD / Solid State Drive - Brand New

Alt PN: 6HYWM / 06HYWM / MZQL2960HCJR-00AD3 / MZ-QL296000


This drive is compatible with servers and arrays that accept 2.5” 7mm U.2 SFF PCIe NVMe drives

Samsung® SSD PM9A3 Series
Model NumberMZ-QL29600
Product CollectionSamsung® SSD PM9A3 Series
Form FactorNVMe U.2 7.0mm
Lithography TypeSamsung V-NAND TLC
Use ConditionsData Center / Server / Enterprise
Sequential Read(up to) 6,500 MB/s
Sequential Write(up to) 1,500 MB/s
4K Random Readup to 580k IOPS
4K Random Writeup to 70k IOPS
Operating Temperature Range0°C to 70°C
Mean Time Between Failures (MTBF)2 million hours
Power - Active9.5/8.0W (avg.)
Power - Idle3.5W
Shock1500G, duration: 0.5 ms, 3 axis
Vibration20~2,000Hz, 20G
Physical dimensions100.20 mm x 69.85 mm x 7.0 mm
InterfacePCIe Express Gen4 x4
Device ProtocolNVMe 1.4

Click here to view the manufacturer's item description/brochure

ROHS Compliant

Alternate MPNs: 6HYWM 06HYWM MZQL2960HCJR-00AD3 MZ-QL296000

Weight: 1 lb

Warranty: 1 Year DiscTech

Brand New

Condition Levels Explained

The product is brand new.

1 Year DiscTech Warranty

Product Warranties Explained

The product has a DiscTech warranty for the time period specified. View our limited warranty
