Dell 6K35K 1.92TB 24Gbps Read Intensive SAS SSD 2.5inch KIOXIA Toshiba KPM7XRUG1T92 ME4 / ME5

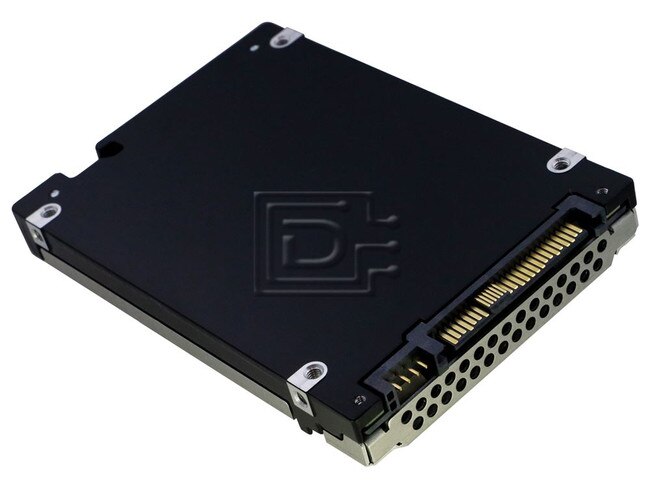

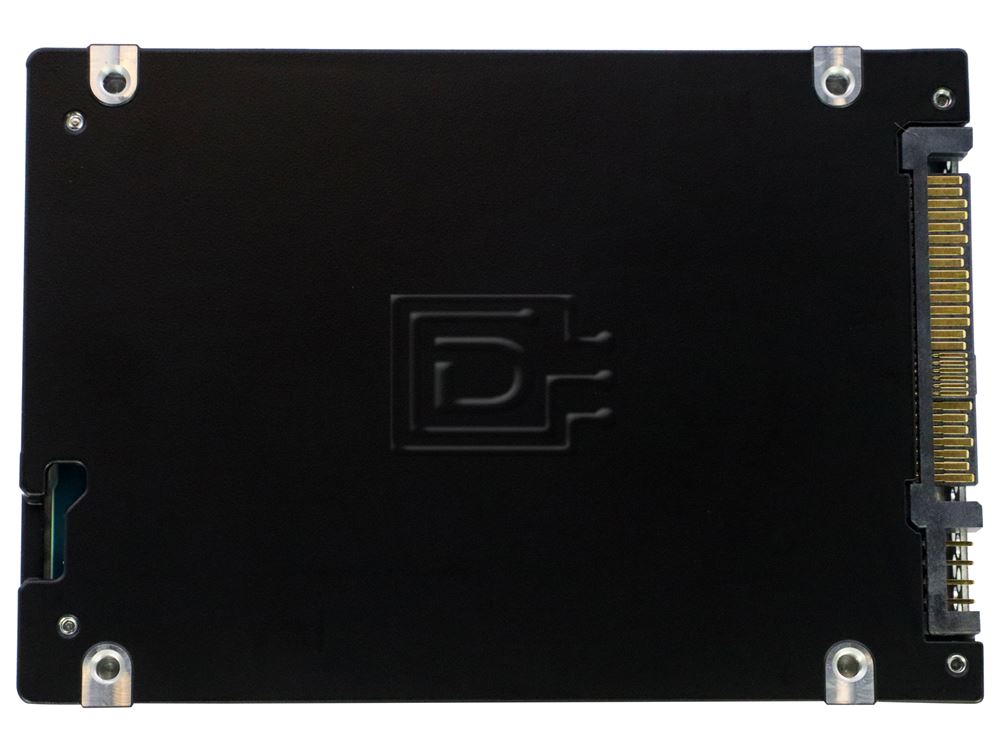

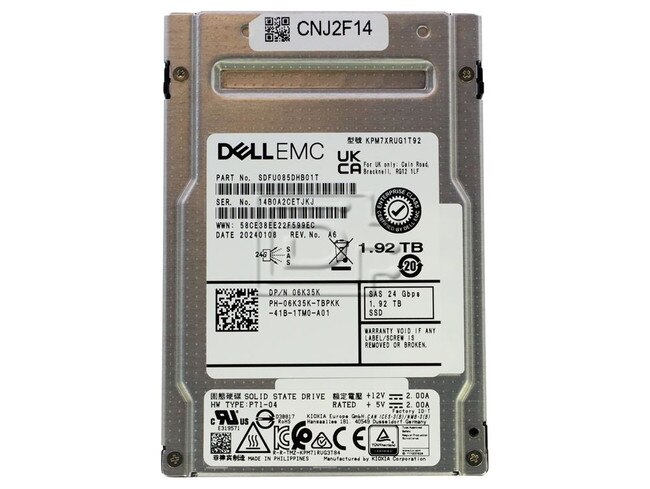

Toshiba KPM7XRUG1T92 6K35K 06K35K Dell 1.92TB SAS SSD ME4 / ME5 Image 1 image
  • Brand New
    Condition Levels Explained

    The product is brand new.

  • Low Stock:Call for ETA
    Stock Levels

    This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.

  • 1 Year DiscTechWarranty
    Product Warranties Explained

    The product has a DiscTech warranty for the time period specified. View our limited warranty

$1,269.00

Capacity:1.92TB
Speed:Solid State
Interface Types:SAS
Form Factor:2.5" SFF Server Drive
SSD Endurance DWPD:Enterprise Read Intensive / RI
Electrical Interface:SAS-4 24Gbps
Click to see more 1.92TB SAS Solid State Drives

Description

Dell 6K35K / KIOXIA Toshiba KPM7XRUG1T92 1.92TB 2.5" 24Gbps Read Intensive SAS SSD ME4 ME5 - Brand New OEM

Dell 6K35K / KIOXIA Toshiba KPM7XRUG1T92 1.92TB 2.5" 24Gbps Read Intensive SAS SSD - Brand New OEM

KIOXIA PM7-R Series

KIOXIA PM7-R Series

KIOXIA PM7-R Series 24G SAS Enterprise SSD is optimized for read intensive applications, including web services, data warehousing, streaming media, and video on demand. The series provides high levels of performance, reliability, and endurance, and is designed to minimize total cost of ownership.

Featuring KIOXIA 112-layer BiCS FLASH™ 3D flash memory, this 7th generation enterprise SAS SSD PM7-R Series offers 1 DWPD (Drive Writes Per Day) with capacities up to 30.72 TB.

Key Features

Key Features

  • 24G SAS interface with single/dual-port support
  • Capacities from 1.92 TB to 30.72 TB
  • Up to 720K random read IOPS (4 KiB) in dual-port mode
  • 2.5-inch form factor, 15 mm thickness
  • 1 DWPD with 100 % Random Write Workload
  • Power Loss Protection and End-to-End Data Protection, including T10 DIF
  • Security options: SIE, SED, FIPS SED
  • 5-year limited warranty

Compatibility:

This drive is designed to work in the Dell ME4 and ME5 series arrays. This includes the ME4012, ME4024, ME4084, ME5012, ME5024, ME5084, ME412, ME424, ME484. It will also work in the Dell PowerEdge and PowerVault systems.

Specifications

Enterprise Read Intensive SSD
Basic Specifications
Reliability
Power Requirements
Dimensions
Enviromental
Model NumberKPM7XRUG1T92
InterfaceSAS-4.0
Interface Speed22.5 Gbit/s,12.0 Gbit/s ,6.0 Gbit/s ,3.0 Gbit/s ,1.5 Gbit/s
Memory TypeBiCS FLASH TLC
Formatted Capacity1.92TB
Sustained 128KiB Sequential Read4,200 MiB/s
Sustained 128KiB Sequential Write3,400 MiB/s
Sustained 4KiB Random Read720,000 IOPS
Sustained 4KiB Random Write155,000 IOPS
MTTF2,500,000 hours
DWPD1
Supply Voltage12 V ± 10 %, 5 V +10 % / -7 %
Power Consumption (Operating)5W Typ.
Height15.0 mm +0 , -0.5 mm
Width69.85 ±0.25 mm
Length100.45 mm Max.
Weight130 g Max.
Temperature (Operating)0 to 70 °C
Relative Humidity ( Operating )5 to 95 % R.H.
Vibration (Operating)21.27 m/s {2.17 Grms} (5 to 800 Hz)
Shock (Operating)9.8 km/s {1,000 G} (0.5 msec)
Click here to view the manufacturer's item description/brochure

ROHS Compliant

Alternate MPNs: 6K35K 06K35K

Weight: 0.7 lb

Warranty: 1 Year DiscTech

Condition

Brand New

Warranty

1 Year DiscTech Warranty
