Dell Part #/MPN: 6WC9D
DiscTech Item #: DEL-6WC9D-RF-OE
- RefurbishedCondition Levels Explained
These products have had NO problems or failures, they merely have some usage. The product has been professionally returned to excellent condition. These items have been fully tested, formatted (if appropriate) &repackaged. Hard drives are fully vetted for surface defects and wear, only healthy disks are approved for resale to our customers. Please see our refurbishing process for more details. Watch a video about our refurbishing process
- Warranty:1 Year DiscTechProduct Warranties Explained
The product has a DiscTech warranty for the time period specified. View our limited warranty
- In Stock:28Need more?Stock Levels
This stock level is real time and accurate. This quantity is available for same-day shipment. Larger quantities can take up to a week to ship. Call us for larger quantities that you need urgently.
Enterprise Grade
Capacity: 300GB
Speed: 15,000RPM
Interface Types: SAS Serial Attached SCSI
Form Factor: 2.5inx15mm SFF Server Drive
Sector Size: 512 / 512e
Sustained Throughput: 233 to 160
Average Seek Time: 2.0
Electrical Interface: SAS-2 Serial Attached SCSI v2 - 6.0Gbps
On-Board Cache: 128MB

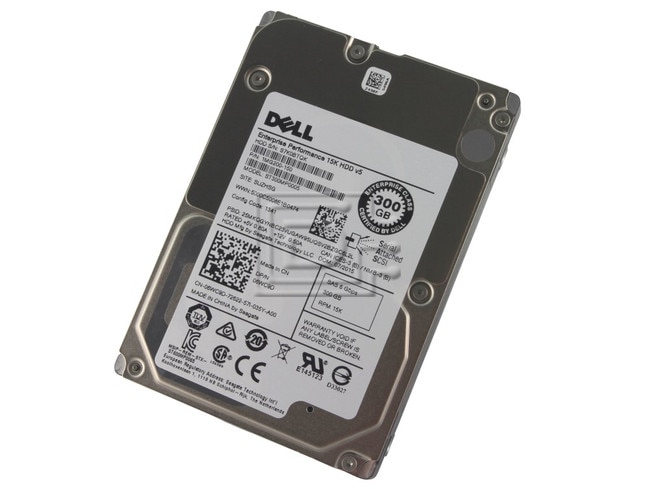

Dell 6WC9D 06WC9D 300GB 2.5" 6Gbps 15K RPM Enterprise SAS HDD - Refurbished OEM
Alt PN: 6WC9D, 06WC9D1MG200, 1MG200-150
Dell Enterprise Performance 15K HDD
High-Performing, Up to 600GB, Small Form Factor 15K Hard Drive, limited production run with 6Gbps SAS interface Speeds.
- Stores twice the amount of Tier 1 data over previous generation, without increasing drive count, in 2.5-inch form factor
- Enables faster transaction processing, which can result in increased revenue generation and improved customer satisfaction
- Latest 12Gb/s SAS interface for improved scalability
- Industry’s highest MTBF at 2.0M hours
- Support for all drive formats, including 512 Native, 512 Emulation and 4K Native
- Provides up to 18% improvement in SDR performance over prior generation
- SAS-based Protection Information (PI) helps protect against inadvertent data change.
Best-Fit Applications
- High-performance Tier 1 enterprise servers
- Blade, rack and tower servers hosting transaction-based applications
- Power- and space-constrained data centers
- Compliance and data security initiatives
Compatibility:
This drive is compatible with any server that accepts 2.5"x15mm (SFF) SAS drives.
SPECIFICATIONS | |
---|---|
Model Number | 6WC9D |
Specification | 512 Native |
Capacity | 300GB |
Interface | 6Gb/s SAS |
PERFORMANCE | |
Average Latency (ms) | 2.0 |
Sustained Transfer Rate (Outer to Inner Diameter) MiB/s | 233 to 160 |
Max. Instantaneous Transfer Rate (SAS dual port) MB/s | 2400 |
Cache, Multisegmented (MB) | 128 |
CONFIGURATION/RELIABILITY | |
Disks/Heads | 2/4 |
Nonrecoverable Read Errors per Bits Read, Max | 1 per 10e16 |
Annualized Failure Rate (AFR) | 0.44% |
POWER MANAGEMENT | |
Typical Op (A) +5V/+12V | 0.46/0.51 |
Average Idle Power (W) | 4.8 |
Average Operating Power (W) | 8.4 |
ENVIRONMENTAL | |
Ambient Temperature, Operating (C°) | 5 to 55 |
Ambient Temperature, Nonoperating (C°) | -40 to 70 |
Temperature Change Rate/Hr, Max (C°) | 20 |
Relative Humidity, Noncondensing (max gradient 20% hour) | 5% to 95% |
Shock, Max Operating: 11ms (Gs) | 40 |
Shock, Max Nonoperating: 2ms (Gs) | 400 |
Vibration, Operating: <400Hz (Gs) | 0.5 |
Vibration, Nonoperating: <500Hz (Gs) | 2.4 |
PHYSICAL | |
Height (in/mm, max) | 0.591/15.00 |
Width (in/mm, max) | 2.750/69.85 |
Depth (in/mm, max) | 3.955/100.45 |
Weight (lb/kg) | 0.496/0.225 |
Click here to view the manufacturer's item description/brochure
ROHS Compliant
Alternate MPNs: 06WC9D 1MG200-150 ST300MP0005
Weight: 0.5 lb
Warranty: 1 Year DiscTech
Refurbished
These products have had NO problems or failures, they merely have some usage. The product has been professionally returned to excellent condition. These items have been fully tested, formatted (if appropriate) &repackaged. Hard drives are fully vetted for surface defects and wear, only healthy disks are approved for resale to our customers. Please see our refurbishing process for more details. Watch a video about our refurbishing process
1 Year DiscTech Warranty
The product has a DiscTech warranty for the time period specified. View our limited warranty
