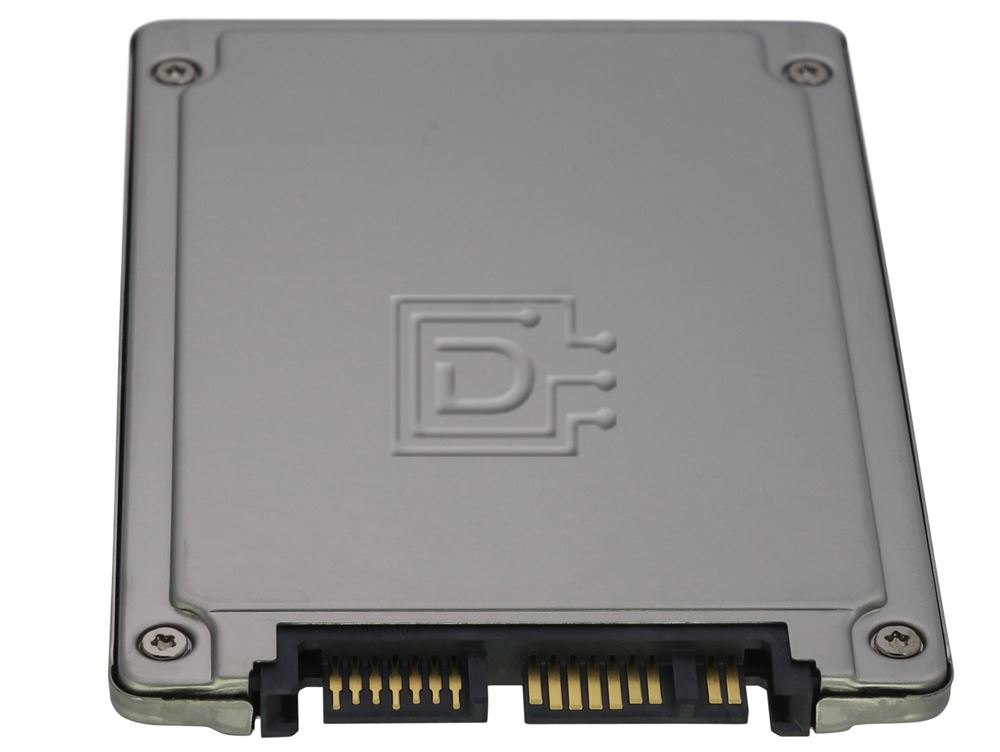

SAMSUNG Part #/MPN: MZ8LM480HCHP-000D3
DiscTech Item #: SAM-MZ-8LM480A-BN-OE-DEL
Speed: Solid State Memory
Interface Types: SATA 1.8in Micro for ultra mobile applications
Form Factor: 1.8inx5mm
Sector Size: 512 / 512e
Sustained Throughput: 525MB/s Read and 460MB/s Write
Electrical Interface: SATA 600 - 6.0Gbps
SSD Type: MLC
SSD Endurance DWPD: Enterprise Mixed Use
Samsung Enterprise Solid State Drives (SSDs) are being used increasingly as data storage media in computing, communication, and multimedia devices. Most SSDs use NAND Flash memory as the storage media, which is capable of retaining data without an external power supply. A typical SSD consists of two main components: the data storage device and a controller for the storage device that acts as an interface between the SSD and the host system. The SSD controller manages the interfaces from both the host side and the device side, which includes mapping bad data blocks, caching read/write data, and error checking and correction (ECC); and the controller's built-in ROM contains the firmware needed to control the drive. An SSD is an example of an embedded system, and needs a Real-Time OS (RTOS) for its operation. Several open source and proprietary firmware solutions are available for SSD controllers
The primary advantage of using Samsung SSDs is their lack of moving parts, resulting in extremely short startup and shutdown/standby times. SSDs offer superior reliability compared to traditional Hard Disk Drives (HDDs). Advances in semiconductor flash memory technologies have enabled the development of SSDs that are equal in capacities to HDDs and can be used as direct replacements. SSDs also prove to be highly cost effective in-use due to their much lower power consumption and maintenance costs. As the world leader in semiconductor memory technology, Samsung offers a comprehensive range of SSDs for deployment in a wide range of devices across every industry segment.
The maximum capacity of the PM863 has improved over four times that of the previous generation PM853T to almost 3,840 GB compared to 960 GB. Random read/write performance has also greatly improved. The 4 KB random read/write performance was 90 K IOPS/14 K IOPS maximum to the PM863 reaching up to 99 K IOPS/18 K IOPS.
In addition, the PM863 provides the following same powerful functions as the previous generation PM853T
- Power-loss Protection. Protects from loss of data due to sudden power disconnections by using a tantalum capacitor build into the PM863 to safely and accurately copy and store user data written to the DRAM (the volatile memory in the SSD) to the NAND flash memory
- End-to-end Protection. Safeguards user data in the PM863 along the entire data transfer path, from the host interface to the NAND flash memory, by duplicating the Cyclical Redundancy Check (CRC) and Error Check and Correct (ECC) at each section of the path to ensure accuracy and safety at all time.
- Dynamic Thermal Throttling. Monitors the temperature of the SSD automatically and, if the SSD rises above safe levels, it forcibly delay I/O processing until the temperature of the SSD drops to normal levels, ensuring the safe use of expensive servers.
Alt MP/N: 073K84 73K84 MZ-8LM480A PM863 MZ8LM480A
|Form Factor||1.8 inch|
|Interface||Serial ATA 6.0 Gbps|
|Voltage||+5V ± 5%|
|Sequntial Read (128KB)||525 MB/s|
|Sequential Write (128KB)||460 MB/s|
|Random Read IOPS (4KB)||99 KIOPS|
|Random Write IOPS (4KB)||17 KIOPS|
Click here to view the manufacturer's item description/brochure
Alternate MPNs: 73K84 073K84 MZ-8LM480A PM863 MZ8LM480A MZ8LM480HCHP-000D3
Weight: 0.5 lb
Warranty: 1 Year DiscTech
The product is brand new.
1 Year DiscTech Warranty
The product has a DiscTech warranty for the time period specified. View our limited warranty
