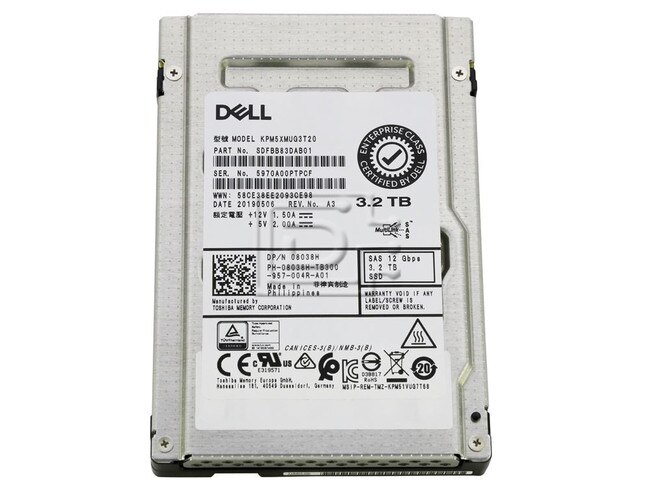

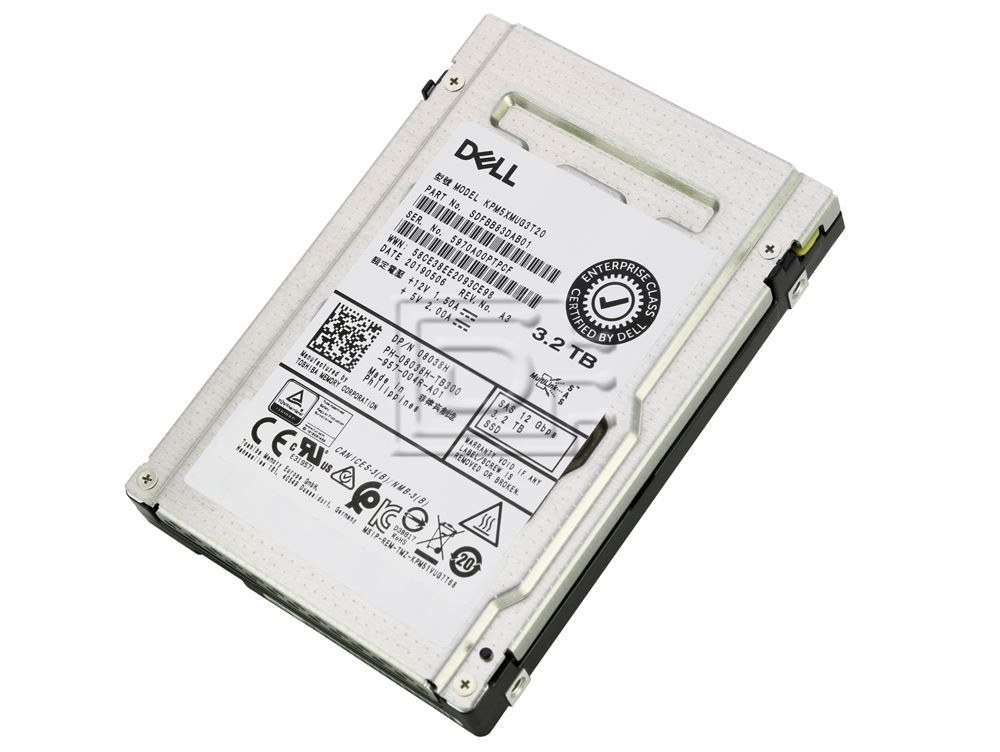

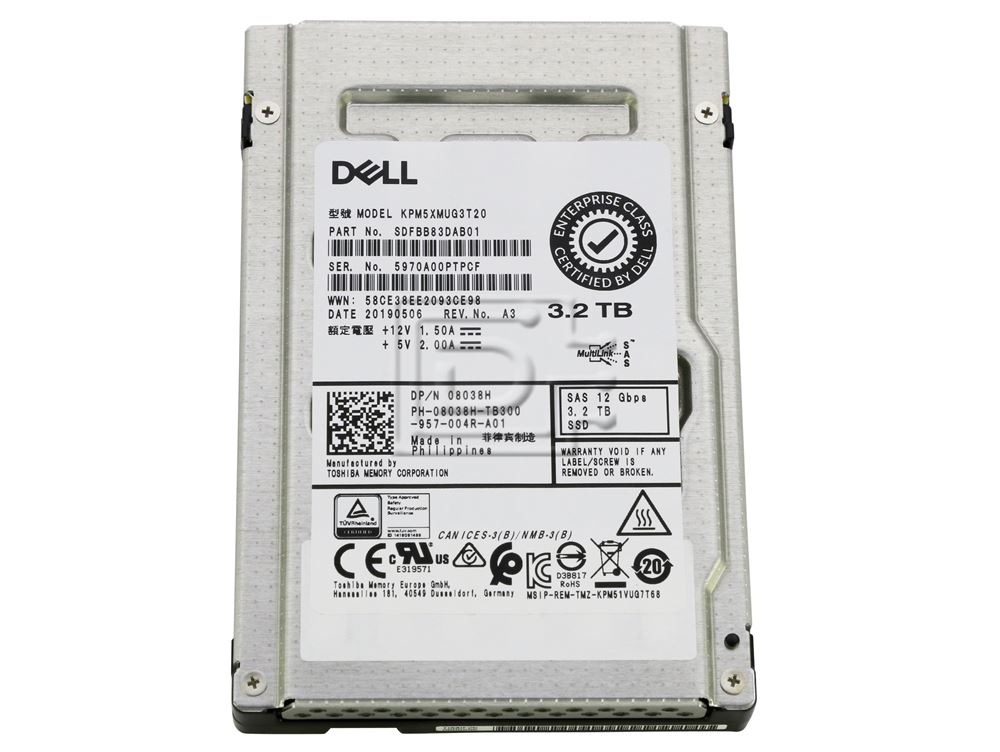

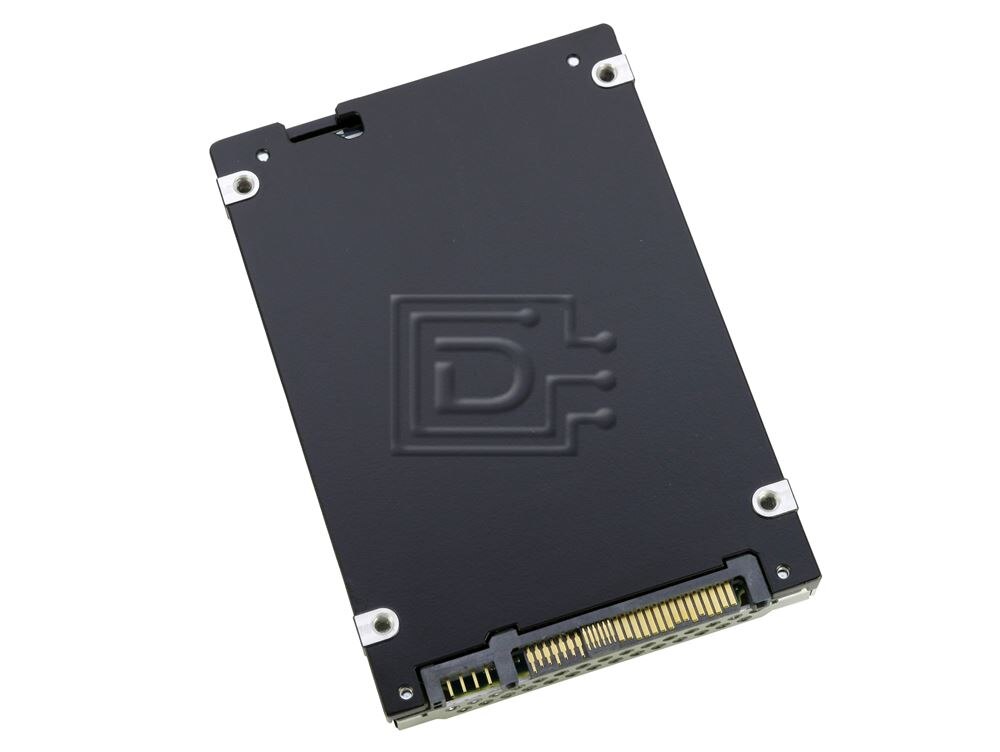

Dell 8038H / Toshiba PM5-M Series KPM5XMUG3T20 3.2TB 12Gbps WI SAS SFF SSD

Toshiba Part #/MPN: KPM5XMUG3T20

DiscTech Item #: TOS-KPM5XMUG3T20-BN-OE-DEL


Enterprise Grade

Capacity: 3.2TB

Speed: Solid State Memory

Interface Types: SAS Serial Attached SCSI

Form Factor: 2.5inx15mm SFF Server Drive

Sector Size: 512 / 512e

Sustained Throughput: 2100/2100

Electrical Interface: SAS-3 Serial Attached SCSI v3 - 12.0Gbps


SSD Endurance DWPD: Enterprise Write Intensive

Voltage: 12V

Compatible Systems: Dell 13th Gen. MD3x60 High Density Arrays, Dell MD3060 MD3260 MD3660

Dell 8038H / Toshiba PM5-M Series KPM5XMUG3T20 3.2TB 12Gbps WI SAS SFF SSD - Brand New

Dell 8038H / Toshiba PM5-M Series KPM5XMUG3T20 3.2TB 12Gbps Write Intensive 10-DWPD TLC 2.5" SFF SAS / Serial Attached SCSI Enterprise Solid State Drive - Brand New


Alt PNs: 8038H / 08038H / KPM51MUG3T20


PM5-M 12.0 Gbit/s SAS SSD is optimized for write-intensive applications, including online transaction processing (OLTP) and e-commerce. The Series is designed to deliver high levels of performance, quality and reliability for mission-critical, hyperscale and virtualized environments.

Featuring KIOXIA Corporation’s 64-layer BiCS FLASH™ 3D memory, this 5th generation enterprise SAS SSD PM5-M Series offers 10 DWPD (Drive Writes Per Day) with capacities up to 3.2 TB.


Key Features

  • 12.0 Gbit/s SAS interface with single/dual port and MultiLink SAS™ support
  • Capacities from 400 GB to 3.2 TB
  • T10 Multi-Stream Write support
  • Up to 385 K random read IOPS (4 KiB) in dual port mode
  • 2.5 inch form factor, 15 mm Z-height
  • 10 DWPD with 100 % Random Write Workload
  • Power loss protection and end-to-end data protection, including T10 DIF
  • Pin-3 power disable support
  • Sanitize Instant Erase (SIE) option
  • Self-Encrypting (SED) option
  • Self-Encrypting (SED), FIPS 140-2 validated option
  • 5-year limited warranty

Key Applications

  • Mission-Critical Enterprise Workloads
  • Hyperscale and Virtualized Environments
  • General online transaction processing (OLTP)
  • E-commerce



This drive is compatible with any server that accepts 2.5in x 15mm (SFF) SAS drives.

Enterprise Mid Endurance SSD
Model NumberKPM5XMUG3T20
Basic Specifications
Interface Speed12.0 Gbit/s , 6.0 Gbit/s , 3.0 Gbit/s , 1.5 Gbit/s
Formatted Capacity3.2TB / 3,200GB
Sustained 64Kib Sequential Read2,100 MiB/s
Sustained 64Kib Sequential Write2,10 MiB/s
Sustained 4KiB Random Read (Up to)370,000 IOPS
Sustained 4KiB Random Write (Up to)230,000 IOPS
MTTF2,500,000 hours
Power Requirements
Supply Voltage5 V + 10% / - 7 %
12 V ± 10 %
Power Consumption (Ready)5.0 W Typ.
Height15.0 mm +0 , -0.5 mm
Width69.85 ± 0.25 mm
Length100.45 mm Max
Weight130 g Max
Environmental Specifications
Temperature (Operating)0 to 30 °C
Relative Humidity ( Operating )5 to 95 % R.H. (No condensation)
Vibration ( Operating )21.27 m/s2 { 2.17 Grms } ( 5 to 800 Hz )
Shock ( Operating )9,800 m/s2 { 1,000 G } ( 0.5 ms duration )

Click here to view the manufacturer's item description/brochure

ROHS Compliant

Alternate MPNs: 8038H 08038H KPM51MUG3T20

Weight: 0.7 lb

Warranty: 1 Year DiscTech

Brand New

Condition Levels Explained

The product is brand new.

1 Year DiscTech Warranty

Product Warranties Explained

The product has a DiscTech warranty for the time period specified. View our limited warranty
