Dell Part #/MPN: KCD7XRUG960G
DiscTech Item #: KIO-KCD7XRUG960G-BN-OE-DEL
- Brand NewCondition Levels Explained
The product is brand new.
- Warranty:1 Year DiscTechProduct Warranties Explained
The product has a DiscTech warranty for the time period specified. View our limited warranty
- In Stock:14Need more?Stock Levels
This stock level is real time and accurate. This quantity is available for same-day shipment. Larger quantities can take up to a week to ship. Call us for larger quantities that you need urgently.
Enterprise Grade
Capacity: 960GB
Speed: Solid State Memory
Interface Types: NVMe U.2, PCIe
Form Factor: 2.5inx15mm SFF Server Drive
Sector Size: 512 / 512e
Electrical Interface: PCIe - v4.0 - 32GBps
SSD Type: TLC
SSD Endurance DWPD: Enterprise Read Intensive

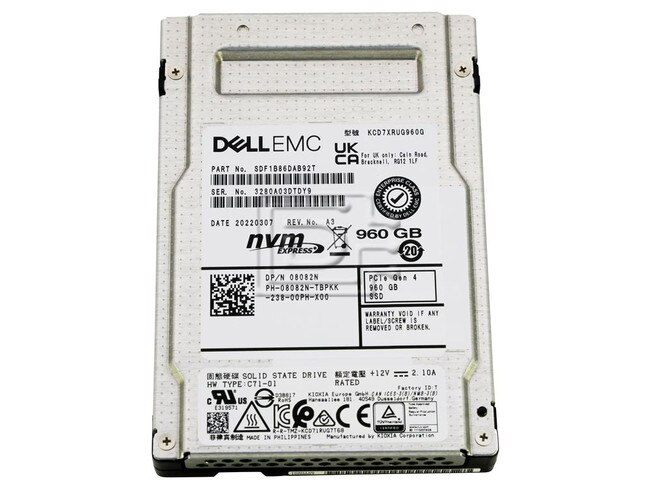

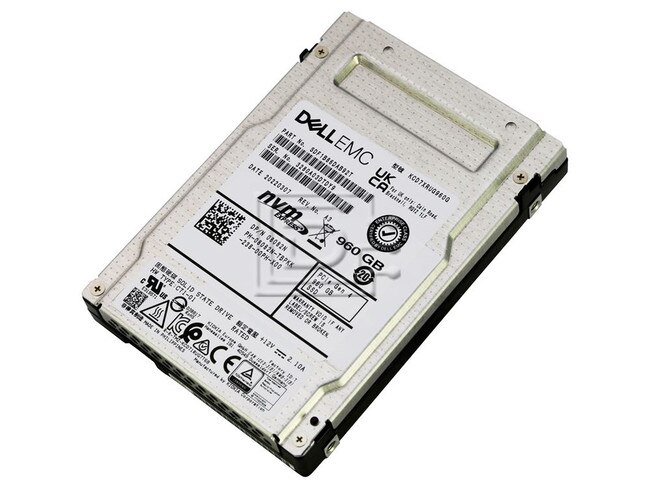

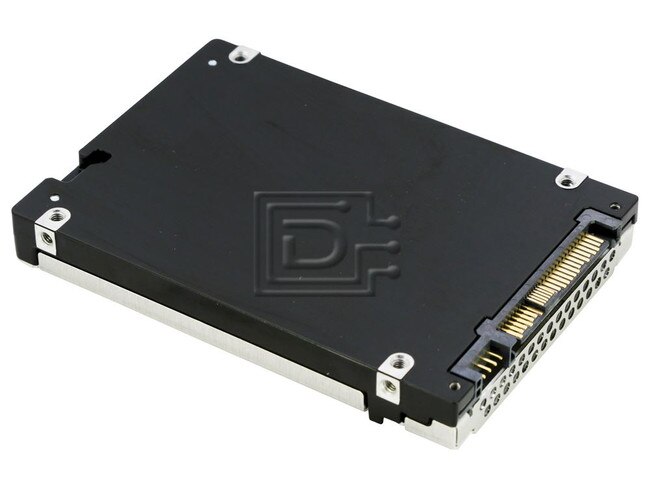

Dell 8082N / Toshiba Kioxia KCD7XRUG960G CD7-R Series 960GB 2.5" TLC PCIe 4.0, NVMe 1.4 U.2 SSD - Brand New
Dell EMC 8082N / Toshiba Kioxia KCD7XRUG960G CD7-R Series 960GB 2.5" / SFF / Small Form Factor TLC / Triple Level Cell PCIe 4.0, NVMe 1.4 U.2 SSD / Solid State Drive - Brand New
Toshiba Model Number: KCD7XRUG960G
Dell Part Number: 8082N , 08082N
CD7-R Series - Data Center NVMe™ Read-Intensive SSD
MAIN SPECIFICATIONS
The CD7-R 2.5-inch form factor Series is a read-intensive data center NVMe™ SSD that is optimized to support a broad range of scale-out and cloud applications, including big data/IoT, online transaction processing, and virtualization. Built with a PCIe® 4.0 (16 GT/s x4) interface, CD7-R 2.5-inch form factor Series SSDs deliver consistent performance up to 1,100K IOPS (random read) and 180K IOPS (random write), with active power consumption of 11-19 W.
Featuring KIOXIA 96-layer BiCS FLASH™ 3D TLC memory, CD7-R 2.5-inch form factor SSDs deliver 1 DWPD (Drive Writes Per Day) of endurance and storage capacities up to 15.36 TB in a 2.5-inch form factor, making them well-suited for hyperscale data center applications
KEY FEATURES
- PCIe® 4.0, NVMe™ 1.4 specification compliant
- Form factor: 2.5-inch, 15mm Z-height
- Proprietary KIOXIA architecture: controller, firmware and 96-layer BiCS FLASH™ 3D TLC
- Single-port design, optimized for data center class workloads
- Consistent performance and reliability for demanding 24x7 environments
- Designed for high-density storage deployments
- Power loss protection (PLP) and end-to-end data correction
- Data security options: SIE [1][2][
APPLICATIONS
- Hyperscale
- IoT and Big data analytics
- Online transaction processing (OLTP) (transactional and relational databases)
- Virtualized environments
- Streaming media and content delivery networks (CDN)
Compatibility:
This drive is compatible with any server that accepts 2.5"x15mm (SFF Hard Drive) NVMe PCIe drives.
| CD7-R Series (KCD71RUG / KCD7XRUG / KCD7DRUG) | |
|---|---|
| Kioxia Model Number | KCD7XRUG960G |
| Dell Part Number | 8082N / 08082N |
| Capacity | 960GB |
| Basic Specifications | |
| Interface | PCIe® 4.0, NVMe™ 1.4 |
| Maximum Interface Speed | 64 GT/s (Gen4 x4) |
| Flash Memory Type | BiCS FLASH TLC |
| Performance in single port (x4) mode (Up to) | |
| Sustained 128 KiB Sequential Read | 6,250 MB/s |
| Sustained 128 KiB Sequential Write | 1700 MB/s |
| Sustained 4 KiB Random Read | 850K IOPS |
| Sustained 4 KiB Random Write | 53K IOPS |
| Power Requirements | |
| Supply Voltage | 12 V ± 10 %, 3.3 V ± 15 % |
| Power Consumption (Active) | 11 W typ. |
| Power Consumption (Ready) | 5 W typ. |
| Reliability | |
| MTTF | 2,500,000 hours |
| DWPD | 1 |
| Dimensions | |
| Height | 15 mm + 0, - 0.5 mm |
| Width | 69.85 ± 0.25 mm |
| Length | 100.45 mm Max |
| Weight | 150 g Max |
| Environmental | |
| Temperature (Operating) | 0 °C to 70 °C |
| Temperature (Non-operating) | -40 °C to 80 °C |
| Humidity (Operating) | 5 % to 95 % R.H. |
| Vibration (Operating) | 21.27 m/s^2 { 2.17 G } ( Peak, 5 to 800 Hz |
| Shock (Operating) | 9.8 km/s^2 { 1,000 G } ( 0.5 ms |
Click here to view the manufacturer's item description/brochure
ROHS Compliant
Alternate MPNs: SDF1B86DAB92T 8082N 08082N
Weight: 1 lb
Warranty: 1 Year DiscTech
Brand New
The product is brand new.
1 Year DiscTech Warranty
The product has a DiscTech warranty for the time period specified. View our limited warranty
