Micron Part #/MPN: MTFDDAK960TDD-1AT1ZABDB
DiscTech Item #: MIC-MTFDDAK960TDD-1AT1ZABDB-BN-OE-DEG
- Brand NewCondition Levels Explained
The product is brand new.
- Warranty:1 Year DiscTechProduct Warranties Explained
The product has a DiscTech warranty for the time period specified. View our limited warranty
- Low Stock:Call for ETAStock Levels
This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.
Enterprise Grade
Capacity: 960GB
Speed: Solid State
Interface Types: SATA
Form Factor: 2.5" x 7mm Fits All laptops
Sector Size: 512 / 512e
Sustained Throughput: 540/520
Average Seek Time: 200 µs /300µs
Electrical Interface: SATA 600 - 6Gbps
SSD Type: TLC
SSD Endurance DWPD: Enterprise Mixed Use / MU

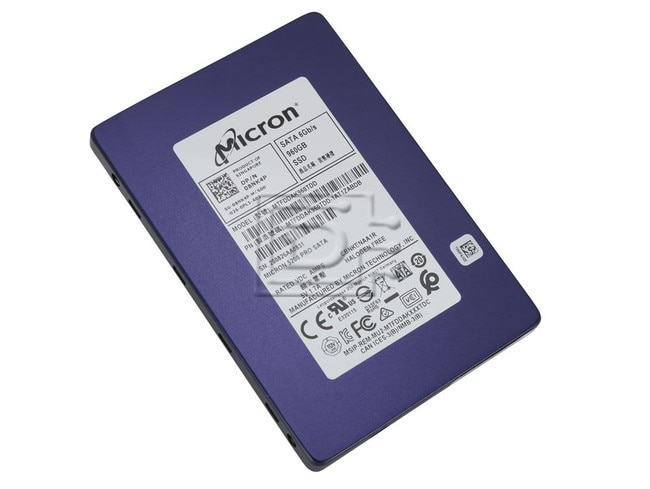

Dell 8NK4P / Micron 5200 PRO MTFDDAK960TDD-1AT1ZABDB 960GB 2.5-Inch 6Gbps eTLC Mixed-Use SATA Solid State Drive - Brand New OEM
Dell 8NK4P / Micron 5200 PRO MTFDDAK960TDD-1AT1ZABDB 960GB 2.5" 6.0 Gb/s eTLC / Enterprise Triple Level Cell RI / Mixed-Use 1.5-DWPD / Drive Writes Per Day SATA / Serial ATA SSD / Solid State Drive - Brand New OEM
Alt Model#: MTFDDAK960TDD-1AT1ZABDB
Dell PN : 8NK4P 08NK4P
The SSD is designed to use the SATA interface efficiently during both READs and WRITEs while delivering bandwidth-focused performance. SSD technology enables enhanced boot times, faster application load times, reduced power consumption and extended reliability.
The self-encrypting drive (SED) features an AES-256 encryption engine, providing hardware-based, secure data encryption, with no loss of SSD performance. This SED follows the TCG Enterprise specification for trusted peripherals. When TCG Enterprise features are not enabled, the device can perform alternate data encryption by invoking the ATA security command set encryption features, to provide full disk encryption (FDE) managed in the host system BIOS. TCG Enterprise and ATA security feature sets cannot be enabled simultaneously.
The data encryption is always running; however, encryption keys are not managed and the data is not secure until either TCG Enterprise or ATA security feature sets are enabled.
Features
- Micron® 3D TLC NAND Flash
- Three performance/endurance levels
- ECO
- PRO
- MAX
- TCG Enterprise compliant self-encrypting drive (SED)
- SATA 6 Gb/s interface
- ATA modes supported
- PIO mode 3, 4
- Multiword DMA mode 0, 1, 2
- Ultra DMA mode 0, 1, 2, 3, 4, 5, 6
- 512-byte sector size support
- Hot-plug capable
- Native command queuing support with 32-command slot support
- ATA-8 ACS-3 revision 5 command set compliant
- ATA security feature command set and password login support
- Security erase command set: fast and secure erase
- Performance (steady state)
- Sequential 128KB read: Up to 540 MB/s
- Sequential 128KB write: Up to 520 MB/s
- Random 4KB read: Up to 95,000 IOPS
- Random 4KB write: Up to 75,000 IOPS
- Quality of Service
- Read/Write (99.9%): 200µs/300µs
- Read/Write (99.999%): 1000µs/700µs
- Endurance : Total bytes written (TBW)
- Up to 17600TB
- Reliability
- MTTF: 3.0 million device hours
- Static and dynamic wear leveling
- Uncorrectable bit error rate (UBER): <1 sector per 10e17 bits read
- End-to-end data protection
- Enhanced power-loss data protection with data protection capacitor monitoring
- Self-monitoring, analysis, and reporting technology (SMART) command set
- Capacity (unformatted): 240GB, 480GB, 960GB, 1920GB, 3840GB, 7680GB
- Mechanical:
- 2.5-inch x 7.0mm form factor
- RoHS-compliant package
- Secure field-upgradeable firmware with digitally signed firmware image
- Power consumption:
- <6.0W(TYP, 5V only)
- Operating temperature
- Commercial (0°C to 70°C)
Compatibility:
This drive is compatible with servers, arrays, and data centers that accept 2.5” 7mm SATA drives
| Micron 5200 PRO | |
|---|---|
| Model Number | MTFDDAK960TDD-1AT1ZABDB |
| Technical Specification | |
| Brand | Micron |
| Manufacturer | Micron Enterprise SSD |
| Model | 5200 PRO |
| Capacity | 960GB |
| Encryption Details | Not Encrypted |
| Form Factor | 2.5in (6.4cm) |
| Sequential Read (128KB transfer) | 540 2.8W |
| Sequential Write (128KB transfer) | 520 3.4W |
| Random Read (4KB transfer) | 95,000 |
| Random Write (4KB transfer) | 32,000 |
| Random 70/30 R/W (4KB transfer) | 53,000 |
| Read latency (99.9%) | 200µs |
| Write latency (99.9%) | 300µs |
| Read latency (99.999%) | 1000µs |
| Write latency (99.999%) | 700µs |
| Drive Lifetime (Total Bytes Written) | 2270TB |
| Voltage Input | Symbol Min Max |
| Operating temperature | Min: 0°C Max: 70°C |
| Non Operating temperature | Min: -40°C Max: 85°C |
| Rate of temperature change | Max: 20°C/hour |
| Relative humidity (non-condensing) | Min: 5% Max: 95% |
| Min Operating Temperature | 32°F |
| Non-operating shock | 1500G/0.5ms |
| Non-operating vibration | 5–800Hz at 3.13 Grms |
| Uncorrectable Bit Error Rate | <1 sector per 10e17 bits |
| MTTF | 3.0 million |
| Idle Average | 1.5W |
| Flash Type | 3D eTLC |
| Dimensions (W x L x H) | 69.85mm x 100.45mm x 7.00mm |
Click here to view the manufacturer's item description/brochure
ROHS Compliant
Alternate MPNs: 8NK4P 08NK4P
