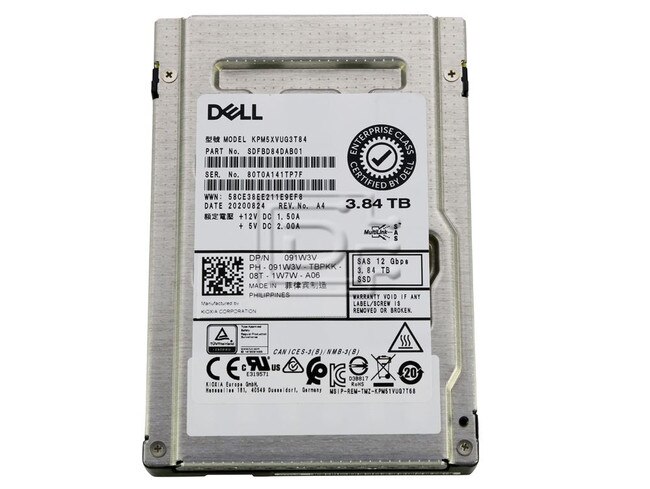

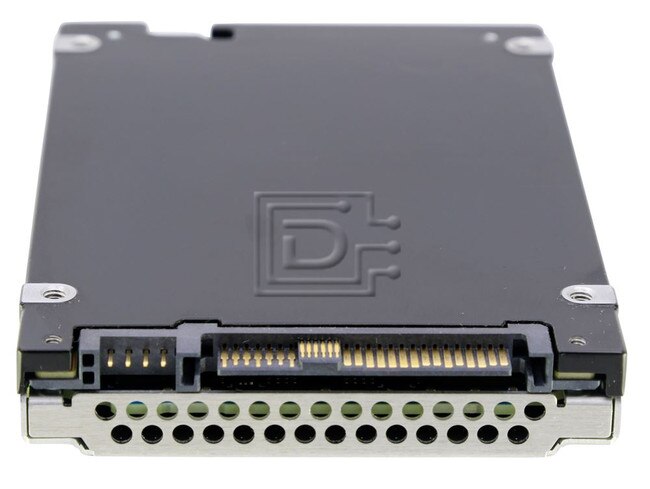

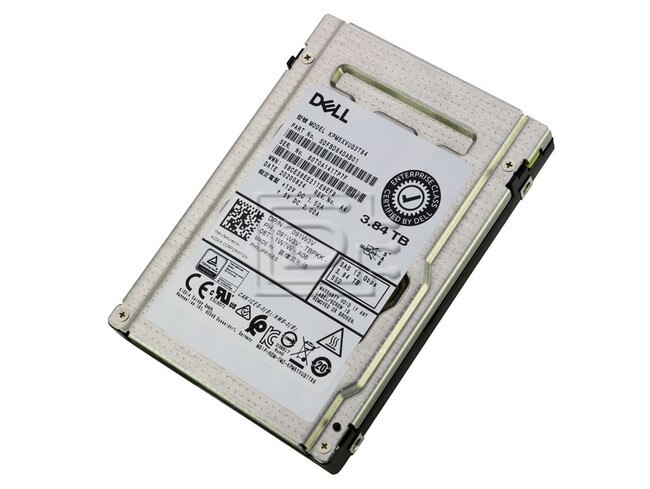

Dell 91W3V / KIOXIA Toshiba KPM5XVUG3T84 SDFBD84DAB01 3.84TB 2.5 12Gbps Mixed Use 3-DWPD SAS SSD

Toshiba Part #/MPN: KPM5XVUG3T84

DiscTech Item #: KIO-KPM5XVUG3T84-BN-OE-DEL


Enterprise Grade

Capacity: 3.84TB

Speed: Solid State Memory

Interface Types: SAS Serial Attached SCSI

Form Factor: 2.5inx15mm SFF Server Drive

Sector Size: 512 / 512e

Sustained Throughput: 2100/2100

Electrical Interface: SAS-3 Serial Attached SCSI v3 - 12.0Gbps


SSD Endurance DWPD: Enterprise Mixed Use

Compatible Systems: Dell 14th Gen. R640/R740, Dell 13th Gen. R730/T630, Dell 12th Gen. R720/T620

Dell 91W3V / KIOXIA Toshiba KPM5XVUG3T84 SDFBD84DAB01 3.84TB 2.5 12Gbps Mixed Use SAS SSD - Brand New OEM

Dell 91W3V / KIOXIA Toshiba KPM5XVUG3T84 SDFBD84DAB01 3.84TB 2.5 12Gbps Mixed Use 3-DWPD SAS SSD

PM5-V 12,0 Gbit/s enterprise SAS SSD is optimized for mixed use applications, including SQL server, media streaming, data warehousing and web services. The Series is designed to deliver balanced levels of performance, reliability, capacity and endurance for mixed use and read intensive environments.

Featuring KIOXIA Corporation’s 64-layer BiCS FLASH™ 3D memory, this 5th generation enterprise SAS SSD PM5-V offers 3 DWPD (Drive Writes Per Day) with capacities up to 6.4 TB.

Key Features

  • 12.0 Gbit/s SAS interface with single/dual port and MultiLink SAS™ support
  • Capacities from 400 GB to 6.4 TB
  • T10 Multi-Stream Write support
  • Up to 385 K random read IOPS (4 KiB) in dual port mode
  • 2.5 inch form factor, 15 mm Z-height
  • 3 DWPD with 100 % Random Write Workload
  • Power loss protection and end-to-end data protection, including T10 DIF
  • Pin-3 power disable support
  • Sanitize Instant Erase (SIE) option *Note 1,4
  • Self-Encrypting (SED) option *Note 2,4
  • Self-Encrypting (SED), FIPS 140-2 validated option

Key Applications

  • Media streaming
  • Data warehousing
  • Web servers
  • Video on demand (VOD)


This drive is compatible with any server that accepts 2.5in x 15mm (SFF) SAS drives.

Enterprise Mixed Use SSD
Basic Specifications
Power Requirements
Model NumberKPM5XVUG3T84 / 91W3V
Interface Speed12.0 Gbit/s , 6.0 Gbit/s , 3.0 Gbit/s , 1.5 Gbit/s
Formatted Capacity3.84TB
Sustained 64KiB Sequential Read2,100 MiB/s
Sustained 64KiB Sequential Write2,100 MiB/s
Sustained 4KiB Random Read370,000 IOPS
Sustained 4KiB Random Write55,000 IOPS
MTTF2,500,000 hours
Supply Voltage5 V ±7 % , 12 V ±7 %
Power Consumption (Operating)3.2W Typ.
Height15.0 mm +0 , -0.5 mm
Width69.85 ±0.25 mm
Length100.45 mm Max.
Weight130 g Max.
Temperature (Operating)0 to 55 °C
Relative Humidity ( Operating )5 to 95 % R.H.
Vibration (Operating)21.27 m/s {2.17 Grms} (100 to 800 Hz)
Shock (Operating)9.8 km/s {1,000 G} (0.5 msec)

Click here to view the manufacturer's item description/brochure

ROHS Compliant

Alternate MPNs: 91W3V 091W3V SDFBD84DAB01

Weight: 0.7 lb

Warranty: 1 Year DiscTech

Brand New

Condition Levels Explained

The product is brand new.

1 Year DiscTech Warranty

Product Warranties Explained

The product has a DiscTech warranty for the time period specified. View our limited warranty
