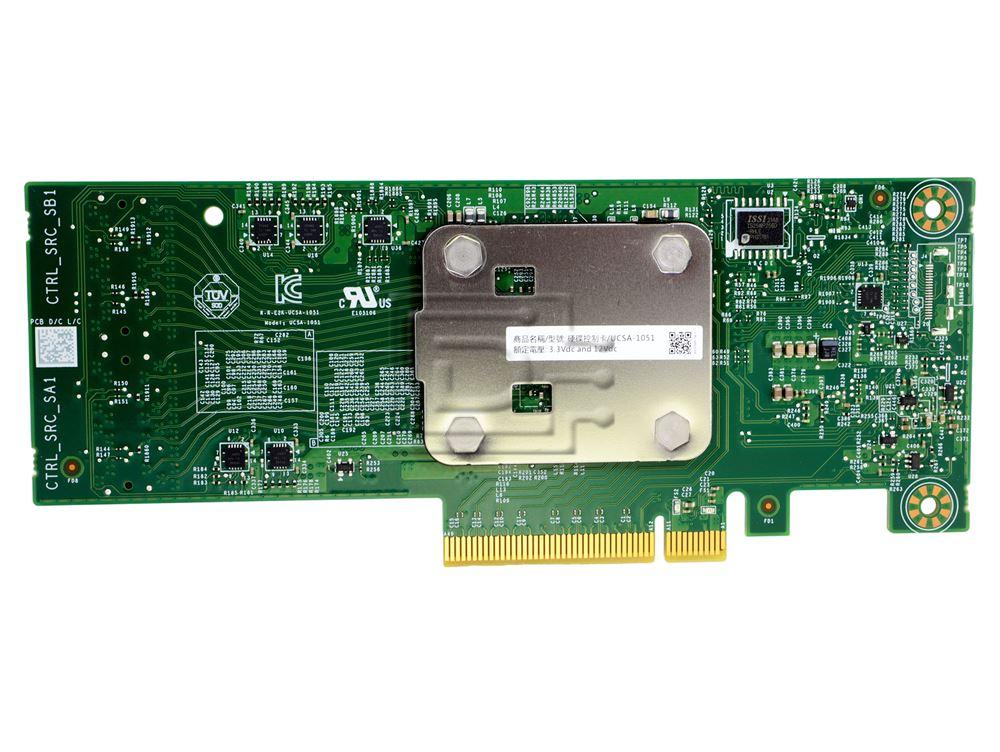

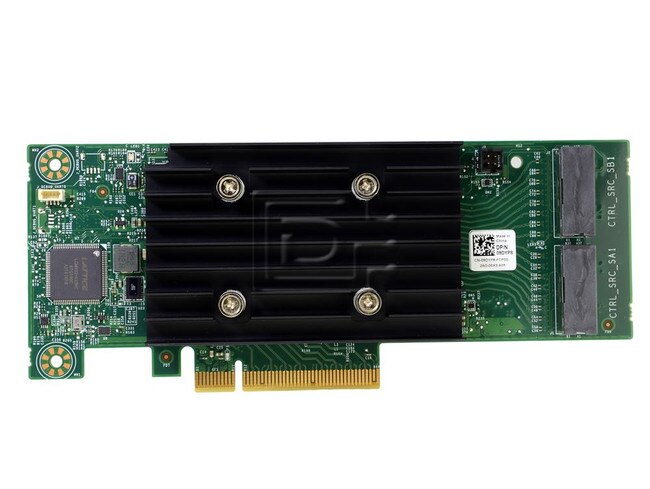

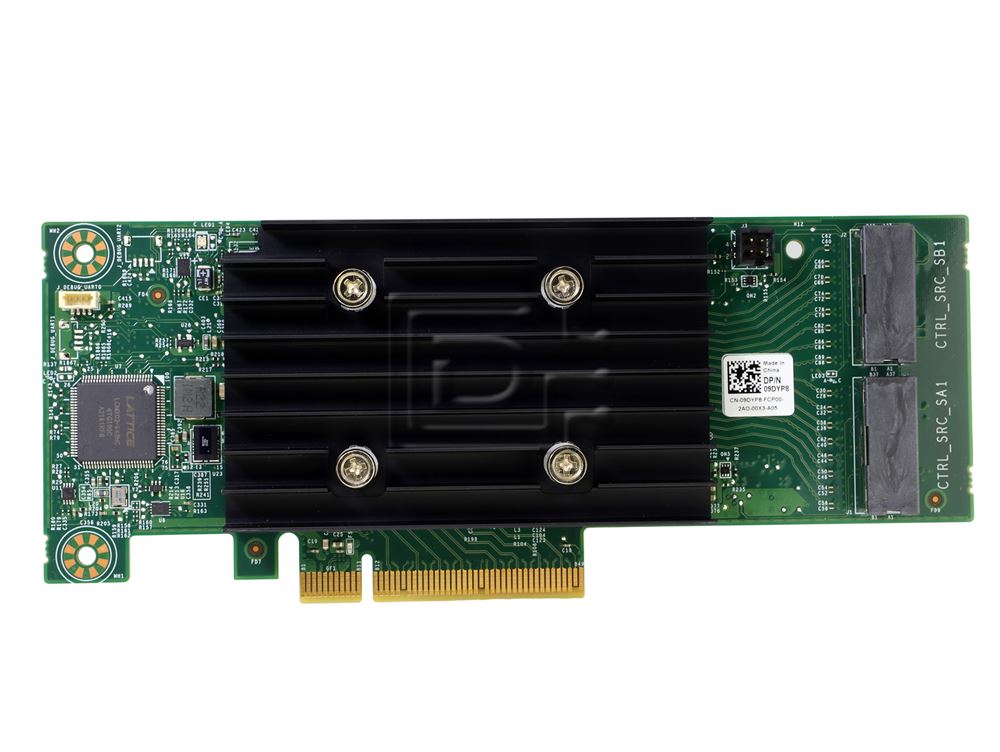

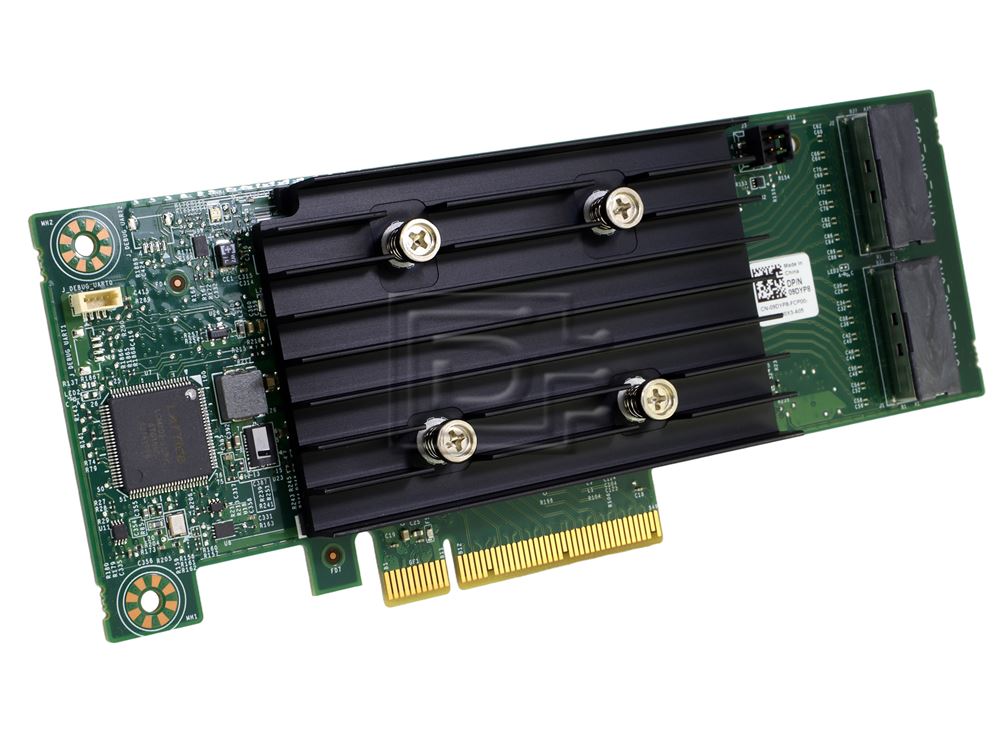

Dell 9DYP8 PERC H345 PCIe RAID Controller
- In Stock:2Need more?Stock Levels
This stock level is real time and accurate. This quantity is available for same-day shipment. Larger quantities can take up to a week to ship. Call us for larger quantities that you need urgently.
- 1 Year DiscTechWarrantyProduct Warranties Explained
The product has a DiscTech warranty for the time period specified. View our limited warranty
| Interface Types: | PCIe |
| Form Factor: | FHHL (Full-Height/Half-Length) |
| Electrical Interface: | PCIe 3.0 16GBps |
Description
Dell PERC H3452 sixteen port PCIe RAID Controller 12Gbps 9DYP8- Brand New
A sixteen-port 12Gb/s PCI Express RAID controller, the Dell EMC PowerEdge RAID Controller (PERC) H345 supports 3Gb/s, 6Gb/s and 12Gb/s SAS and 3Gb/s & 6Gb/s SATA hard-disk drives or solid-state drives.
Small to medium business owners can enjoy the latest RAID technology at affordable prices and low-power consumption with the Dell EMC PowerEdge RAID Controller (PERC) H345. Ideal for file, web, database, and email servers, the PERC H345 delivers trusted Dell EMC PERC reliability with minimal maintenance effort.
An entry-level controller card that includes essential RAID levels and support for Non-RAID (Pass-Thru) configuration options. These cards connect to SATA and SAS hard disk drives and solid-state drives, allowing for tiered storage that optimizes cost and performance. Another feature is the physical disk power management (Dimmer Switch™) technology, which manages power consumption for idle, unconfigured and configured drives. The Dell EMC entry-level RAID controllers cover the spectrum of tiered storage requirements for cost-sensitive applications that require robust data protection.
Specifications
| Specification | Feature |
| Solution Provided | Low cost, entry RAID and Non-RAID (Pass-Through) solution for high-density servers (1U or 2U) and workstations with the flexibility to use both SATA and SAS HDDs, SSDs, and pass-through drive configurations. |
| Form Factors | PCIe Adapter Card (HHHL) & Custom (Front) |
| Connectors | Adapter Card – Low Profile Slimline x8 (Defined in SFF-8654) |
| Maximum Number of Physical devices | Non-RAID (JBOD Mode): up to 32 RAID 0: 32 per volume RAID 1: 2 per volume plus hot pare RAID 10: 32 per volume |
| Host bus type | 8-lane, PCI Express 3.0 compliant |
| Data transfer rates | Up to 12Gbps per port |
| SAS controller | LSI SAS3416 |
| Key RAID data protection features | RAID levels 0, 1, 101 Selectable logical drive as boot drive Consistency check Support for TRIM/UNMAP commands for SAS/ SATA SSDs in Pass-Thru Native command queuing Staggered spin-up for SATA drives Hot-plug support Global hot-spare support Online Capacity Expansion (OCE) Online RAID Level Migration (RLM) Automatic rebuild of hot-spare drives Auto resume during array rebuild Greater than 2TB logical drive support Soft bad block management Error recovery support S.M.A.R.T. support T10-DIF Support Physical disk power management (Dimmer Switch™) 4K Native Sector Support |
| RAID management | CTRL-R Dell EMC OpenManage Storage Services PERC CLI Additional Management: UEFI (HII) CEM |
| Environments | Operating: 0°C to 65°C 5 to 90% non-condensing Storage: -45°C to 105°C 5 to 90% non-condensing |
| PCI card type | 3.3V add-in card |
| PCI voltage | +12V |
| LED indicators | ±10% Internal Activity/Fault per x16 port: Heartbeat |
| Operating Systems | Citrix XenServer Microsoft Windows Server with Hyper-V Red Hat Enterprise Linux Ubuntu Server SUSE Linux Enterprise Server VMware ESXi |
| Brackets | Full-height, low-profile |
Click here to view the manufacturer's item description/brochure
Weight: 2 lb
Warranty: 1 Year DiscTech
Condition
The product is brand new.
Warranty
1 Year DiscTech Warranty
