Dell 9X09C Toshiba MG06ACA800EY 8TB 3.5" LFF 6Gbps 7.2K RPM 512e MG06ACA Series Enterprise SIE SATA Hard Drive

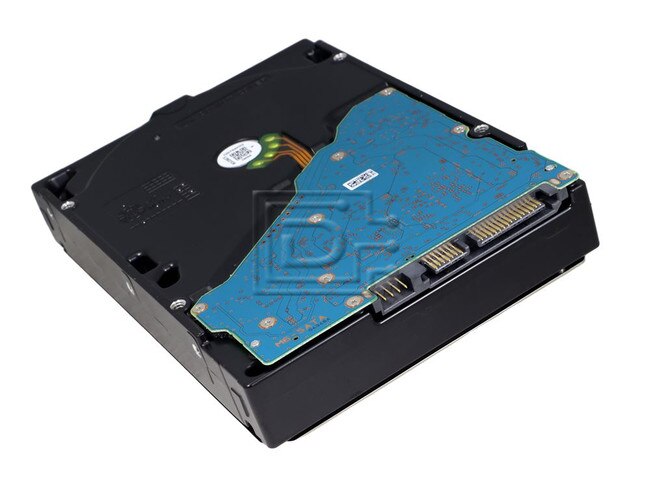

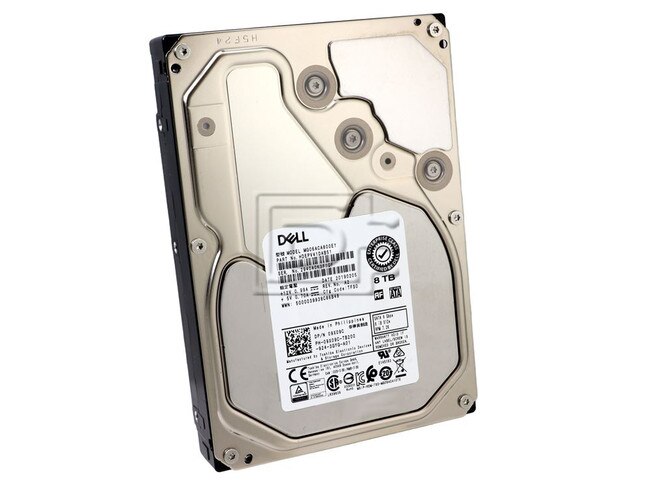

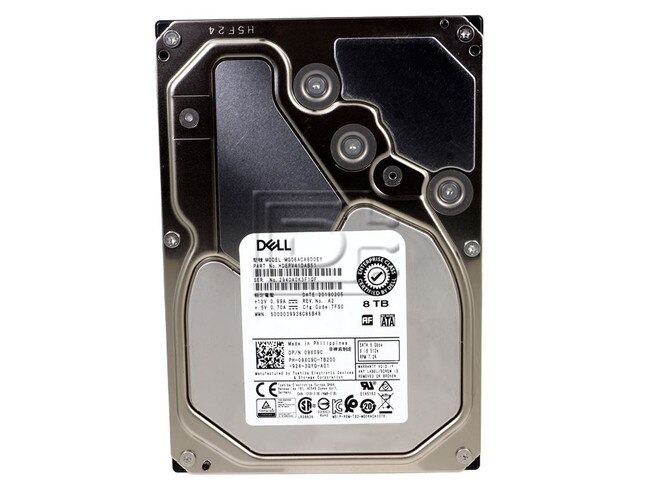

Toshiba MG06ACA800EY 09X09C 9X09C SATA Hard Drive Image 1 imageToshiba MG06ACA800EY 09X09C 9X09C SATA Hard Drive Image 2 imageToshiba MG06ACA800EY 09X09C 9X09C SATA Hard Drive Image 3 image
  • Low Stock:Call for ETA
  • 1 Year DiscTechWarranty
$349.00

Capacity:8TB
Speed:7.2K RPM
Interface Types:SATA
Form Factor:3.5" LFF Hard Drive
Electrical Interface:SATA 600 - 6Gbps
RAM:256MB
Click to see more 8TB SATA 7.2K RPM Drives

Description

Dell 9X09C Toshiba MG06ACA800EY 8TB 3.5" LFF 6Gbps 7.2K RPM 512e MG06ACA Series Enterprise SIE SATA Hard Drive - Refurbished

Dell 9X09C Toshiba MG06ACA800EY 8TB 3.5" LFF 6Gbps 7.2K RPM 512e MG06ACA Series Enterprise SIE SATA Hard Drive - Refurbished

MG06ACA Series
Enterprise Capacity HDD

The MG06ACA Enterprise Capacity HDD models provides up to 10TB of capacity and 7,200 rpm performance, in a robust design engineered for nearline business-critical workloads.

The MG06ACA model generation utilizes industry-standard 3.5-inch 26.1 mm height form factor and Advanced Format sector technologies for optimum capacity and data reliability. Models support Toshiba Persistent Write Cache technology which helps enhance performance while assuring the consistency of write operations in the event of a sudden loss of power. Equipped with SATA 6.0 Gbit/s interface, the Enterprise Capacity MG06ACA models help to save rack space and reduce the footprint and operational burden of business critical servers and storage systems.

The MG06ACA Series improves sustained transfer rate performance to 237 MiB/s and increases MTTF by 25% when compared to the prior MG05ACA series. 4Kn or 512e Advanced Format Sector Technology models are available. 4Kn sector models (MG06ACAxxxA) offer suitable performance and compatibility with the 4Kn-capable applications and operating environments. 512e sector models (MG06ACAxxxE) provide support for legacy applications and operating environments that require 512 byte sector lengths.

Key Features

  • Industry Standard 3.5-inch 26.1 mm Height Form
  • Large 10TB Capacity; plus 8TB and 6TB MG06 Series models
  • 7,200 rpm Performance
  • SATA 6.0 Gbit/s Interface
  • MTTF 2.5 M hours
  • 550 Total TB Transferred per Year Workload Rating
  • 4Kn or 512e Advanced Format Sector Technology
  • Toshiba Persistent Write Cache Technology for Data-Loss Protection in Sudden Power-Loss Events
  • Improved sustained transfer rate
  • Sanitize Instant Erase (SIE) option model available

Applications

  • Mid-line / Nearline Business Critical Workloads
  • Tier 2 Business-Critical Servers and Storage Systems
  • Workloads and Use-Cases that Benefit from High Capacity per Spindle
  • Capacity-Optimized Storage Systems
  • Cloud-scale Storage Infrastructure
  • Data Archive and Back-up Infrastructure

Compatibility

This drive is compatible with servers and arrays that accept 3.5in x 1.0in SATA drives

Specifications

Toshiba MG06
Enterprise Capacity HDD
512emulation( 512e ) , SIE Model#MG06ACA800EY
SPECIFICATIONS
Sector Size512E
Form Factor3.5-Inch
InterfaceSAS-3.0
Formatted Capacity8TB / 8,000GB
PerformanceInterface Speed
  • 6.0 Gbit/s
  • 3.0Gbit/s
  • 1.5 Gbit/s

    • Rotation Speed
  • 7,200 RPM +/- 0.1%

    • Buffer Size
  • 256 MiB

    • Data Transfer Speed (Sustained)
  • 230 MiB/s
    • Logical Data Block LenthMG06ACAxxxA
  • 4,096 B

    • MG06ACAxxxE
  • Host 512B Disk 4,096B
    • Supply VoltageAllowable Voltage
  • 12 V ± 10%
  • 5 V +10/-7%
    • Power ConsumptionRandom Read / Write
  • 9.1 W Typ

    • Active Idle (Idle-A)
  • 6.4 W Typ
    • Acoustics (Sound Power)Idle
  • 34 dB Typ
    • Environmental Limits
    TemperatureOperating
  • 5° C to 55° C

    • Non-Operating
  • -40° C to 70° C
    • HumidityOperating
  • 5 % to 90 % R.H. (No condensation)

    • Non-Operating
  • 5 % to 95 % R.H. (No condensation)
    • ShockOperating
  • 686 m/s { 70 G } ( 2 ms duration )

    • Non-Operating
  • 2,450 m/s { 300 G } ( 2 ms duration )
    • VibrationOperating
  • 7.35 m/s { 0.75 G } ( 5 to 300 Hz )
  • 2.45 m/s { 0.25 G } ( 300 to 500 Hz )

    • Non-Operating
  • 29.4 m/s { 3.0 G } ( 5- 500Hz )
    • AltitudeOperating
  • -305 m to +3,048 m { -1,000 to +10,000 feet }

    • Non-Operating
  • -305 m to +12,192 m { -1,000 to +40,000 feet }
    • Click here to view the manufacturer's item description/brochure

    ROHS Compliant

    Alternate MPNs: 09X09C 9X09C

    Weight: 1.8 lb

    Warranty: 1 Year DiscTech
