Dell / Broadcom 540-BBHB / W0N4T / YGCV4 5719 Quad Port PCI Express Ethernet Server Adapter

Dell Part #/MPN: 540-BBHB

DiscTech Item #: DEL-540-BBHB-NP-OE

  • Low Stock:Call for ETA
    Stock Levels

    This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.


Interface Types: PCIe

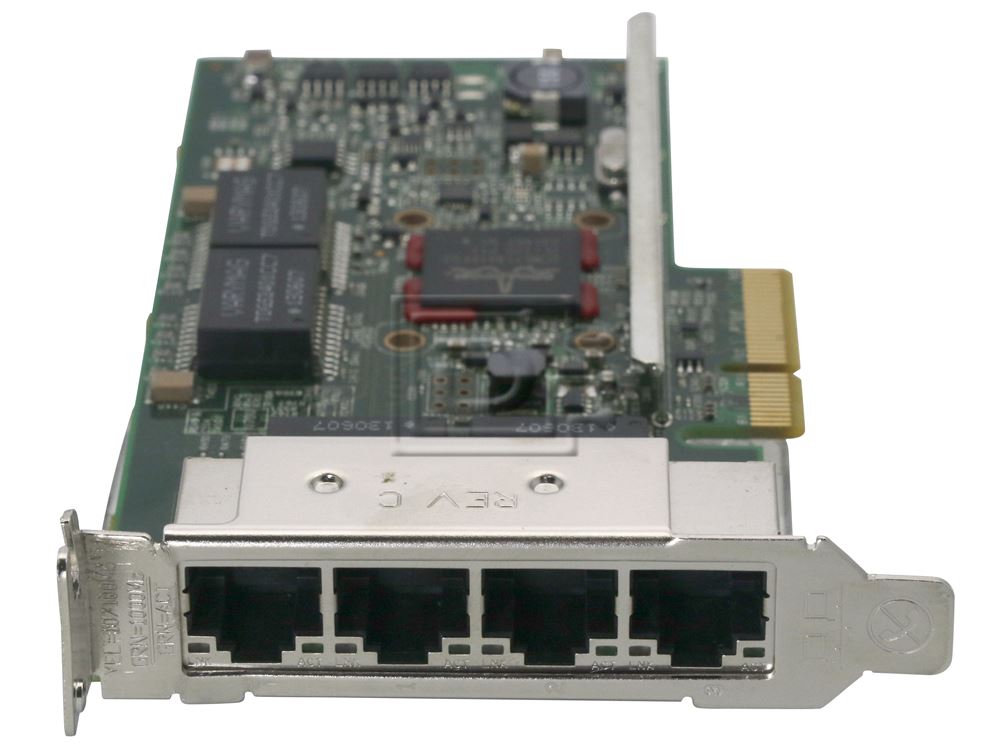

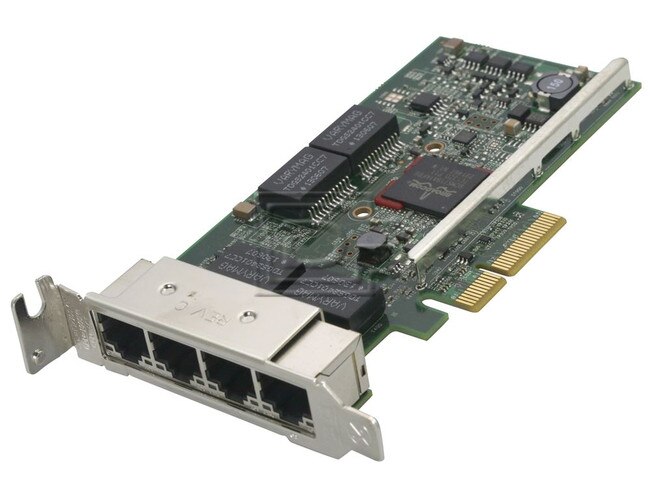

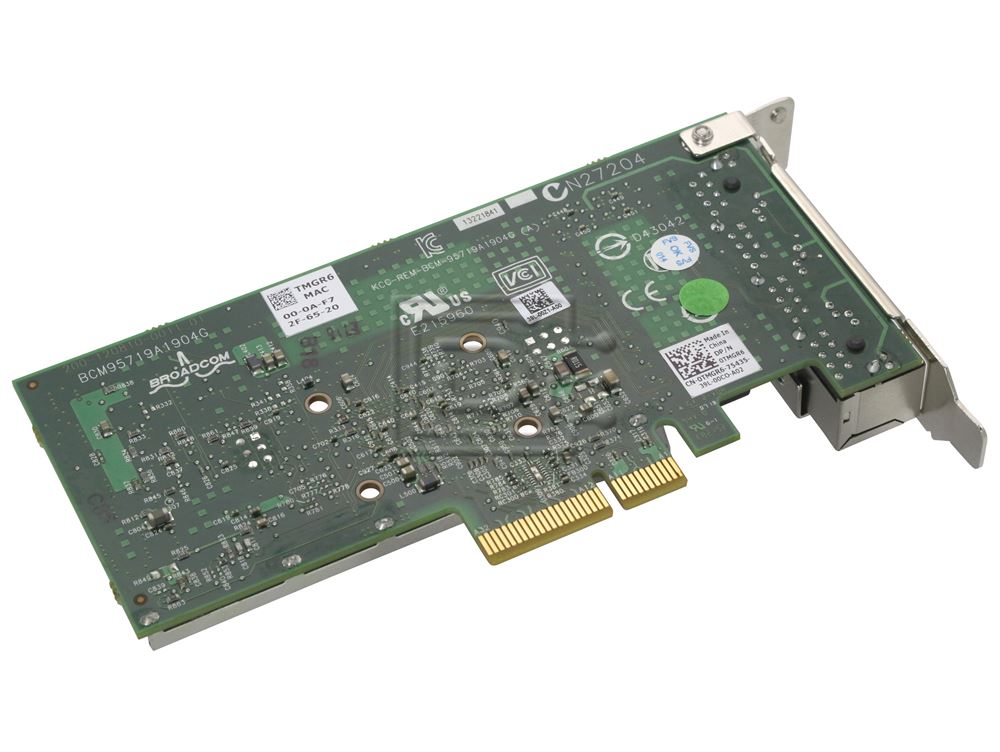

Dell / Broadcom 5719 540-BBHB / W0N4T / YGCV4 Quad Port PCI Express 10/100/1000 1Gb Low Profile Ethernet Server Adapter - New Pull

Broadcom® now offers a dual-port 1 Gb Ethernet (GbE) Network Interface Card (NIC) for Dell® PowerEdge® 12G rack and tower servers. It leverages Broadcom's long-standing industry leadership in Ethernet, providing the highest levels of performance, efficiency, and scalability for the enterprise data center

Designed for today's enterprise, the Broadcom 5719-based NIC adapter is the ideal solution for multicore servers, delivering full line-rate throughput across all ports.

Increasing application workloads are placing greater demands on enterprise networks, and the Broadcom 5719-based quad-port 1GbE NIC is the solution of choice for such environments, providing a reliable, high-performance, energy-efficient 1GbE connectivity solution.


  • Quad-port GbE NIC for Dell PowerEdge rack and tower servers
  • PCI Express® (PCIe™) v2.0
  • Precision Time Protocol (PTP)
  • Energy Efficient Ethernet (EEE)
  • Full line-rate performance across all ports
  • Broad OS and hypervisor support
  • Wake-on-LAN support
  • MSI and MSI-X support
  • IPv4 and v6 offloads
  • Stateless offload
  • TCP, UDP, and IP checksum
  • Large Send Offload (LSO)
  • TCP Segmentation Offload (TSO)
  • Receive Side Scaling (RSS)
  • Transmit Side Scaling (TSS)

Alternate Part Numbers: TMGR6 / 0TMGR6 / 0YGCV4 / YGCV4 / HY7RM / 0HY7RM


This Dell Broadcom network adapter is compatible with Dell and other  servers with an available PCI-E expansion slot.

Form factor Low profile / Low profile bracket
PCI-E x4
For tower (T620) servers
4x 10GB / 100GB / 1000GB Ethernet Ports
Data transfer rate per port 10/100/1000 Mbps

Click here to view the manufacturer's item description/brochure


Weight: 1 lb

Warranty: 1 Year DiscTech

New Pull

Condition Levels Explained

The product has been mounted in a brand new system (e.g. server), then removed from the system, before entering service. These products may have some hours of usage due to system build time / burn-in / testing etc. New Pulls are guaranteed to have at least 95% (often 99%) of their service life remaining , they may show signs of being physically mounted and dismounted. All handling is performed by trained technicians, taking full ESD precautions.

1 Year DiscTech Warranty

Product Warranties Explained

The product has a DiscTech warranty for the time period specified. View our limited warranty
