Dell Part #/MPN: 540-BBGY
DiscTech Item #: DEL-540-BBGY-NP-OE
- New PullCondition Levels Explained
The product has been mounted in a brand new system (e.g. server), then removed from the system, before entering service. These products may have some hours of usage due to system build time / burn-in / testing etc. New Pulls are guaranteed to have at least 95% (often 99%) of their service life remaining , they may show signs of being physically mounted and dismounted. All handling is performed by trained technicians, taking full ESD precautions.
- Warranty:1 Year DiscTechProduct Warranties Explained
The product has a DiscTech warranty for the time period specified. View our limited warranty
- Low Stock:Call for ETAStock Levels
This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.
Interface Types: Ethernet RJ45, PCIe
Electrical Interface: Ethernet Gigabit - 1Gbps
Compatible Systems: Dell 14th Gen. R640/R740, Dell 13th Gen. R730/T630, Dell 12th Gen. R720/T620

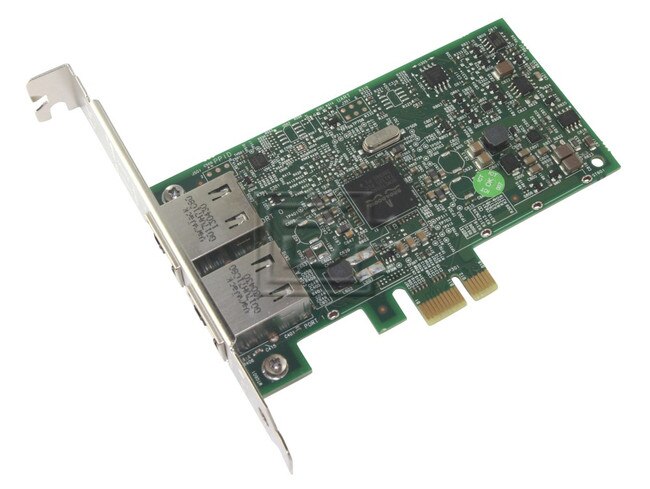

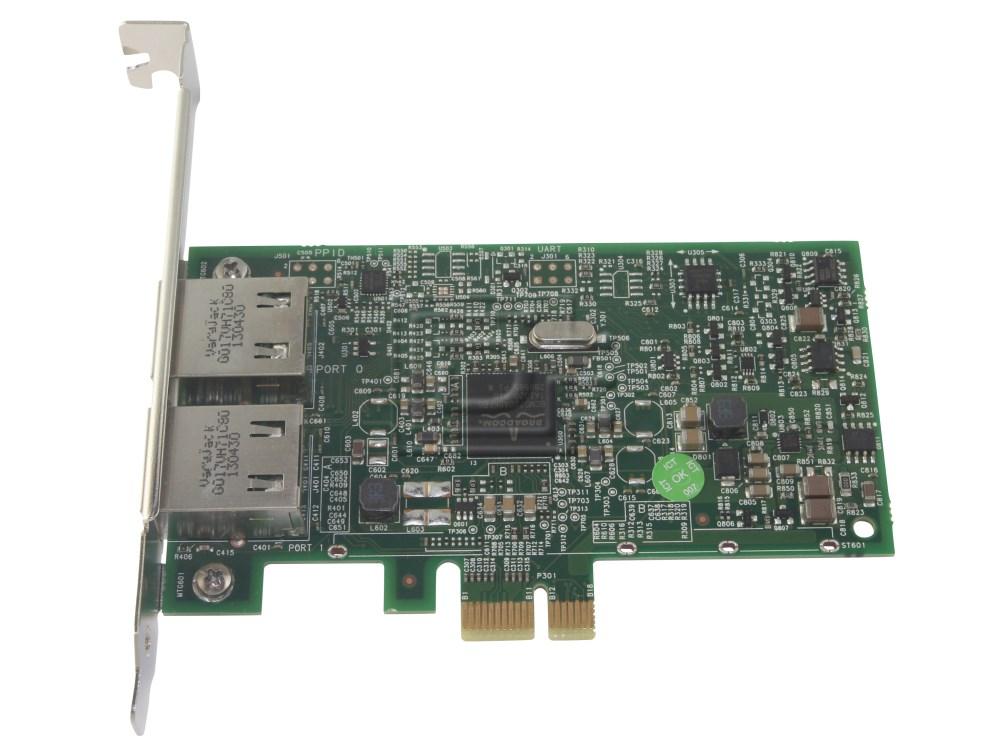

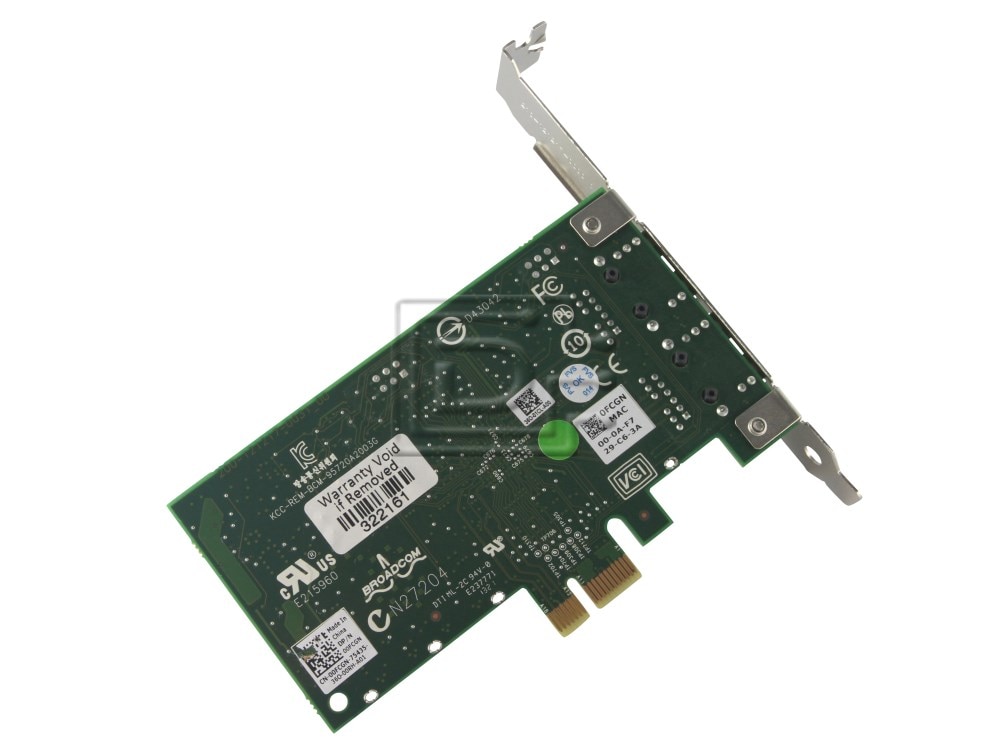

Dell / Broadcom 5720 Dual Port PCI Express 10/100/1000 1Gb Ethernet Server High Profile Adapter 540-BBGY / 430-4408 / 3N8C7 / 0FCGN - New Pull
Broadcom® now offers a dual-port 1 Gb Ethernet (GbE) Network Interface Card (NIC) for Dell® PowerEdge® 12G rack and tower servers. It leverages Broadcom's long-standing industry leadership in Ethernet, providing the highest levels of performance, efficiency, and scalability for the enterprise data center
Designed for today's enterprise, the Broadcom 5720-based NIC adapter is the ideal solution for multicore servers, delivering full line-rate throughput across all ports. The adapter utilizes Broadcom's dual-port BCM5720 integrated controller to deliver lower power consumption and Energy Efficient Ethernet™ (EEE), reducing IT operation costs.
Increasing application workloads are placing greater demands on enterprise networks, and the Broadcom 5720-based dual-port 1GbE NIC is the solution of choice for such environments, providing a reliable, high-performance, energy-efficient 1GbE connectivity solution.
Features
- Dual-port GbE NIC for Dell PowerEdge 12G rack and tower servers
- x1 PCI Express® (PCIe™) v2.0 (5 GT/s) support
- Precision Time Protocol (PTP)
- Energy Efficient Ethernet (EEE)
- Full line-rate performance across all ports
- Broad OS and hypervisor support
- iSCSI remote boot support
- Preboot eXecution Environment (PXE) support
- Support for VMware® NetQueue™ and Microsoft® VMQ
- Link aggregation and automatic load-balancing
- Wake-on-LAN support
- MSI and MSI-X support
- IPv4 and v6 offloads
- Stateless offload
- TCP, UDP, and IP checksum
- Large Send Offload (LSO)
- TCP Segmentation Offload (TSO)
- Receive Side Scaling (RSS)
- Transmit Side Scaling (TSS)
- VLAN support with VLAN tagging
- Jumbo frame support for frames larger than 1500 Bytes
- Broadcom Advanced Control Suite (BACS) management application and integration into Dell's embedded management framework (iDRAC7 and Lifecycle Controller)
Alternate Part Numbers: 430-4408 / 3N8C7 / 03N8C7 / 0FCGN / 00FCGN / 430-4423
Compatibility:
This product is compatible with the following systems, including but not limited to:
| PowerEdge R720 | PowerEdge R720XD | PowerEdge R620 | PowerEdge T620 |
| PowerEdge R820 | PowerEdge T320 | PowerEdge T420 | PowerEdge R320 |
| PowerEdge R520 | PowerEdge R420 | PowerVault NX400 | PowerVault DX6104 CSN |
| PowerVault DX6104 SCN | PowerVault DX6104 SN | PowerVault DX6112 SN | PowerEdge R220 |
| PowerEdge R920 | PowerEdge R630 | PowerEdge R730 | PowerEdge T630 |
| PowerEdge R730XD | PowerEdge R430 | PowerEdge R530 | PowerEdge T430 |
| PowerEdge R420XR | PowerEdge R930 | PowerEdge R230 | PowerEdge R330 |
| PowerEdge T330 | PowerEdge T130 | PowerEdge R730xd XL | PowerEdge R640 |
| PowerEdge R740 | PowerEdge R940 | PowerEdge R740XD | PowerEdge R440 |
| PowerEdge T640 | PowerEdge T440 | PowerEdge R540 | PowerEdge R7415 |
| PowerEdge R7425 | PowerEdge R840 | PowerEdge R940xa | PowerVault NX3240 |
| PowerEdge R240 | PowerEdge R340 | PowerEdge R740xd2 | PowerEdge T340 |
| PowerEdge T140 | PowerEdge XR2 | PowerVault NX440 |
| General |

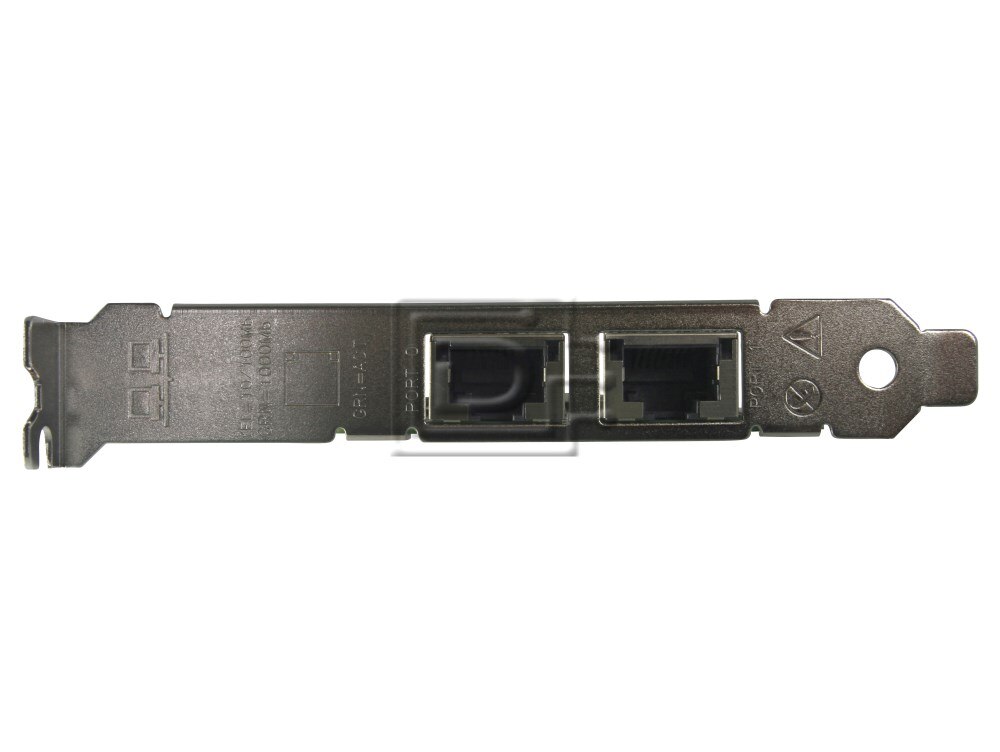

| Form factor High Profile / Full Height |
| Supported servers Dell PowerEdge 12G rack (R720, R720XD, R620) and |
| tower (T620) servers |
| Bus type x1 PCI Express 2.0 (5 GT/s) |
| Data transfer rate per port 10/100/1000 Mbps |
| MAC controller BCM5720 |
| Connector RJ-45 |
| OS Support |
| Microsoft Windows Server® 2008, 2008 R2, all editions |
| Linux Red Hat® Enterprise Linux (RHEL) 5.7/5.8, 6.1/6.2 |
| Novell® SUSE® Enterprise Server (SLES) 10 SP4, 11 SP2 |
| VMware vSphere™ 4.1 and 5.0 |
| Citrix XenServer 6.0 |
| Management |
| Broadcom BACS management application, WMI, and |
| Broadcom Management API (BMAPI) |
| Dell Embedded management framework (iDRAC and |
| Lifecycle Controller) |
| Environmental Requirements |
| Operating temperature 32°F to 131°F (0°C to 55°C) |
| Storage temperature –40°F to 149°F (–40°C to 65°C) |
| Relative humidity 5% to 95% noncondensing |
| Hardware |
| Certifications RoHS, FCC A, UL, CE, VCCI, BSMI, CTICK, KC |
| Advanced Features and Standards |
| PCI Express base specification 2.0 |
| PCI bus power management interface (rev 1.2) |
| Advanced Error Reporting (AER) |
| TCP segmentation/large send offload |
| PCI hot plug/hot swap |
| ACPI v2.0 |
| SMBus 2.0 |
| IEEE 1588—Precision Time Protocol (PTP)-ready |
| IEEE 802.1q—Virtual LAN (VLAN) support—VLAN tagging support |
| IEEE 802.3x—Flow control |
| IEEE 802.3z (Clause 30)—Statistics for SNMP MIB II, Ethernet-like and Ethernet MIB |
| IEEE 802.3az—Energy Efficient Ethernet |
| IPv4 and IPv6 offload |
| Teaming support |
| MSI-X supports independent queues |
Click here to view the manufacturer's item description/brochure
Alternate MPNs: 430-4408 3N8C7 03N8C7 0FCGN 00FCGN 430-4423
Weight: 2 lb
