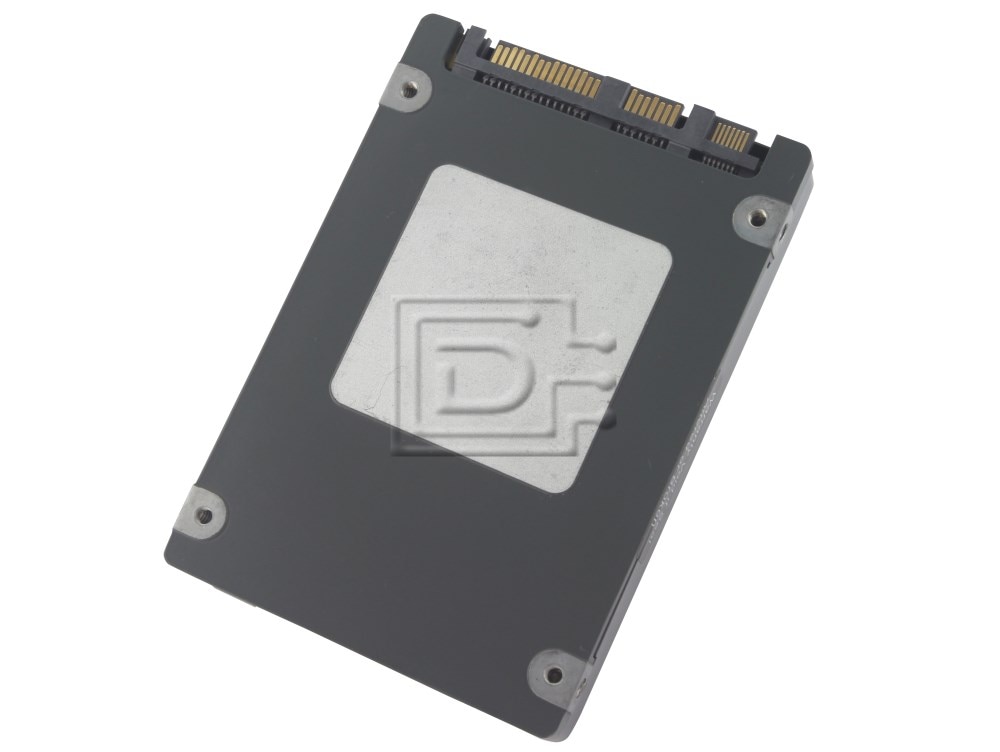

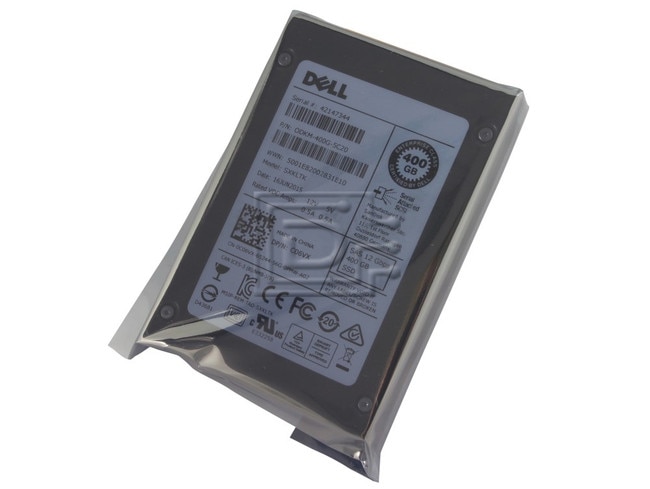

Dell C06VX SanDisk SDLTODKM-400G-5C20 400GB eMLC SAS SSD
| Capacity: | 400GB |
| Speed: | Solid State |
| Interface Types: | SAS |
| Form Factor: | 2.5" SFF Server Drive |
| SSD Endurance DWPD: | Enterprise Mixed Use / MU |
| Electrical Interface: | SAS-3 12Gbps |
Description
Dell C06VX SanDisk Lightning Gen II Ascend SXKLTK / SDLTODKM-400G-5C20 / 400GB 2.5" 12Gbps eMLC SAS SSD - Refurbished OEM
Alt MPNs: C06VX, 0C06VX, SDLTODKM-400G-5CA1
Lightning® Gen. II
The new Lightning® Gen. II product family of 12Gb/s SAS SSDs doubles interface speed providing the highest performance for mission-critical hyperscale, cloud and virtualized data center application workloads. This next generation of Lightning SSDs offer capacities ranging from 200GB – 1.6TB with random read/write performance up to 190K/100K and sequential read/write speeds of up to 1000/600 MB/s. These SSDs utilize the latest 19nm SLC and eMLC NAND flash technology combined with an innovative parallel processing architecture to deliver industry-leading, predictable performance, superior reliability and maximum value.
Lightning Ascend™ Gen. II SAS SSDs
Lightning Ascend™ Gen. II SAS SSDs offer superior reliability with high speed data transfer rates where quick access to data is essential. Available in 19nm eMLC capacities from 200GB – 1.6TB and with random read/write performance of up to 190K/80K IOPS and sequential read/write speed of up to 1000/600 MB/s. These SSDs are designed for mixed-use applications such as On-line Transaction Processing (OLTP) Databases, Email/Messaging, E-Commerce, Virtual Desktop Infrastructure, and Collaboration, with a typical workload comprised of a 70/30 read/write mix. This SSD offers 10 full drive writes per day (DWPD).
Compatibility:
This drive is compatible with any server that accepts 2.5"x15mm (SFF) SAS drives.
Specifications
| Specifications | |
|---|---|
| Model Number | SDLTODKM-400G-5C20 |
| Alternate Part Numbers | SXKLTK SDLTODKM-400G-5CA1 C06VX 0C06VX |
| Capacity | 400GB |
| Performance | |
| Interface | 12Gb/s SAS |
| Interface Ports | Dual full-duplex |
| Sequential Read/Write (MB/s) | Up to 1000/600 |
| Random Read/Write (IOPS) (4KB-single port) | Up to 190K/80K |
| Reliability | |
| Sector Sizes | 520 byte |
| Data Reliability (UBER) | <1 sector in 1017 bits read |
| MTBF | 2.5 Million Hours |
| Endurance | |
| DWPD (Random Read) | 10 DWPD |
| Power | |
| Idle | 3.9W |
| Active (Typ) | 5.9W |
| Environmental | |
| Shock | 1000 g half-sine, 0.5 msec, 3 shocks along each axis, X, Y, Z, in each direction |
| Vibration | 2.17 g rms, 7-800 Hz |
| Operating Temperature | 0° C to 60° C |
| Storage Temperature | -40° C to 85° C |
| Humidity | 5% to 95%, non-condensing, relative humidity |
| Altitude | 5486.4 m [18,000 ft] |
| Mechanical | |
| Length | 100.45 mm |
| Width | 70.1 mm |
| Height | 15.0 mm |
| Weight | 0.238 Kg |
Click here to view the manufacturer's item description/brochure
ROHS Compliant
Alternate MPNs: SXKLTK C06VX 0C06VX SDLTODKM-400G-5CA1
Weight: 1 lb
Warranty: 1 Year DiscTech
Condition
Refurbished
Warranty
1 Year DiscTech Warranty
