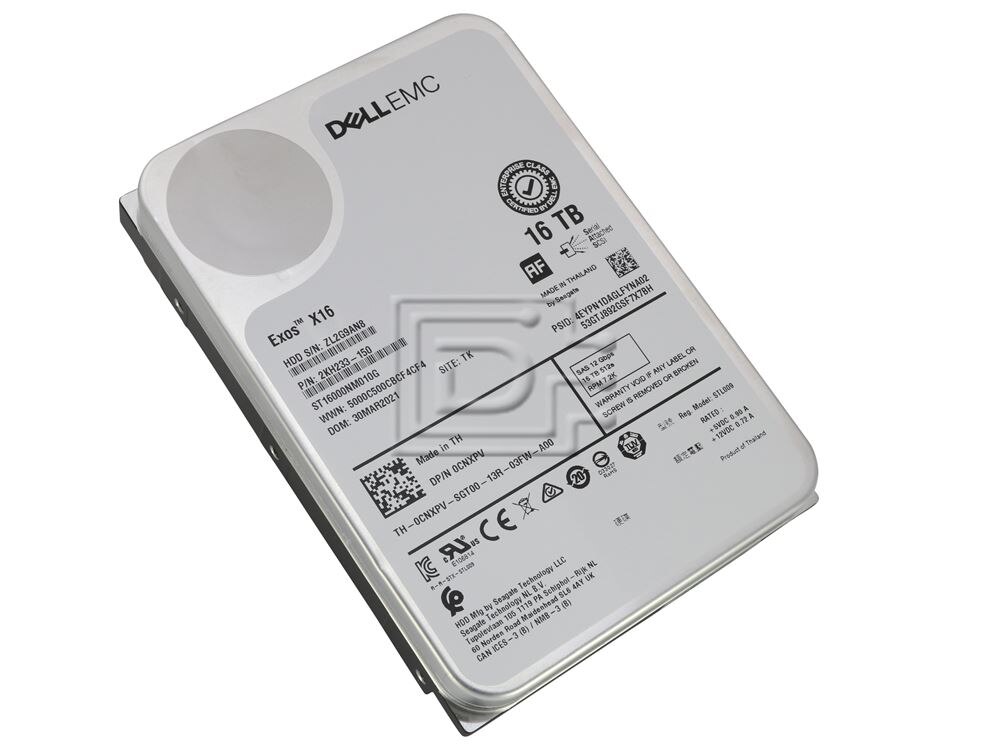

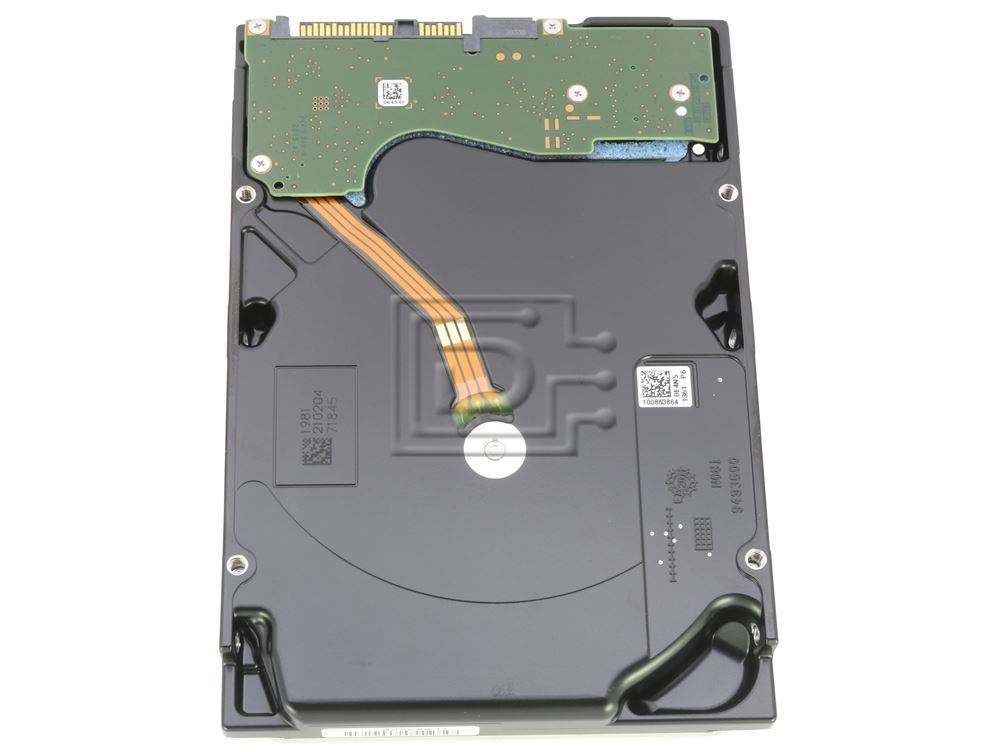

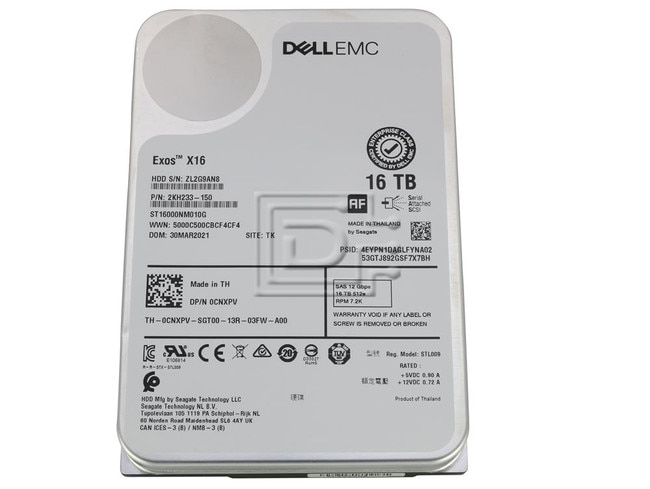

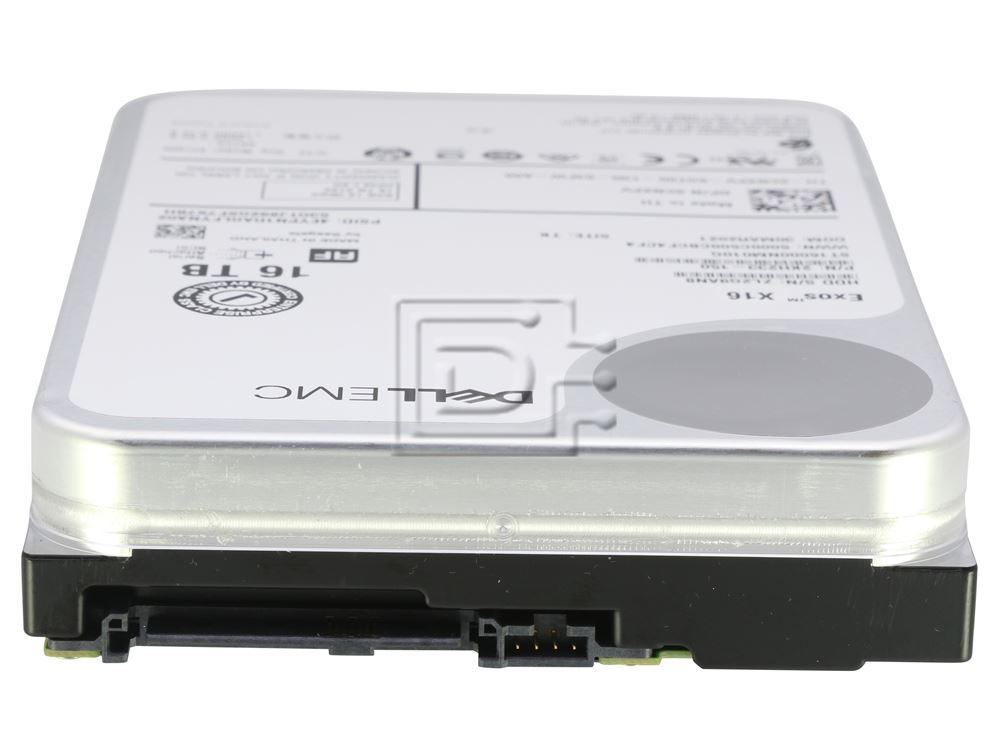

Dell 16TB SAS CNXPV / Seagate Exos X16 ST16000NM010G 16TB 3.5" LFF 7.2K RPM 512e ISE Enterprise 12Gbps Hard Drive ME4 / ME5

Seagate ST16000NM010G CNXPV 0CNXPV 2KH233-150 JGXRK 0JGXRK Dell 16TB SAS Hard Drive ME4 / ME5 Image 1 image
  • Brand New
    Condition Levels Explained

    The product is brand new.

  • Low Stock:Call for ETA
    Stock Levels

    This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.

  • 1 Year DiscTechWarranty
    Product Warranties Explained

    The product has a DiscTech warranty for the time period specified. View our limited warranty

$399.00

Capacity:16TB
Speed:7.2K RPM
Interface Types:SAS
Form Factor:3.5" LFF Hard Drive
Electrical Interface:SAS-3 12Gbps
RAM:256MB

Description

Dell CNXPV / JGXRK Seagate Exos X16 ST16000NM010G 16TB 3.5" LFF 7.2K RPM 512e ISE Enterprise 12Gbps SAS Hard Drive ME4 ME5 - Brand New OEM

Seagate manufactures hard drives that specifically address the needs of the hyperscale storage market. As the flagship of the Seagate® X class, the Exos® X16 enterprise hard drives are the highest-capacity hard drives in the fleet.

Maximum Storage Capacity for Highest Rack Space Efficiency

  • 16TB per drive for 40% more petabytes per rack
  • Industry's lowest power and weight for optimum data center TCO
  • Highest 16TB hard drive performance with enhanced caching, making it perfect for big data applications
  • PowerBalance feature optimizes IOPS/Watt
  • Helium sealed-drive design with no porosity and uniform density
  • Superior material and weld-width design for a more robust, hermetically sealed-drive enclosure that protects from helium leaks
  • Digital environmental sensors for measuring internal pressure, helping to ensure high reliability, performance, and quality
  • Latest hermetic interconnect technology supporting higher data rate heads and higher pin counts for extreme thermal conditions
  • Proven enterprise-class reliability/

Best-Fit Applications

  • Hyperscale applications/cloud data centers
  • Massive scale-out data centers
  • Big data applications
  • High-capacity density RAID storage
  • Mainstream enterprise external storage arrays
  • Distributed file systems, including Hadoop and Ceph
  • Enterprise backup and restore— D2D, virtual tape
  • Centralized surveillance

DPN: CNXPV / 0CNXPV

Alt Part# 2KH233-150

Compatibility:

This drive is designed to work in the Dell ME4 and ME5 series arrays. This includes the ME4012, ME4024, ME4084, ME5012, ME5024, ME5084, ME412, ME424, ME484. It will also work in the Dell PowerEdge and PowerVault systems.

Specifications

Exos Enterprise X16
Model FastFormat (512e/4Kn)ST16000NM010G
Alternate Model NumberCNXPV / JGXRK
Interface12Gb/s SAS
Capacity16TB / 16000GB
Features
Helium Sealed-Drive DesignYes
Protection Information (T10 DIF)Yes
SuperParityYes
Low HalogenYes
PowerChoice TechnologyYes
PowerBalance TechnologyYes
Hot-Plug SupportYes
Cache, Multisegmented (MB)256
Organic Solderability PreservativeYes
RSA 2048 Firmware VerificationYes
Reliability/Data Integrity
Mean Time Between Failures (MTBF, hours)2,500,000
Reliability Rating @ Full 24×7 Operation (AFR)0.35%
Nonrecoverable Read Errors per Bits Read1 Sector per 1015
Power-On Hours per Year (24×7)8760
512e Sector Size (Bytes per Sector)
  • 512
  • 520
  • 528
4Kn Sector Size (Bytes per Sector)
  • 4096
  • 4160
  • 4224
Performance
Spindle Speed (RPM)7200
Interface Access Speed (Gb/s)
  • 12.0
  • 6.0
  • 3.0
Max Sustainable Transfer Rate
  • 261
  • 249
Random Read/Write 4K QD03 WCD (IOPS)170/440
Average Latency (ms)4.16
Interface PortsDual
Rotational Vibration @ 20-1500Hz (rad/sec)12.5
Power Consumption
Idle A (W) Average
  • 5.0W
Max Operating, Random Read/Write 4K/16Q (W)
  • 10.2
  • 6.2
Power Supply Requirements+12 V and +5 V
Evrironmental/Temperature
Temperature, Operating (°C)5°C - 60°C
Vibration, Nonoperating: 2 to 500Hz (Grms)2.27
Shock, Operating Read/Write (Gs)70/40Gs
Shock, Nonoperating, 1ms/2ms (Gs)200
Physical
Height (in/mm, max)1.028in/26.1mm
Weight (in/mm, max)4.010in/101.85mm
Depth (in/mm, max)5.787in/147.0mm
Weigt (g/lb)670g/1.47lb
Click here to view the manufacturer's item description/brochure

ROHS Compliant

Alternate MPNs: CNXPV 0CNXPV 2KH233-150 JGXRK 0JGXRK

Weight: 1.8 lb

Warranty: 1 Year DiscTech

Condition

Brand New

Warranty

1 Year DiscTech Warranty
