Dell CSA J23 / J23CCloud Storage Array

Dell Part #/MPN: J23

DiscTech Item #: DEL-J23-UP-OE


Interface Types: SAS Serial Attached SCSI, SATA, SFF-8088

Form Factor: 3.5inx1.0in LFF Hard Drive

Electrical Interface: SAS-2 Serial Attached SCSI v2 - 6.0Gbps

Bays/Ports/Slots: 23

U Height: 2U

Wattage/VA: 550W

Dell CSA J23 / J23C Cloud Storage Array SAS / SATA 2U - 23 Bays with trays - Used Pull

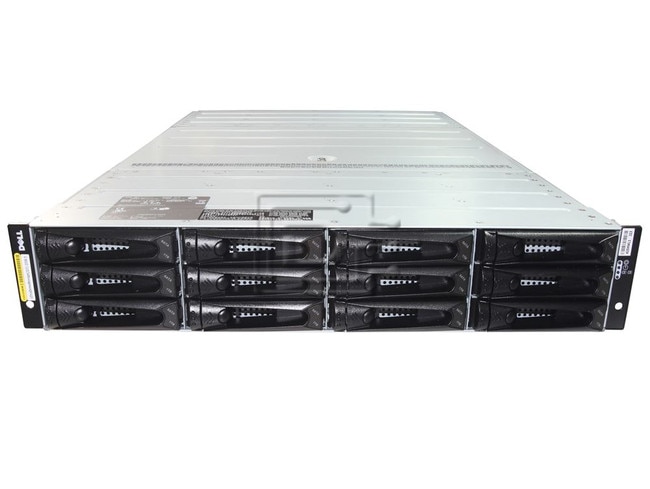

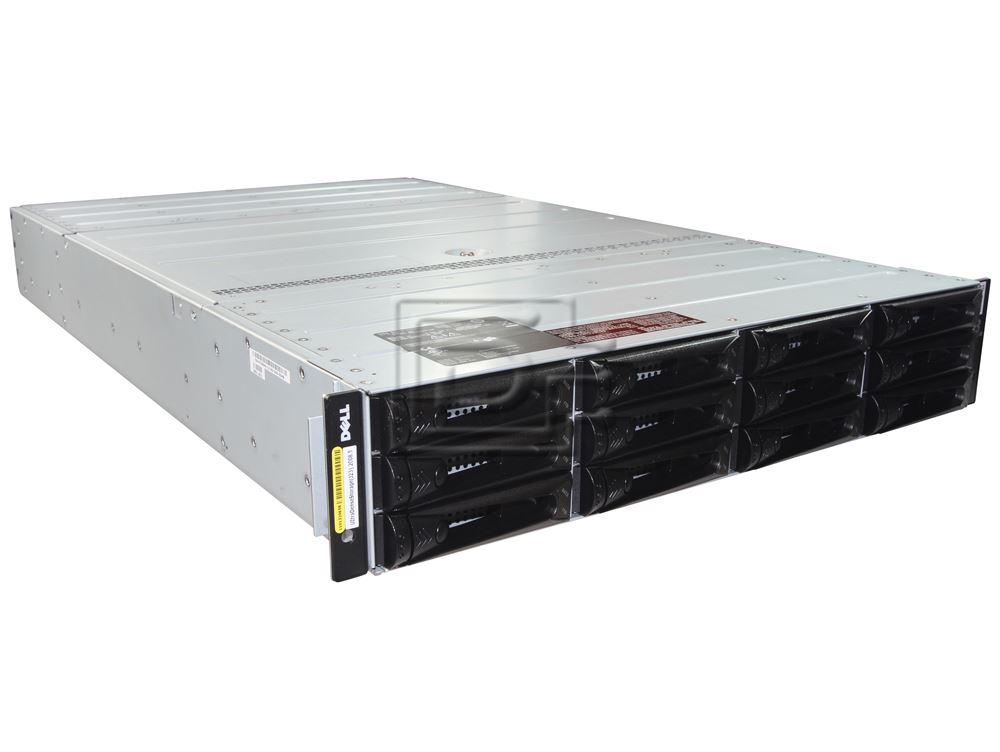

DELL PowerVault CSA Model J23 (Cloud Storage Array) is a 2U Rackmount 23-drive JBOD direct attached SAS storage array.  The Dell J23 / J23C is compatible with any server with an available external SAS RAID port (PERC 6/E or H800 - not included).

This DELL CSA was developed for cloud server data center environments to minimize rack space and power demands while maximizing density & capacity.  The Dell CSA is an ideal solution for an economical, low-power consumption, high-density disk-based backup Up-to four (4) 2U DELL CSA units can be "daisy-chained" together from a single Dual Port SAS RAID HBA, offering the market's highest-available storage density of an astonishing 368-Terabytes in an 8U / 10U rack space.

Alt Pt# J23C / T084N

Dell CSA Specifications

Dell Model - Cloud Storage CSA

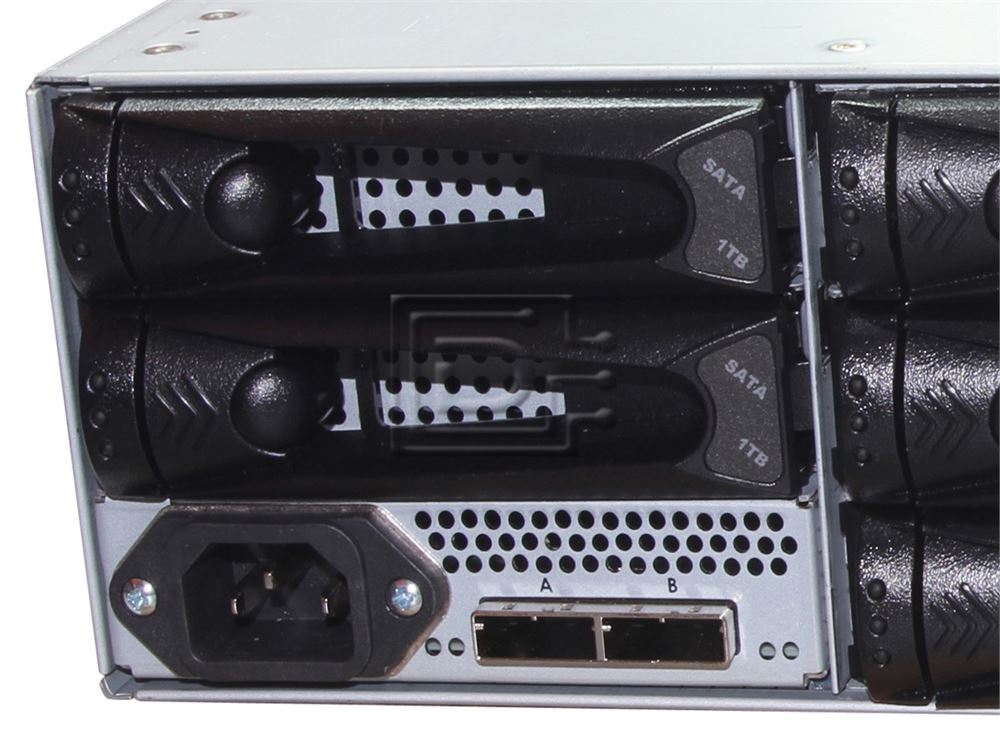

Drive Bays - 23x 3.5" SAS or SATA (12 front, 11 rear) up to 4TB per disk

JBOD Max Native Capacity - 92 Terabytes

Interface - 3 / 6 Gbps SAS

Backplane - 23x SAS 3.5-Inch (12 front, 11 Rear)

Form Factor - 2U Rackmount

Modules - 2-Channel SAS SFF-8088 (Non Hot Swap)

Power - 550W Non-Redundant

Recommended Controller -  Dell Perc 6/e , H800

23 x FX921 SAS SATA hot swap caddys included.

Rack Rails Not Included

Alternate MPNs: T084N J23C

Weight: 80 lb

Warranty: 1 Year DiscTech

Used Pull
