Dell Compellent 0YX78 / 0JKYYN 480GB 12Gbps SAS RI Enterprise Plus SSD

Dell Equallogic Compellent Part #/MPN: 0YX78

DiscTech Item #: DEC-0YX78-BN-OE


Enterprise Grade

Capacity: 480GB

Speed: Solid State Memory

Interface Types: SAS Serial Attached SCSI

Form Factor: 3.5inx1.0in LFF Hard Drive

Sector Size: 512 / 512e

Electrical Interface: SAS-3 Serial Attached SCSI v3 - 12.0Gbps


SSD Endurance DWPD: Enterprise Read Intensive

Compatible Systems: Dell Compellent SCv2000 SCv2020 SC200 SC120 SC100

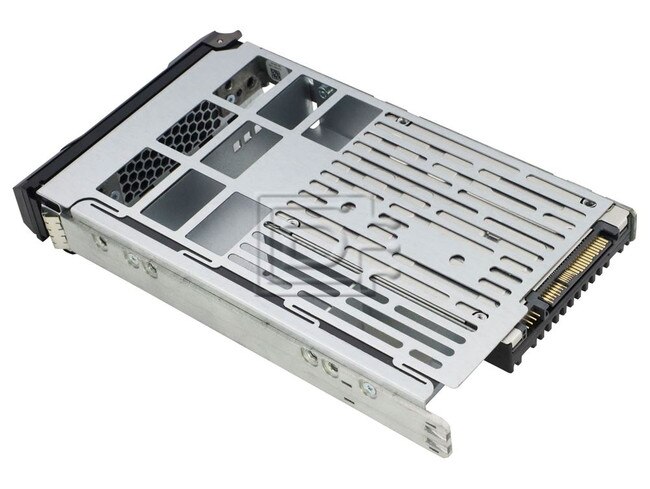

Dell Compellent 0YX78 / 00YX78 / 0JKYYN / JKYYN 480GB 12Gbps 3.5in LFF RI SAS Enterprise Plus SSD with 72CWN tray and Y004G bracket - Brand New

Dell Compellent 0YX78 / 00YX78 / 0JKYYN / JKYYN / Samsung PM1633a Series MZ-ILS480B / MZILS480HEGR-000D4 480GB 12Gbps 3.5in LFF RI / Read Intensive SAS Enterprise Plus SSD / Solid State Drive with 72CWN tray and Y004G bracket - Brand New

  • Ultra-High Capacity SAS SSD
  • High Speed with Low Latency
  • Reliable Storage, 24/7 Operation
  • Top Solution for Diverse Applications
  • Best Solution for Heavy Demands


PM1633a 2.5” SAS SSD Samsung PM1633a solid-state drive offers up to 1,000 times the performance of 15K RPM hard disk drives at a comparable cost per gigabyte.

Samsung PM1633a SAS SSD delivers:

Consistently High Performance – Up to 1,000 times the performance of the fastest 15K RPM hard drives, the Samsung PM1633a SAS SSD provides enterprise IT administrators performance to spare. An optimized Samsung native SAS 3.0 controller supplies the drive with 12 Gb/s of bandwidth and provides enterprises the performance margin to prevent costly and disruptive application support tickets. Exceptional Value – The same low cost per gigabyte as slower SAS HDDs. By utilizing Samsung state-of-the-art 3D V-NAND flash memory, cost effective TLC flash memory can address high-end enterprise applications, outperforming older planar MLC flash memory, and providing solid state performance and reliability at hard drive cost. With no moving parts, the PM1633a SAS SSD delivers over 10 times the reliability of spinning disks, reducing the administrative cost overhead associated with drive replacement. Breakthrough Storage Density – Capacities up to 16TB in a 2.5” small form factor (SFF) drive. With 60% higher capacity per drive, and a smaller 2.5” form factor, up to 384TB can be stored in a 2U server. This breakthrough in storage density more than triples the density available with high capacity HDDs, using an industry standard form factor, and without sacrificing enterprise reliability, availability, and serviceability (RAS). DP/N: 8Y64H 08Y64H

Compatibility: This 3.5" SAS / SATA caddy is compatible with the following Dell SC Compellent systems supporting 3.5" hot swappable disks:

F/F3.5 inch
Seq. Read1250 MB/s
Ran. Read200 KIOPS
InterfaceSAS 12.0 Gbps
Capacity480 GB
Seq. Write600 MB/s
Ran. Write20 KIOPS

Alternate MPNs: 00YX78 0JKYYN JKYYN

Weight: 1 lb

Warranty: 1 Year DiscTech

Brand New

Condition Levels Explained

The product is brand new.

1 Year DiscTech Warranty

Product Warranties Explained

The product has a DiscTech warranty for the time period specified. View our limited warranty
