Dell Equallogic Compellent Part #/MPN: 2XNHV
DiscTech Item #: DEC-2XNHV-BN-OE
- Brand NewCondition Levels Explained
The product is brand new.
- Warranty:1 Year DiscTechProduct Warranties Explained
The product has a DiscTech warranty for the time period specified. View our limited warranty
- In Stock:51Need more?Stock Levels
This stock level is real time and accurate. This quantity is available for same-day shipment. Larger quantities can take up to a week to ship. Call us for larger quantities that you need urgently.
Enterprise Grade
Capacity: 600GB
Speed: 10,000RPM
Interface Types: SAS Serial Attached SCSI
Form Factor: 2.5inx15mm SFF Server Drive
Sector Size: 512 / 512e
Sustained Throughput: 215 to 108
Average Seek Time: 2.9
Electrical Interface: SAS-3 Serial Attached SCSI v3 - 12.0Gbps
On-Board Cache: 128MB

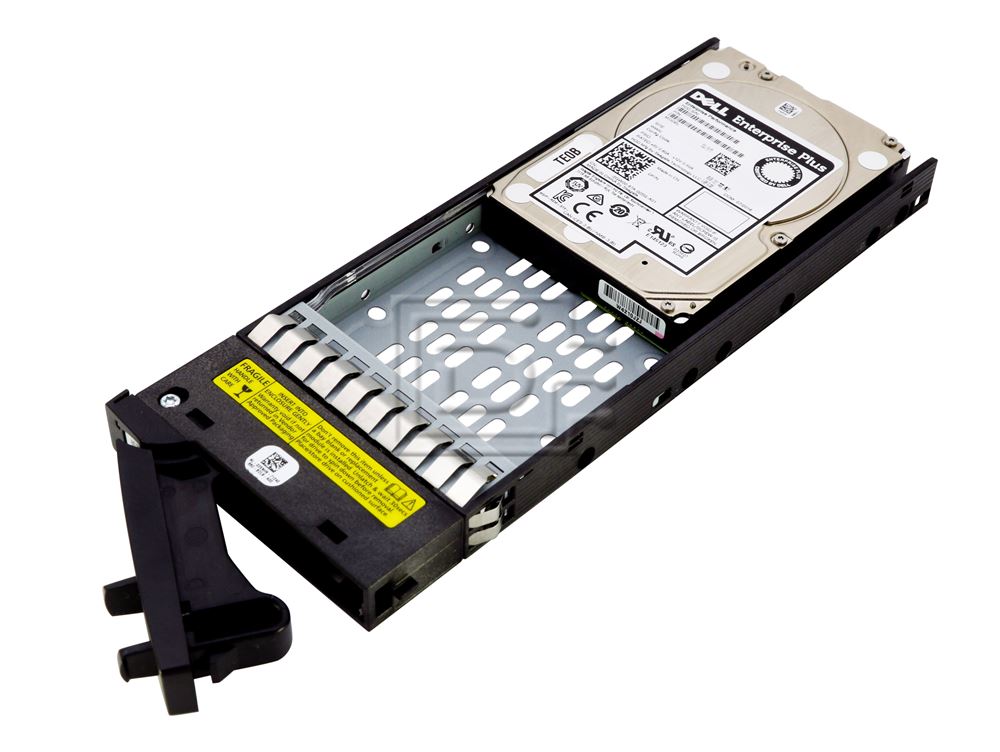

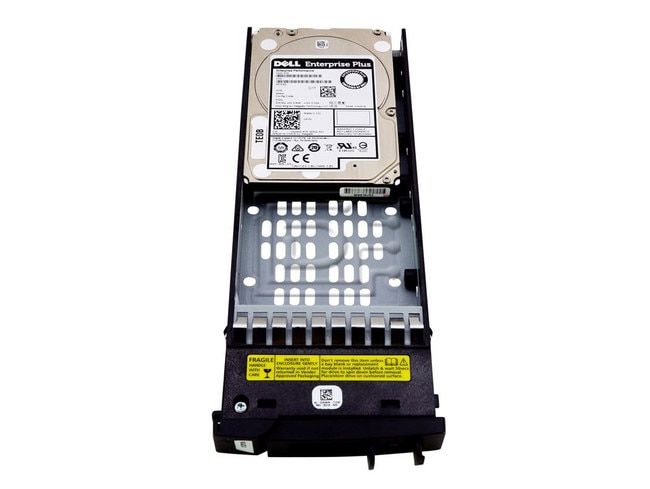

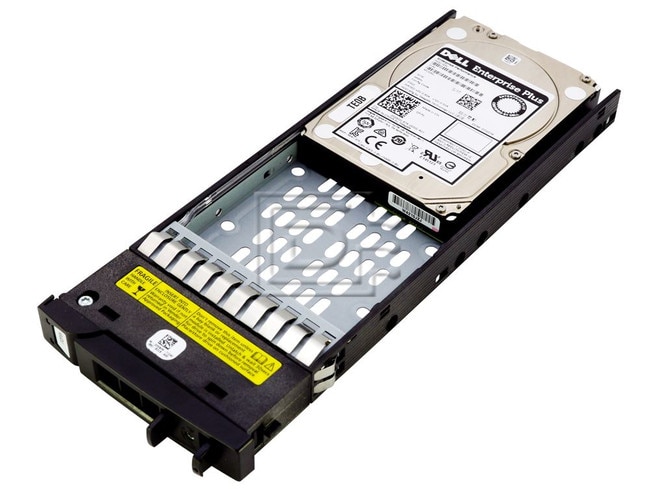

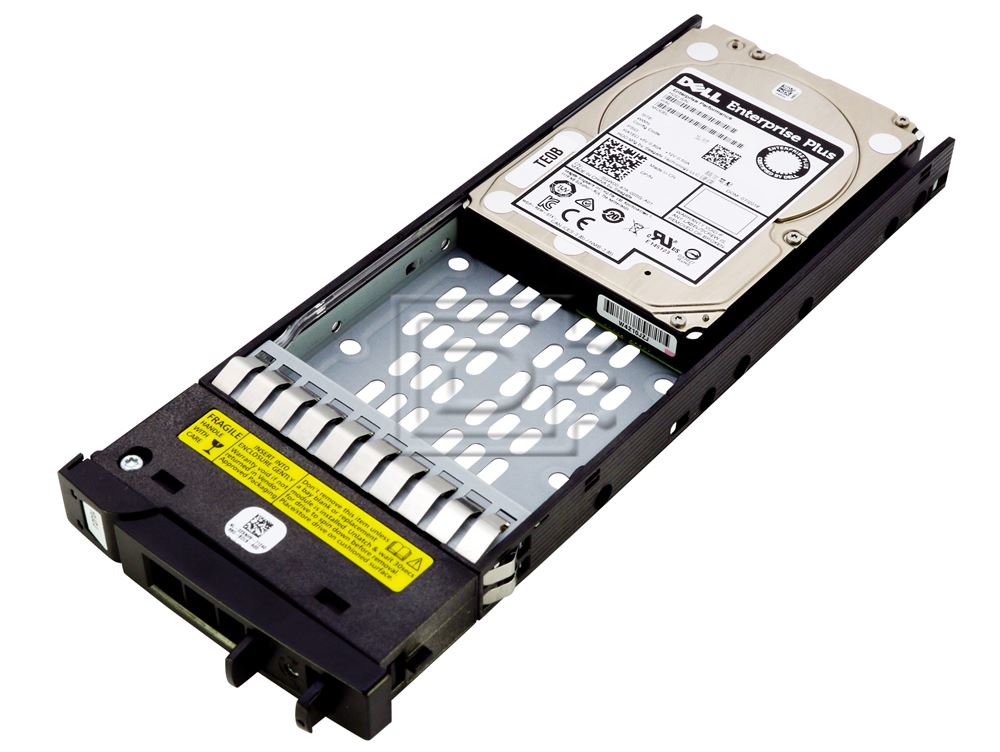

Dell Compellent 2XNHV / 33KFP / Seagate ST600MM0088 600GB 2.5" 12Gbps 10K RPM eMLC Enterprise Plus SAS Hard Drive with 92359-06 tray - Brand New OEM
Dell Compellent 2XNHV / 02XNHV / 33KFP / 033KFP / Seagate ST600MM0088 600GB 2.5" 12Gbps 10K RPM eMLC Enterprise Plus SAS / Serial Attached SCSI HDD / Hard Disk Drive with 92359-06 tray - Brand New OEM
ALT PN:
DPN: 2XNHV. 02XNHV
High-Performing, Up to 600GB, Small Form Factor 10K Hard Drive
- Stores twice the amount of Tier 1 data over previous generation, without increasing drive count, in 2.5-inch form factor
- Enables faster transaction processing, which can result in increased revenue generation and improved customer satisfaction
- Latest 12Gb/s SAS interface for improved scalability
- Industry’s highest MTBF at 2.0M hours
- Support for all drive formats, including 512 Native, 512 Emulation and 4K Native
- Provides up to 18% improvement in SDR performance over prior generation
- SAS-based Protection Information (PI) helps protect against inadvertent data change.
Best-Fit Applications
- High-performance Tier 1 enterprise servers
- Blade, rack and tower servers hosting transaction-based applications
- Power- and space-constrained data centers
- Compliance and data security initiatives
Compatibility:
This 2.5" Dell Compellent SAS Kit is compatible with the following Dell Compellent arrays:
EB-2425
| SPECIFICATIONS | |
|---|---|
| Standard Model | 2XNHV |
| Capacity | 600GB |
| PERFORMANCE | |
| Spindle Speed (RPM) | 10K |
| Average Latency (ms) | 2.9 |
| Sustained Transfer Rate (Outer to Inner Diameter, MB/s) | 215 to 108 |
| Cache, Multisegmented (MB) | 128 |
| CONFIGURATION/RELIABILITY | |
| Disks | 2 |
| Heads | 3 |
| Interface | 12Gb/s SAS |
| External Transfer Rate (MB/s) | 1200 |
| Nonrecoverable Read Errors per Bits Read | 1 per 10e16 |
| Annualized Failure Rate (AFR) | 0.44% |
| TURBOBOOST ENHANCED CACHE FEATURE | |
| I/O Acceleration and Response Time Optimization | - |
| NAND Flash Type | - |
| NAND Flash Size | - |
| Intelligent NAND Endurance Management | - |
| POWER MANAGEMENT | |
| Typical Op (A) +5V/+12V | 0.44/0.41 |
| Typical Operation (W) | 7.15 |
| Power Idle (W) | 3.91 |
| Performance Efficiency Index (Idle W/GB) | 0.0065 |
| ENVIRONMENTAL | |
| Temperature, Operating (°C) | 5 to 55 |
| Temperature, Nonoperating (°C) | -40 to 70 |
| Shock, Operating: 11ms (Gs) | 40 |
| Shock, Nonoperating: 2ms (Gs) | 400 |
| Acoustics Idle (bels—sound power) | 3.1 |
| Vibration, Operating: <500Hz (Gs) | 0.5 |
| Vibration, Nonoperating: <500Hz (Gs) | 3 |
ROHS Compliant
Alternate MPNs: 02XNHV 033KFP 33KFP
Weight: 1.5 lb
Warranty: 1 Year DiscTech
Brand New
The product is brand new.
1 Year DiscTech Warranty
The product has a DiscTech warranty for the time period specified. View our limited warranty
