Dell Equallogic Compellent Part #/MPN: 400-AYDB
DiscTech Item #: DEC-400-AYDB-BN-OE
- Brand NewCondition Levels Explained
The product is brand new.
- Warranty:1 Year DiscTechProduct Warranties Explained
The product has a DiscTech warranty for the time period specified. View our limited warranty
- Special Order - Call for Lead TimeSpecial Order - Call for Lead Time
This item has a variable lead time for fulfilment. Please call us to discuss. Your credit card will be authorized in full on the day of ordering; it will not be charged until the day of shipment.
Enterprise Grade
Capacity: 2.4TB
Speed: 10,000RPM
Interface Types: SAS Serial Attached SCSI
Form Factor: 2.5inx15mm SFF Server Drive
Sector Size: 4Kn
Electrical Interface: SAS-3 Serial Attached SCSI v3 - 12.0Gbps
Compatible Systems: Dell Compellent SCv2080 SC280 SC180, Dell Compellent SCv2000 SCv2020 SC200 SC120 SC100
Dell Compellent 400-AYDB / 7PXN7 2.4TB 2.5 SFF 12Gbps 10K 4Kn SAS Hard Drive Kit 7D4F6 - Brand New
Dell Compellent 400-AYDB / 7PXN7 2.4TB 2.5 SFF 12Gbps 10K 4Kn SAS Hard Drive Kit 7D4F6
Overview
Increase the storage capacity of your system with the 2.4TB Hard Drive from Dell. Offering a rotational speed of 10K RPM, this drive provides fast disk access. Featuring SAS interface, this hard drive delivers enhanced data transfer speeds.
Please note the following restrictions: VMware does not support 512e or 4Kn hard drives. 4Kn hard drives are only supported on Win 2012 and UEFI boot and some Linux. 512e hard drives are only supported with Win2008R2 or greater and some Linux.
Manufacturer Part# : 7PXN7
Dell Part# : 400-AYDB

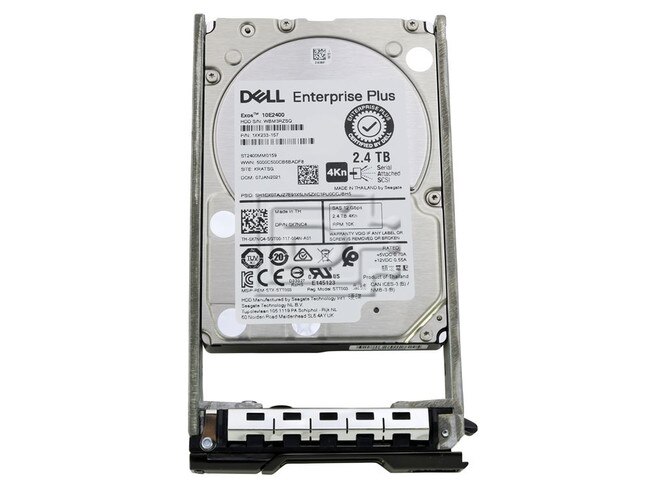

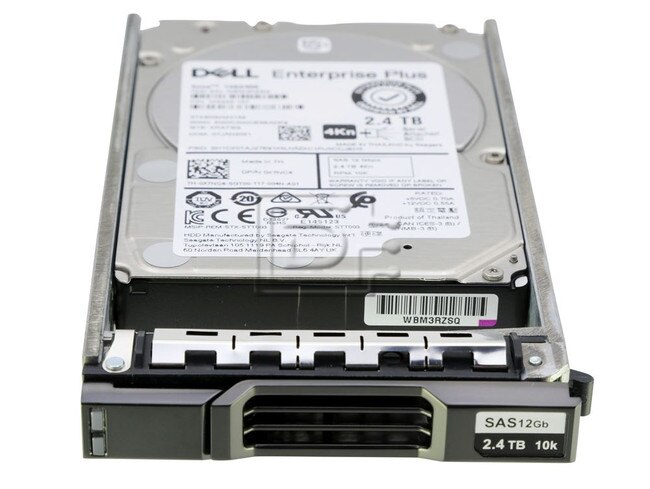

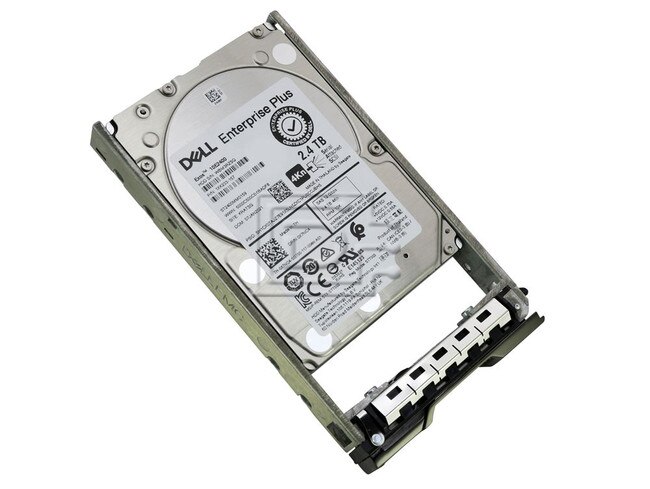

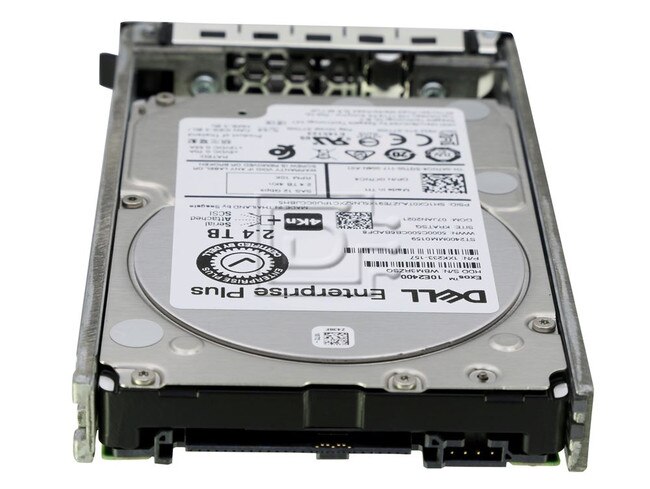

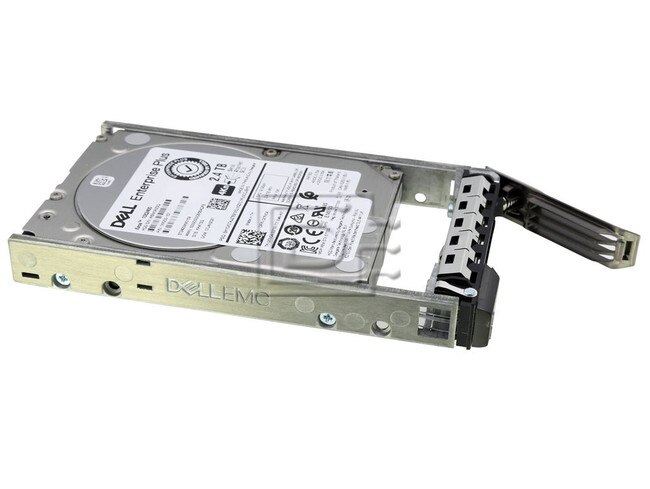

This kit contains one 2.5" Small Form Factor 2.4TB 10K 4Kn format SAS Hard Disk Drive and one Dell Compellent 2.5 inch tray
This drive is compatible with:
Dell Compellent SCv2020,, SCv3020 and expansion units connected to SCv systems.
Compatibility:
| Dell Compellent SCv3020 | Dell Compellent SCv2020 | Dell Compellent SCv |
- 1x 2.5in 2.4TB 12Gbps 10K 4Kn SAS Drive
- 1x Dell 7D4F6 tray / caddy
- 4x mounting screws
| Product Specifications | |
|---|---|
| Dell Part# | 400-AYDB |
| Manufacturer Part# | 7PXN7 07PXN7 |
| Device Type | hot-swap 4Kn Format |
| Capacity | 2.4TB |
| Form Factor | 2.5" |
| Interface | SAS 12Gb/s |
| Data Transfer Type | 1200 MBps (external) |
| Feature | Read Intensive Endurance Advanced Format 4Kn |
Click here to view the manufacturer's item description/brochure
ROHS Compliant
Alternate MPNs: 7PXN7 07PXN7
Weight: 1.8 lb
Warranty: 1 Year DiscTech
Brand New
The product is brand new.
1 Year DiscTech Warranty
The product has a DiscTech warranty for the time period specified. View our limited warranty
