Dell Equallogic Compellent Part #/MPN: 4X22G
DiscTech Item #: DEC-4X22G-NP-OE
- New PullCondition Levels Explained
The product has been mounted in a brand new system (e.g. server), then removed from the system, before entering service. These products may have some hours of usage due to system build time / burn-in / testing etc. New Pulls are guaranteed to have at least 95% (often 99%) of their service life remaining , they may show signs of being physically mounted and dismounted. All handling is performed by trained technicians, taking full ESD precautions.
- Warranty:1 Year DiscTechProduct Warranties Explained
The product has a DiscTech warranty for the time period specified. View our limited warranty
- In Stock:32Need more?Stock Levels
This stock level is real time and accurate. This quantity is available for same-day shipment. Larger quantities can take up to a week to ship. Call us for larger quantities that you need urgently.
Enterprise Grade
Capacity: 450GB
Speed: 15,000RPM
Interface Types: SAS Serial Attached SCSI
Form Factor: 3.5inx1.0in LFF Hard Drive
Sector Size: 512 / 512e
Sustained Throughput: 233 to 160
Average Seek Time: 2.0
Electrical Interface: SAS-3 Serial Attached SCSI v3 - 12.0Gbps
On-Board Cache: 128MB
SSD Type: MLC
Hybrid SSD Cache: 32GB/MLC NAND

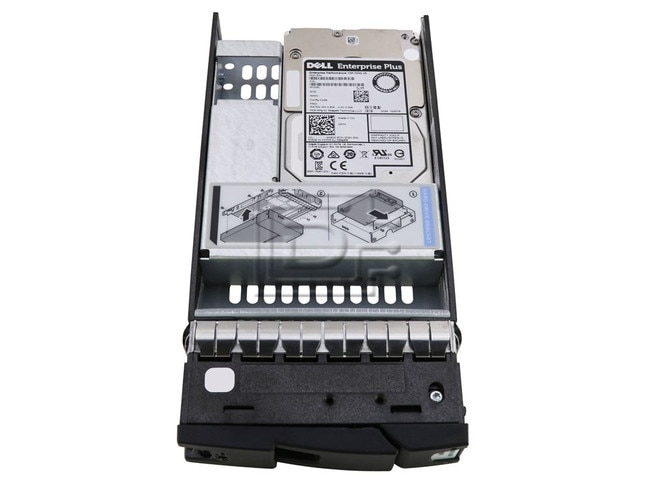

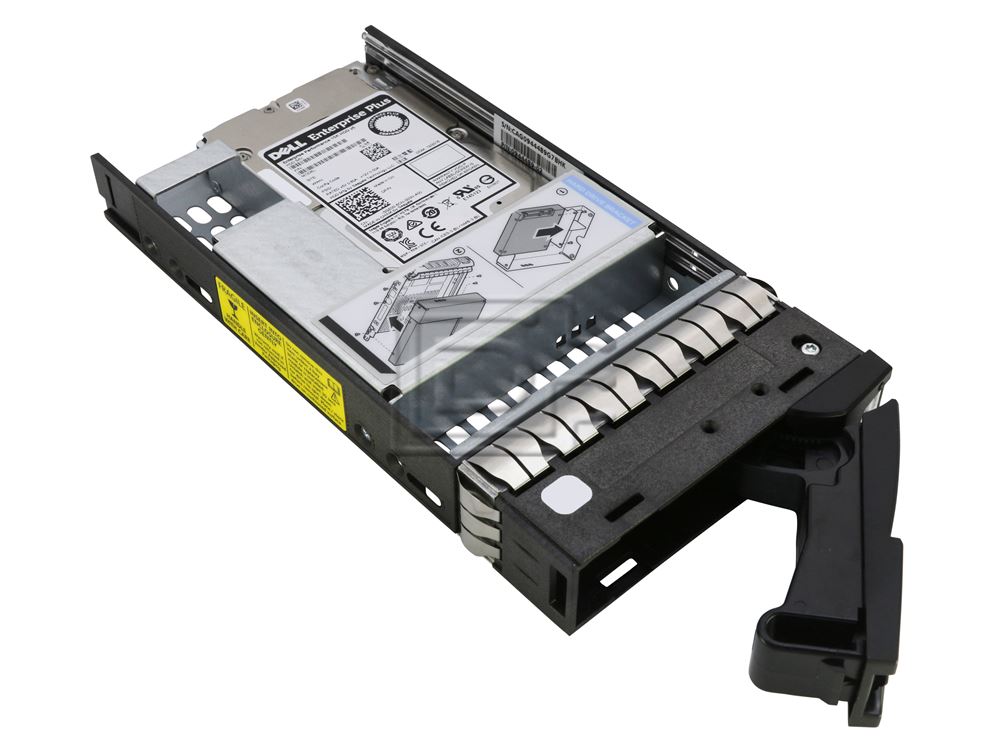

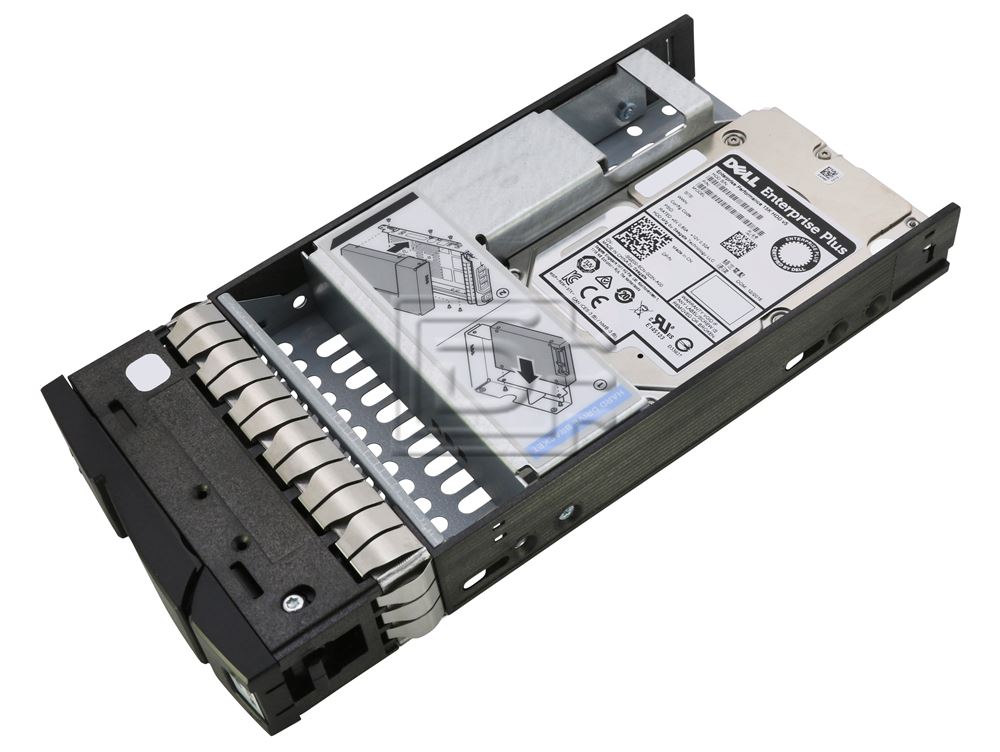

Dell Compellent 4X22G / 04X22G / KC5Y1 / 0KC5Y1 / Seagate ST450MP0005 450GB 3.5" 12Gbps 15K RPM 512n eMLC Enterprise SAS Enterprise Plus Hybrid Hard Drive with 944489-02 Tray and Y004G bracket - New Pull
Dell Compellent 4X22G / 04X22G / KC5Y1 / 0KC5Y1 / Seagate ST450MP0005 450GB 3.5" 12.0 Gbps 15,000 RPM 512 Native Enterprise-Multi Level Cell / eMLC, Serial Attached SCSI / SAS Enterprise Plus Hybrid Hard Drive with 944489-02 Tray and Y004G bracket - New Pull
Enterprise Performance 15K HDD
High-Performing, Up to 600GB, Small Form Factor 15K Hard Drive
- Stores twice the amount of Tier 1 data over previous generation, without increasing drive count, in 2.5-inch form factor
- Enables faster transaction processing, which can result in increased revenue generation and improved customer satisfaction
- Latest 12Gb/s SAS interface for improved scalability
- Industry’s highest MTBF at 2.0M hours
- Support for all drive formats, including 512 Native, 512 Emulation and 4K Native
- Provides up to 18% improvement in SDR performance over prior generation
- SAS-based Protection Information (PI) helps protect against inadvertent data change.
- Self-Encrypting Drive (SED) option (AES-256) helps cut IT drive retirement costs while helping securely protect data where it lives—on the drive.
- SED models can be used as standard drives, as ISE feature for easy drive disposal or as part of a more secure solution.
- FIPS Self-Encrypting Drive option helps protect Sensitive but Unclassified and Protected class data.
Best-Fit Applications
- High-performance Tier 1 enterprise servers
- Blade, rack and tower servers hosting transaction-based applications
- Power- and space-constrained data centers
- Compliance and data security initiatives
Compatibility:
Dell Compellent 3.5" LFF SAS Kit is compatible with the following Dell Compellent arrays:
EB-2425
| SPECIFICATIONS | |
|---|---|
| Standard Model | 4X22G |
| Specification | 512 Native |
| Capacity | 450GB |
| Interface | 12Gb/s SAS |
| PERFORMANCE | |
| Average Latency (ms) | 2.0 |
| Sustained Transfer Rate (Outer to Inner Diameter) MiB/s | 233 to 160 |
| Max. Instantaneous Transfer Rate (SAS dual port) MB/s | 2400 |
| Cache, Multisegmented (MB) | 128 |
| TURBOBOOST ENHANCED CACHE | |
| NAND Flash Type | eMLC |
| NAND Flash Size | 32GB |
| CONFIGURATION/RELIABILITY | |
| Disks/Heads | 3/6 |
| Nonrecoverable Read Errors per Bits Read, Max | 1 per 10e16 |
| Annualized Failure Rate (AFR) | 0.44% |
| POWER MANAGEMENT | |
| Typical Op (A) +5V/+12V | 0.41/0.52 |
| Average Idle Power (W) | 5.2 |
| Average Operating Power (W) | 8.4 |
| ENVIROMENTAL | |
| Ambient Temperature, Operating (C°) | 5 to 55 |
| Ambient Temperature, Nonoperating (C°) | -40 to 70 |
| Temperature Change Rate/Hr, Max (C°) | 20 |
| Relative Humidity, Noncondensing (max gradient 20% hour) | 5% to 95% |
| Shock, Max Operating: 11ms (Gs) | 40 |
| Shock, Max Nonoperating: 2ms (Gs) | 400 |
| Vibration, Operating: <400Hz (Gs) | 0.5 |
| Vibration, Nonoperating: <500Hz (Gs) | 2.4 |
ROHS Compliant
Alternate MPNs: 04X22G KC5Y1 0KC5Y1
Weight: 1 lb
Warranty: 1 Year DiscTech
New Pull
The product has been mounted in a brand new system (e.g. server), then removed from the system, before entering service. These products may have some hours of usage due to system build time / burn-in / testing etc. New Pulls are guaranteed to have at least 95% (often 99%) of their service life remaining , they may show signs of being physically mounted and dismounted. All handling is performed by trained technicians, taking full ESD precautions.
1 Year DiscTech Warranty
The product has a DiscTech warranty for the time period specified. View our limited warranty
