Dell Equallogic Compellent Part #/MPN: 91FW9
DiscTech Item #: DEC-91FW9-NP-OE
- New PullCondition Levels Explained
The product has been mounted in a brand new system (e.g. server), then removed from the system, before entering service. These products may have some hours of usage due to system build time / burn-in / testing etc. New Pulls are guaranteed to have at least 95% (often 99%) of their service life remaining , they may show signs of being physically mounted and dismounted. All handling is performed by trained technicians, taking full ESD precautions.
- Warranty:1 Year DiscTechProduct Warranties Explained
The product has a DiscTech warranty for the time period specified. View our limited warranty
- Low Stock:Call for ETAStock Levels
This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.
Enterprise Grade
Capacity: 1.2TB
Speed: 10K RPM
Interface Types: SAS
Form Factor: 2.5" SFF Server Drive
Encryption/SED Supported
Sector Size: 512 / 512e
Sustained Throughput: 204 / 125
Average Seek Time: 2.9
Electrical Interface: SAS-2 6Gbps
On-Board Cache: 64MB
Compatible Systems: Dell Compellent SCv2000 SCv2020 SC200 SC120 SC100

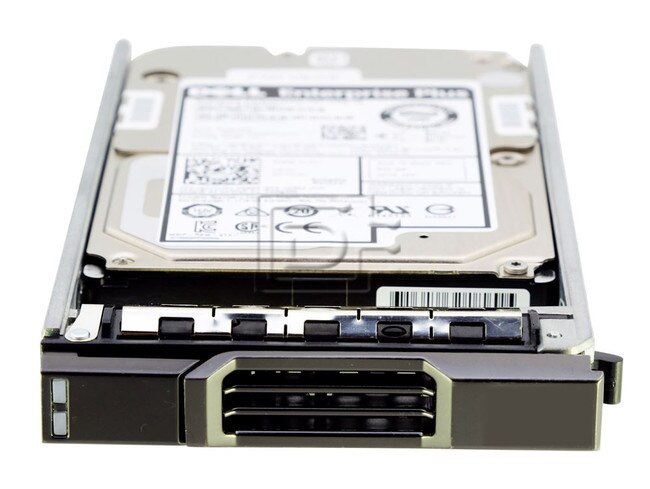

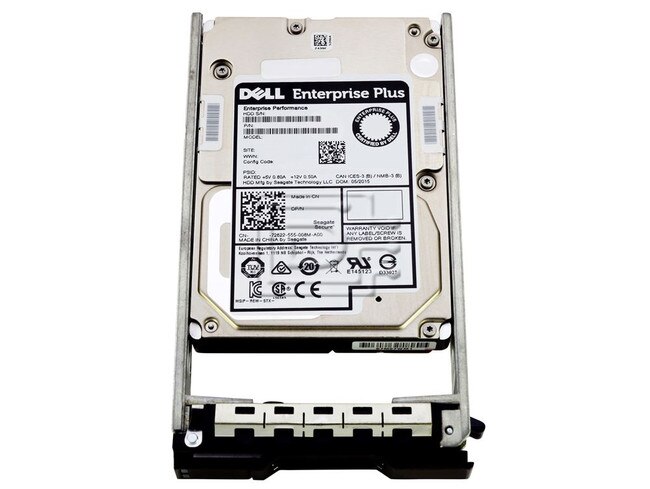

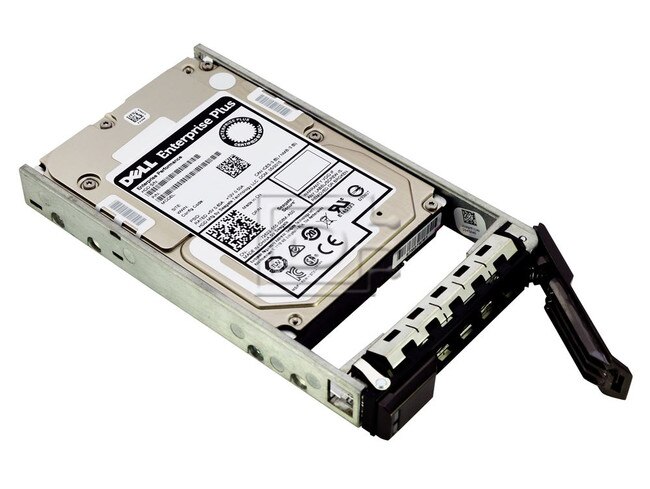

Dell Compellent 91FW9 / 091FW9 / 0G8GVM / G8GVM 1.2TB / 1200GB 6Gbps 10K 2.5" SFF SED FIPS SAS Enterprise Plus Hard Drive with 7D4F6 tray - New Pull
Dell Compellent 91FW9 / 091FW9 / 0G8GVM / G8GVM / Seagate Enterprise Performance 10K.7 ST1200MM0027 / 1DA220-257 1.2TB / 1200GB 6Gbps 10K 2.5" SFF SED FIPS SAS Enterprise Plus HDD / Hard Drive with 7D4F6 tray - New Pull
Enterprise Performance 10K HDD—The Perfect Performance Upgrade- Transition from slower 2.5", 10K-RPM or lower-capacity 3.5", 15K-RPM hard drives to smaller, faster, best-in-class Savvio 10K.6 enterprise hard drives.
- PowerChoice™ technology for T10-compliant power management enables IT organizations to tailor systems for performance and power consumption.
- First mission-critical HDD to offer the Seagate® RAID Rebuild™ technology option—making RAID recovery faster and safer.
- Protection Information (PI) protects against inadvertent data change.1
- Self-Encrypting Drive (SED) models can be used as standard drives or as part of a more secure solution.
- Seagate Instant Secure Erase (ISE) technology makes it safe, fast, and easy to retire, repurpose and sell drives.
- High capacity and small footprint enables data centers to keep pace with data growth and optimize data center real estate.
- FIPS 140-2, Level 2 certified SED models—only from Seagate—make FIPS 140-2 compliance quick and easy for US and Canadian government agencies.2,3
- Seagate Unifed Storage architecture reduces complexity and costs by converging disparate interfaces, form factors and security standards.
- Mission-critical servers and external storage arrays
- Power- and space-constrained data centers
- Green IT and drive-retirement cost reduction initiatives
- Compliance or data security initiatives
- Migration from 3.5" drive systems to next-generation technology
Compatibility:
This 3.5" SAS / SATA caddy is compatible with the following Dell SC Compellent systems supporting 3.5" hot swappable disks:
| Dell Compellent SC120 | Dell Compellent SC220 | Dell Compellent SCv2020 | Dell Compellent SC4020 |
| Dell Compellent SC5020 | Dell Compellent SC5020f | Dell Compellent SC420 | Dell Compellent SCv3020 |
| Specifications | |
|---|---|
| SED FIPS 140-2 Model Number | 91FW9 |
| Model Name | Enterprise Performance 10K HDD v7 |
| Interface | 6Gb/s SAS |
| Capacity | |
| Formatted 512 Bytes/Sector (GB) | 1200 |
| External Transfer Rate (MB/s) | 600 |
| Performance | |
| Spindle Speed (RPM) | 10K |
| Average Latency (ms) | 2.9 |
| Sustained Transfer Rate - Outer to Inner Diameter (MB/s) | 204 to 125 |
| Cache, Multisegmented (MB) | 64 |
| Configuration/Reliability | |
| Disks | 4 |
| Heads | 8 |
| Nonrecoverable Read Errors per Bits Read | 1 per 10E16 |
| Annualized Failure Rate (AFR) | 0.44% |
| Power Management | |
| Typical Op (A) +5V/+12V | 0.38/0.51 |
| Power Idle (W) | 4.6 |
| Environmental | |
| Temperature, Operating (°C) | 5 to 55 |
| Temperature, Nonoperating (°C) | –40 to 70 |
| Shock, Operating: 11ms (Gs) | 40 |
| Shock, Nonoperating: 2ms (Gs) | 400 |
| Acoustics Idle (bels—sound power) | 3.4 |
| Vibration, Operating: <500Hz (Gs) | 0.5 |
| Vibration, Nonoperating: <500Hz (Gs) | 3.0 |
| Physical | |
| Height (in/mm, max) | 0.591/15.00 |
| Width (in/mm, max) | 2.760/70.10 |
| Depth (in/mm, max) | 3.955/100.45 |
| Weight (lb/kg) | 0.450/0.204 |
Alternate MPNs: 091FW9 0G8GVM G8GVM
Weight: 1.5 lb
Warranty: 1 Year DiscTech
New Pull
The product has been mounted in a brand new system (e.g. server), then removed from the system, before entering service. These products may have some hours of usage due to system build time / burn-in / testing etc. New Pulls are guaranteed to have at least 95% (often 99%) of their service life remaining , they may show signs of being physically mounted and dismounted. All handling is performed by trained technicians, taking full ESD precautions.
1 Year DiscTech Warranty
The product has a DiscTech warranty for the time period specified. View our limited warranty
