SAMSUNG Part #/MPN: MZILT960HAHQAD3
DiscTech Item #: SAM-MZILT960HAHQAD3-NP-OE-DEC
- New PullCondition Levels Explained
The product has been mounted in a brand new system (e.g. server), then removed from the system, before entering service. These products may have some hours of usage due to system build time / burn-in / testing etc. New Pulls are guaranteed to have at least 95% (often 99%) of their service life remaining , they may show signs of being physically mounted and dismounted. All handling is performed by trained technicians, taking full ESD precautions.
- Warranty:1 Year DiscTechProduct Warranties Explained
The product has a DiscTech warranty for the time period specified. View our limited warranty
- Low Stock:Call for ETAStock Levels
This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.
Enterprise Grade
Capacity: 960GB
Speed: Solid State Memory
Interface Types: SAS Serial Attached SCSI
Form Factor: 2.5inx15mm SFF Server Drive
Sector Size: 512 / 512e
Electrical Interface: SAS-3 Serial Attached SCSI v3 - 12.0Gbps
SSD Type: TLC
SSD Endurance DWPD: Enterprise Read Intensive
Compatible Systems: Dell 14th Gen. R640/R740, Dell 13th Gen. R730/T630, Dell 12th Gen. R720/T620

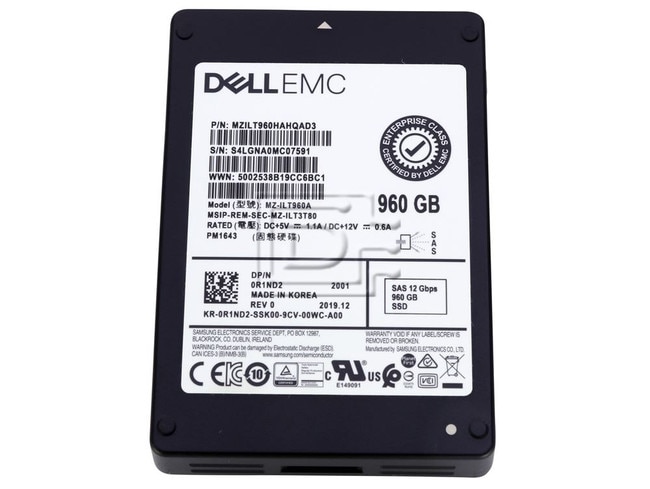

Dell Compellent EMC R1ND2 / Samsung PM1643 Series MZILT960HAHQAD3 / MZ-ILT960A 960GB 12Gbps 2.5 SFF Enterprise Read-Intensive 1-DWPD TLC SAS SSD - New Pull
Alt MPN: MZ-ILT960A R1ND2 0R1ND2
Dell Compellent EMC R1ND2 / Samsung PM1643 Series MZILT960HAHQAD3 / MZ-ILT960A 960GB 12Gbps 2.5" SFF Enterprise Read-Intensive 1-DWPD TLC SAS SSD - New Pull
Samsung PM1643 SAS SSD offers up to 6 times the performance of 15K RPM HDD
Enterprise server and storage administrators face challenging requirements to deliver mission-critical business infrastructure on a limited budget. It is also imperative these environments remain stable when processing multiple heavy workloads. Considering each of these factors, IT and data center managers are tasked with finding high performing and dependable storage solutions.
Samsung provides SSDs with exceptional performance and reliability in primary enterprise storage applications such as virtual desktop infrastructures, web servers, email servers, enterprise resource planning, and relational databases.
Compared to performance HDDs, the Samsung PM1643 achieves sequential workloads up to 6 times faster, thereby reducing the total cost of ownership (TCO).
As the pioneer in vertical-NAND (V-NAND) technology, Samsung has the added advantage of being a vertically integrated supplier of all its SSD components, assuring end-to-end integration and superb quality.
Optimized for enterprise environments:
To deliver enterprise reliability and performance, Samsung PM1643 uses a native SAS 3.0 controller, supporting dual-port high availability needs.
To meet the demand of high utilization, highly virtualized enterprise environments, the PM1643 uses firmware that prioritizes quality of service (QoS) for sustained random workloads, which keeps virtual machines running quickly and smoothly.
When the majority of mission-critical workloads rely on small-sized random read (4 KB or less), the PM1643 shows excellent performance to deliver high IOPS. The firmware is also optimized for always on, always busy workloads, and is ready to respond quickly to incoming host requests. With no moving parts to fail, the PM1643 delivers enterprise class reliability for critical business data.
Compatibility:
This drive is compatible with any server that accepts 2.5"x15mm (SFF) SAS drives.
Samsung PM1643 SSD Technical Specifications | |
---|---|
Form Factor | 2.5” |
Capacity | 960GB |
Host Interface | SAS 3.0 @ 12 Gb/s |
MTBF | 2,000,000 hours |
Power Consumption (Active/Idle) | 13.5 W / 5 W |
Endurance | 1 DWPD for 5 Years |
UBER | 1 in 10^17 |
Random Read | Up to 400,000 IOPS |
Random Write | Up to 70,000 IOPS |
Sequential Read | Up to 2,100 MB/s |
Sequential Write | Up to 2,100 MB/s |
Physical Dimensions | 69.85 x 100.2 x 14.8 mm |
Weight | 160 grams |
Click here to view the manufacturer's item description/brochure
ROHS Compliant
Alternate MPNs: R1ND2 0R1ND2 MZ-ILT960A
Weight: 1 lb
Warranty: 1 Year DiscTech
New Pull
The product has been mounted in a brand new system (e.g. server), then removed from the system, before entering service. These products may have some hours of usage due to system build time / burn-in / testing etc. New Pulls are guaranteed to have at least 95% (often 99%) of their service life remaining , they may show signs of being physically mounted and dismounted. All handling is performed by trained technicians, taking full ESD precautions.
1 Year DiscTech Warranty
The product has a DiscTech warranty for the time period specified. View our limited warranty
