Dell Compellent FK02V / YHJFV 6TB SAS Enterprise Plus Hard Drive

Dell Equallogic Compellent Part #/MPN: FK02V

DiscTech Item #: DEC-FK02V-NP-OE


Enterprise Grade

Capacity: 6TB

Speed: 7,200RPM

Interface Types: SAS Serial Attached SCSI

Form Factor: 3.5inx1.0in LFF Hard Drive

Encryption/SED Supported

Sector Size: 512 / 512e

Sustained Throughput: 226

Average Seek Time: 4.16

Electrical Interface: SAS-3 Serial Attached SCSI v3 - 12.0Gbps

On-Board Cache: 128MB

Compatible Systems: Dell Compellent SCv2000 SCv2020 SC200 SC120 SC100

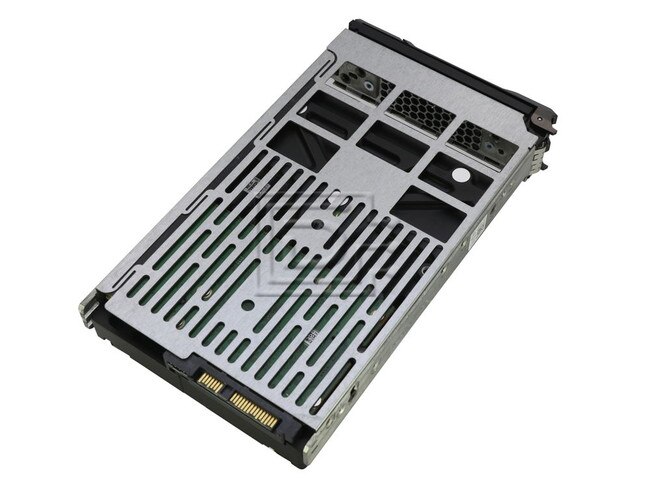

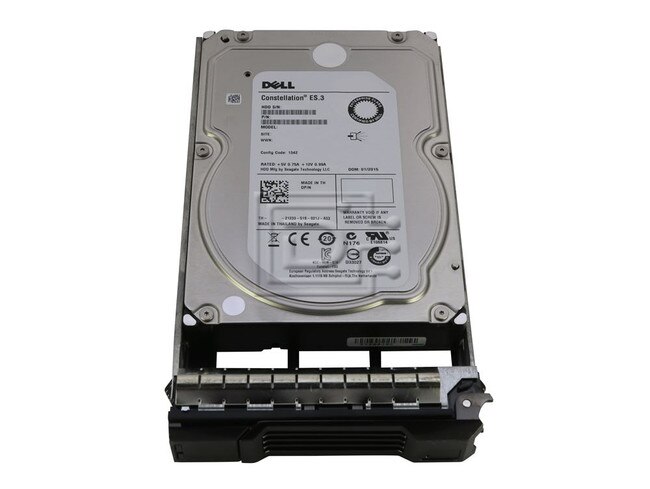

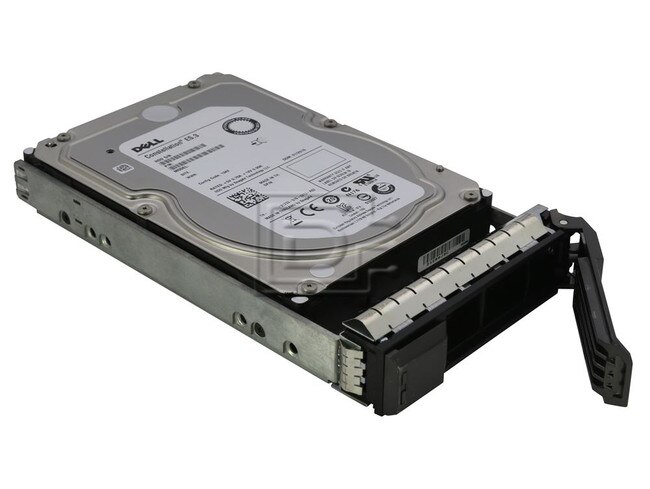

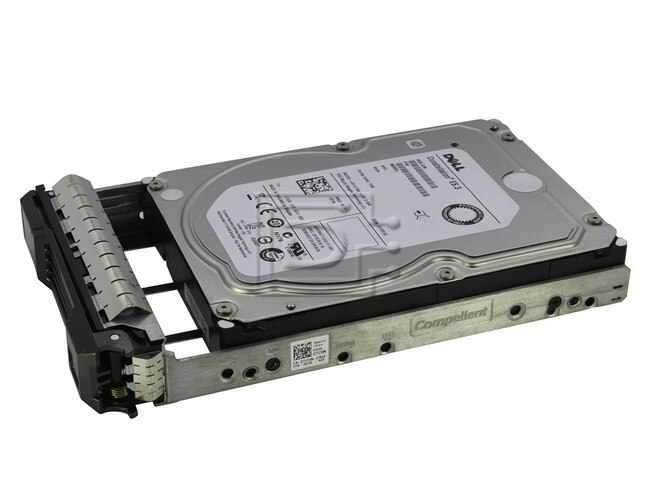

Dell Compellent FK02V / 0FK02V / 0YHJFV / YHJFV / Seagate ST6000NM0285 / 2BS210-257 6TB 3.5" LFF 12Gbps 7.2K RPM 512e SAS SED FIPS Enterprise Plus Hard Disk Drive w/ 72CWN - New Pull

Dell Compellent FK02V / 0FK02V / 0YHJFV / YHJFV / Seagate Exos 7E8 ST6000NM0285 / 2BS210-257 ST6000NM0285 6TB / 6000GB 3.5" Large Form Factor / LFF 12 Gb/s 7200 RPM 512 Emulation Self-Encrypting / SED Federal Information Processing Standards / FIPS 140-2 Serial Attached SCSI / SAS Enterprise Plus Hard Disk Drive / HDD w/ 72CWN - New Pull

Trusted. Efficient. Versatile.
Exos 7E8

The Seagate® Exos™ 7E8 enterprise hard drive confidently stores up to 8TB of data without sacrificing performance. The secure, highcapacity, high-performance drives are optimized for demanding enterprise bulk data applications.

Enterprise Drive for Bulk Data Applications
Exos 7E8 hard drives support up to 8TB per drive, offering bulk data storage for data center infrastructures requiring a highly reliable enterprise hard drive. Exos 7E8 provides cost-effective, reliable access to unstructured data. Built on field-proven 9thgeneration conventional magnetic recording (CMR) technology, the Exos 7E8 drive helps to catalyze the datasphere, enabling data center architects and IT professionals to deliver trusted performance, rock-solid reliability, ironclad security and low TCO for demanding 24×7 operations.

Robust Bulk Data Storage for a 24×7 World
Exos 7E8 drives are backed by a 2 million hour MTBF rating and support workloads of 550TB per year—10× that of desktop hard drives. With state-of-the-art cache, on-thefly error-correction algorithms and rotational vibration design, the Exos 7E8 helps ensure consistent performance in replicated and RAID multi-drive systems.

High Performance for Mainstream Data Center Applications
Meet your storage workload requirements in the most efficient and cost-effective data center footprint on the market today. The Exos 7E8 delivers easy integration into bulk storage systems with 12Gb/s SAS and SATA 6Gb/s interface options. With userdefinable innovative technology advancements like PowerChoice™ and Seagate RAID Rebuild ® , you can tailor your nearline storage requirements for even greater improvements in lowering your TCO.

Enhanced Enterprise Reliability, Data Protection and Security
Advanced security features help protect data where it lives—on the drive. Exos 7E8 prevents unauthorized drive access and safeguards stored data with security features that include Secure Downloads & Diagnostics, TCG-compliant Self-Encrypting Drive and government-grade FIPS/Common Criteria tamper-resistent hard drive. Seagate Secure™ drives simplify drive repurposing and disposal, help protect data-at-rest and comply with corporate and federal data security mandates.

Best-Fit Applications

  • Hyperscale applications/cloud data centers
  • Massive scale-out data centers
  • OLTP and HPC applications
  • High-capacity density RAID storage
  • Mainstream enterprise external storage arrays
  • Distributed file systems, including Hadoop and Ceph
  • Enterprise backup and restore— D2D, virtual tape
  • Centralized surveillance



This 3.5" SAS Hard Drive is compatible with the following Dell SC Compellent systems supporting 3.5" hot swappable disks:


Dell Compellent HDD
Seagate Secure SED-FIPS ModelFK02V
Special Features
Reliability/Data Integrity
Power Consumption
Capacity6TB / 6000GB
InterfaceSAS 12bp/s
Sector Size512e
Protection InfromationYes
Humidity SensorYes
Halogen FreeYes
PowerChoice TechnologyYes
PowerBalance TechnolgyYes
Advance Writing Caching (internal NOR flash)Yes
Vibration, Nonoperating: 10Hz to 500Hz (Grms)---
Reliability Rating @ Full 24×7 Operation (AFR)0.44%
Nonrecoverable Read Errors per Bits Read, Max1 sector per 10E15
Power-On Hours8760
Bytes per Sector512, 520, 528
Spin Speed7200RPM
Interface Access Speed (Gb/s)12.0, 6.0,3.0
Max Sustainable Transfer Rate226MB/s
Average Latency(ms)4.16
Interface PortsDual
Rotational Vibration @ 1500Hz (rad/s)12.5
Idle Average(W)8.37W
Average Operating Power9.2W
Power Supply Requirements+12 V and +5 V
Temprature, Operating(°C)5°C - 60°C
Shock, Operating Power70/40Gs
Shock, Nonoperating, 1 ms/2ms (Gs)150/250Gs
Width(mm/in, max)101.85mm/4.01in
Depth(mm/in, max)147.0mm/5.787in

Click here to view the manufacturer's item description/brochure

ROHS Compliant

Alternate MPNs: 0FK02V YHJFV 0YHJFV ST6000NM0285 2BS210-257

Weight: 1.8 lb

Warranty: 1 Year DiscTech

New Pull

Condition Levels Explained

The product has been mounted in a brand new system (e.g. server), then removed from the system, before entering service. These products may have some hours of usage due to system build time / burn-in / testing etc. New Pulls are guaranteed to have at least 95% (often 99%) of their service life remaining , they may show signs of being physically mounted and dismounted. All handling is performed by trained technicians, taking full ESD precautions.

1 Year DiscTech Warranty

Product Warranties Explained

The product has a DiscTech warranty for the time period specified. View our limited warranty
