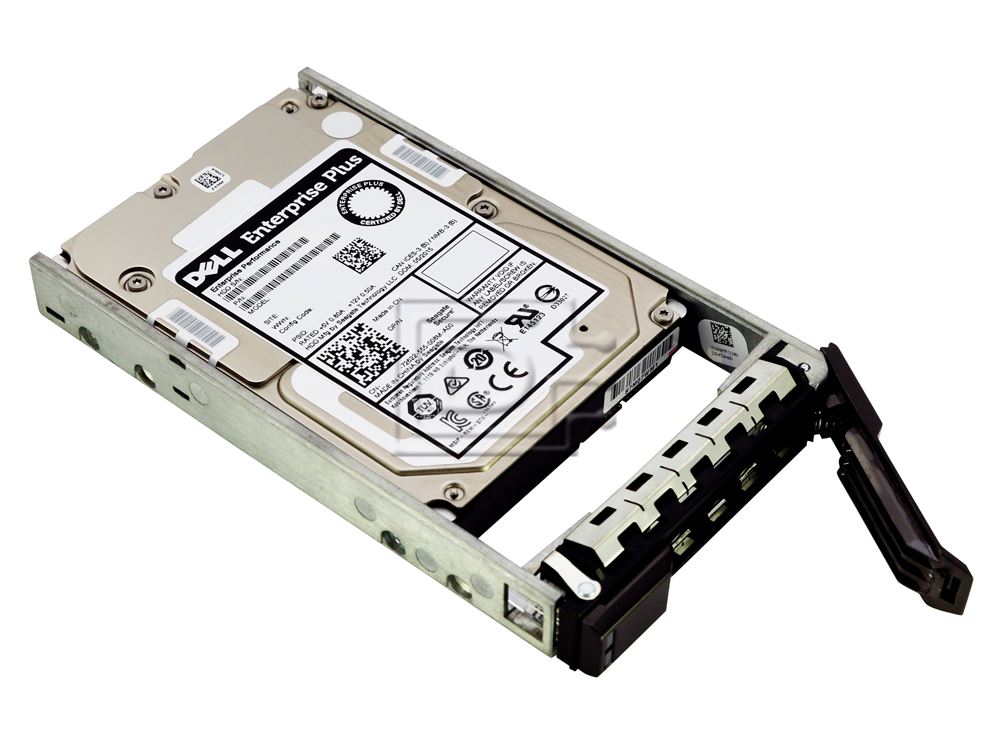

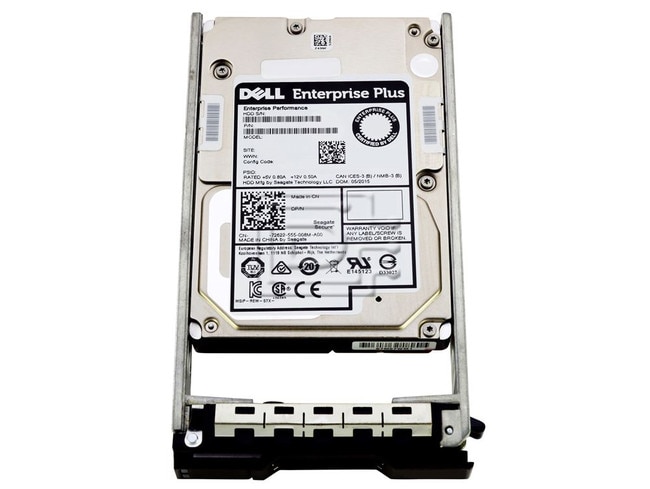

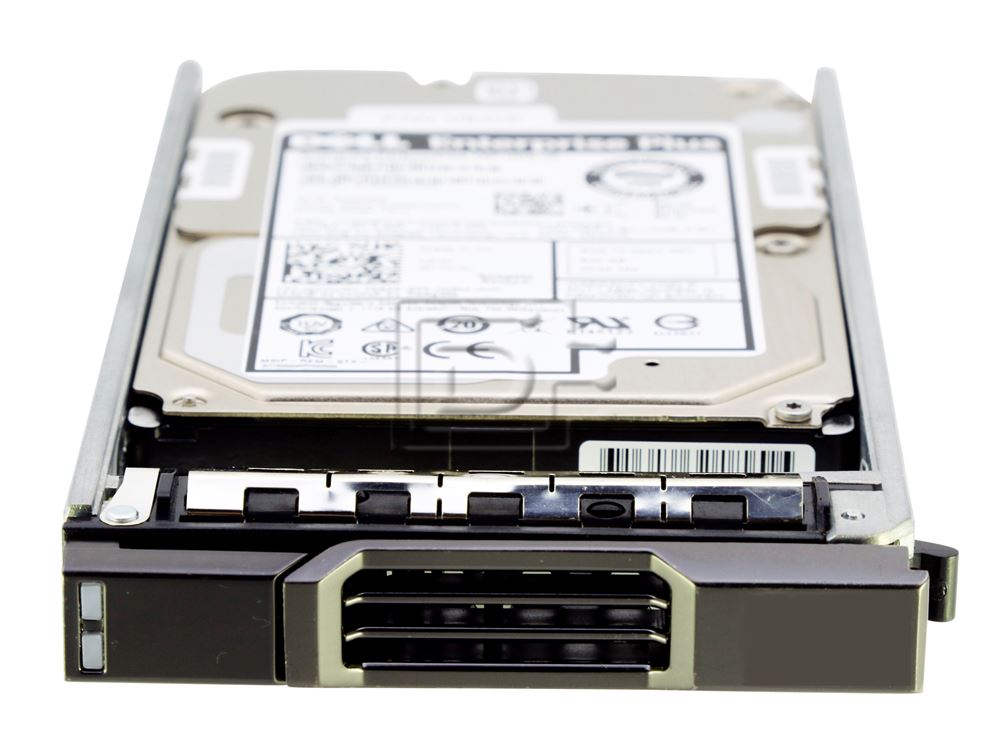

Dell Compellent FNPTY / 0DYN7N 600GB SAS Enterprise Plus Hard Disk Drive
| Capacity: | 600GB |
| Speed: | 15K RPM |
| Interface Types: | SAS |
| Form Factor: | 2.5" SFF Server Drive |
| Electrical Interface: | SAS-3 12Gbps |
| RAM: | 128MB |
Description
Dell Compellent FNPTY / 0FNPTY / 0DYN7N / DYN7N 600GB 2.5" 12Gbps 15K eMLC FIPS/SED SAS Enterprise Plus HDD with 7D4F6 tray - New Pull
Dell Compellent FNPTY / 0FNPTY / 0DYN7N / DYN7N / Seagate ST600MP0025 / 1MJ220-257 600GB 2.5" SFF 12Gbps 15K / 15,000 RPM eMLC / Enterprise-Multi Level Cell SED / Self-Encrypting FIPS SAS / Serial Attached SCSI Enterprise Plus HDD / Hard Disk Drive with 7D4F6 tray - New Pull
Enterprise Performance 15K HDD
High-Performing, Up to 600GB, Small Form Factor 15K Hard Drive
- Stores twice the amount of Tier 1 data over previous generation, without increasing drive count, in 2.5-inch form factor
- Enables faster transaction processing, which can result in increased revenue generation and improved customer satisfaction
- Latest 12Gb/s SAS interface for improved scalability
- Industry’s highest MTBF at 2.0M hours
- Support for all drive formats, including 512 Native, 512 Emulation and 4K Native
- Provides up to 18% improvement in SDR performance over prior generation
- SAS-based Protection Information (PI) helps protect against inadvertent data change.
- Seagate Secure™ drive options (AES-256) help cut IT drive retirement costs while helping securely protect data where it lives—on the drive.
- Seagate Secure models can be used as standard drives, as ISE feature for easy drive disposal or as part of a more secure solution.
- Seagate Secure FIPS drive option helps protect Sensitive but Unclassified and Protected class data.
Best-Fit Applications
- High-performance Tier 1 enterprise servers
- Blade, rack and tower servers hosting transaction-based applications
- Power- and space-constrained data centers
- Compliance and data security initiatives
Compatibility:
This 3.5" SAS / SATA caddy is compatible with the following Dell SC Compellent systems supporting 3.5" hot swappable disks:
| Dell Compellent SC120 | Dell Compellent SC220 | Dell Compellent SCv2020 | Dell Compellent SC4020 |
| Dell Compellent SC5020 | Dell Compellent SC5020f | Dell Compellent SC420 | Dell Compellent SCv3020 |
Specifications
| SPECIFICATIONS | |
|---|---|
| Model Number | FNPTY |
| Secure | Yes |
| FIPS | Yes |
| Specification | 512 Native |
| Capacity | 600GB |
| Interface | 12Gb/s SAS |
| PERFORMANCE | |
| Average Latency (ms) | 2.0 |
| Sustained Transfer Rate (Outer to Inner Diameter) MiB/s | 233 to 160 |
| Max. Instantaneous Transfer Rate (SAS dual port) MB/s | 2400 |
| Cache, Multisegmented (MB) | 128 |
| TURBOBOOST ENHANCED CACHE | |
| NAND Flash Type | eMLC |
| NAND Flash Size | 32GB |
| Mixed-Workload Performance (IOPS, compared to standard model) | up to 3x |
| CONFIGURATION/RELIABILITY | |
| Disks/Heads | 3/6 |
| Nonrecoverable Read Errors per Bits Read, Max | 1 per 10e16 |
| Annualized Failure Rate (AFR) | 0.44% |
| POWER MANAGEMENT | |
| Typical Op (A) +5V/+12V | 0.44/0.54 |
| Average Idle Power (W) | 5.3 |
| Average Operating Power (W) | 8.7 |
| ENVIRONMENTAL | |
| Ambient Temperature, Operating (C°) | 5 to 55 |
| Ambient Temperature, Nonoperating (C°) | -40 to 70 |
| Temperature Change Rate/Hr, Max (C°) | 20 |
| Relative Humidity, Noncondensing (max gradient 20% hour) | 5% to 95% |
| Shock, Max Operating: 11ms (Gs) | 40 |
| Shock, Max Nonoperating: 2ms (Gs) | 400 |
| Vibration, Operating: <400Hz (Gs) | 0.5 |
| Vibration, Nonoperating: <500Hz (Gs) | 2.4 |
| PHYSICAL | |
| Height (in/mm, max) | 0.591/15.00 |
| Width (in/mm, max) | 2.750/69.85 |
| Depth (in/mm, max) | 3.955/100.45 |
| Weight (lb/kg) | 0.507/0.230 |
ROHS Compliant
Alternate MPNs: 0FNPTY 0DYN7N DYN7N ST600MP0025
Weight: 1.5 lb
Warranty: 1 Year DiscTech
Condition
New Pull
Warranty
1 Year DiscTech Warranty
